Honda FourTrax 300 Parts Diagram: Component Breakdown 2026
The Honda FourTrax 300 parts diagram details the 282cc air-cooled engine, Keihin VE carburetor, 5-speed transmission, and chassis layout. It references official OEM numbers, bolt torque specs (e.g., cylinder head at 22 ft-lbs), and electrical system wire colors to simplify maintenance, component replacement, and structural repairs.
📌 Key Takeaways
- Detailed layout charts display OEM part numbers and torque specifications, such as cylinder head bolts at 22 ft-lbs.
- Primary engine structure features a 282cc air-cooled single-cylinder system with a Keihin constant-velocity carburetor.
- Electrical system diagrams specify color-coded wiring paths for the CDI ignition unit and 12V charging circuit.
- Most common structural wear occurs on rear axle bearings, lower A-arm bushings, and wet clutch friction plates.
- DIY replacement is ideal for bolt-on components, while internal transmission rebuilds require professional split-case tools.
The Honda FourTrax 300 (TRX300 and TRX300FW 4×4 models produced from 1988 to 2000) remains an industry standard for utility ATV engineering. Maintaining, repairing, or restoring this utility vehicle requires precise reference data to accurately identify components, trace electrical circuits, and verify mechanical sub-assemblies. Utilizing an official OEM honda fourtrax 300 parts diagram eliminates guesswork when sourcing replacement hardware, diagnosing transmission gear wear, or rebuilding internal assemblies. This comprehensive technical guide details the structural layout, system configurations, and schematic references necessary to perform factory-grade teardowns and overhauls on both 2WD and 4WD models.

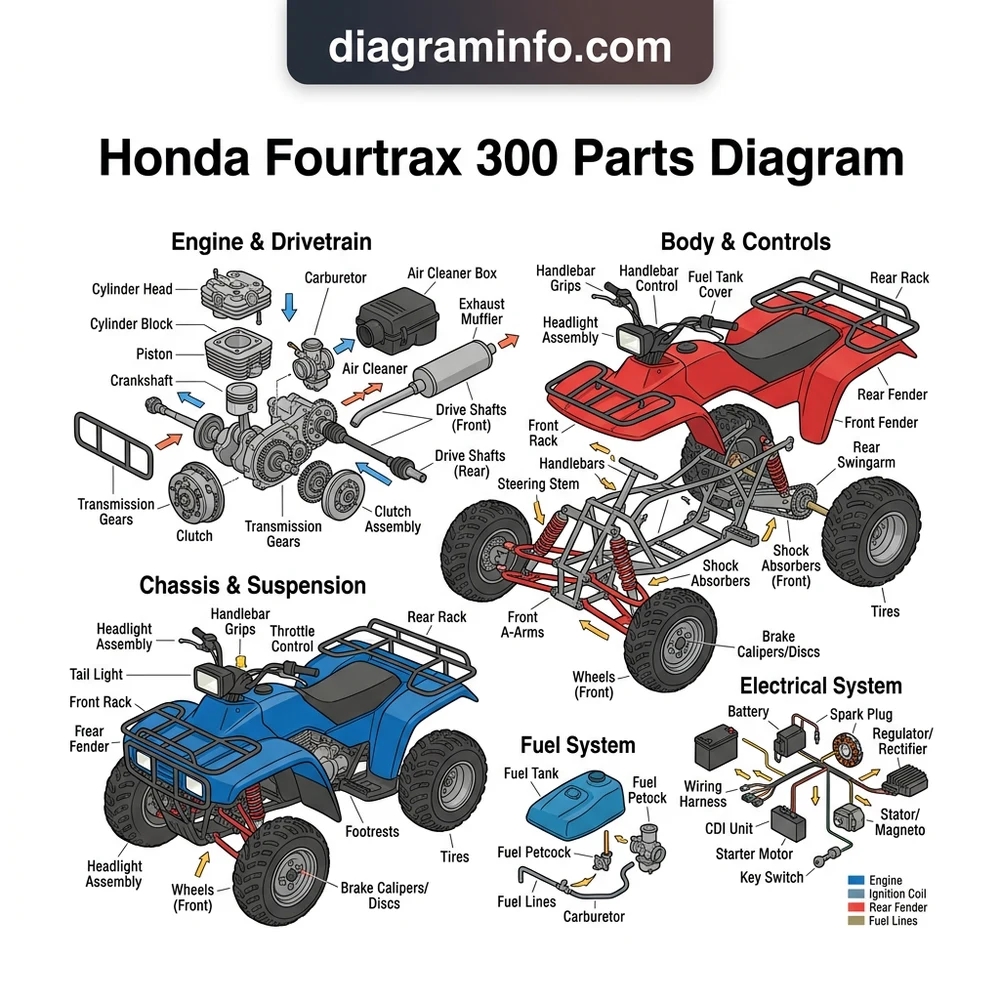

Honda Fourtrax 300 Parts Diagram: System and Component Breakdown
The mechanical architecture of the Honda FourTrax 300 features a longitudinal 282cc single-cylinder, four-stroke SOHC engine coupled with a 5-speed transmission and an automatic clutch. Interpreting an exploded technical schematic requires breaking the quad down into its core functional systems: the engine/transmission block, the final drive system, the chassis frame, and the electrical harness overview.
Engine Core and Cylinder Head Architecture
The engine schematic details the top-end structure, including the valve train, rocker arms, camshaft, and cylinder head assembly. According to OEM specifications, proper valve clearance must be maintained at 0.15 mm (0.006 in) for both intake and exhaust valves at cold temperatures. Below the cylinder block, the crankcase exploded view illustrates the primary clutch, centrifugal clutch housing, and transmission countershaft layout. For a deeper dive into fuel delivery maintenance, refer to our Honda FourTrax 300 carburetor rebuilding guide.
Drivetrain Configuration and Differential Layout
On TRX300FW 4WD models, the front differential layout contains direct drive bevel gears, spider gears, and dual CV axle shaft connections. The rear drive unit utilizes a solid axle layout enclosed inside an aluminum swingarm housing driven by a drive shaft with universal joints.
| System Component | OEM Part Reference Range | Factory Fastener / Torque Spec |
|---|---|---|
| Cylinder Head Cover Bolts | 90081-HA0-000 | 10 N·m (7 lbf·ft) |
| Flywheel / Rotor Nut | 90410-HC4-000 | 140 N·m (101 lbf·ft) |
| Clutch Center Lock Nut | 90231-KM7-701 | 70 N·m (51 lbf·ft) |
| Rear Axle Ring Gear Bolts | 91051-HC4-003 | 54 N·m (39 lbf·ft) |
| Front Differential Ring Gear | 41310-HC5-000 | 32 N·m (23 lbf·ft) |
How to Read the Honda FourTrax 300 Schematic and Blueprint Layout
Deciphering an exploded honda fourtrax 300 parts diagram requires a systematic approach to reading reference numbers, geometric lines, and sub-assembly callouts. Exploded drawings display assembled components expanded outward along their central axis of alignment, illustrating exact stacking order and fastener locations.
Decoding OEM Callout Numbers and Fastener Indexing
Each component within the structural blueprint carries a numerical index callout (e.g., key number 1, 2, 3) that maps directly to the parts list table below the diagram. The parts table provides the factory OEM part number, descriptive name, required quantity per machine, and model year applicability. When reading the diagram layout:
- Solid alignment lines: Indicate the direction and sequence of component installation along an axis shaft or stud.
- Dashed bracket lines: Group multiple sub-components together into a complete assembly (such as a complete rear differential or master cylinder sub-assembly).
- Shims and Thrust Washers: Always note the precise numerical placement of thin thrust washers and lock rings; installing these out of order on transmission shafts causes gear binding.
When ordering replacement crankcase or differential seals, cross-reference the dimensions printed in the part description (Width x Inner Diameter x Outer Diameter) against your extracted old seal to verify correct tolerance prior to press-fitting.
Tracing Sub-Assembly Exploded Views for Reassembly
During a complete engine or chassis rebuild, cross-referencing sub-assembly views prevents procedural errors. When resolving ignition or lighting issues, consult the complete TRX300 electrical system schematic to trace lead routes alongside mechanical diagrams.
Diagnosing Faults Using the Honda Fourtrax 300 Parts Diagram
Exploded schematic diagrams serve as primary diagnostic blueprints for identifying missing internal components, incorrect thrust washer sequences, or broken structural hardware inside wear-prone components.
Identifying Mechanical Wear Points in the Rear Axle Assembly
A common failure point on the TRX300 is water infiltration into the rear axle housing, leading to failed differential bearings and ring gear damage. Referring to the rear axle diagram enables mechanics to identify lock ring orientation, oil seal orientation (lip facing inward toward lubricant), and bearing shim placement required to set ring-and-pinion backlash.
Failure to install the thrust washer (OEM #90451-HA0-000) between the reverse gear and needle bearing on the countershaft during transmission reassembly will cause instant lockup upon crankcase bolt torquing.
Electrical System Continuity and Harness Routing
When troubleshooting an intermittent spark or charging failure, the electrical layout schematic guides probe points for multimeter testing. Manufacturer specifications mandate verifying the following electrical resistance ranges at 20°C (68°F):
• Stator Exciter Coil Resistance (Black/Red wire to Ground): 50 – 200 Ω
• Pulse Generator / Ignition Trigger Resistance (Blue/Yellow wire to Ground): 290 – 360 Ω
• Ignition Coil Primary Resistance: 0.1 – 0.3 Ω
• Ignition Coil Secondary Resistance (without spark plug cap): 3.7 – 4.5 kΩ
If you observe oil leakage at the rear swingarm junction or differential pinion seal, check our rear differential maintenance guide for seal driver specifications and crush sleeve installation steps.
Honda Fourtrax 300 Parts Diagram Frequently Asked Questions
Are the parts diagrams identical for the TRX300 2WD and TRX300FW 4WD?
No. While the primary 282cc engine internals and main frame structures are identical, the TRX300FW 4WD diagram includes distinct sub-assemblies for the front differential, transfer drive shaft, front CV axles, and modified front suspension arms. Always select your specific drive configuration when consulting parts references.
How do I identify changes between model years from 1988 to 2000?
Honda updated key components across the production run. For instance, the 1988–1992 models utilized a different CDI unit, stator plug configuration, and rear brake panel design compared to the 1993–2000 models. Check the specific VIN range listed on the schematic page to ensure part number compatibility.
What torque specifications should I use when reassembling the crankcase?
Main crankcase 6mm flange bolts require 12 N·m (9 lbf·ft) of torque tightened in a crisscross pattern starting from the center outward. 8mm crankcase bolts require 24 N·m (17 lbf·ft). Always clean casing threads with brake cleaner and apply lightweight engine oil to thread surfaces prior to torquing.
Where can I find OEM part numbers for the FourTrax 300 top end?
The top-end OEM part numbers are categorized under the “Cylinder / Cylinder Head” diagram section. Key standard reference numbers include the stock piston (13101-HC4-000), ring set (13011-HC4-004), cylinder base gasket (12191-HC4-000), and head gasket (12251-HC4-005).
How do exploded parts diagrams indicate correct seal and bearing orientation?
Exploded schematics depict open oil seal cavities, showing the direction of internal spring lips. In standard technical conventions, the open spring-side lip of a grease or oil seal always faces inward toward the fluid reservoir (e.g., toward the engine oil or differential gear lubricant) to maintain fluid retention under pressure.
Step-by-Step Guide to Understanding the Honda Fourtrax 300 Parts Diagram
Identify – Choose the target assembly section, such as the engine case, carburetor layout, or electrical wiring system.
Locate – Match the physical part on your Honda FourTrax 300 to the corresponding numbered schematic illustration.
Reference – Cross-check the item callout number with the OEM parts list to confirm accurate hardware and part specs.
Connect/Route – Follow the diagram’s exploded line configuration to install seals, washers, and shafts in correct sequence.
Verify – Torque all fasteners according to factory specifications and inspect surrounding mechanical clearances.
Troubleshoot – Re-examine schematic structural positioning if components bind, leak, or fail electrical continuity testing.
