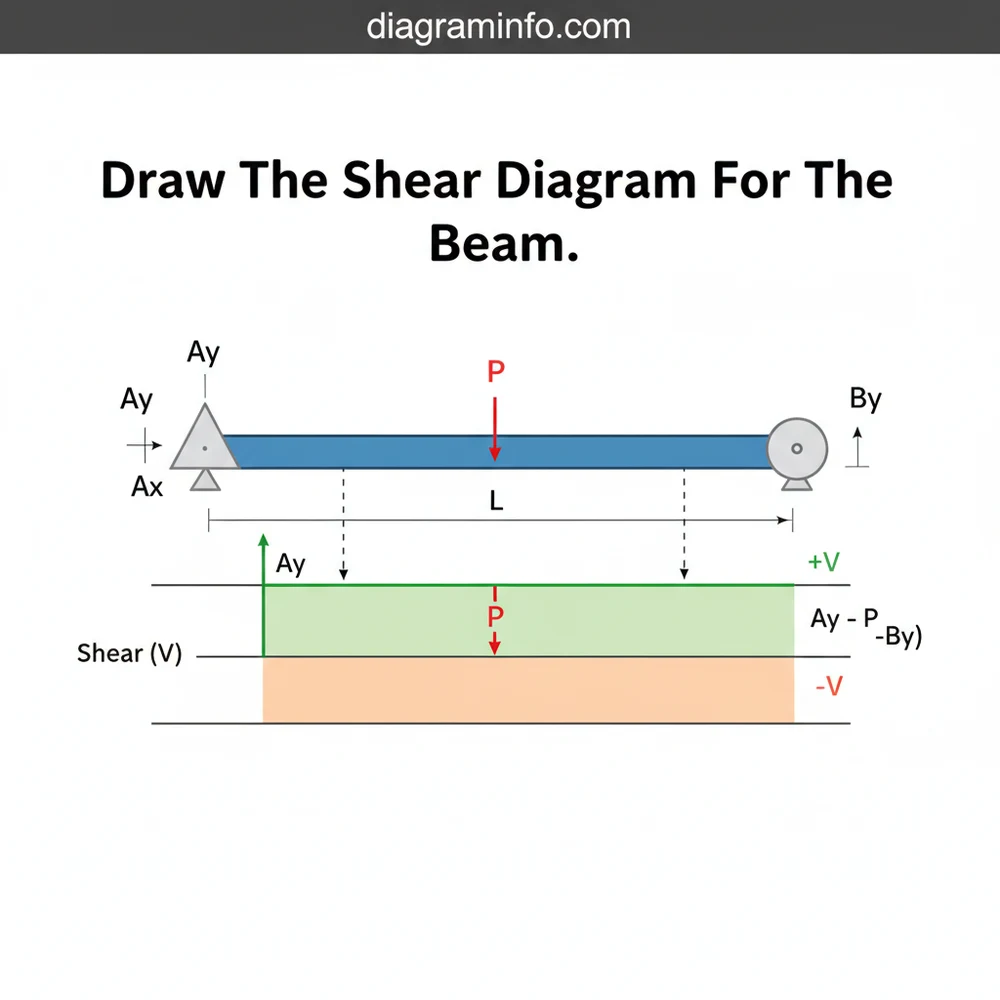

Draw the Shear Diagram for the Beam: Step-by-Step Guide
To draw the shear diagram for the beam, first calculate support reactions. Then, establish a sign convention and sum the vertical loads along the structure. Plot these values relative to a horizontal axis to represent the internal shear force configuration at every point along the beam’s total length.
📌 Key Takeaways
- Visualizes internal forces within a structural component
- Identifying point loads and distributed loads is essential
- Always maintain consistent sign conventions for safety
- Use the diagram to find where shear equals zero
- Essential for determining maximum bending moments
Mastering the ability to draw the shear diagram for the beam is a fundamental skill for engineers, architects, and students involved in structural analysis. This visual tool provides a critical overview of the internal forces acting along the length of a structural member, allowing designers to ensure that the chosen material and dimensions can withstand applied loads without failure. Whether you are dealing with a simple bridge, a floor joist, or a complex industrial frame, understanding how to translate physical loads into a graphical representation is essential for safety and efficiency. In this comprehensive guide, we will explore the theoretical foundations, the step-by-step methodology for construction, and the practical troubleshooting tips necessary to master this structural blueprint.
Understanding the Anatomy of a Shear Diagram
Before you begin the physical process to draw the shear diagram for the beam, you must understand the components that make up the system. A shear force diagram (SFD) is a schematic representation of the internal vertical forces across every section of a beam. It reflects the cumulative effect of external loads and support reactions. In a standard structural layout, the horizontal axis represents the length of the beam, while the vertical axis represents the magnitude of the shear force.
The configuration of the diagram is dictated by several key elements. First, the supports—such as pins, rollers, or fixed ends—provide the reaction forces that maintain equilibrium. Second, the loading conditions, which include concentrated point loads, uniformly distributed loads (UDL), and linearly varying loads (UVL), determine the shape and slope of the lines on the diagram. For instance, a point load creates a sudden vertical jump in the schematic, whereas a distributed load creates a slanted or curved line.
Understanding the sign convention is also a vital component of the overview. By convention, internal shear is considered positive if it tends to rotate the beam element clockwise and negative if it rotates it counter-clockwise. This standardization ensures that different engineers can interpret the same blueprint with total consistency. By visually breaking down these elements, the diagram provides a clear picture of where the structure is most vulnerable and where it is most reinforced.
A shear diagram is the first derivative of the bending moment diagram and the integral of the load diagram. Understanding this mathematical relationship is crucial for verifying the accuracy of your structural calculations.
Theoretical Foundations: Loads and Supports
To accurately draw the shear diagram for the beam, one must first categorize the external forces. The structure acts as a system that transmits these forces to the ground. There are three primary types of loads you will encounter in any standard configuration:
- ✓ Point Loads: Forces applied at a single, specific point. On the diagram, these cause an instantaneous vertical shift.
- ✓ Uniformly Distributed Loads (UDL): Forces spread evenly over a length, such as the weight of the beam itself or a floor slab. These result in a linear slope.
- ✓ Uniformly Varying Loads (UVL): Forces that increase or decrease linearly, often represented as a triangular load. These create a parabolic curve in the shear schematic.
The support conditions are equally important. A simple support (roller) provides one vertical reaction, while a pin support provides both vertical and horizontal reactions. A fixed support provides vertical, horizontal, and moment reactions. The magnitude of these reactions must be calculated using the laws of static equilibrium—sum of forces and sum of moments—before the first line of the shear diagram can be drawn. Without an accurate calculation of these reactions, the entire blueprint will be flawed, leading to potential structural miscalculations.
Step-by-Step Guide to Constructing the Shear Diagram
Drawing the shear diagram for the beam requires a methodical approach. Follow these steps to ensure precision and clarity in your structural analysis.
Step 1: Calculate Support Reactions
Before touching the diagram, you must treat the entire beam as a free-body diagram. Use the equations of equilibrium: ΣFy = 0 and ΣM = 0. By summing the moments about one support, you can solve for the reaction at the other. Once one reaction is found, use the sum of vertical forces to find the remaining reaction. This provides the starting and ending values for your diagram.
Step 2: Establish the Coordinate System
Draw a horizontal line representing the beam’s length. Label the x-axis in units of length (meters or feet) and the y-axis in units of force (Newtons or Kips). Clearly mark the locations of all supports and external loads along the horizontal axis to maintain a proper layout.
Step 3: Begin at the Left End (x = 0)
Start at the far left of the beam. If there is a reaction force or a point load at this exact location, move the shear force value up or down accordingly. For example, if there is an upward reaction of 10kN, your diagram starts by jumping from zero to +10 on the y-axis.
Step 4: Move Across the Beam Segment by Segment
Analyze the beam from left to right, looking for changes in loading.
- ✓ If there is no load between two points, draw a horizontal line.
- ✓ If there is a UDL (w), the shear force decreases linearly. The change in shear is equal to the negative area under the load curve (Change in V = -w * length).
- ✓ If you encounter a point load, “jump” the diagram vertically by the magnitude of that load in the direction of the force.
Step 5: Account for Distributed Loads
For a section with a distributed load, the shear diagram will have a constant slope. If the load is downward, the slope is negative. Calculate the value at the end of the distributed load segment by subtracting the total weight of that load from the shear value at the start of the segment.
Step 6: Handle External Moments
It is a common point of confusion, but remember that external concentrated moments (couples) do not affect the shear diagram directly. They will cause a jump in the bending moment diagram, but the shear force remains unchanged unless the moment is applied via a force pair that is already accounted for in the reaction calculations.
Step 7: Complete the Diagram at the Right Support
As you reach the end of the beam, the final vertical force (usually the right-hand support reaction) should bring your shear value exactly back to zero. This “closing” of the diagram is the ultimate check for mathematical accuracy.
Step 8: Label Key Values and Points of Zero Shear
Clearly label the maximum and minimum shear values. Most importantly, identify the locations where the shear diagram crosses the x-axis (V = 0). These points are critical because they correspond to the locations of maximum or minimum bending moments in the beam.
Always use the “Area Method” to double-check your work. The change in shear between any two points is equal to the area of the loading diagram between those same two points. This serves as an excellent internal audit for your calculations.
Common Issues & Troubleshooting
Even experienced professionals can encounter difficulties when they draw the shear diagram for the beam. One of the most frequent problems is the incorrect application of sign conventions. If you inconsistently define “up” and “down,” the diagram will fail to close at zero, indicating a break in the logic of the system.
Another common issue arises with distributed loads that do not cover the entire span. Users often forget to treat the beginning and end of the load as distinct “critical points” on the schematic. Furthermore, neglecting the weight of the beam itself (the self-weight) can lead to significant errors in large-scale structural blueprints.
If your shear diagram does not return to zero at the final support, do not force it. This is a clear sign that either your support reactions were calculated incorrectly or you missed a load along the span. Re-evaluate your static equilibrium equations before proceeding.
If you find that your diagram is consistently off, check for these warning signs:
- ✓ Slope directions: Downward loads must result in a negative slope or a downward jump.
- ✓ Calculation of UDL: Ensure you multiplied the load per unit length by the actual distance of the load, not the total beam length.
- ✓ Reaction orientation: Verify that your reaction forces are in the correct direction (upwards vs downwards).
Tips & Best Practices for Accuracy
To produce a professional-grade schematic, focus on precision and layout. Use a ruler for manual drawings or high-quality CAD software for digital versions. Consistency in your scaling is vital; if 10kN is represented by one inch at the start of the beam, it must remain one inch throughout the entire blueprint.
Maintenance of the Drawing Process:
Treat the shear diagram as a living document during the design phase. If the load configuration changes—for example, if a piece of heavy machinery is moved to a different part of a floor—you must redraw the shear diagram for the beam immediately. Structural integrity depends on the most current data.
Quality Component Recommendations:
When performing these calculations, use standardized units (SI or Imperial) and avoid mixing them. For complex systems, using structural analysis software can save time and reduce human error. However, always perform a quick “back-of-the-envelope” manual check to ensure the software’s output aligns with basic engineering intuition.
Cost-Saving Advice:
Accurate shear diagrams prevent “over-engineering.” By knowing exactly where the shear forces are lowest, you can potentially reduce material thickness or change the beam’s profile in those areas, leading to significant savings in material costs without compromising safety.
In conclusion, the ability to draw the shear diagram for the beam is a vital proficiency that bridges the gap between theoretical physics and practical construction. By following a strict step-by-step methodology, respecting sign conventions, and understanding the mathematical relationships between loads and internal forces, you can create a reliable structural overview. This diagram serves as the foundation for the bending moment diagram and, ultimately, the safe design of the entire system. Whether you are troubleshooting an existing structure or drafting a new blueprint, the shear force diagram remains the most essential tool in the structural engineer’s toolkit.
Frequently Asked Questions
Where are the maximum shear values located?
Peak values are usually located at support points or where a heavy concentrated load component is applied. By analyzing the beam layout, you can identify these critical points where the internal forces shift abruptly, which is vital for the structural integrity and safety of the entire system.
What does this diagram show?
This diagram illustrates the internal shear force at any given point along a beam structure. It provides a visual layout of how the load configuration affects the beam, helping engineers determine if the specific material can withstand forces without failing or undergoing excessive permanent deformation.
How many reactions does a simply supported beam have?
A standard simply supported beam system typically has three reaction components: two vertical and one horizontal. These are determined by the support configuration, such as a pin and a roller, which are necessary to solve for equilibrium before you draw the shear diagram for the beam.
What are the symptoms of an incorrect shear diagram?
Signs of an incorrect diagram include values that do not return to zero at the end of the beam. This usually indicates a calculation error in the initial reaction forces or a misunderstanding of the load layout, compromising the reliability of the entire structural system analysis.
Can I draw the shear diagram for the beam myself?
Yes, students and engineers can manually draw these diagrams for basic configurations using the method of sections or the area method. However, complex systems with variable loading often require structural analysis software to ensure the layout of forces is captured with perfect accuracy for safety requirements.
What tools do I need for this task?
To draw the shear diagram for the beam, you need a calculator, a straightedge, and a clear understanding of the beam structure. For more advanced system designs, software like AutoCAD or specialized structural analysis tools can help verify the configuration and internal force distribution effectively.
