Standard Bicycle Parts of a Bike Diagram: 2026 Component Guide
A comprehensive bicycle diagram categorizes the structure into key sub-systems: the frame layout (top/down tubes, head tube), drivetrain system (crankset, 11-34T cassette, chain, derailleurs), steering configuration (fork, headset, handlebars), braking setup (calipers, 160mm rotors), and wheel assembly (hubs, spokes, rims, tires) for precise component identification.
📌 Key Takeaways
- Standard BSA bottom bracket shells measure 68mm or 73mm with standard tightening specs of 35-45 Nm torque.
- Critical drivetrain alignment requires verifying a 45-50mm chainline offset relative to the seat tube centerline.
- Stem clamp bolts require 5-6 Nm torque to prevent steerer tube crushing or handlebar slippage during operation.
- Excessive chain stretch over 0.75% is the primary failure point causing premature cassette and chainring wear.
- Perform basic cable tensioning DIY, but consult a professional mechanic for hydraulic brake bleeding and frame alignment.
Modern bicycle architecture relies on tightly integrated mechanical systems where structural integrity, kinematic efficiency, and precise component tolerances intersect. Whether analyzing a high-performance carbon monocoque road frame or a full-suspension downhill mountain bike layout, understanding the underlying schematic is critical for professional maintenance, custom fabrication, and diagnostic overhaul. An accurate schematic provides mechanics and mechanical engineers with the exact spatial relationships, interface dimensions, fastener specifications, and assembly sequences required to maintain peak operating performance and ensure rider safety according to ISO 4210 structural safety standards.
Parts of a Bike Diagram: Master Structural & System Component Layout
Every bicycle blueprint is subdivided into core functional sub-systems: the structural frame architecture, the steering and suspension interface, the drivetrain kinematic configuration, and the braking/wheel interface. Analyzing these individual modules through a standardized layout allows technical personnel to isolate worn components and verify torque limits during service cycles.
| Sub-System Component | Technical Material / Standard Spec | Fastener / Interface Torque |
|---|---|---|
| Frame Shell & Dropouts | 6061-T6 Aluminum / Toray T800 Carbon; 12x142mm Thru-Axle | 10 – 15 Nm (Thru-Axle) |
| Bottom Bracket Assembly | BSA Threaded (1.37 in x 24 TPI) or PressFit PF30 (46mm ID) | 35 – 50 Nm (Threaded Cups) |
| Steering Headset Bearings | IS42/IS52 Integrated Angular Contact Bearings (45°/45°) | 1.5 – 2.5 Nm (Preload Top Cap) |
| Crankset & Chainrings | Hollowtech II / DUB 28.99mm Spindle; 104 BCD or Direct Mount | 12 – 14 Nm (Pinch Bolts) / 40 Nm (DUB) |
| Hydraulic Disc Calipers | Flat Mount / Post Mount Dual-Piston Mineral Oil or DOT 5.1 | 6 – 8 Nm (M6 Mounting Bolts) |

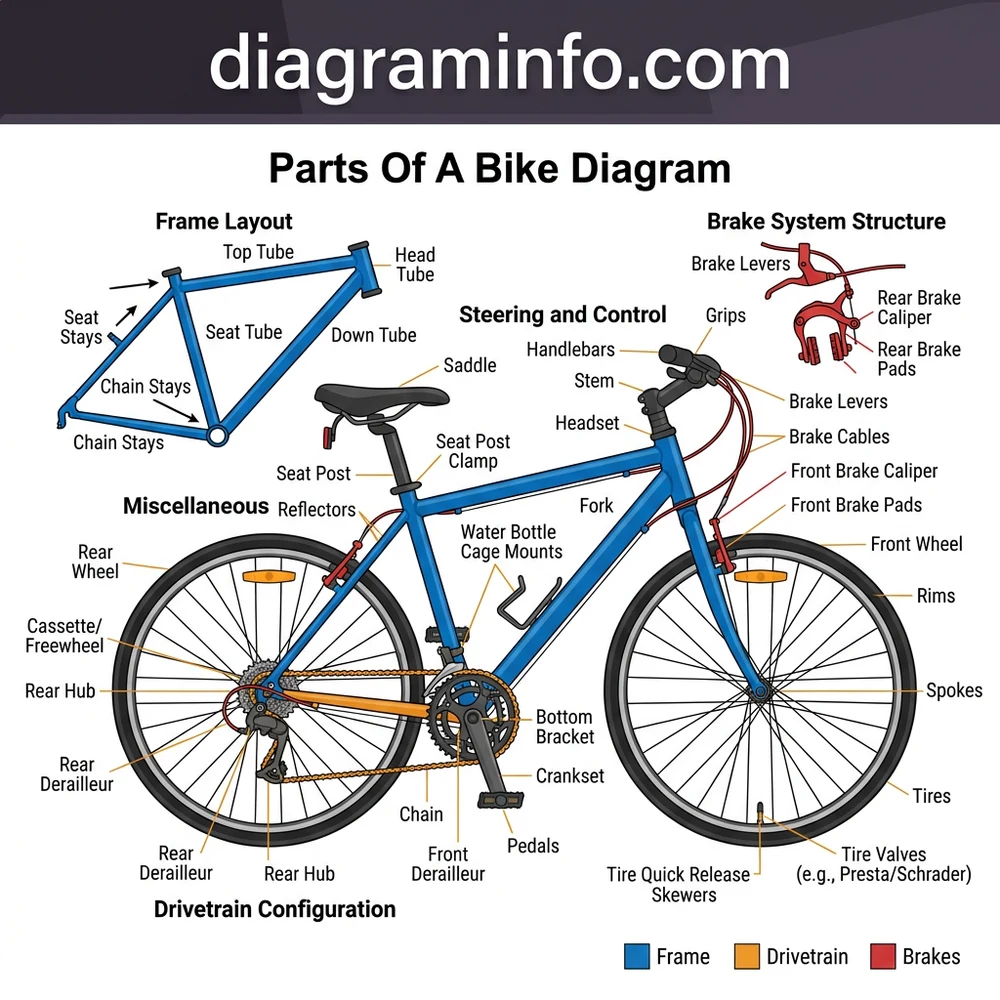

As illustrated in the blueprint, the structural foundation comprises the top tube, down tube, seat tube, chainstays, and seatstays. This diamond geometry distributes load forces across front and rear contact points. Connected to the head tube is the steering column, incorporating upper and lower cartridge bearings held in compression by the stem assembly. Moving down to the drivetrain section, the crank arms convert rotational force through the bottom bracket interface to drive the rear cassette via an indexed chain configuration, enabling precise mechanical velocity conversion across various gear ratios.
When servicing modern press-fit bottom bracket shells, frame alignment tolerances must remain within ±0.05 mm parallelism to prevent premature bearing wear, non-drive-side creaking, and accelerated spindle fatigue.
How to Interpret a Bicycle Mechanical Schematic and Blueprint
Deconstructing an engineering overview diagram requires a methodical procedure to systematically identify parts, trace internal hydraulic or cable lines, and execute proper torque patterns. Follow this standard shop protocol to navigate technical drawings during component replacement or teardown.
Step 1: Identify System Reference Points and Frame Kinematics
Begin reading the blueprint from the central datum line—typically located at the bottom bracket center axis. Note the frame geometry measurements, including reach, stack, head tube angle, and seat tube angle. Locate internal cable routing exit ports along the down tube and chainstays before performing component disassembly.
Step 2: Trace Hydraulic Control Lines and Mechanical Cable Routes
Follow the control pathways starting from the handlebar-mounted brake levers and shifters. On full-suspension or aerodynamically integrated road systems, trace internal hose routing entering through the headset spacers, routing down through the main triangle, and exiting adjacent to the brake calipers and rear derailleur housing port.
Step 3: Map Bearings, Spacers, and Thread Profiles
Review exploded component sub-views to determine exact spacer stacks, wave washers, and seal orientations. Pay specific attention to left-hand (reverse) threads typically used on non-drive-side pedals and right-hand drive-side bottom bracket cups on BSA standard frames.
Step 4: Cross-Reference Fastener Hardware Specs and Torque Sequences
Locate all fastener callouts on the blueprint. For multi-bolt structural clamps, such as stem faceplates or dual-bolt seatpost collars, apply torque progressively in a cross-pattern sequence to distribute surface pressure evenly across carbon components.
Carbon fiber components require dynamic friction assembly paste applied to stem-steerer and seatpost interfaces. Reduce standard fastener torque limits by 20% when friction paste is used to prevent carbon crush failure while maintaining clamping force.
Troubleshooting Mechanical System Failures Using the Parts Diagram
Diagnosing drivetrain noise, brake rub, or steering play requires linking physical symptoms directly back to specific node points shown on the mechanical layout. Using diagnostic diagrams accelerates root-cause identification and prevents unnecessary component replacement.
Drivetrain Indexing Misalignment & Hanger Deformation
When shifting fails to track across the rear cassette cog stack despite proper cable tension adjustments, inspect the rear derailleur hanger alignment. OEM structural specs dictate that derailleur hangers must align parallel to the rear wheel plane within ±1.0 mm measured across a 500mm radius using a hanger alignment gauge (DAG-2 profile). Hangers bent beyond this specification prevent precise pulley wheel tracking.
Headset Binding or Unwanted Steering Play
Knocking felt in the front assembly under front brake application indicates inadequate bearing preload or improper spacer stack height relative to the steerer tube top cut. Ensure the steerer tube terminates 2 to 3 mm below the top of the stem or top spacer edge, allowing the top cap compression bolt to apply appropriate axial load (1.5–2.5 Nm) to the upper bearing compression ring before tightening the stem pinch bolts to 5–6 Nm.
Over-tightening stem pinch bolts on carbon steerer tubes without an internal compression plug installed can cause immediate structural delamination and catastrophic front fork shear failure under load.
Consulting detailed schematics during overhaul prevents common alignment errors, such as incorrect brake rotor offset or improper chainline configuration (standard 49mm vs. Boost 52mm offset), ensuring long-term mechanical reliability across all riding conditions.
Parts of a Bike Diagram Technical Questions Answered
What are the critical torque specifications found on a modern bicycle frame configuration?
Critical torque values vary by structural component material. Aluminum stem faceplate M5 bolts require 5 to 6 Nm, carbon fiber seatpost clamps require 4 to 6 Nm, threaded BSA bottom brackets specify 35 to 50 Nm, cassette lockrings require 40 Nm, and rotor M5 Torx (T25) bolts require 4 to 5 Nm applied in a star pattern.
How do I identify standard bottom bracket shell thread types on a schematic?
BSA threaded shells are labeled as 1.37 in x 24 TPI, featuring a 68mm or 73mm shell width with reverse (left-hand) threads on the drive side. Italian threaded shells measure 36mm x 24 TPI with a 70mm width using standard right-hand threads on both sides. PressFit layouts display millimetric bore dimensions such as BB86 (41mm ID) or PF30 (46mm ID).
Why do hydraulic brake hose routings vary across internal frame layouts?
Internal hydraulic hose routing varies based on frame material layup and headset integration. Modern aerodynamically optimized designs run hoses through internal channels directly inside the handlebar stem assembly and upper headset bearing spacer block to minimize aerodynamic drag, whereas mountain bike schematics utilize internal down tube guides to accommodate full-suspension frame articulation.
What component tolerances prevent headset bearing play and steerer galling?
Integrated headsets utilize standard 45°/45° or 36°/45° angular contact cartridge bearings seated directly into machined or molded frame chamfers. To prevent fretting and galling on alloy or carbon steerer tubes, interface tolerances must maintain split compression ring alignment with absolute axial bearing runout under 0.03 mm.
Step-by-Step Guide to Understanding the Parts Of A Bike Diagram
Identify – Determine the specific bicycle component, frame material, and drivetrain configuration on your bicycle model.
Locate – Find the corresponding section on the diagram for frame layout, steering, braking, or drivetrain sub-assemblies.
Reference – Cross-check component dimensions, bolt torque specs, and mechanical interface types before attempting service.
Connect/Route – Route shifting cables or hydraulic lines through designated frame ports according to the diagram schematic.
Verify – Measure component alignments, check bolt torque with a calibrated wrench, and test mechanical actuation.
Troubleshoot – Consult the diagram layout to isolate binding cables, chain misalignments, or loose headset play if operation fails.
