2003 Ford Ranger Fuel System Diagram 2026: Repair & Maintenance

Understanding the intricacies of the 2003 Ford Ranger fuel system is paramount for accurate diagnosis and effective repairs. This comprehensive guide, complete with a detailed diagram, focuses primarily on the common gasoline engine configurations, such as the 4.0L SOHC V6 (Engine Code X), while also broadening the scope to include advanced fuel system components often found in heavy-duty equipment or diesel applications, addressing a technical automotive/equipment audience. By dissecting each component, its function, and common failure modes, you will gain the expertise necessary to maintain optimal fuel delivery and engine performance in your Ranger or similar utility vehicle.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

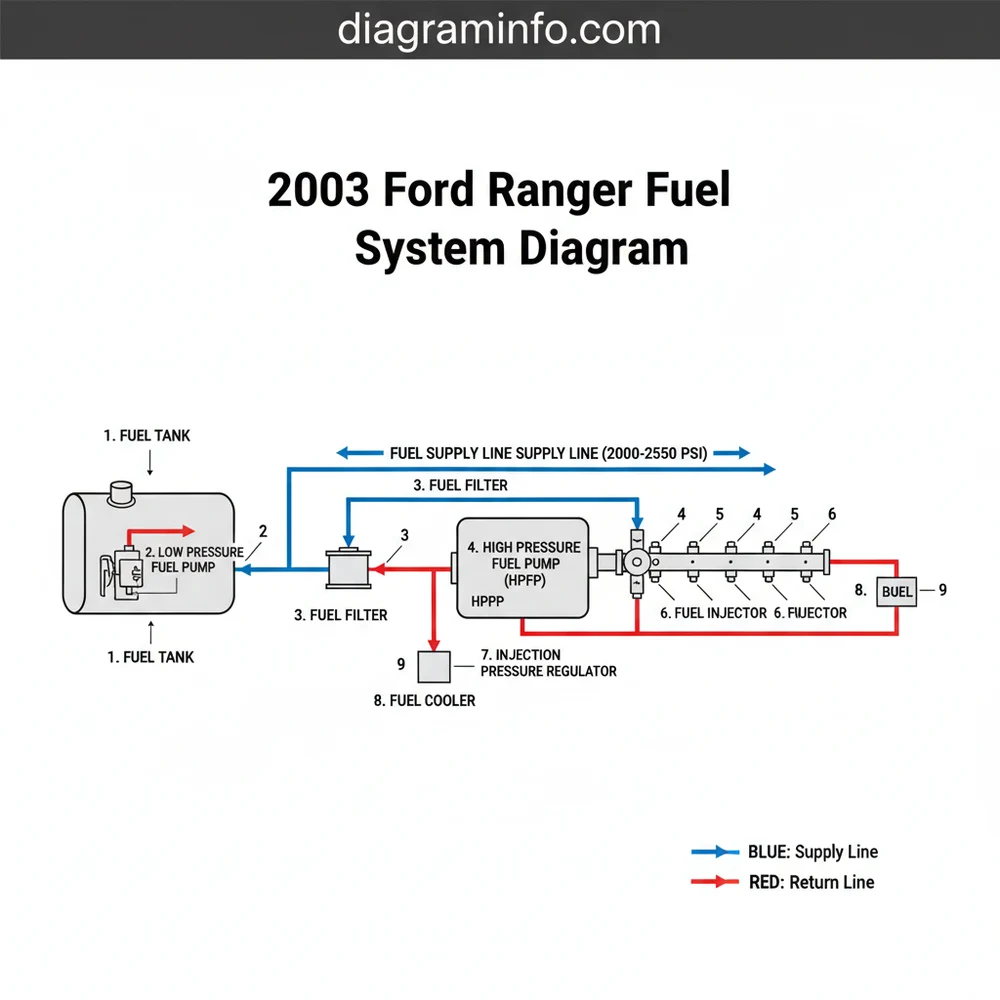

FUEL SYSTEM COMPONENTS BREAKDOWN

The fuel system on a 2003 Ford Ranger, specifically with a gasoline engine, is designed for reliable fuel storage, delivery, filtration, and precise injection. While the core components are similar across gasoline vehicles, understanding the specific layout and function is critical. To provide a comprehensive resource for a technical automotive and equipment audience, we will also briefly cover components found in more advanced or diesel systems, as indicated by our LSI keywords.

• Fuel Tank: The primary reservoir for gasoline. It’s typically constructed from high-density polyethylene (HDPE) or steel, featuring internal baffling to prevent fuel slosh and starvation during vehicle maneuvers. A robust vent system allows air ingress as fuel is consumed and manages vapor pressure.
• In-Tank Fuel Pump Module: Located inside the fuel tank, this assembly typically includes the electric fuel pump, a fuel strainer (sock filter), and often the fuel level sending unit. It draws fuel from the tank and sends it under pressure through the supply line. On many 2003 Rangers, the fuel pressure regulator is integrated into this module, creating a returnless fuel system to reduce evaporative emissions, though some models might still employ a rail-mounted regulator with a fuel return line.
• Fuel Filter: An inline filter, usually located along the frame rail, traps contaminants before they can reach the fuel rail and injectors. Regular replacement is crucial for system longevity. For diesel systems, a more complex fuel bowl or canister-style filter is common, often incorporating a water separator.
• Fuel Supply Line: This high-pressure line transports filtered fuel from the fuel pump to the engine’s fuel rail. It must withstand significant pressure and fuel exposure without degradation.
• Fuel Rail: A manifold that distributes pressurized fuel evenly to each fuel injector. It acts as a reservoir to ensure consistent fuel pressure for all injectors.
• Fuel Injectors: Electrically actuated solenoids that spray a finely atomized mist of fuel directly into the intake manifold (port injection) or cylinder (direct injection) at precise intervals dictated by the Engine Control Unit (ECU). Clogged or leaking injectors can severely impact performance. Consider reviewing our fuel injector cleaning guide for maintenance tips.
• Fuel Return Line: On systems where the fuel pressure regulator is located at the fuel rail, this line returns excess fuel to the fuel tank, helping to maintain consistent pressure within the rail and dissipate heat. Newer returnless systems, common on 2003 Rangers, usually omit this line from the engine compartment, integrating the regulator at the tank.
• High Pressure Fuel Pump (HPFP): (Note: Not present on a stock 2003 Ford Ranger gasoline engine.) Found in modern direct injection gasoline engines and all common rail diesel engines, the HPFP takes fuel from a low-pressure lift pump and boosts it to extremely high pressures (thousands of PSI) required for precise fuel atomization directly into the combustion chamber.
• Injection Pressure Regulator: (Note: Not present on a stock 2003 Ford Ranger gasoline engine.) Also known as a fuel rail pressure sensor/actuator, this component, typically found in high-pressure direct injection or common rail diesel systems, precisely controls the pressure within the fuel rail, responding to ECU commands to optimize fuel delivery for various engine loads.
• Primer Pump: (Note: Not present on a stock 2003 Ford Ranger gasoline engine, but common on diesel equipment.) A manual hand pump, often integrated into the fuel filter housing on diesel systems, used to purge air from the fuel lines after filter replacement or running out of fuel.
• Fuel Cooler: (Note: Not present on a stock 2003 Ford Ranger gasoline engine.) In some heavy-duty diesel applications, especially with high-pressure common rail systems, the constant circulation and compression of fuel can generate significant heat. A fuel cooler, often integrated into the return line, dissipates this heat to prevent fuel degradation and damage to components.
• Fuel Heater: (Note: Not present on a stock 2003 Ford Ranger gasoline engine, but essential for diesel in cold climates.) An electrical or coolant-heated device designed to prevent diesel fuel from gelling in low temperatures, which can block fuel filters and lines.
• EVAP (Evaporative Emission Control) System: A complex network of lines, valves, and a charcoal canister designed to capture and store fuel vapors from the tank, preventing their release into the atmosphere. These vapors are later purged into the engine for combustion. Faults in this system can cause “Check Engine” lights and fuel system performance issues. Refer to our Ford Ranger EVAP System Diagnosis guide for more information.

COMMON FAILURE POINTS & SYMPTOMS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Diagnosing fuel system issues requires a systematic approach. Here are common failure points for the 2003 Ford Ranger gasoline fuel system and associated symptoms:

1. Fuel Pump (In-Tank Module):
   • Symptom: Engine cranks but won’t start, intermittent stalling (especially under load or low fuel), vehicle hesitates or surges, audible whining from the fuel tank.
   • Diagnosis: Check fuel pressure at the service port on the fuel rail. A healthy 2003 Ranger 4.0L SOHC V6 should show approximately 64 ± 8 PSI (441 ± 55 kPa) with the key on, engine off (KOEO), and maintaining pressure for several minutes. A noisy pump or lack of prime sound indicates failure. Verify voltage and ground at the fuel pump connector (typically Red/White wire for power, Black/Green for ground).
2. Fuel Filter:
   • Symptom: Reduced engine power, hesitation during acceleration, engine stalls at high RPMs, rough idle, difficulty starting. Symptoms worsen under heavy load.
   • Diagnosis: First, check the fuel filter’s last replacement date. A restricted filter will cause a significant pressure drop across the filter. While not typically measured directly, low fuel pressure at the rail (especially under load) with a functioning pump points to a clogged filter. Replacing it is a common diagnostic step.
3. Fuel Injectors:
   • Symptom: Misfires (rough idle, poor acceleration, “Check Engine” light with P030x codes), strong fuel odor, reduced fuel economy, black smoke from exhaust (over-rich condition), or lean condition (hesitation, lack of power).
   • Diagnosis: Perform a cylinder balance test or power balance test using a scan tool. A misfire on a single cylinder often points to a faulty injector (clogged, leaking, or electrically open/shorted). Visual inspection for leaks, checking injector resistance (typically 12-16 ohms for many Ford injectors), and listening with a stethoscope for clicking can help.
4. Fuel Pressure Regulator (if external or faulty in-tank module):
   • Symptom: Engine runs rich (black smoke, poor economy, fuel smell, high CO emissions) if pressure is too high. Engine runs lean (hesitation, lack of power, misfires, P0171/P0174 codes) if pressure is too low. Hard starting.
   • Diagnosis: Monitor fuel pressure at the rail with a gauge. If pressure is consistently too high or too low, and the fuel pump is confirmed good, the regulator is suspect. On returnless systems, this usually means replacing the entire in-tank fuel pump module.
5. EVAP System Components (e.g., Canister Purge Valve, Vent Valve, Hoses):
   • Symptom: “Check Engine” light with EVAP-related diagnostic trouble codes (DTCs) like P0440, P0442, P0455. Fuel smell, especially near the rear of the vehicle. Difficulty fueling the vehicle (pump keeps clicking off).
   • Diagnosis: Use a smoke machine to detect leaks in the EVAP lines and canister. Test the purge and vent valves for proper operation using a scan tool to actuate them and monitor vacuum/pressure changes.

REPAIR & REPLACEMENT STEPS: FUEL FILTER

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

The fuel filter is a critical, yet often overlooked, component. Its regular replacement ensures clean fuel delivery and prolongs the life of the fuel pump and injectors. This procedure outlines the replacement of the inline fuel filter, common on the 2003 Ford Ranger.

1. Gather Tools and Materials:
   • New OEM or high-quality aftermarket fuel filter (Ford Part No. F8AZ-9155-BA or equivalent).
   • Fuel line quick-disconnect tool (specific to Ford 5/16″ and 3/8″ lines).
   • Eye protection, fuel-resistant gloves.
   • Drain pan or container for residual fuel.
   • Shop rags.
   • Jack and jack stands (if raising the vehicle is necessary for access).
2. Relieve Fuel System Pressure:
   • Locate the fuel pump inertia switch (typically on the passenger side kick panel). Disconnect its electrical connector or trip the switch.
   • Start the engine and allow it to run until it stalls from fuel starvation. This depressurizes the system.
   • Turn the ignition off and reconnect the inertia switch if it was disconnected. Alternatively, disconnect the fuel pump relay (in the fuse box) and perform the same steps.
3. Locate and Access the Fuel Filter:
   • The fuel filter on a 2003 Ford Ranger is typically located on the driver’s side frame rail, between the fuel tank and the engine compartment.
   • You may need to raise the vehicle using a jack and secure it with jack stands for adequate access.
4. Prepare for Fuel Drainage:
   • Place a drain pan directly underneath the fuel filter to catch any residual fuel that will leak when the lines are disconnected.
5. Disconnect Fuel Lines:
   • Identify the inlet and outlet lines on the fuel filter. Note the direction of flow (usually an arrow on the filter indicates this).
   • Using the appropriate quick-disconnect tool, slide it into the fitting until it “clicks” or fully engages, releasing the internal locking tabs.
   • Carefully pull the fuel line off the filter. Expect some fuel to spill. Repeat for the second fuel line.
   • You may need to gently pry the retaining clip or bracket holding the filter to the frame rail.
6. Remove Old Fuel Filter:
   • Once both lines are disconnected and the retaining clip is released, remove the old fuel filter. Dispose of the old filter and captured fuel responsibly.
7. Install New Fuel Filter:
   • Ensure the new fuel filter’s flow arrow points in the correct direction (towards the engine).
   • Secure the new filter into its mounting bracket on the frame rail.
   • Carefully connect the fuel lines to the new filter. Push the quick-connect fittings firmly onto the filter nipples until they audibly “click” or seat fully. Gently tug on the lines to ensure they are securely locked.
8. Prime and Check for Leaks:
   • Turn the ignition key to the ON position for a few seconds (without starting the engine), then turn it OFF. Repeat this process two or three times. This allows the fuel pump to prime the system and build pressure.
   • Inspect all connections at the fuel filter for any signs of leaks.
   • Start the engine and let it idle for a few minutes. Re-check for leaks.
9. Final Steps:
   • Lower the vehicle if it was raised.
   • Test drive the vehicle to confirm proper operation and ensure no drivability issues.

FAQ

What are the typical fuel pressure specifications for a 2003 Ford Ranger?

For most 2003 Ford Ranger gasoline engines, particularly the 4.0L SOHC V6, the fuel pressure at the service port on the fuel rail should be approximately 64 ± 8 PSI (441 ± 55 kPa) with the key on, engine off (KOEO). This pressure should be maintained for several minutes after the pump primes. During engine operation, the pressure should remain relatively stable. Significant deviations, either too high or too low, indicate a fault in the fuel pump, pressure regulator, or a restriction in the lines/filter.

How do I know if my 2003 Ranger’s fuel pump is failing?

Common signs of a failing fuel pump include the engine cranking but not starting, intermittent stalling (especially under load or with low fuel), a noticeable loss of power during acceleration, or a distinct whining noise coming from the fuel tank area. Before condemning the pump, it’s crucial to perform a fuel pressure test at the rail. Low or inconsistent pressure is a strong indicator of fuel pump weakness or failure. Electrical checks at the pump connector for proper voltage and ground are also essential diagnostic steps.

Can old or contaminated fuel damage the fuel system?

Absolutely. Old gasoline can degrade, forming varnish and gum deposits that clog fuel injectors, fuel filters, and even the fuel pump itself. Contaminated fuel (e.g., water, rust, dirt) can lead to premature wear of the fuel pump, corrosion in lines, and blockage of filters and injectors. In diesel systems (not native to a 2003 Ranger), water contamination can cause severe damage to high-pressure components, and biological growth (diesel bug) can rapidly clog filters. Always use fresh, clean fuel and adhere to recommended fuel filter replacement intervals.

What role does the fuel return line play, and do 2003 Rangers have one?

The fuel return line is part of a traditional fuel system where the fuel pressure regulator is located at the fuel rail in the engine compartment. It returns excess fuel not used by the injectors back to the fuel tank, helping to maintain a consistent fuel pressure at the rail and dissipating heat generated by fuel circulation. Many 2003 Ford Rangers, especially those with 4.0L SOHC engines, utilize a returnless fuel system. In these systems, the fuel pressure regulator is integrated into the in-tank fuel pump module, and a single supply line runs to the engine, eliminating the need for a separate return line in the engine bay, which helps reduce evaporative emissions.

Are components like a High-Pressure Fuel Pump (HPFP) or a fuel cooler relevant to a 2003 Ford Ranger?

No, a stock 2003 Ford Ranger gasoline engine does not utilize a High-Pressure Fuel Pump (HPFP) or a fuel cooler. These components are characteristic of direct injection gasoline engines (which the 2003 Ranger did not have) and common rail diesel engines. HPFPs are necessary to generate the extremely high pressures required for direct injection, while fuel coolers help manage the heat produced in these high-pressure diesel systems. Although not applicable to your Ranger, understanding these components is valuable for a technical audience working with a broader range of automotive and heavy equipment fuel systems.
