HVAC Motor Run Capacitor Test Capacitor Black Lead and Red Lead Hookup 2026
To execute a motor run capacitor test capacitor black lead and red lead hookup, switch your digital multimeter to microfarad (µF) mode. Discharge the capacitor, then connect the red lead to the HERM or FAN terminal and the black lead to the Common (C) terminal to measure actual vs. rated capacitance.
📌 Key Takeaways
- Safety Specification: Always discharge stored voltage using a 20k-ohm 5W resistor or insulated tool across terminals before connecting test leads.
- Terminal Hookup Identification: Connect the red multimeter lead to HERM (compressor) or FAN (blower motor/condenser fan) and the black lead to Common (C).
- Tolerance Standard: A functional run capacitor must measure within ±5% to ±10% of the rating specified on the canister label.
- Primary Failure Impact: Capacitance loss below 10% causes elevated compressor amperage, thermal overload tripping, and reduced refrigerant circulation.
- DIY vs Professional Scope: Homeowners can safely test and replace dual-run capacitors, but persistent motor failure requires an HVAC technician to check evaporator airflow and system pressures.
Accurate diagnostic testing of an HVAC run capacitor is essential when evaluating system failure modes in residential and commercial cooling equipment. Whether servicing an outdoor condenser unit or an indoor air handler, performing a motor run capacitor test capacitor black lead and red lead hookup using a Digital Multimeter (DMM) set to capacitance mode ($\mu\text{F}$) allows technicians to verify microfarad ratings against original equipment manufacturer (OEM) tolerances. Failing capacitors reduce motor torque, elevate operating amperage, cause thermal overload trips, and eventually result in complete failure of the compressor or blower motor assembly.
HVAC Motor Run Capacitor Hookup and System Component Breakdown

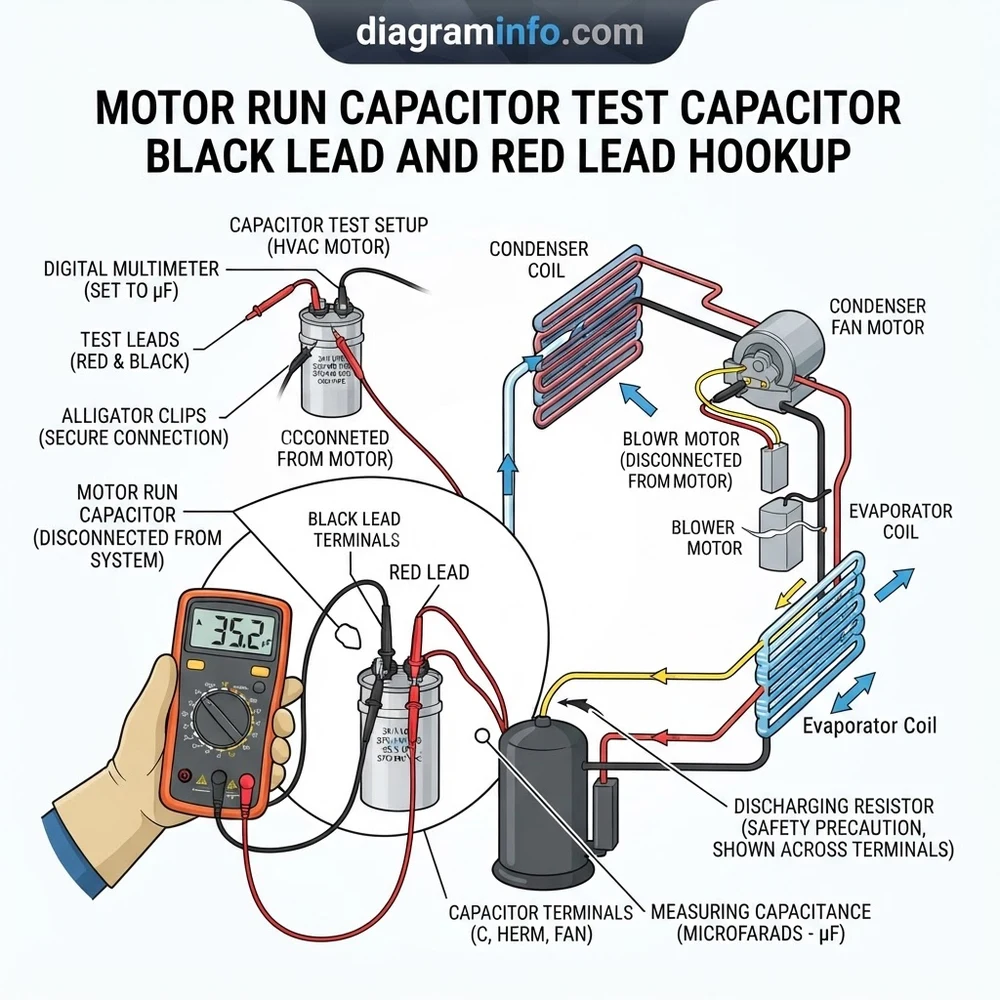

As shown in the schematic above, HVAC systems rely on run capacitors to establish a secondary phase shift in the auxiliary windings of permanent split capacitor (PSC) motors and hermetic scroll or reciprocating compressors. Modern condensing units typically employ a dual run capacitor housed within an aluminum casing, combining two distinct capacitors into a single unit with a shared common terminal.
Understanding terminal identification is critical before performing a diagnostic hookup:
- Common Terminal (C): Identifiable by four metal spade lugs and a raised ring on the top insulator. This terminal receives line voltage from the load side of the contactor and serves as the primary return path for both auxiliary circuits.
- Hermetic Terminal (HERM): Marked with three spade lugs, connecting directly to the start winding ($S$) of the compressor to supply the initial start torque and continuous running phase displacement.
- Fan Terminal (FAN): Built with two spade lugs, routing current to the auxiliary start winding of the outdoor condenser fan motor or indoor blower motor.
Standard dual run capacitors operate at 370 VAC or 440 VAC working voltage ratings with microfarad ratings typically ranging from 35/5 $\mu\text{F}$ to 80/7.5 $\mu\text{F}$. Operating tolerance limits are strictly specified by manufacturers at $\pm5\%$ or $\pm10\%$ of nominal capacitance at $60\text{ Hz}$.
When integrated into the larger cooling circuit, the run capacitor maintains electrical phase angle separation. This ensures the compressor efficiently circulates high-pressure refrigerant gas through the condenser coil while the outdoor fan dissipates rejected heat. Meanwhile, in the indoor section, the air handler blower motor forces warm air across the evaporator coil and through the return duct for heat extraction. For detailed wiring layouts of control contactors, refer to our HVAC contactor wiring guide.
| Terminal Designation | Connected Load Component | Typical Wire Insulation Color | Standard Capacitance Range |
|---|---|---|---|
| Terminal C (Common) | Contactor Load L2 / Main Power Line | Black or Violet | Common Ground / Input Reference |
| Terminal HERM | Refrigerant Compressor Start Winding | Yellow or Red | 30 $\mu\text{F}$ to 80 $\mu\text{F}$ |
| Terminal FAN | Condenser Fan or Blower Motor Start | Brown or Brown/White Striped | 3 $\mu\text{F}$ to 10 $\mu\text{F}$ |
Motor Run Capacitor Test Capacitor Black Lead and Red Lead Hookup Guide
Executing an accurate motor run capacitor test capacitor black lead and red lead hookup requires isolation of the component from the HVAC control circuit to eliminate parallel circuit resistance paths that distort capacitance readings.
High voltage risk! Disconnect line power at the main electrical disconnect switch before opening the control panel. Run capacitors store lethal high-voltage DC charges even when power is off. Discharge the capacitor across terminals using a $20\text{ k}\Omega$, $5\text{ W}$ resistor before touching terminals or connecting meter test leads.
Follow these steps to complete the diagnostic measurement:
- Step 1: System Isolation and Safe Discharge. Shut off 220/240V power to the air handler and condensing unit. Using insulated needle-nose pliers, remove all quick-connect female spade terminals attached to the capacitor posts. Place a discharge resistor or a 10,000-ohm BLEED tool across the C, HERM, and FAN terminals sequentially to drain stored residual energy.
- Step 2: Multimeter Dial Configuration. Turn your Digital Multimeter dial to the dedicated capacitance setting, designated by the symbol ($\mathbf{-\|( -}$) or $\mu\text{F}$. Ensure the meter leads are plugged into the correct jacks: the black lead into the COM port and the red lead into the $\mathbf{V/\Omega/\mu F}$ input port.
- Step 3: Compressor Circuit Test Hookup (C to HERM). Place the multimeter’s black test lead onto the capacitor’s C (Common) terminal spade. Attach the red test lead to the HERM terminal spade. Hold firmly for 2 to 5 seconds while the DMM charges the internal dielectric and displays the microfarad output on the digital screen. Compare this reading against the stamped chassis specification (e.g., 45 $\mu\text{F}$).
- Step 4: Motor Circuit Test Hookup (C to FAN). Keep the black lead anchored on the C (Common) terminal spade. Move the red test lead directly to the FAN terminal spade. Observe the capacitance value for the outdoor fan or indoor blower motor circuit (e.g., 5 $\mu\text{F}$).
Because HVAC motor run capacitors are non-polarized alternating current (AC) film capacitors, swapping the red and black multimeter leads will not damage the meter or alter the microfarad reading. However, standard testing protocol dictates connecting the black lead to Common (C) as an industry best practice to establish a clean reference line.
Troubleshooting Motor Run Capacitor Test Failures in HVAC Air Handlers
When a motor run capacitor degrades beyond OEM specifications, performance drop-offs affect the entire refrigeration circuit. A weakened capacitor lowers the starting torque, causing high locked rotor amps (LRA) and elevated running amps (RLA). This excess heat trips the internal thermal overload protector embedded in the motor windings.
If the compressor fails to engage due to a defective capacitance output on the HERM side, refrigerant gas stops circulating. The pressure differential across the expansion valve collapses, resulting in lost cooling performance. Conversely, if the FAN side fails, heat exchanger transfer degrades. On an indoor air handler, a failed blower capacitor starves the evaporator coil of airflow. The coil temperature drops below freezing ($32^\circ\text{F}$ / $0^\circ\text{C}$), causing frost accumulation that restricts airflow into the return duct.
If you encounter diagnostic readings outside allowable limits, reference our refrigerant pressure diagnostic manual to verify secondary thermal system impacts, or review our blower motor troubleshooting sheet for winding resistance parameters.
Common multimeter output readouts and their real-world equipment diagnostic meanings include:
- Out-of-Spec Low Reading (Degraded Capacitance): The microfarad output drops more than $5\%$ below rating (e.g., measuring $38\ \mu\text{F}$ on a $45\ \mu\text{F}$ terminal). Replace the capacitor immediately to prevent winding damage.
- Open Line (OL) or Zero Microfarads: Indicates an internal open-circuit breakdown where the aluminum foil layer or internal connect wire has parted. The motor or compressor will not start and will emit an audible hum.
- Constant Resistance / Shorted Reading: If the multimeter indicates zero resistance ($\Omega$) during a secondary continuity check, the internal polypropylene film insulation has broken down completely, creating a direct short to the grounded outer case.
Motor Run Capacitor Test Capacitor Black Lead and Red Lead Hookup FAQ
Does polarity matter when connecting multimeter black lead and red lead to a motor run capacitor?
No, polarity does not matter when testing an AC motor run capacitor. Run capacitors utilize non-polarized metallized polypropylene film suspended in dielectric fluid. Connecting the black lead to Common and the red lead to HERM or FAN is the standard diagnostic setup, but reversing the leads will yield identical microfarad ($\mu\text{F}$) values on your multimeter screen.
What microfarad tolerance range indicates a failed motor run capacitor?
According to OEM guidelines, a capacitor must be replaced if its measured value strays beyond the marked tolerance percentage printed on the label, typically $\pm5\%$ or $\pm10\%$. For example, on a $50\ \mu\text{F}$ rating with a $\pm5\%$ tolerance, any measured test value below $47.5\ \mu\text{F}$ or above $52.5\ \mu\text{F}$ warrants immediate replacement.
How do you test a single-value run capacitor versus a dual run capacitor?
A single-value run capacitor features only two terminals and serves a single motor. To test it, attach the multimeter black lead to one terminal and the red lead to the opposite terminal. A dual run capacitor features three terminals (C, HERM, FAN); testing requires keeping the black lead anchored on the C terminal while switching the red lead between HERM and FAN to test each internal capacitor section individually.
Why does my multimeter read “OL” during a motor run capacitor test hookup?
An “OL” (Over Limit or Open Line) reading on the capacitance setting indicates an internal open circuit. This means the internal connection leads have burned open due to high current, or the internal film foil has completely degraded. An “OL” reading confirms the run capacitor is defective and must be replaced before operating the system.
Step-by-Step Guide to Understanding the Motor Run Capacitor Test Capacitor Black Lead And Red Lead Hookup
Identify – Turn off high-voltage power at the outdoor HVAC disconnect switch and verify zero voltage using a multimeter.
Locate – Gain panel access to the electrical control box housing the dual-run capacitor near the condenser fan contactor.
Reference – Discharge stored energy across C, HERM, and FAN terminals using a resistor before disconnecting existing wiring leads.
Connect/Route – Switch the multimeter to µF mode, attaching the red lead to HERM (or FAN) and the black lead to C.
Verify – Compare the measured capacitance against the ±5% tolerance printed on the capacitor body label.
Troubleshoot – Replace the capacitor if readings fall below specification; check for motor winding continuity if capacitance measures normal.
