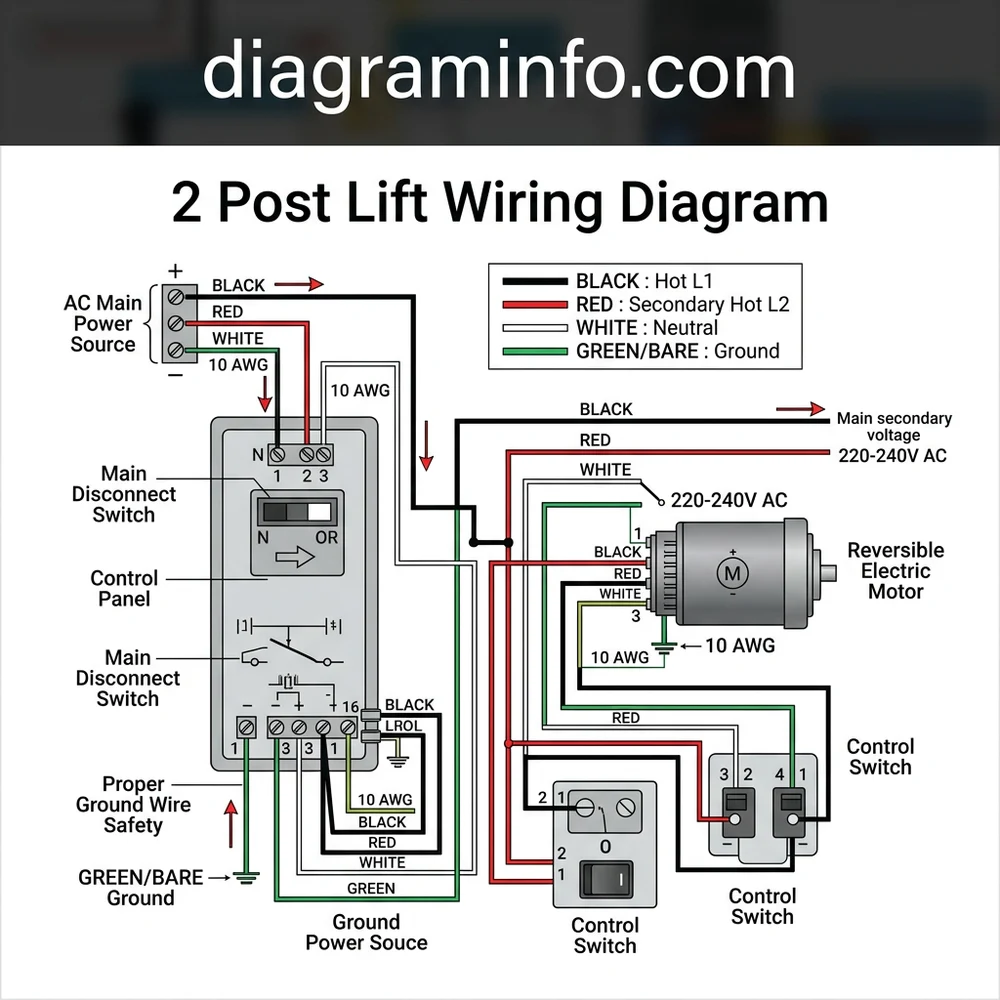

2 Post Lift Wiring Diagram: Troubleshooting 2026
A 2 post lift wiring diagram typically features a 220V/240V single-phase power unit using two hot wires (L1/L2, usually black and red) and a dedicated green ground wire. The L1 and L2 wires connect directly to the push-button switch terminals, feeding the motor, while the ground wire attaches securely to the hydraulic power unit frame.
📌 Key Takeaways
- Standard 2 post automotive lifts require a dedicated 208-230V single-phase circuit on a 30-amp breaker using 10-gauge (10/2 AWG) copper wire.
- The circuit utilizes two hot wires (L1/L2) and a bare or green ground wire; a neutral wire is usually not required for 230V hydraulic units.
- Always secure the main equipment chassis with a dedicated ground wire connected to the grounding lug on the electric motor assembly.
- Incorrect hot wire placement on the motor starter switch can cause the motor to run backward, damaging the hydraulic pump.
- Consult a licensed electrician if high-voltage main panel connections or localized voltage drops require step-up transformers.
Installing or servicing an electro-hydraulic vehicle hoist requires a thorough understanding of the electrical delivery system. Correctly reading a 2 post lift wiring diagram prevents premature motor winding failure, contactor chatter, and dangerous high-voltage chassis energization. Most standard automotive 2 post lifts utilize a single-phase 208–230V AC electric motor driving a hydraulic pump, drawing anywhere from 15 to 25 full load amps (FLA). Whether you are powering a 2-horsepower commercial unit or a heavy-duty 3-horsepower asymmetric lift, adhering to National Electrical Code (NEC) guidelines, matching wire gauge to circuit length, and identifying accurate terminal block assignments is vital for safe operation.
Wire Color Code and Terminal Identification for the 2 Post Lift Wiring Diagram
According to OEM manufacturer specifications, single-phase power units utilize a standardized four-conductor terminal arrangement inside the motor electrical enclosure or magnetic starter box. Depending on whether your lift features standard direct-switch power or a magnetic starter contactor with a 24V control circuit, wire identification varies slightly. Always verify line voltage (L1/L2) with a digital multimeter before attaching conductors to the main terminal block.
| Wire Color Code | Circuit Function | Pin / Terminal Assignment | Electrical Specification & Notes |
|---|---|---|---|
| Black | Hot Line 1 (L1 Supply) | Line Terminal L1 / Contactor Terminal 1 | 208V–240V AC phase leg; dedicated 30A circuit. |
| Red (or White marked Red) | Hot Line 2 (L2 Supply) | Line Terminal L2 / Contactor Terminal 3 | 208V–240V AC secondary phase leg; must not be grounded. |
| Green / Bare Copper | Equipment Ground Wire | Grounding Lug / Motor Frame Chassis | Mandatory safety earth ground; bond directly to motor chassis lug. |
| White (120V Control Only) | Neutral Wire | Terminal N (Transformer Primary / Switch) | Used strictly when unit includes a 120V control circuit or auxiliary outlet. |
| Yellow / Blue Loop | Safety Limit Switch Interlock | Auxiliary Contacts A1 / Control Circuit Loop | Normally Closed (NC) overhead cutoff bar circuit breaks power to motor coil. |
| Brown / Black (Motor Leads) | Load Terminal Output (T1 / T2) | Motor Winding Junctions (T1 & T2) | Feeds voltage directly from contactor output to motor capacitor run circuit. |
Older lift power units (manufactured prior to 2010) or imported three-phase units converted to single-phase may utilize European IEC wire color codes: Brown for Hot 1 (L1), Black for Hot 2 (L2), Blue for Neutral, and Green/Yellow stripe for Ground Wire. Always confirm terminal block layout with a conductivity meter before applying line voltage.
Step-by-Step Connection Guide Using the 2 Post Lift Wiring Diagram
Executing an accurate installation requires proper cable preparation, precise torque settings at the terminal block, and correct insertion of safety interlocks into the power circuit. Follow these precise step-by-step instructions to terminate line and load cables safely.
Operating Voltage: 208V – 230V AC, 1-Phase, 60 Hz
Recommended Circuit Breaker: 30 Amp Double-Pole (2-Pole)
Minimum Wire Gauge: 10 AWG Copper Conductors (up to 50 ft run); 8 AWG for runs exceeding 50 ft
Terminal Screw Torque: 18–22 in-lbs (2.0–2.5 Nm)
Step 1: Main Panel Breaker and Power Supply Cable Preparation
Isolate service at the main distribution panel and lock out the breaker. Run a dedicated 10/2 AWG solid copper wire with ground (or stranded THHN in conduit) from a double-pole 30-amp breaker to the power disconnect box adjacent to the lift column. Strip approximately 1/2-inch of insulation from the Black (L1), Red or marked White (L2), and bare Ground wire. Do not nick the copper strands, as this causes localized resistance and thermal failure under full load current.
Step 2: Connecting Line Inputs to the Magnetic Starter Contactor
Open the electrical junction box on the hydraulic power unit. Identify line terminals L1 and L2 on the top side of the magnetic starter contactor or pushbutton switch terminal block. Insert the Black supply wire into terminal L1 and the Red supply wire into terminal L2. Secure the lug screws using a torque screwdriver calibrated to 20 in-lbs. Confirm that no stray wire strands extend past the terminal guard, which could arc to the grounded metal casing.
Step 3: Ground Wire Anchoring and Chassis Bonding
Attach the green or bare copper ground wire directly to the heavy-duty grounding lug welded to the motor frame or junction box casing. Remove any powder coating or paint beneath the grounding lug connection point using a wire wheel or emery cloth to guarantee a zero-ohm ground bond. Never share the line neutral terminal as a ground point.
Step 4: Wiring the Overhead Height Limit Safety Switch
Top-beam overhead 2 post lifts incorporate a mechanical cut-off bar designed to prevent tall vehicles from crashing into the top crossbeam. Route the 2-conductor limit switch cable down the main column into the power unit electrical box. Wire this switch into the control circuit loop (terminals A1 and A2 on the coil circuit, or in series with the push-button switch). The limit switch must be wired as Normally Closed (NC). When an ascending vehicle contacts the safety bar, the switch opens, cutting coil voltage to the contactor and stopping the hydraulic pump instantly.
Never wire the overhead limit switch directly across high-voltage line leads (L1/L2) without a magnetic contactor coil loop. Placing line current through standard micro-switches will weld the contact points together, rendering the overhead safety shut-off completely inoperable and creating a catastrophic crush hazard.
Step 5: Motor Lead Verification and Voltage Testing
Ensure motor lead output terminals T1 and T2 connect directly from the lower load side of the contactor to the dual-capacitor motor junction. Reattach the electrical junction cover securely. Re-energize the main breaker and test operating voltage across L1 and L2 using an AC voltmeter. The reading must register between 208V and 245V AC at rest, dropping no more than 5% (maximum 11V drop) when the raise button is depressed under load.
Troubleshooting Voltage Drops and Common 2 Post Lift Wiring Diagram Errors
Faulty installation practices directly contribute to low motor torque, nuisance breaker tripping, burned contactor points, and thermal overload cutouts. Evaluating electrical performance with standard diagnostic tools requires isolating operational symptoms using systematically logged electrical values.
1. Excessive Line Voltage Drop Under Motor Starting Load
Symptom: Motor hums loudly, rotates slowly, or fails to lift rated capacity; circuit breaker trips after 2–3 seconds of engagement.
Cause: Undersized supply wire gauge (e.g., using 12 AWG wire instead of 10 AWG or 8 AWG) or excessive wire length from the electrical panel.
Correction: Measure voltage at contactor terminals L1/L2 while holding down the UP button. If incoming voltage drops below 198V AC on a 230V system, replace supply feed conductors with 8 AWG wire to handle locked-rotor amps (LRA).
2. Miswired Overhead Safety Switch Loop
Symptom: Motor refuses to run when the UP button is pressed; coil contactor does not pull in or click.
Cause: The limit switch interlock cable is misidentified on the terminal block or wired into a Normally Open (NO) terminal instead of Normally Closed (NC).
Correction: Disconnect power, isolate the limit switch wires, and check continuity with a multimeter. The circuit should show zero ohms at rest. Depress the overhead safety bar manually; continuity must instantly break (infinity ohms). Swap terminal connections to the NC terminals if necessary.
3. Floating Ground and High Casing Voltage
Symptom: Technician experiences a tingling sensation or severe shock when touching the lift post or hydraulic power unit body.
Cause: Ground wire is missing, loosely connected, or tied to a neutral conductor instead of a true earth ground lug.
Correction: Immediately disconnect main breaker power. Clean contact surfaces, re-torque the chassis ground lug to 25 in-lbs, and verify ground resistance measures less than 0.5 ohms between lift frame and main breaker panel earth busbar.
4. Contactor Coil Chatter or Rapid Buzzing
Symptom: Contactor rapidly clicks ON and OFF when pushing the start button, preventing motor acceleration.
Cause: Low control coil voltage caused by high terminal resistance, loose crimp fittings, or a loose secondary wire pin assignment.
Correction: Inspect control wire terminals for loose crimps or corrosion. Ensure terminal screws on coil control loops (A1/A2) are tightened securely to specifications detailed in your specific power unit documentation.
Contactor Terminal Block Setup and System Electrical Specifications
Modern commercial lift power units rely on a magnetic starter assembly containing three core elements: an AC contactor, an adjustable thermal overload relay, and a low-voltage step-down transformer (if using 24V control switches). Understanding how these components route current based on the 2 post lift wiring diagram prevents dangerous structural overload or electrical burnout.
When selecting electrical components or diagnosing control box failures, cross-reference operating values against standard electro-hydraulic power unit parameters summarized below:
- Motor Ratings: 2.0 HP – 3.5 HP, single-phase, 3450 RPM, continuous heavy-duty duty cycle.
- Full Load Amperage (FLA): 15.0A to 18.0A at 230V AC nominal.
- Locked Rotor Amperage (LRA): Up to 85A during the initial 200 milliseconds of motor startup.
- Thermal Overload Setting: Must be set to 110%–115% of motor nameplate FLA (typically set between 18A and 21A for a standard 2.0 HP motor).
- Control Circuit Fuse: 1.0 Amp or 2.0 Amp slow-blow glass fuse inline with primary coil circuit.
If you are integrating advanced diagnostic machinery or performing comprehensive lift overhauls, proper electrical installation should always be paired with verified mechanical safety checks. Ensure you reference technical protocols for hydraulic fluid specifications, motor starter relay replacement, and overhead limit switch adjustment to maintain full workshop compliance and bay efficiency.
Commercial shops utilizing 208–460V 3-phase power must pay strict attention to motor rotation direction. If the motor turns counter-clockwise, the hydraulic pump will Cavitate and fail to generate pressure. Swap any two line input wires (L1 and L2) on the main contactor line side to reverse phase rotation instantly.
Frequently Asked Questions About 2 Post Lift Electrical Wiring
What wire gauge and breaker size are required for a standard 220V 2 post lift motor?
Most 220V/230V single-phase 2 post vehicle lifts require a dedicated 30-amp double-pole circuit breaker paired with 10 AWG copper conductors for wire runs up to 50 feet. If the distance from the main circuit panel to the lift power unit exceeds 50 feet, you must step up to 8 AWG copper wire to offset voltage drop during motor startup. Never run a lift on a shared branch circuit or standard 20-amp breaker.
How do you wire the overhead limit switch into the 2 post lift power unit control circuit?
The overhead safety limit switch must be wired in series with the magnetic starter control coil (terminals A1 or A2) or the low-voltage pushbutton circuit using a Normally Closed (NC) configuration. When a vehicle’s roof touches the padded overhead bar, the switch contacts open, immediately interrupting coil power to the contactor and shutting off the electric motor before structural contact occurs.
Can a 2 post automotive lift be converted from 220V single-phase to 110V operation?
Converting a standard single-phase 220V lift motor to 110V/120V is generally not recommended or feasible without changing the entire electric motor assembly. A 2.0 HP motor operating at 110V AC would draw over 30 full-load amps and nearly 120 locked-rotor amps, exceeding standard wall outlet capacity, overheating wiring, and causing frequent thermal overloads. Dedicated 208-240V power guarantees proper operational torque and system longevity.
Why does the motor contactor chatter or hum upon pressing the raise switch?
Contactor chatter occurs when the magnetic coil receives insufficient voltage to keep its contacts clamped shut. Common causes include low line voltage at the terminal block, loose screw terminals on the control circuit, oxidized contact points, or an undersized supply cable causing localized voltage sag. Check terminal tightness and confirm operating voltage under load stays above 208V AC.
Where should the ground wire be anchored on the power unit assembly?
The equipment ground wire must be anchored directly to the heavy-duty grounding lug terminal welded to the metal housing inside the motor terminal junction box. Ensure paint or protective powder coating is cleared down to bare metal at the bonding lug to establish a true low-resistance earth ground path, protecting technicians from chassis shock hazards.
