Standard Guitar Output Jack Wiring Diagram: Installation Setup 2026
A standard mono guitar output jack connects the hot signal wire (typically black/white from pickup) to the tip terminal and the ground wire (bare/green) to the sleeve. For active systems, a stereo jack uses the tip for hot, the ring for battery switching (to turn off power when unplugged), and the sleeve for ground.
📌 Key Takeaways
- Correctly identify if you have a mono (2-terminal) or stereo (3-terminal) output jack before wiring.
- For mono, the hot wire connects to the tip terminal, and the ground wire connects to the sleeve terminal.
- Proper soldering is crucial; cold solder joints are a primary cause of intermittent signals and noise.
- Loose ground wire connections or damaged wires are the most common reasons for hum, crackle, or signal loss.
- DIY replacement is feasible with basic soldering skills and correct wire color code understanding; seek professional help for complex issues or internal preamp wiring.
For any technical professional working with high-fidelity audio systems or intricate electronic equipment, understanding the precise wiring of signal pathways is paramount. This guide provides a comprehensive, technically accurate diagram and detailed instructions for wiring a guitar output jack, a critical component often overlooked but essential for maintaining signal integrity and eliminating unwanted noise. Whether you are installing new electronics, replacing a faulty jack, or upgrading an existing system, adherence to correct `pin assignment` and `wire color code` is non-negotiable. This article will meticulously detail the connections, ensuring optimal performance and reliability for both mono and stereo output configurations.

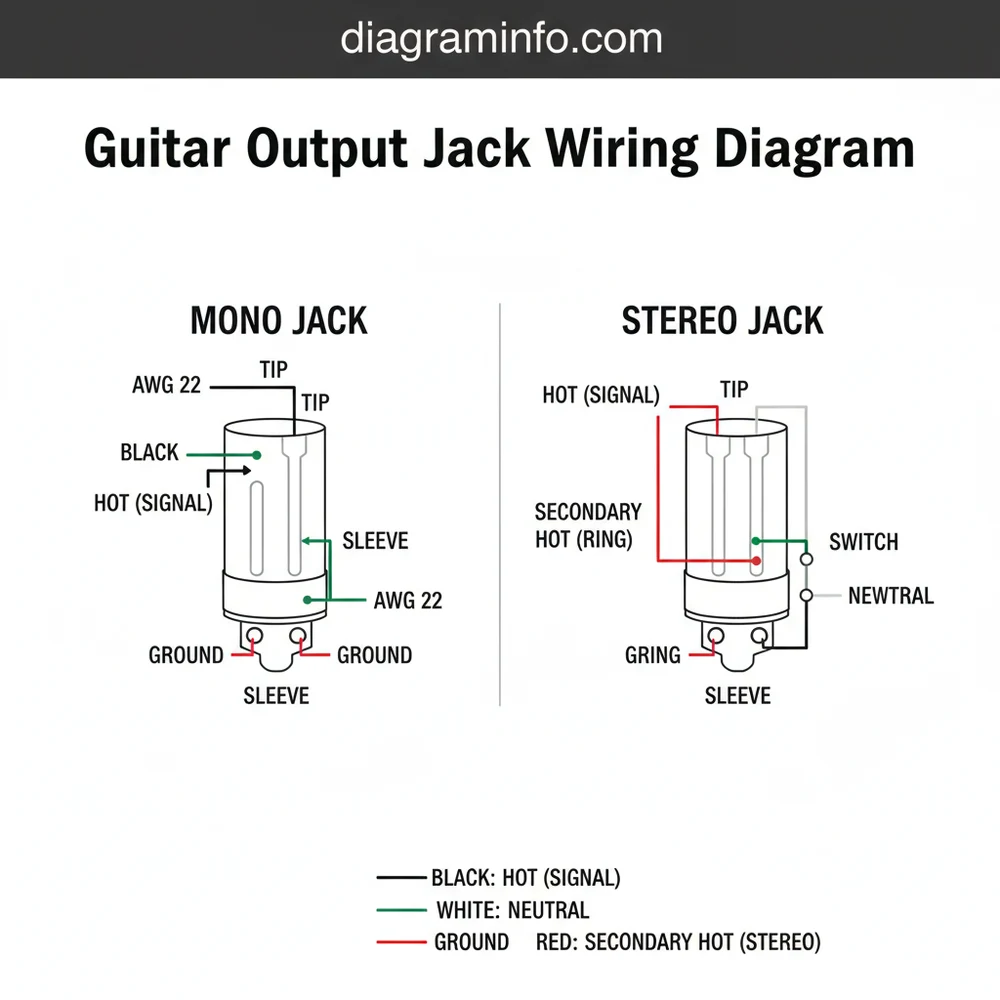

[DIAGRAM_PLACEHOLDER: Guitar Output Jack Wiring Diagram (Mono and Stereo)]
While common internal guitar wiring practices often use specific colors, always verify the functional assignment of wires from your specific pickup or electronics manufacturer’s documentation. Misinterpreting a `wire color code` can lead to short circuits or signal loss.
WIRE COLOR REFERENCE TABLE
| Wire Color (Typical) | Function | Pin/Terminal (Standard 1/4″ Jack) | Notes |
|---|---|---|---|
| White or Red | Hot (Signal) | Tip | Carries the primary audio signal. Often from volume pot output. |
| Black (or Bare/Shield) | Ground | Sleeve | Essential for noise reduction and circuit completion. Connects to chassis/bridge ground. |
| Bare/Shield (Coaxial) | Ground (Shield) | Sleeve | Used with shielded cable to minimize electromagnetic interference. |
| Usually Black (from battery) | Battery Negative (Active Systems Only) | Ring (on Stereo Jack) | Connects battery negative to ground when cable is inserted, powering active circuits. |
For guitar signal wiring, 22-24 AWG (American Wire Gauge) stranded copper wire is standard. Ensure adequate insulation rated for internal signal applications. While the signal `voltage` is low (millivolts), proper `gauge` and shielding are critical for preventing signal degradation and microphonics.
STEP-BY-STEP CONNECTION GUIDE
Accurate wiring of the output jack is paramount for signal integrity and reliable operation, especially when dealing with delicate audio signals. This guide provides precise steps for both mono (TS – Tip/Sleeve) and stereo (TRS – Tip/Ring/Sleeve) 1/4″ output jacks, referencing the diagram provided and the wire color table above.
1. Prepare the Jack and Wires: Begin by securely mounting the output jack into the designated chassis or instrument body. Strip approximately 3/16″ to 1/4″ (4-6mm) of insulation from the ends of all wires to be connected. Tin the stripped ends of the wires and the terminals of the output jack with a small amount of solder. This pre-tinning facilitates a strong, reliable solder joint and prevents cold joints. Ensure your soldering iron is at the appropriate temperature, typically 700-750°F (370-400°C), for lead-free solder, or slightly lower for leaded.
2. Connect the `Hot Wire` (Signal):
Mono Jack (TS): Identify the “Tip” terminal on the output jack. This is typically the longer lug that makes contact with the tip of the inserted cable plug. Solder the `hot wire` (commonly white or red, carrying the signal from the volume potentiometer or main output of the preamplifier) to this Tip terminal. Ensure a clean, solid connection with no stray strands.
Stereo Jack (TRS): Similarly, connect the primary `hot wire` (e.g., from the main signal path) to the “Tip” terminal. For specific applications requiring a second channel, such as some stereo output pickups or multi-channel effects, the secondary signal `hot wire` would be connected to the “Ring” terminal. Verify the manufacturer’s specific `pin assignment` for such configurations.
3. Connect the `Ground Wire` (Sleeve):
Mono Jack (TS): Locate the “Sleeve” terminal, which is the shorter, larger lug that contacts the main body (sleeve) of the cable plug. Connect the main `ground wire` (typically black or the braided shield from coaxial cable, originating from the chassis ground, bridge ground, or main control cavity ground point) to this Sleeve terminal. This connection is fundamental for eliminating hum and establishing a common reference potential.
Stereo Jack (TRS): Connect the main `ground wire` to the “Sleeve” terminal, identical to the mono jack. This provides the essential earth reference for all circuits.
4. Connect the Ring Terminal (Stereo Jack Only – Active Systems):
For instruments utilizing active electronics (e.g., active pickups, preamps), a stereo jack is almost universally employed to switch battery power. In this setup, the `neutral wire` (negative terminal) of the battery clip (usually black) is connected to the “Ring” terminal of the stereo output jack. When a mono cable plug is inserted, it short-circuits the Ring and Sleeve terminals, thereby completing the battery circuit and powering the active electronics. When the cable is unplugged, the battery negative is disconnected from ground, preventing battery drain. Crucially, do NOT connect a hot signal to the Ring terminal in this configuration; it is solely for battery switching. For this application, confirm the correct `pin assignment` according to your active electronics module.
5. Inspect and Secure: After all connections are soldered, perform a thorough visual inspection for cold solder joints, solder bridges (short circuits), or loose connections. Gently tug on each wire to ensure mechanical integrity. If the jack has multiple `terminal block` points, ensure only the intended wires are connected. Use heat shrink tubing or electrical tape to insulate any exposed connections if necessary, though well-executed solder joints on standard guitar jacks usually provide sufficient insulation due to their design. Verify that the output jack is securely fastened and will not rotate, which could stress the solder joints.
Failure to correctly identify and connect the `ground wire` can result in severe hum, signal degradation, and potential electrical hazards if other components are improperly grounded. Always double-check continuity from the jack’s sleeve to other ground points in your circuit.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during wiring, particularly with nuanced signal paths. Understanding common mistakes and their immediate troubleshooting steps is critical for efficient resolution and maintaining system integrity.
1. Reversed Hot and `Ground Wire` Connections:
Consequence: The signal will often still pass, but it will be out of phase, leading to thin sound, reduced output, and potential interaction issues when combined with other instruments or effects. More critically, if the instrument’s main `ground wire` is tied to the hot signal via a reversed jack, it can introduce significant hum and noise, as the entire shielding system is now attempting to ground the signal.
Fix: Use a multimeter to test continuity. The sleeve of the output jack should show continuity with all other grounded components (e.g., bridge, control pot backs, pickup shields). The tip should show continuity with the output of the volume potentiometer. Desolder and reverse the `hot wire` and `ground wire` connections at the jack.
2. Cold Solder Joints:
Consequence: Intermittent signal, crackling, complete signal loss, or high-impedance hum. A cold joint appears dull, lumpy, or grainy and doesn’t fully wet the wire and terminal, leading to a poor electrical connection that can fail under vibration or temperature changes.
Fix: Reheat the joint, applying a small amount of fresh solder while ensuring both the wire and terminal are heated simultaneously until the solder flows smoothly and encapsulates the connection point, forming a shiny, concave fillet. Ensure the iron tip is clean and tinned.
3. Short Circuit at the Jack:
Consequence: Complete signal loss or a very weak, distorted signal coupled with significant noise. This often occurs when a stray strand of `hot wire` touches the `ground wire` or the jack’s metal casing, or if excessive solder bridges the tip and sleeve terminals.
Fix: Visually inspect the jack terminals closely, using magnification if necessary. Remove any stray wire strands. If a solder bridge is present, carefully reheat the area and draw off excess solder with a desoldering braid or pump. Test continuity between the tip and sleeve terminals with a multimeter; there should be no continuity when no cable is inserted (for a mono jack) and usually none between tip/ring/sleeve unless a cable is inserted into a stereo jack for battery switching.
4. Incorrect Jack Type (Mono vs. Stereo) in Active Systems:
Consequence: An active circuit wired to a mono (TS) jack will remain powered on constantly, draining the battery rapidly, as there’s no “ring” terminal to interrupt the battery negative path. Conversely, a passive circuit wired to a stereo (TRS) jack with the ring terminal connected to ground may experience issues if the inserted cable is also stereo, potentially grounding one side of the signal.
Fix: For active systems, always use a stereo (TRS) jack and connect the battery negative to the ring terminal. For passive systems, a mono (TS) jack is sufficient and prevents unnecessary complexity or potential issues with stereo cables. If you’ve used the wrong type, replace the jack with the correct one and re-wire according to the diagram. Refer to your active electronics documentation for specific `pin assignment` recommendations.
5. Poor Shielding or Unshielded `Ground Wire`:
Consequence: Excessive hum, buzz, and susceptibility to electromagnetic interference (EMI). Even correctly wired components can suffer if the signal path is exposed. This can be exacerbated in environments with high electrical noise.
* Fix: Ensure that all signal-carrying wires, especially those running long distances (e.g., from pickups to controls), are shielded. Connect the shield to the `ground wire` at one end only to prevent ground loops. Verify that all components (pot backs, switch frames, etc.) are properly integrated into the common `ground wire` scheme. For more in-depth solutions, consult our article on Shielding Guitar Electronics.
FAQ
What is the primary difference between a mono and a stereo output jack?
A mono (TS) output jack has two terminals: Tip (for the `hot wire` signal) and Sleeve (for `ground wire`). It is designed for single-channel audio output. A stereo (TRS) output jack has three terminals: Tip (for primary `hot wire` signal), Ring (for a secondary signal, or more commonly, for battery negative switching in active circuits), and Sleeve (for `ground wire`). The distinction is critical for maintaining signal integrity and power management in active electronics.
Why is proper grounding crucial for guitar output jack wiring?
Proper `ground wire` connection is absolutely essential for noise reduction and safety. An effectively grounded system provides a common electrical reference point for all components, shunting away unwanted electromagnetic interference (EMI) and radio frequency interference (RFI) to prevent hum and buzz. Without proper grounding, the signal path becomes highly susceptible to external noise, compromising audio quality. For comprehensive guidance on related ground schemes, you may find our Guitar Pickup Wiring Guide beneficial.
Can I use shielded cable for internal guitar wiring?
Yes, using shielded cable, particularly for runs from pickups to the control cavity or between critical components, is highly recommended. The braided or foil shield, connected to the `ground wire` at one end, acts as a Faraday cage, protecting the internal `hot wire` signal conductor from external electrical interference. This significantly reduces hum and buzz, contributing to a cleaner overall signal.
What wire gauge is recommended for guitar output jack wiring?
For typical guitar output jack wiring, 22 AWG (American Wire Gauge) to 24 AWG stranded copper wire is generally recommended. This `gauge` provides sufficient current-carrying capacity for low-level audio signals, offers good flexibility for routing within tight control cavities, and is robust enough for soldering. Thicker gauges are unnecessary and can be harder to work with, while thinner gauges may be less durable.
How does a stereo jack power active electronics, and what is the role of the Ring terminal?
In active guitar circuits (e.g., active pickups, onboard preamps), a stereo (TRS) output jack functions as a battery switch. The `neutral wire` (negative terminal) of the battery is connected to the Ring terminal of the jack. The `ground wire` from the circuit’s main ground plane is connected to the Sleeve terminal. When a standard mono (TS) guitar cable is inserted into the jack, the Tip and Ring contacts of the jack are bridged to the Sleeve of the mono cable. This connection completes the battery circuit, supplying power to the active electronics. When the cable is unplugged, the Ring terminal (and thus the battery negative) is disconnected from the Sleeve (ground), effectively turning off the power and preventing battery drain. For detailed schematics of active systems, consult our Active Electronics Installation Guide.
Step-by-Step Guide to Understanding the Standard Guitar Output Jack Wiring Diagram: Installation Setup 2026
Identify – Determine if your guitar uses a mono (2-conductor) or stereo (3-conductor) output jack, crucial for correct `pin assignment`.
Locate – Find the tip, sleeve, and if applicable, ring terminals on your specific output jack component.
Reference – Consult the `guitar output jack wiring diagram` for your specific guitar model or pickup configuration to confirm `wire color code` and connection points.
Connect/Route – Solder the `hot wire` (signal) to the tip terminal and the `ground wire` (shield/return) to the sleeve terminal. If stereo/active, connect the battery-negative or second signal wire to the ring terminal.
Verify – Use a multimeter to check for continuity from the hot and ground wires to the tip and sleeve, and test for any short circuits between them.
Troubleshoot – If you experience hum, crackle, or no signal after assembly, re-check all solder joints for cold connections and ensure `ground wire` integrity and proper `pin assignment`.
Frequently Asked Questions
What wire color is hot on guitar output jack wiring diagram?
The hot signal wire, which carries the audio signal from the pickups, is typically black or white according to common guitar `wire color code` standards. This `hot wire` connects to the tip terminal of a mono output jack, ensuring the signal reaches the amplifier. For stereo jacks, the tip is also hot, with the ring serving other functions.
What do the pin numbers mean on guitar output jack wiring diagram?
On a guitar output jack, ‘pin numbers’ refer to specific terminal `pin assignment`. For a mono jack, the longer terminal is for the hot signal (tip), and the shorter one connected to the jack body is for the `ground wire` (sleeve). A stereo jack adds a third terminal (ring) typically used for battery switching in active pickup systems.
How many wires does guitar output jack wiring diagram have?
A standard mono guitar output jack requires two wires: one `hot wire` for the audio signal and one `ground wire` for the return path. For active pickups or true stereo applications, a stereo jack requires three connections: hot, ground, and a third wire for battery switching (often connected to the ring terminal) or a second channel.
What are common wiring mistakes with guitar output jack wiring diagram?
Common `wiring mistakes` include cold solder joints leading to intermittent signals, reversing the `hot wire` and `ground wire` connections causing phase issues or no sound, and loose `ground wire` connections resulting in humming or buzzing. Incorrect `pin assignment` on stereo jacks for active systems can also prevent the guitar from powering on.
Can I replace a guitar output jack myself?
Yes, replacing a guitar output jack is a common DIY repair if you possess basic soldering skills and understand the `wire color code`. Always disconnect the guitar from power, carefully desolder the old wires, and then solder the `hot wire` and `ground wire` (and any other wires for stereo/active jacks) to the correct terminals on the new jack.
What gauge wire does guitar output jack wiring diagram require?
For guitar output jack wiring, 22 AWG (American Wire Gauge) stranded wire is typically recommended for both signal and `ground wire` connections. This gauge provides excellent flexibility and durability, appropriate for low-voltage audio signals, and is easy to solder, fitting well within the tight spaces of most guitar cavities, following common `wire color code` practices.
