Four Wire Ignition Switch Diagram: Pinout Guide (2026)
A standard four wire ignition switch diagram connects battery positive (12V hot wire, usually red) to terminal B, ignition switch output (accessory/run, blue/white) to terminal IGN, starter solenoid (yellow/red) to ST, and ground wire (black) or accessory power to ACC. Always verify pin assignment with a multimeter before final connection.
📌 Key Takeaways
- Terminal B (12V hot wire) requires 10-12 AWG wiring protected by a 30A main fuse or circuit breaker.
- Standard pin assignment includes Terminal B (Battery), IGN (Ignition), ST (Start), and ACC (Accessory).
- Operating voltage across terminals B and ST during engine cranking should remain above 10.5V DC.
- Connecting the constant hot wire to an incorrect accessory pin causes battery drain and switch burnout.
- Seek professional repair if factory primary wire insulation shows thermal damage or melting.
Wiring a universal or OEM ignition lock cylinder requires a precise understanding of circuit distribution, terminal pinouts, and contact switching logic. Utilizing an accurate four wire ignition switch diagram eliminates guesswork when retrofitting heavy equipment, tractors, marine craft, or classic automotive wiring harnesses. Four-wire ignition switches generally govern four fundamental electrical states: off, accessory, ignition run, and momentary start. Connecting these lines incorrectly can cause immediate thermal damage, blown fuses, or ruined solid-state ignition modules. This technical guide breaks down wire color codes, terminal identification protocols, continuity testing, and step-by-step wiring execution for 12V DC power distribution systems.

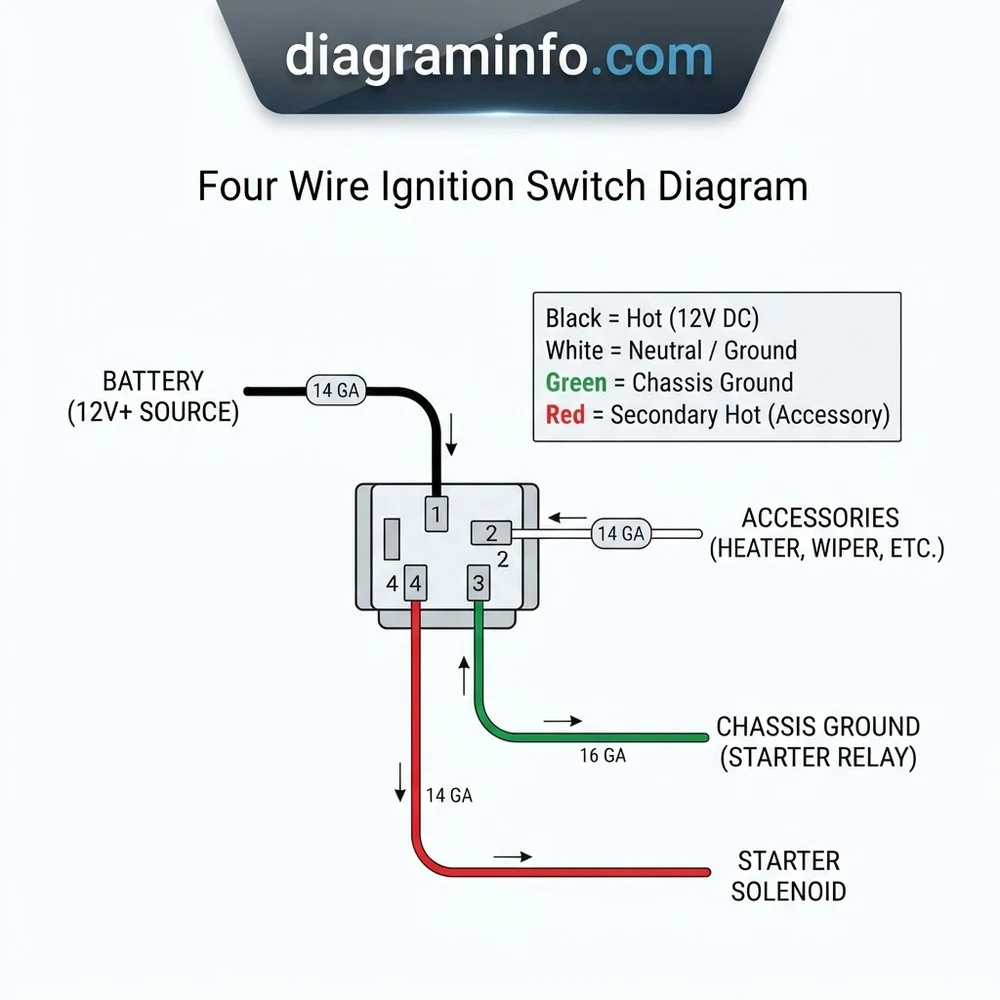

Four Wire Ignition Switch Diagram Pin Assignment and Wire Color Code
Before making any permanent electrical connections, you must identify whether your equipment utilizes a standard battery-fed ignition system or a ground-to-kill magneto ignition system. Connecting a 12V hot wire to a magneto grounding circuit will permanently destroy the engine’s ignition coil module. Refer to the standard OEM wire color code and terminal pin assignment map below for typical battery-ignition installations.
| Wire Color (Standard OEM) | Terminal Stamping / Pin Assignment | Circuit Function | Recommended Wire Gauge |
|---|---|---|---|
| Red | BAT / B / 30 | Constant 12V DC Hot Wire from main fuse or battery terminal block | 10 AWG – 12 AWG |
| Pink or Yellow | IGN / RUN / 15 | Switched 12V Power to ignition coil, ECU, and primary cluster | 12 AWG – 14 AWG |
| Yellow w/ Red Stripe or Blue | START / ST / 50 | Momentary 12V signal to starter solenoid relay trigger wire | 14 AWG – 16 AWG |
| Brown or Violet | ACC / L / 75 | Auxiliary accessory load power (lighting, radio, auxiliary pumps) | 12 AWG – 14 AWG |
| Black or Green (Magneto Type) | G / M / GND | Ground wire circuit used to kill magneto spark in OFF position | 16 AWG |
Non-standard aftermarket replacement switches often do not follow standardized wire color codes. Always verify internal contact closure using a digital multimeter on the resistance (ohms) or continuity setting rather than relying solely on insulation colors. Consult our detailed guide on digital multimeter voltage testing for proper bench-testing protocols.
Switch Position Voltage and Terminal Continuity Logic
Understanding how internal switch contacts bridge current across key turns is critical for verifying proper switch selection. A standard 4-position key switch operates across four distinct rotational detents: OFF, ACCESSORY, RUN (ON), and START.
• OFF Position: Terminal BAT is completely isolated. (On magneto systems, terminal M connects directly to the chassis ground wire to short out ignition pulse).
• ACC Position: Terminal BAT connects internally to Terminal ACC/L. Terminal IGN and START remain unpowered.
• RUN / ON Position: Terminal BAT connects internally to both Terminal IGN and Terminal ACC/L. Operating system voltage (12.6V–14.4V) is applied to engine management circuits.
• START Position: Terminal BAT bridges internally to Terminal ST and Terminal IGN. Terminal ACC is disconnected during cranking to maximize available system voltage to the starter motor.
Wiring a Four Wire Ignition Switch Diagram Step-by-Step
Executing an ignition installation requires precise terminal crimping, proper wire routing, and correct fuse placement to avoid high resistance voltage drops or thermal overload. Follow this structured installation sequence to wire your four-wire switch into an existing harness or custom electrical system.
Step 1: Isolate the Power Source and Prepare the Wire Harness
Disconnect the negative battery terminal to eliminate any risk of short-circuiting during installation. Strip approximately 1/4-inch (6mm) of insulation off each wire lead using a precision wire stripper. Ensure all wire ends are clean, unoxidized copper. Slide marine-grade heat-shrink tubing over each wire conductor before crimp-terminating with high-grade, heat-shrinkable ring or spade connectors matching your switch’s screw terminals or terminal block spades.
Step 2: Connect the Main Hot Wire to the Battery Terminal (BAT)
Locate the constant 12V positive feed wire coming directly from the main power bus or starter battery stud. This primary hot wire must be protected by an inline fuse or circuit breaker positioned within 18 inches of the power source. Route this 10 AWG or 12 AWG red wire to the terminal labeled BAT, B, or 30 on the rear of the switch. Secure the terminal connector, ensuring the mechanical fastener is torqued down snugly to prevent high-resistance electrical arcs under heavy amperage load.
Step 3: Wire the Ignition Run Output Circuit (IGN)
Identify the wire feeding the ignition system—such as the ignition coil positive terminal, electronic control unit (ECU) main relay, fuel pump relay, or instrument panel indicator cluster. Connect this lead to the switch terminal stamped IGN, RUN, or 15. On carbureted engines featuring a safety safety bypass circuit, verify that a safety neutral wire or neutral safety switch is incorporated down-line on the control path rather than directly at the switch terminal to prevent accidental engine engagement in gear.
Step 4: Route the Starter Solenoid Trigger Circuit (ST)
Locate the wire that energizes the starter solenoid pull-in coil. Connect this wire to the switch pin designated as ST, START, or 50. This circuit carries heavy inductive surge currents when the key is turned to the spring-loaded START detent. Ensure this signal passes through a neutral safety switch or safety interlock relay before reaching the primary solenoid S-terminal. If your engine control system requires additional starter relay protection, refer to our specialized guide on starter solenoid wiring diagrams and interlock circuits.
Step 5: Attach the Auxiliary Load Wire or Ground Cutoff
Depending on your electrical design configuration:
- For Standard DC Battery Ignition Systems: Connect the secondary equipment circuit wire (radio, headlights, auxiliary fan relays) to the ACC or L terminal. This terminal drops out during engine cranking to optimize cold-cranking voltage across the battery.
- For Magneto-Killed Small Engines: Attach the frame chassis ground wire to terminal G or GND, and attach the engine kill-wire originating from the magneto armature to terminal M. In the OFF position, these two internal terminals bridge, pulling the ignition primary signal to zero system voltage and stopping engine spark.
Never apply +12V DC battery voltage to the Magneto (M) or Ground (G) terminals of a four-wire magneto key switch. Applying battery voltage directly to a magneto ground circuit will immediately destroy the solid-state ignition module inside the engine stator housing.
Wire Gauge, Amperage Ratings, and Protection Specifications
Correct wire gauge selection prevents resistance-induced voltage drop, excessive heat accumulation, and insulation melting. When routing conductors from the four wire ignition switch diagram to remote distribution points or a terminal block, choose cross-sectional wire sizes matching system load requirements.
| Circuit Line | Max Continuous Amperage | Recommended Fuse / Breaker Size | Min Conductor Size (Up to 10ft) |
|---|---|---|---|
| Battery Input (BAT) | 30 Amps | 30A MAXI / ATC Fuse | 10 AWG (5.26 mm²) |
| Ignition Output (IGN) | 15 Amps | 15A / 20A ATO Fuse | 12 AWG (3.31 mm²) |
| Accessory Output (ACC) | 15 Amps | 15A ATO Fuse | 14 AWG (2.08 mm²) |
| Starter Trigger (ST) | 10 Amps (Intermittent) | 15A Inline Fuse | 14 AWG (2.08 mm²) |
If your total auxiliary load requirement exceeds 15 continuous Amps on the ACC line, do not feed accessories directly through the key switch contacts. Instead, use the switch ACC output wire to trigger a standard 40-pin automotive relay connected directly to an auxiliary power distribution system. Review our master guide on 12-volt relay panel installation and fuse block wiring for complete schematics.
Common Faults and Troubleshooting with the Four Wire Ignition Switch Diagram
Diagnosing ignition switch wiring faults efficiently requires systematically testing voltage levels and voltage drops across switch terminals using a digital multimeter set to DC Volts (20V scale).
Problem 1: Engine Cranks but Will Not Start (No Ignition Power During Crank)
Root Cause: The constant hot wire or primary output wire was miswired to the ACC terminal instead of the IGN terminal, or an incorrect replacement switch was installed that opens the IGN circuit while in the START key position.
Diagnostic Procedure: Connect the red DMM probe to the IGN terminal and the black probe to chassis ground. Turn the key to START. If voltage drops from 12.6V down to 0V while cranking, the switch internal contact is opening the ignition circuit or the IGN wire is incorrectly attached to the ACC terminal.
Problem 2: Accessories Remain Powered When Key is Turned to OFF
Root Cause: The constant hot wire from the battery and the accessory wire are bridged together at the switch terminal block, or internal mechanical oxidation has shorted the BAT contact to the ACC contact.
Diagnostic Procedure: Disconnect the BAT wire from the switch. Check for continuity (ohms) between the BAT terminal and ACC terminal with the key in the OFF position. If resistance reads near 0 Ohms, the switch internal contacts have welded shut and require immediate replacement.
Problem 3: Rapid Solenoid Clicking or Low Voltage at the Solenoid S-Terminal
Root Cause: High electrical resistance due to loose screw connections, undersized 18 AWG starter trigger wiring, or corroded spade pin assignment connections on the rear terminal block.
Diagnostic Procedure: Perform a dynamic voltage drop test. Place the positive multimeter lead on the battery positive post and the negative lead on the switch BAT terminal. Crank the engine. Any voltage reading above 0.2V DC indicates excessive circuit resistance along the feed line that must be repaired.
Four Wire Ignition Switch Diagram Frequently Asked Questions
How can I identify terminals if the markings on my four-wire ignition switch are completely corroded?
Use a digital multimeter set to the Ohms (Ω) setting with all wires disconnected from the switch. Set the switch to the OFF position—no terminals should show continuity unless it is a magneto switch, where two pins (M and G) will show 0 Ohms. Turn the key to the first detent (ACC); the pin showing zero resistance to one other terminal is your BAT pin, and the connected terminal is ACC. Turn the key to the RUN position; the pin showing continuity to BAT and a new terminal designates that new pin as IGN. Finally, hold the key in the momentary START position; the pin that gains temporary continuity to BAT is the ST terminal.
What is the functional difference between a magneto 4-wire switch and a battery 4-wire switch?
A battery 4-wire ignition switch distributes positive 12V DC power from a central hot wire input to individual output terminals (IGN, ACC, ST). A magneto 4-wire switch operates on a combination of power distribution and grounding circuits: it distributes battery voltage to the starter solenoid during cranking, but uses a isolated ground wire to short the engine’s magneto primary coil to chassis ground when turned to the OFF position, preventing spark creation.
Why does my ignition switch feed wire heat up or melt under operation?
Overheating occurs when total system current draw through the switch exceeds the thermal contact rating of the internal copper contacts, or when wire gauge sizes are undersized for the amperage load. High resistance caused by loose, oxidized pin assignment connections also generates extreme thermal output. To resolve this, measure continuous system draw; if current exceeds 20A, install heavy-duty 40A power relays on the IGN and ACC outputs to relieve electrical stress on the key switch mechanism.
Can I bypass the switch using the four wire ignition switch diagram for diagnostic purposes?
Yes, for diagnostic testing on battery ignition systems, you can install a fused jumper wire connecting the BAT line directly to the IGN wire to energize the engine control circuits. To crank the starter, temporarily bridge a secondary jumper from the BAT terminal to the ST terminal until the engine fires, then instantly remove the ST jumper. Never leave the ST jumper connected while the engine is running, as this will burn out the starter motor drive engagement gear.
What type of wire insulation and connection hardware should be used for harsh environments?
Always select cross-linked polyethylene (XLPE) insulated primary wire (such as SAE J1128 Type GXL or TXL) rated for heat resistance up to 125°C (257°F) in automotive or engine bay environments. Use adhesive-lined heat-shrink crimp terminals on all switch connections to form a gas-tight seal that prevents water ingress, green copper corrosion, and electrical resistance failures over time.
