Millivolt Gas Valve Wiring Diagram 2026: Troubleshooting Guide

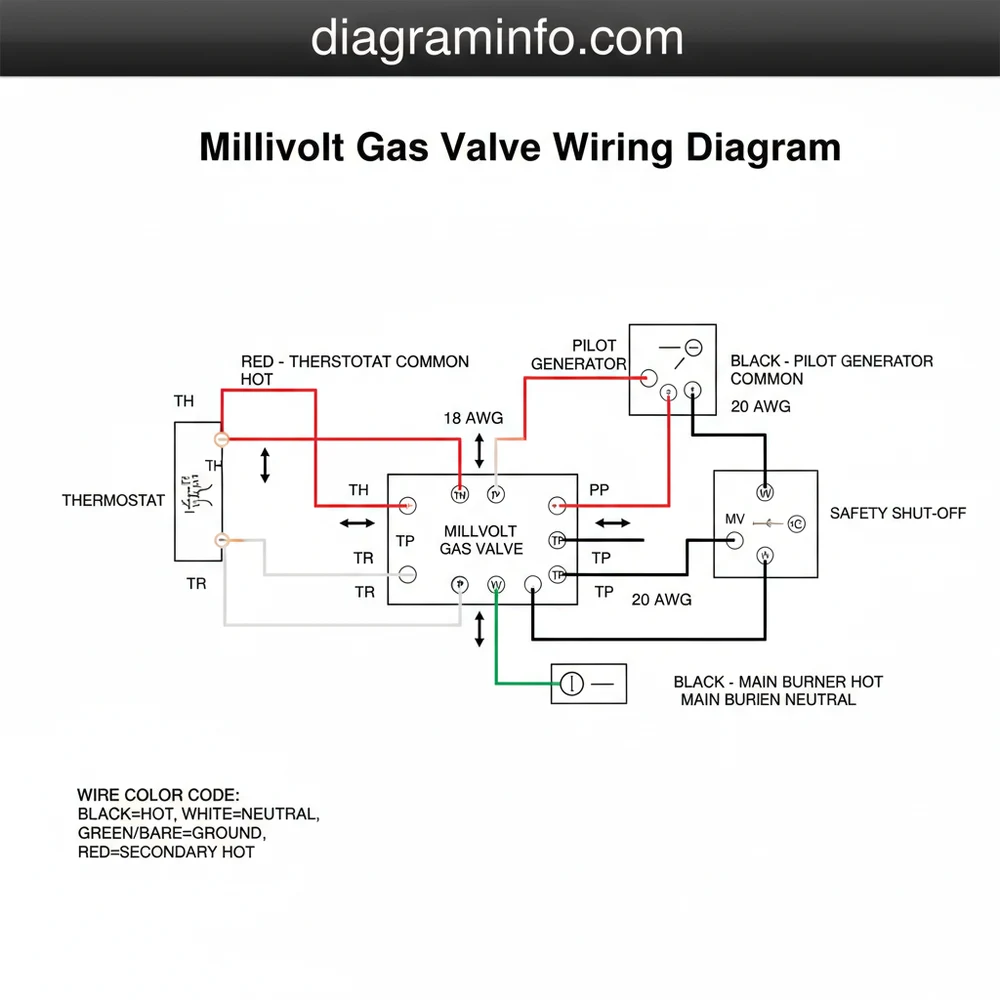

The millivolt gas valve wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the millivolt gas valve wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Gas Valve Terminal | Notes |
|---|---|---|---|
| Red | Thermopile (+) Output | TP (Thermopile Power) | Main power lead from the thermopile to the gas valve’s millivolt generator circuit. |
| White | Thermopile (-) / Valve Common | TH (Thermostat Hold) | Common return for the thermopile, often also serves as one side of the thermostat circuit. |
| Blue | Thermostat Call for Heat | TH (Thermostat Hold) | Switched line from the millivolt thermostat, initiating main burner operation. Connects in series with the White wire from the thermopile. |
| Yellow | Thermostat Return / Common | TR (Thermostat Return) | Completes the control circuit through the thermostat. |
| Green (Optional) | System Ground | Chassis Ground | While not part of the millivolt control circuit, essential for safety grounding of the equipment enclosure. |
STEP-BY-STEP CONNECTION GUIDE
Before commencing any wiring procedures, ensure all main power to the appliance is disconnected at the source. This includes gas supply and any auxiliary electrical power. Always verify with a multimeter. Working with gas systems carries inherent risks; if you are uncertain, consult a licensed professional.
The following steps detail the proper sequence for wiring a typical millivolt gas valve system, assuming a two-wire thermopile and a two-wire millivolt thermostat. Always cross-reference these instructions with the specific OEM wiring diagram for your gas valve model, as terminal designations or internal jumpers may vary, especially across different manufacturing years or specific applications.
1. Preparation and Component Identification: Begin by positively identifying the thermopile, the millivolt thermostat, and the gas valve. Locate the critical terminal block on the gas valve, typically labeled “TP,” “TH,” and “TR.” Some valves may also have “TH-TP” or other variations; refer to your valve’s schematic for precise identification. Ensure you have the correct wire gauge, generally 18 AWG to 20 AWG for millivolt systems, though 16 AWG may be specified for longer runs to mitigate voltage drop. For details on automotive wire gauge selection, consult our comprehensive guide.
2. Connect the Thermopile to the Gas Valve:
Take the first lead from the thermopile, typically identified as the positive (+) output (often marked with a red stripe or simply a red wire if it’s part of a color-coded lead assembly). Connect this Red wire securely to the gas valve terminal labeled TP. Ensure the connection is clean and tight; loose connections are a frequent cause of intermittent issues in millivolt systems.
Next, take the second lead from the thermopile, which is its negative (-) or common output (often a white or uncolored wire). Connect this White wire to the gas valve terminal labeled TH. This terminal serves as a critical junction, providing the thermopile’s common return and forming part of the thermostat’s control circuit.
3. Connect the Millivolt Thermostat to the Gas Valve:
Identify the two control wires extending from your millivolt thermostat. For consistency, let’s assume one is Blue (call for heat) and the other is Yellow (return/common).
Connect the Blue wire from the thermostat to the same gas valve terminal labeled TH. This effectively places the thermostat’s switching mechanism in series with the thermopile’s output, controlling the flow of millivolts to the main valve solenoid.
Connect the Yellow wire from the thermostat to the gas valve terminal labeled TR. This completes the low-voltage control loop through the thermostat, allowing it to modulate the main burner operation based on setpoint and ambient temperature.
4. Verify All Connections and Secure Wiring:
Double-check every terminal connection for tightness and correct placement according to the diagram and your specific OEM schematic. A common mistake is inadvertently swapping wires between TH and TR.
Ensure that no bare wires are touching other terminals or the metal chassis, which could cause a short circuit and prevent operation or damage components.
Route all wiring neatly and secure it with appropriate cable ties or clamps, preventing abrasion or accidental disconnection during routine maintenance.
5. Initial System Test and Operation:
Once all wiring is confirmed, slowly restore the gas supply to the appliance.
Follow the manufacturer’s instructions for lighting the pilot light. Ensure the pilot flame adequately engulfs the thermopile tip to generate sufficient millivoltage. For optimal heating and generation, understanding gas valve pilot assembly adjustments is crucial.
Using a multimeter set to DC millivolts, you can measure the thermopile output at the TP and TH terminals. A healthy thermopile with a properly heating pilot should generate between 400-750mV.
Set the thermostat to call for heat. The main burner should ignite smoothly. If the main burner fails to ignite, revisit the troubleshooting section below. You can also test the system’s control by setting the thermostat below ambient temperature, which should cause the main burner to shut off.
Some older millivolt gas valves or specific fireplace models might feature a 4-terminal configuration where TH and TP are distinct from two separate TR terminals, or where an additional manual override switch is integrated. Always consult the component-specific diagram for these variations. The core principle of thermopile generating power and a thermostat switching that power to the main valve solenoid remains consistent.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Correct millivolt gas valve wiring is critical for both functionality and safety. Even minor errors can lead to total system failure or intermittent issues that are difficult to diagnose. Here are common wiring mistakes and their corresponding troubleshooting steps for technicians.
1. Incorrect Terminal Assignment (TH/TR Swap):
Consequence: The main burner will either never ignite, or it will ignite and remain on constantly, regardless of the thermostat setting. Swapping the TH and TR wires essentially bypasses the thermostat’s switching function or creates an open circuit in the control loop.
Fix: Power down the system immediately. Carefully review the wiring diagram and ensure the thermostat’s call for heat wire is connected to TH (often shared with the thermopile common), and the thermostat’s return wire is connected to TR. Verify continuity through the thermostat when it’s calling for heat.
2. Loose or Corroded Terminal Connections:
Consequence: Millivolt systems operate on very low power, making them highly susceptible to resistance. Loose connections or corrosion on terminals can introduce significant resistance, leading to insufficient millivoltage reaching the main valve solenoid. This results in intermittent ignition, pilot light staying lit but main burner not igniting, or complete failure to operate.
Fix: Disconnect power. Visually inspect all terminals for corrosion. Use a fine-grit sandpaper or a wire brush to clean any oxidized surfaces. Tighten all terminal screws firmly, ensuring no wire strands are loose or shorting. Test connections for continuity and resistance with a multimeter.
3. Inadequate Wire Gauge or Excessive Wire Length:
Consequence: Using wire that is too thin (higher AWG number) or running excessively long wire runs can cause a significant voltage drop. Even a drop of 50-100mV can prevent the gas valve’s solenoid from receiving enough power to open, especially if the thermopile is only generating minimum operational voltage (e.g., 250mV).
Fix: Consult the equipment manufacturer’s specifications for recommended wire gauge and maximum length. If voltage drop is suspected, replace the undersized wiring with the appropriate 18 AWG or 16 AWG wire. For more information, refer to our guide on calculating voltage drop for low-voltage applications.
4. Short Circuit in Thermostat Wiring:
Consequence: A short circuit in the thermostat wiring (e.g., bare wires touching inside the wall or conduit) will cause the main burner to remain on continuously, as the control circuit is permanently closed, mimicking a constant call for heat.
Fix: Power down the system. Disconnect the thermostat wires from the gas valve. Test the thermostat wires for continuity. If a short is detected, trace the wiring back to the thermostat, inspecting for pinched wires, damaged insulation, or debris. Isolate and repair the short.
5. Failure to Properly Engage or Heat Thermopile:
Consequence: The pilot light may be lit, but if it’s not properly enveloping the thermopile tip, or if the thermopile itself is faulty or dirty, it will not generate sufficient millivoltage. This prevents the main valve from ever opening, even with a call for heat.
Fix: Ensure the pilot flame is robust and directly impinges on the thermopile tip as per manufacturer guidelines. Clean any soot or debris from the thermopile. If the millivoltage output (measured at TP and TH with thermostat disconnected) is consistently below 250mV while the pilot is hot, the thermopile likely needs replacement. For details on thermopile testing procedures, refer to our specialized article.
A healthy millivolt thermopile typically generates between 500mV and 750mV (0.5 to 0.75 volts DC) when fully heated by a pilot flame. A minimum of 250mV-300mV is generally required for the main gas valve to open reliably. Always check the OEM specification for your particular gas valve and thermopile.
FAQ
What voltage does a millivolt gas valve operate on?
Millivolt gas valves operate on very low DC voltage, typically generated by a thermopile. This voltage usually ranges from 250mV to 750mV (0.25 to 0.75 volts DC). This self-generating power source makes them ideal for applications where external electricity is unreliable or unavailable, such as gas fireplaces, wall heaters, or off-grid furnaces.
Can I use a standard 24V AC thermostat with a millivolt system?
No, a standard 24V AC thermostat is not directly compatible with a millivolt system without an intermediary relay specifically designed for millivolt applications. Standard thermostats require external power (usually from a transformer) and are designed to switch a higher voltage/current circuit. A millivolt thermostat is engineered to operate reliably with the extremely low current and voltage output of a thermopile, ensuring minimal voltage drop across its internal contacts.
How do I test a thermopile’s output?
To test a thermopile’s output, set your multimeter to the DC millivolt (mV) range. Disconnect the thermopile leads (typically Red and White) from the gas valve terminals (TP and TH). Light the pilot and allow the thermopile to heat up for several minutes. Place your multimeter probes across the two disconnected thermopile leads. A healthy, heated thermopile should generate between 500mV and 750mV. If the reading is consistently below 250mV-300mV, the thermopile is likely weak or faulty. For a complete guide, refer to our article on thermopile testing procedures.
What wire gauge is recommended for millivolt systems?
For most residential and light commercial millivolt systems, 18 AWG (American Wire Gauge) or 20 AWG wire is generally sufficient. For longer wire runs, typically exceeding 20-30 feet, it is advisable to use 16 AWG wire to minimize voltage drop across the length of the conductor. Always consult the equipment manufacturer’s installation manual, as specific applications or high-current millivolt valves may have unique requirements.
Why is my millivolt system not staying lit or failing to ignite the main burner?
Several factors can cause a millivolt system to fail to stay lit or ignite the main burner. The most common reasons include a weak or faulty thermopile not generating adequate millivoltage (below 250mV-300mV), an improperly adjusted or dirty pilot light flame failing to adequately heat the thermopile, loose or corroded wiring connections causing excessive resistance, a faulty gas valve solenoid, or a malfunctioning millivolt thermostat. Always start by checking the thermopile output with a multimeter, then inspect wiring connections and the pilot flame.
