3 Float Septic System Wiring Diagram: Troubleshooting 2026
A 3-float septic system typically uses a control panel with terminals for each float (often black/white wires) and the pump’s hot, neutral, and ground wires. The floats control pump ON/OFF cycles and high-water alarms. Ensure proper pin assignment for each float’s function (e.g., pump off, pump on, high alarm) according to the control panel’s specifications.
📌 Key Takeaways
- A 3-float system comprises ‘off’, ‘on’, and ‘high-level alarm’ floats, each typically with two wires (e.g., black/white).
- Critical identification involves distinguishing between normally open (NO) and normally closed (NC) float switches based on desired function (pump on/off, alarm activation).
- Always disconnect main power at the circuit breaker before performing any wiring to prevent electric shock (adhere to NEC standards for voltage applications).
- The most common failure points include improper float positioning, tangled float cords, and loose electrical connections at the control panel.
- Consult a certified electrician or septic technician for any wiring beyond basic float replacement or if troubleshooting efforts do not resolve system issues.
Precise wiring is paramount for the reliable operation of any septic system, especially those employing a 3-float control mechanism. This comprehensive wiring diagram and accompanying guide are engineered for technicians and seasoned equipment owners, detailing the exact connections required for a robust and failsafe setup. Understanding each wire color code, pin assignment, and proper terminal block connection is critical to preventing costly system failures, nuisance alarms, and ensuring the longevity of your pump and related components. Adhering to these specifications will guarantee optimal performance and compliance with electrical standards.
WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Black | Main Hot (Line 1) | L1 (Main Breaker/Panel) | Primary power conductor, 120V AC. |
| Red | Main Hot (Line 2) | L2 (Main Breaker/Panel) | Secondary power conductor for 240V systems. |
| White | Neutral Wire | N (Neutral Bus/Panel) | Return path for 120V circuits and control. |
| Green/Bare Copper | Ground Wire (Equipment Grounding Conductor) | G (Grounding Bus/Chassis) | Critical safety ground, connected to enclosure. |
| Blue | Float #1 (Emergency High-Water Alarm) | F1_ALARM (Normally Open) | Activates alarm when water level is critically high. |
| Yellow | Float #2 (Pump ON Activation) | F2_PUMP_ON (Normally Open) | Initiates pump cycle when water reaches target level. |
| Brown | Float #3 (Pump OFF Deactivation) | Terminates pump cycle when water is at lowest safe level. | |
| Orange | Pump Control Signal (to Contactor) | PC_OUT (Control Panel) | Feeds voltage to pump motor contactor coil. |
| Violet | Alarm Signal (to Horn/Light) | ALARM_OUT (Control Panel) | Activates visual/audible alarm components. |
STEP-BY-STEP CONNECTION GUIDE
This guide outlines the precise sequence for wiring a standard 3-float septic control system, assuming a NEMA 4X rated control panel and a submersible pump. Always ensure power is disconnected at the main breaker before commencing any wiring. Refer to the diagram above and the wire color reference table for visual confirmation.
-
Incoming Power Connection (Control Panel Main Terminal Block):
Begin by securing the main power feed to the control panel’s primary terminal block. For a 240V system, connect the Black hot wire to terminal
L1and the Red hot wire to terminalL2. For a 120V system, the Black wire connects toL1, andL2may be unused or jumpered depending on the specific panel design. Connect the White neutral wire to the designated neutral bus bar or terminalN. Crucially, connect the Green or bare copper ground wire to the grounding bus or the chassis ground stud, ensuring a secure, low-resistance path. Manufacturer specs indicate a minimum 10 AWG wire for main power feeds up to 30 amps, but verify against the pump motor sizing and total load requirements. This connection establishes the fundamental power supply and safety ground for the entire system. -
Control Circuit Power (Internal to Panel):
Within the control panel, locate the internal fuse or circuit breaker dedicated to the control voltage. Typically, a 120V feed for the control circuit is derived from
L1(Black wire) and the neutral bus (White wire). Connect a smaller gauge wire (e.g., 14 AWG) from theL1side of this internal breaker/fuse to the “Hot” input terminal of the control relay, often labeledC_INor1. Connect a White neutral wire from the neutral bus to the “Neutral” input terminal of the control relay or common point, often labeledC_Nor2. This powers the relay coils, timer circuits, and alarm logic. -
Float Switch Wiring (Control Panel to Floats):
Each float switch typically features two conductors. For a standard normally-open (NO) float configuration:
- Float #1 (Emergency High-Water Alarm): Connect one conductor of the Blue-coded float switch to a common hot or control voltage terminal (often
COM_FLOATor a jumpered terminal receiving power fromL1via a fuse). Connect the second conductor of the Blue float switch to the alarm input terminal on the control panel, designated asF1_ALARMorHI_LEVEL. This closes the alarm circuit when activated. - Float #2 (Pump ON Activation): Connect one conductor of the Yellow-coded float switch to the same common hot/control voltage terminal used for Float #1. Connect the second conductor of the Yellow float switch to the pump ON input terminal, labeled
F2_PUMP_ONorPUMP_START. This activates the pump contactor when the level is reached. - Float #3 (Pump OFF Deactivation): Connect one conductor of the Brown-coded float switch to the common hot/control voltage terminal. Connect the second conductor of the Brown float switch to the pump OFF input terminal, labeled
F3_PUMP_OFForPUMP_STOP. This deactivates the pump contactor. Some systems may use a normally-closed (NC) float for the pump-off function; consult your specific control panel’s pin assignment for correct polarity and operation.
💡 Technical NoteEnsure all float wires are neatly organized and protected within appropriate conduit. The length of float wires should accommodate the desired activation levels within the septic tank. For long runs, consider voltage drop and increase wire gauge accordingly, typically 14 AWG for control circuits.
- Float #1 (Emergency High-Water Alarm): Connect one conductor of the Blue-coded float switch to a common hot or control voltage terminal (often
-
Pump Motor Wiring (Contactor to Pump):
The control panel will have output terminals for the pump motor. Connect the Orange pump control signal wire from the control relay output (e.g.,
PC_OUT) to the coil terminals (oftenA1andA2) of the pump motor contactor. The main power lines (Black and Red for 240V, or Black for 120V) will pass through the contactor’s main power terminals (L1_CONTACTOR,L2_CONTACTOR) and then connect to the submersible pump motor leads (PUMP_L1,PUMP_L2). The White neutral wire for the pump (if 120V) and the Green ground wire must also be extended from the main panel to the pump motor, following the motor manufacturer’s guidelines. For comprehensive guidance on selecting appropriate contactors, refer to resources on pump motor sizing and electrical protection. -
Alarm System Wiring (Control Panel to Alarm Components):
Connect the Violet alarm signal wire from the control panel’s alarm output terminal (e.g.,
ALARM_OUT) to the positive input of your audible horn and/or visual strobe light. The common (negative) side of the alarm components will typically connect back to the neutral bus bar. Confirm your alarm components are rated for the control voltage (usually 120V AC). For detailed information on maintaining these components, review our article on septic alarm system maintenance.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter specific issues when wiring a 3-float septic system. Understanding these common pitfalls and their resolutions is crucial for efficient troubleshooting.
-
Reversed Float Polarity / Incorrect NO/NC Configuration:
Mistake: Connecting a normally-open (NO) float where a normally-closed (NC) float is required, or vice versa, or miswiring the two conductors of a float switch, causing it to operate inversely (e.g., pump runs continuously or never starts). This often manifests as the pump running dry or overflowing the tank.
Consequence: Pump damage due to dry-running, system overflow, or incessant alarm activation. The pump’s service life is drastically shortened.
Fix: Power down the system. Use a multimeter to test the float’s continuity. A NO float will show open circuit when hanging down and closed circuit when floating up. An NC float will show closed when hanging down and open when floating up. Verify against the control panel’s required pin assignment for each float. If a float has multiple wires, consult the float manufacturer’s documentation for the correct NO/NC configuration. Re-wire the float leads to the correct terminals based on the control panel’s logic (e.g.,
F2_PUMP_ONis typically NO). -
Inadequate Wire Gauge for Load:
Mistake: Using wire that is too thin (high gauge number) for the current draw of the pump or the length of the run. For instance, using 14 AWG for a pump requiring 12 AWG or 10 AWG over a long distance.
Consequence: Excessive voltage drop, leading to motor overheating, reduced pump efficiency, nuisance tripping of circuit breakers, and potential fire hazard due to wire overheating. The pump motor may strain to start or fail to reach proper operating speed.
Fix: Consult the pump motor’s nameplate data for current (ampere) ratings and the control panel’s specifications. Calculate voltage drop for the specific wire length using an appropriate wire gauge chart. Replace undersized wires with the correct gauge, ensuring compliance with NEC (National Electrical Code) or local electrical codes. For main power, wire gauge selection is particularly critical.
-
Improper Grounding (No Ground Wire or Loose Connection):
Mistake: Failing to connect the ground wire (Green or bare copper) to the equipment chassis, pump motor, or main grounding bus, or having a loose ground connection at any point in the circuit.
Consequence: Severe electrical shock hazard to personnel, potential damage to electronic components from transient voltages, and failure of overcurrent protection devices (circuit breakers) to trip effectively during a fault. This compromises the fundamental safety aspect of the electrical installation.
Fix: Inspect all grounding connections from the main service panel, through the control panel, to the pump motor and any metallic enclosures. Ensure all ground wires are securely fastened to their designated grounding terminals or bus bars. Use a continuity tester to verify a continuous, low-resistance ground path from all metallic enclosures and equipment frames back to the main electrical service ground. Implement best practices for control panel enclosure ratings and grounding.
-
Loose Terminal Connections:
Mistake: Wires not fully inserted into terminal blocks or screw terminals not adequately tightened. This is a common oversight that can develop over time due to vibration or thermal cycling.
Consequence: Intermittent system operation, localized overheating at the connection point (leading to wire insulation degradation or fire), voltage fluctuations, and increased electrical resistance, impacting pump performance and control circuit reliability.
Fix: Power off the system. Systematically check every terminal connection within the control panel, at the pump, and for each float. Use a screwdriver to gently tug on each wire to ensure it is firmly seated. Retorque all screw terminals to manufacturer specifications, especially for power connections. For spring-cage terminals, ensure the wire is fully inserted and the spring mechanism engaged.
FAQ
What is the typical voltage for a 3-float septic system?
Most residential and light commercial 3-float septic systems operate on either 120V AC or 240V AC. The specific voltage is determined by the submersible pump motor’s requirements. Control circuits within the panel are frequently stepped down or directly powered by 120V AC, even in a 240V pump system. Always verify the pump motor nameplate and control panel specifications to ensure correct voltage application, as applying incorrect voltage will lead to immediate damage.
How do I test individual floats for functionality?
To test individual floats, first, disconnect power to the control panel. Isolate the float’s two conductors at the control panel terminal block. Using a multimeter set to continuity or resistance (ohms), connect the probes to these two conductors. Manually lift and lower the float. A normally-open (NO) float should show an open circuit (infinite resistance) when hanging down and a closed circuit (near zero resistance) when lifted. A normally-closed (NC) float will exhibit the opposite behavior. Confirm the float’s rated NO/NC action against its intended function (e.g., pump on, pump off, alarm).
What wire gauge is recommended for a typical septic pump?
The recommended wire gauge for a septic pump is dependent on the pump’s current draw (amperage), operating voltage, and the total length of the wire run. For most residential 1/2 HP or 3/4 HP pumps on a 240V circuit, 12 AWG copper wire is often sufficient for runs up to 100 feet. For 120V circuits or higher amperage pumps, 10 AWG or even 8 AWG may be required. Always consult the pump manufacturer’s specifications and the National Electrical Code (NEC) for precise sizing to prevent voltage drop and ensure safety.
What is the specific function of each of the three floats in the system?
The three floats typically serve distinct critical functions:
- Emergency High-Water Alarm Float: Positioned highest, this float activates an audible and/or visual alarm if the water level exceeds the normal operating range, indicating a potential system malfunction or pump failure. It’s usually a normally-open (NO) switch.
- Pump ON Float: Placed at a intermediate level, this float signals the control panel to activate the submersible pump, initiating the wastewater removal cycle when the tank reaches a predetermined fill level. It is also typically a normally-open (NO) switch.
- Pump OFF Float: Located lowest, this float signals the control panel to deactivate the pump once the wastewater has been pumped down to the desired minimum level, preventing the pump from running dry and protecting it from damage. This float can be either normally-open (NO) or normally-closed (NC) depending on the control panel’s design, so always verify its operation.
Can I temporarily bypass a float for testing purposes?
Temporarily bypassing a float should only be performed by a qualified technician and with extreme caution. It can lead to pump dry-running, tank overflow, or electrical hazards. Ensure power is disconnected before making any manual jumper connections.
Yes, for troubleshooting purposes, a float can be temporarily bypassed by creating a jumper wire between the common float power terminal and the specific input terminal the float would normally activate. For example, to force the pump on, you might jumper the common control voltage to the F2_PUMP_ON terminal. This should only be done to confirm control panel logic or diagnose a faulty float, and the jumper must be removed immediately after testing. Never leave a float bypassed during normal operation, as this eliminates critical safety or operational controls.

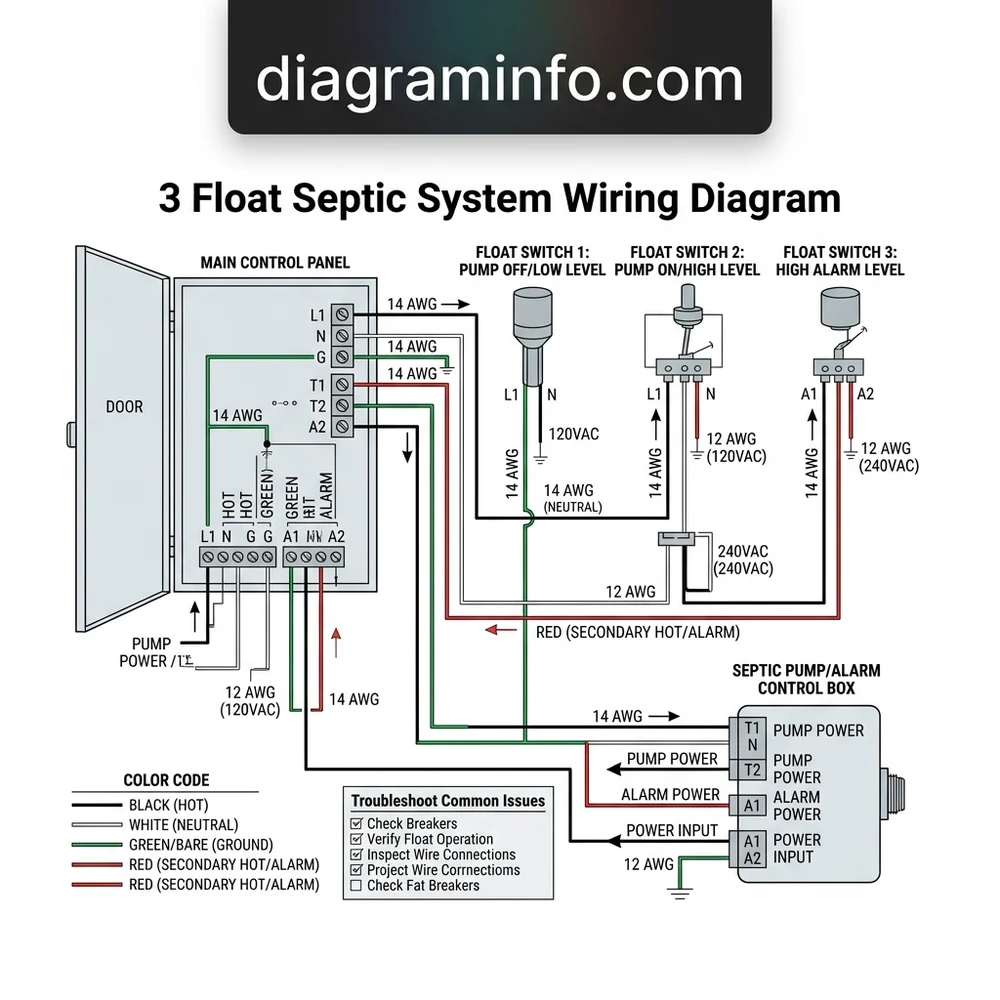

Step-by-Step Guide to Understanding the 3 Float Septic System Wiring Diagram: Troubleshooting 2026
Identify – Locate the control panel, the three float switches (off, on, alarm), and the septic pump. Note any existing wiring.
Locate – Position the ‘off’ float, ‘on’ float, and ‘high-level alarm’ float at their correct vertical levels within the septic tank, ensuring clear movement.
Reference – Consult the 3 float septic system wiring diagram for specific wire color code and pin assignment for each float, pump, and power input at the control panel.
Connect/Route – Wire each float switch (e.g., black and white wires) to its designated terminal on the control panel. Connect the pump’s hot wire, neutral wire, and ground wire to the appropriate terminals, following the diagram precisely.
Verify – Double-check all connections against the diagram. Ensure wires are secure, properly insulated, and the ground wire is firmly attached. Confirm float positions are correct.
Troubleshoot – Restore power and test the system. Manually activate each float to confirm pump operation (off/on) and alarm activation. If issues arise, refer to the diagram for common wiring mistakes or consult a professional.
Frequently Asked Questions
What wire color is for the pump’s hot wire in a 3 float septic system wiring diagram?
In most 3 float septic system wiring diagrams, the hot wire for the pump is typically black, consistent with standard AC wiring practices. The neutral wire is usually white, and the ground wire is green or bare copper. Always verify with your specific control panel’s manual or diagram for exact color codes, as variations can occur.
What do the pin numbers mean on a 3 float septic system control panel?
Pin numbers on a 3 float septic system control panel correspond to specific terminals for connecting the floats and pump power. Common assignments include terminals for the ‘pump off’ float, ‘pump on’ float, ‘high-level alarm’ float, pump hot, pump neutral, and control panel power. Always consult the panel’s pin assignment diagram for accurate connections.
How many wires does a typical 3 float septic system wiring diagram show for floats?
A typical 3 float septic system wiring diagram will show two wires for each float switch, totaling six wires for the three floats. These wires connect to specific terminals in the control panel. The LSI keywords like wire color code are crucial here, as these wires are often black and white, indicating their switching function.
What are common wiring mistakes with a 3 float septic system wiring diagram, especially regarding ground wire?
Common wiring mistakes include incorrect pin assignment for floats, interchanging the hot wire and neutral wire for the pump, and failing to properly connect the ground wire to both the pump and control panel. An improperly connected ground wire poses a significant safety risk and can lead to system malfunction or electrical hazards.
What type of control panel is recommended for a 3 float septic system?
For a 3 float septic system, a control panel specifically designed for simplex or duplex pump applications with integrated alarm circuitry is recommended. These panels are engineered to manage the ‘pump off,’ ‘pump on,’ and ‘high-level alarm’ float inputs, often including visual and audible alarms, and motor protection for the pump.
What gauge wire does a 3 float septic system pump typically require?
The wire gauge for a 3 float septic system pump depends on the pump’s horsepower, voltage, and the length of the wire run. For most residential pumps, 10 or 12 AWG wire is common. Always refer to the pump’s specifications and local electrical codes to determine the precise gauge needed to prevent overheating and ensure efficient operation.
