2-Pin Rocker Switch Trailer Wiring Diagram: Auxiliary Power Guide 2026

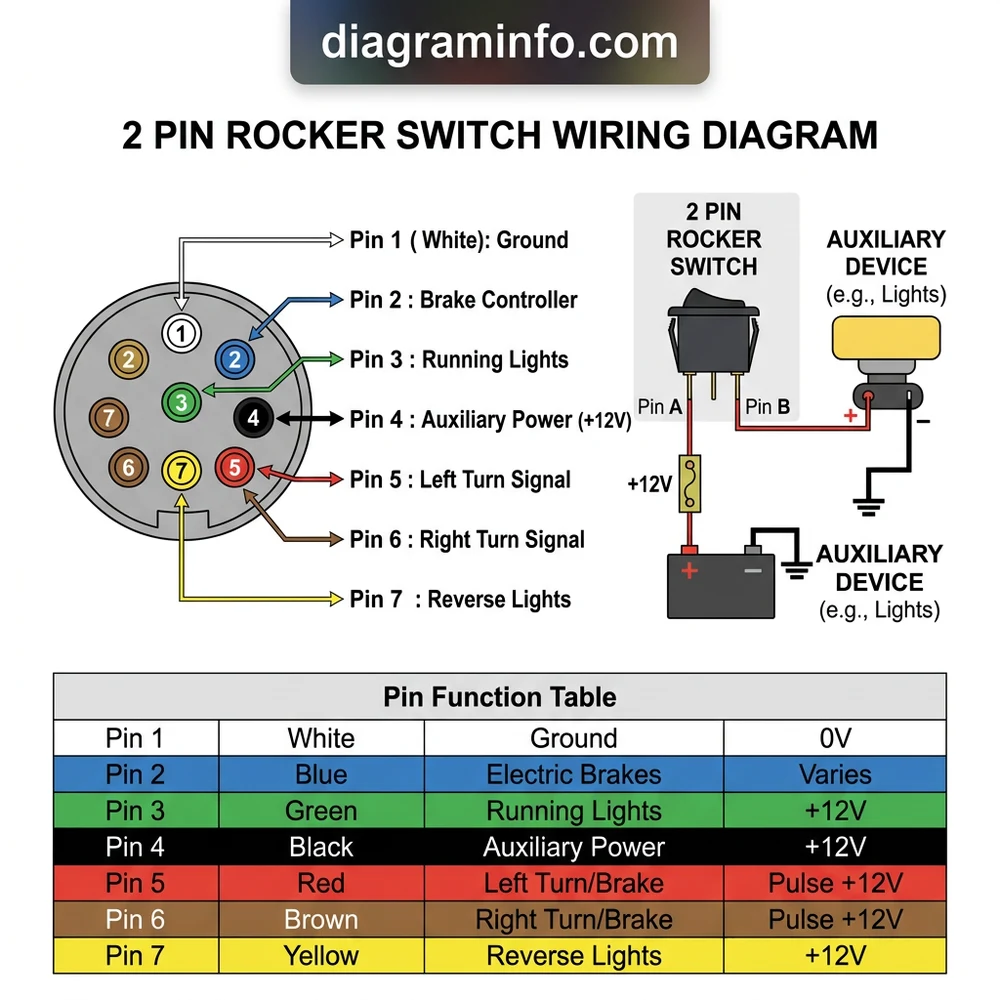

A 2-pin rocker switch for trailers typically connects one terminal to a fused 12V positive power source (e.g., auxiliary power from RV blade or battery) and the other terminal to the positive input of the accessory. The accessory’s ground connects to the trailer chassis, controlling ON/OFF functionality.
📌 Key Takeaways
- A 2-pin rocker switch controls a single ON/OFF circuit, typically for auxiliary power devices in a trailer.
- Ensure proper polarity: one pin for fused 12V input, the other for switched 12V output to the load.
- Always use an appropriately rated inline fuse on the positive power input to protect the circuit from overcurrent.
- The most common failure point is loose or corroded connections at the switch terminals or inadequate wire gauge for the load.
- Consult a qualified RV technician for complex electrical issues, especially when integrating with existing trailer wiring harnesses or brake controllers.
Navigating the intricacies of trailer electrical systems demands precision and a thorough understanding of standard wiring protocols. This article provides a definitive guide to interpreting and implementing a trailer wiring diagram, specifically focusing on the widely adopted 7-pin RV blade type connector. While the core functionality of a 2-pin rocker switch wiring diagram often pertains to internal auxiliary circuits within a trailer, understanding the main harness provides the foundational knowledge for powering such components. We will dissect each pin’s function, color code, and proper connection sequence, ensuring reliable operation of essential trailer systems from running lights to electric brakes.
For optimal performance and safety, always reference the specific wiring diagram provided by your trailer and tow vehicle manufacturers. While standardized color codes exist, variations can occur, especially in older models or custom installations. Consistency is paramount to avoid electrical malfunctions and potential hazards.
(Note: In a live article, this placeholder would be replaced by a visual diagram illustrating a 7-pin RV blade connector. The diagram would clearly label each pin with its number and primary function, showing the orientation relative to the keyway.)
Pin Assignment Table: 7-Pin RV Blade Connector
The 7-pin RV blade connector is the industry standard for tow vehicles and trailers requiring comprehensive electrical connections, including brake control. The following table details the typical pin assignments, wire colors, and functions as per SAE J2863 and often compliant with RVIA standards.
| Pin # | Wire Color (Standard) | Function | Notes |
|---|---|---|---|
| 1 (12 o’clock) | White | Ground Pin | Provides common ground for all trailer circuits. Crucial for proper operation. |
| 2 (1 o’clock) | Blue | Electric Brake Control | Connects to the trailer’s electric brakes via a brake controller in the tow vehicle. |
| 3 (3 o’clock) | Green | Right Turn Signal / Stop | Activates the right stop and turn signal lights on the trailer. |
| 4 (5 o’clock) | Brown / Red (older) | Auxiliary Power / 12V+ Hot | Constant 12V power for charging trailer batteries, interior lights, or other auxiliary loads. |
| 5 (7 o’clock) | Red | Left Turn Signal / Stop | Activates the left stop and turn signal lights on the trailer. |
| 6 (9 o’clock) | Black / Yellow (older) | Running Lights / Taillights | Powers all running lights, taillights, and marker lights on the trailer. |
| 7 (Center) | Yellow / Purple (older) | Reverse Lights / Auxiliary | Typically for reverse lights; can be used for backup camera power or other auxiliary functions. |
Always disconnect the battery of the tow vehicle before beginning any wiring work to prevent accidental shorts or electrical shock. Use appropriate wire gauges for each circuit; undersized wires can lead to overheating and fire hazards.
Step-by-Step Wiring Guide for 7-Pin RV Blade Connector
Properly wiring a 7-pin RV blade connector is critical for the safe and legal operation of your trailer. This guide assumes you are connecting a new trailer harness to a pre-wired tow vehicle or replacing an existing trailer connector. For a deeper dive into tow vehicle specific setups, consult the tow vehicle wiring guide.
- Preparation and Stripping: Begin by carefully identifying the wires coming from your trailer’s harness. If you are using a new connector, ensure you have enough wire slack. Use a wire stripper to remove approximately 0.5 to 0.75 inches (12-19mm) of insulation from the end of each wire, taking care not to nick the conductors. For robust connections, consider soldering the wire ends or using heat-shrinkable butt connectors before insertion.
- Ground Pin Connection (Pin 1 – White Wire): Locate the White wire from your trailer harness. This is your primary ground. Insert it into the terminal designated for Pin 1 (typically at the 12 o’clock position on the connector body, referencing the diagram). Crimp or secure this connection firmly. A solid ground is foundational; poor grounding is a leading cause of trailer lighting issues.
- Electric Brake Connection (Pin 2 – Blue Wire): Connect the Blue wire, which controls your electric brakes, to Pin 2 (1 o’clock position). This wire carries the modulated voltage from your brake controller to the trailer’s brake assemblies. Verify that this circuit has adequate gauge wire, typically 12- or 10-gauge, as specified by the brake controller manufacturer.
- Right Turn/Stop Signal (Pin 3 – Green Wire): Attach the Green wire, responsible for the right turn signal and stop lamp functions, to Pin 3 (3 o’clock position). Ensure this connection is secure to prevent intermittent signaling.
- Auxiliary Power (Pin 4 – Brown/Red Wire): The Auxiliary Power wire (standard Brown, sometimes Red on older systems) connects to Pin 4 (5 o’clock position). This provides constant 12V power from the tow vehicle to the trailer, useful for charging onboard batteries, powering interior lights, or providing power to a 2-pin rocker switch for auxiliary functions. Confirm this circuit is fused correctly at the tow vehicle.
- Left Turn/Stop Signal (Pin 5 – Red Wire): Connect the Red wire for the left turn signal and stop lamp to Pin 5 (7 o’clock position). Double-check the crimp or solder joint for integrity.
- Running Lights (Pin 6 – Black/Yellow Wire): The Running Lights wire (standard Black, sometimes Yellow on older systems) connects to Pin 6 (9 o’clock position). This powers all trailer marker lights, taillights, and clearance lights.
- Reverse Lights/Auxiliary (Pin 7 – Yellow/Purple Wire): Finally, connect the Yellow wire (sometimes Purple) for reverse lights or other auxiliary functions to Pin 7 (center pin). This can power trailer backup lights or serve as a dedicated auxiliary feed for systems like a backup camera.
- Assembly and Testing: After all wires are securely connected and insulated, assemble the connector housing. Before road use, perform a comprehensive test:
- Check running lights
- Test left and right turn signals
- Verify brake lights (both service and emergency)
- Confirm electric brake engagement with the brake controller
- Measure 12V at the auxiliary power pin
- Test reverse lights if applicable
For 7-pin RV blade connectors, standard wire gauges typically include 10 AWG for electric brakes and auxiliary power, and 14-16 AWG for lighting circuits and ground. Adherence to these specifications minimizes voltage drop and ensures component longevity. Always match the wire gauge to the current draw and circuit length.
Common Wiring Mistakes and Troubleshooting
Incorrect trailer wiring can lead to a range of issues, from minor inconveniences to significant safety hazards. Understanding common pitfalls can prevent costly repairs and ensure reliable operation.
- Improper Grounding: This is arguably the most frequent cause of trailer electrical problems. A weak or corroded ground connection (Pin 1 – White wire) can manifest as dim lights, flickering lights, or entire lighting circuits failing. Ensure the ground wire is securely fastened to a clean, bare metal surface on the trailer frame and to the dedicated ground pin in the connector. Do not rely solely on the hitch ball for ground.
- Incorrect Pin Connections: Swapping wires for different functions (e.g., connecting a turn signal to running lights) will cause incorrect lighting behavior and can sometimes damage vehicle modules. Always double-check your connections against the diagram and the tow vehicle’s established wiring. Misidentification is particularly common when dealing with non-standard trailer wiring color codes, especially with imported or older trailers.
- Insufficient Wire Gauge: Using wire that is too thin for the current drawn by a circuit can result in excessive voltage drop, leading to dim lights, slow brake response, and overheating. For high-current circuits like electric brakes and auxiliary power, 10-gauge wire is typically required. Lighting circuits can generally use 14- or 16-gauge wire.
- Poor Connections and Corrosion: Loose or corroded terminals are a major source of intermittent electrical problems. Always use quality connectors (crimp, solder, or heat-shrink), apply dielectric grease to exposed connections, and ensure waterproof sealing to protect against moisture and road salt.
- Missing or Incorrect Fuses/Circuit Breakers: Each critical trailer circuit, especially auxiliary power and electric brakes, should be protected by appropriately rated fuses or circuit breakers on the tow vehicle. An improperly sized or missing fuse can lead to overloaded circuits or, conversely, prevent proper operation if it blows prematurely.
FAQ
How does a 2-pin rocker switch fit into a trailer’s electrical system?
A 2-pin rocker switch, while not directly part of the main 7-pin tow vehicle-to-trailer harness, is commonly used within a trailer’s internal auxiliary electrical systems. For example, it might be wired to control interior LED lights, a water pump, or a fan, drawing power from the 7-pin connector’s auxiliary power (Pin 4 – Brown/Red wire). The switch would interrupt the positive 12V feed to the desired component, effectively turning it on or off. A typical 2-pin rocker switch wiring diagram involves connecting the 12V positive input to one pin and the positive output to the load (e.g., light) on the other pin, with the load then grounding to the trailer’s chassis.
What is the difference between a 4-flat and a 7-pin RV blade connector?
The primary difference lies in the number of circuits and capabilities. A 4-flat connector provides basic lighting functions: ground, running lights, left turn/stop, and right turn/stop. It is suitable for small utility trailers without electric brakes or auxiliary power needs. The 7-pin RV blade connector, as detailed above, adds circuits for electric brakes, auxiliary 12V power, and often reverse lights. This makes it essential for larger RVs, boat trailers, and equipment trailers equipped with these advanced features.
Are trailer wiring color codes universal across all years and manufacturers?
While the SAE J2863 standard provides generally accepted color codes for 7-pin RV blade connectors, absolute universality is not guaranteed. Older trailers (e.g., pre-2000s) or specialized equipment might use different color schemes. It’s also common for aftermarket harnesses or foreign-made trailers to deviate. Always consult the specific wiring diagram provided by the trailer manufacturer or use a multimeter to verify each pin’s function before making permanent connections, especially with older trailer models or custom builds from years like 1998-2005 where standards were sometimes less rigid.
Can I use the auxiliary power pin to charge my trailer’s deep cycle battery?
Yes, the auxiliary power pin (Pin 4 – Brown/Red wire) is designed to provide a constant 12V feed from the tow vehicle to the trailer. This circuit can be used to charge a trailer’s deep cycle battery, power internal accessories, or maintain a trickle charge while driving. However, ensure that the tow vehicle’s charging system and wiring are robust enough to handle the additional load, and that an appropriate battery isolator or charge controller is installed on the trailer to prevent draining the tow vehicle’s battery when parked or overcharging the trailer battery.
Frequently Asked Questions
What are the typical connections for a 2-pin rocker switch in a trailer?
One pin connects to the fused positive power source, often from the trailer’s auxiliary power line or battery. The other pin connects to the positive lead of the accessory being controlled, such as an interior light or fan. The accessory’s ground then connects to the trailer chassis.
What wire colors are commonly associated with a 2-pin rocker switch for auxiliary power in a trailer?
Typically, a red wire is used for the incoming fused 12V positive power, and a black or blue wire is used for the switched positive output going to the auxiliary device. Always confirm with the switch’s specific diagram or local wiring standards.
Can a 2-pin rocker switch control the running lights or turn signals on a trailer?
No, a basic 2-pin rocker switch is designed for simple ON/OFF control of a single circuit. Running lights and turn signals require a multi-wire harness from the tow vehicle for synchronized operation, which a simple rocker switch cannot provide or manage.
How does a 2-pin rocker switch relate to auxiliary power in an RV or trailer?
A 2-pin rocker switch is frequently used to control individual auxiliary devices like interior LED lights, fans, or USB charging ports in a trailer or RV. It draws power from the vehicle’s 12V auxiliary supply, often provided via the RV blade connector or a dedicated trailer battery.
What are common reasons a 2-pin rocker switch might fail to power an auxiliary device in a trailer?
Common issues include incorrect wiring (reversed polarity), a blown fuse in the power supply line, corroded terminals on the switch or wires, loose connections, or an undersized wire gauge causing excessive voltage drop under the device’s load.
Is a 2-pin rocker switch diagram relevant if I use a brake controller for my trailer?
A 2-pin rocker switch operates independently of a trailer brake controller. While both are part of the trailer’s electrical system, the switch manages simple ON/OFF accessory circuits, whereas the brake controller specifically handles the trailer’s braking function, often from the tow vehicle.
