Dryer 3 Prong 240v Plug Wiring Diagram: Easy Setup Guide
A dryer 3 prong 240v plug wiring diagram shows two hot wires connected to the outer terminals and a neutral wire at the center common terminal. In this NEMA 10-30 setup, the neutral also serves as the ground wire, providing the 240 volts necessary for the dryer’s heating element.
📌 Key Takeaways
- Provides a visual map for connecting older NEMA 10-30 plugs correctly
- The center terminal is the most critical neutral connection to identify
- Safety requires bonding the dryer frame to the neutral in 3-wire setups
- Use a multimeter to verify 240V across the two outer hot terminals
- Use this diagram when replacing a damaged cord or moving an older dryer
When you are installing a heavy-duty appliance like a clothes dryer, understanding the dryer 3 prong 240v plug wiring diagram is essential for ensuring both functionality and household safety. Many older homes are still equipped with the three-slot NEMA 10-30R outlet, requiring a specific cord configuration that differs significantly from modern four-prong standards. This article provides a comprehensive breakdown of the wiring connections, terminal identifications, and safety protocols required to bridge the gap between your appliance and your home’s electrical system. You will learn the precise placement of each hot wire and the neutral wire, how to handle the grounding strap, and the technical specifications necessary to complete this high-voltage task with professional-grade accuracy.
Understanding the NEMA 10-30 3-Prong Diagram
The dryer 3 prong 240v plug wiring diagram illustrates a configuration known technically as a NEMA 10-30 system. Unlike modern 4-prong setups that separate the ground and neutral paths, the 3-prong system uses three conductors to deliver 240 volts of electricity while providing a return path for 120-volt components like timers and drum lights. In this diagram, the primary focus is on the three distinct terminals located on the back of the dryer’s terminal block and their corresponding pins on the plug.
The diagram identifies two “hot” legs and one “neutral” leg. The two hot wires, typically colored black and red, are responsible for carrying the 120 volts each (totaling 240 volts across the two) required to power the dryer’s heating element. The third wire, which is the neutral wire, is usually identified by a white jacket or a ribbed texture on the cord insulation. In a 3-prong configuration, this neutral wire also serves as the equipment grounding path. This is a critical distinction: because there is no dedicated green ground wire, the dryer’s metal cabinet must be “bonded” to the neutral terminal to ensure that a short circuit has a path back to the breaker panel, preventing the machine’s exterior from becoming electrified.
The visual layout of the diagram shows the terminal block as a three-point connection hub. The two outer terminals are almost always the hot connections, while the center terminal is the common terminal or neutral connection. Understanding the physical orientation is vital because reversing a hot wire with a neutral wire can result in a catastrophic “hot skin” condition where the dryer’s metal shell carries a lethal voltage.
The NEMA 10-30R (the “R” stands for receptacle) is an older standard that was phased out for new construction in the late 1990s. However, it remains legal and safe for existing installations provided the neutral-to-ground bond is correctly maintained at the dryer terminal block.
Components and Wire Identification
To interpret the dryer 3 prong 240v plug wiring diagram correctly, you must be able to identify the individual components and their electrical roles. High-voltage circuits do not use the same color conventions as standard 120v wall outlets, so precision is key.
- ✓ Hot Wire (Leg 1): Usually black, this connects to one of the outer brass screws on the terminal block. It provides 120v relative to the neutral.
- ✓ Hot Wire (Leg 2): Usually red, this connects to the opposite outer brass screw. Combined with Leg 1, it creates the 240v potential for the heater.
- ✓ Neutral Wire: The center wire of the cord, often white or marked with a ridge. It connects to the center silver-colored terminal.
- ✓ Grounding Strap: A metal link or short wire that connects the dryer’s frame to the center neutral terminal.
- ✓ Terminal Block: The plastic housing on the dryer where the cord connects to the internal wiring.
In most dryer 3 prong 240v plug wiring diagram applications, you will notice that the screws on the terminal block are color-coded. The brass screw terminals are intended for the hot wires. The silver screw, located in the middle, is the common terminal reserved for the neutral wire. While some light-duty electronics might use a “traveler wire” for multi-switch configurations, dryer wiring is a direct-feed system where the gauge of the wire is paramount. For a 30-amp dryer circuit, 10-gauge (10 AWG) copper wire is the industry standard to handle the thermal load without melting the insulation.
Step-by-Step Installation Guide
Following the dryer 3 prong 240v plug wiring diagram requires a methodical approach to ensure every connection is tight and properly insulated. Before beginning, ensure you have the following tools: a nut driver or screwdriver (usually 1/4 inch or Phillips), a strain relief bracket, and a multimeter to verify voltage.
Always unplug the dryer or turn off the circuit breaker at the main panel before touching the terminal block. 240 volts is extremely dangerous and can be fatal if handled improperly.
Step 1: Access the Terminal Block
Locate the small metal cover plate on the back of the dryer. This is typically held in place by a single screw. Removing this plate reveals the terminal block where the internal wires (often a traveler wire or harness) meet the external power cord points.
Step 2: Install the Strain Relief
Before connecting any wires, insert the strain relief bracket into the large hole below the terminal block. The power cord will pass through this. The strain relief protects the wire connections from being pulled loose if the dryer is moved. This is a critical safety step often overlooked by beginners.
Step 3: Identify the Grounding Strap
In a 3-prong setup, look for a copper or silver metal strap connecting the center terminal to the dryer’s metal frame. For a 3-prong installation, this strap must remain connected. This allows the neutral wire to act as the ground. If you are converting from a 4-prong to a 3-prong, you must ensure this bond is re-established.
Step 4: Connect the Neutral Wire
Identify the center wire of your 3-prong cord. In many cords, the neutral wire is the one in the middle of the flat ribbon. Loosen the center silver screw on the terminal block. Slide the ring terminal of the neutral wire onto the screw, ensuring it sits flat against the grounding strap, and tighten the screw firmly.
Step 5: Connect the Hot Wires
Take the two remaining wires (the outer wires of the cord). It does not matter which one goes to the left brass screw and which goes to the right brass screw, as they both carry 120 volts to complete the 240v circuit. Secure each ring terminal to an outer brass screw and tighten them down. Ensure no stray wire strands are sticking out.
Step 6: Tighten and Secure
Once all three wires are attached, double-check that they are not touching each other. Tighten the screws on the strain relief bracket so the cord is held firmly in place. Finally, replace the metal access cover.
Step 7: Voltage Testing
Before pushing the dryer into place, plug it into the wall. Use a multimeter set to AC voltage to test the outlet if the dryer doesn’t start. You should read approximately 120v between the center slot and either side slot, and 240v between the two side slots.
When tightening the terminal screws, use a “firm but fair” approach. Loose connections create resistance, which leads to heat and can eventually melt the plastic terminal block or cause a fire. Give each wire a small “tug test” to ensure it is locked in place.
Common Issues & Troubleshooting
Even when following a dryer 3 prong 240v plug wiring diagram, issues can arise due to old hardware or improper connections. One of the most frequent problems is a dryer that tumbles but provides no heat. This usually indicates that one of the two hot wire connections is loose or that a single leg of the 240v breaker has tripped.
Another common issue is the “neutral-ground confusion.” If the grounding strap is missing in a 3-prong setup, the dryer may still run, but it poses a significant shock hazard because the cabinet is not bonded to the neutral path. Conversely, if you feel a slight tingle when touching the dryer, it is a warning sign that the neutral wire is carrying current through the frame due to a poor connection at the center terminal.
If the dryer trips the breaker immediately upon being plugged in, there is likely a short circuit. Check the terminal block to see if the ring terminals of the hot wires are touching the metal casing or each other. Over time, vibration from the dryer can loosen screws, so if your dryer begins to smell like burning plastic, stop use immediately and inspect the wiring for signs of arcing or charred insulation.
Tips & Best Practices for 240V Wiring
When working with high-voltage appliances, the quality of your materials is just as important as the accuracy of your wiring. Always purchase a UL-listed 3-prong cord that is rated for at least 30 amps. Using an undersized cord or one designed for a different appliance can lead to overheating.
Match the Gauge: Ensure the house wiring feeding the outlet is 10 AWG copper. If you encounter older aluminum wiring (common in some mid-century homes), you must use specific CO/ALR rated connectors or anti-oxidant paste to prevent corrosion and fire hazards. Aluminum expands and contracts differently than copper, which can loosen connections over time.
Maintain the Terminal Block: If the plastic terminal block on the dryer appears cracked or shows signs of previous overheating (discoloration), replace the block itself before installing a new cord. A damaged block cannot maintain the mechanical pressure needed for a safe electrical connection.
Future-Proofing: If you are renovating your laundry room, consider upgrading the wall outlet to a 4-prong NEMA 14-30R. While the 3-prong setup is functional, the 4-prong system is safer because it provides a dedicated ground wire that never carries functional current. To adapt a 3-prong dryer to a 4-prong outlet, you simply buy a 4-prong cord and follow the corresponding diagram, which involves removing the grounding strap.
Never use an extension cord for a clothes dryer. The high amperage and 240v load will quickly overheat standard extension cords, posing a severe fire risk to your home.
Final Technical Summary
Successfully implementing the dryer 3 prong 240v plug wiring diagram hinges on the correct identification of the hot and neutral paths. By ensuring the two hot wires are secured to the outer brass terminals and the neutral wire is bonded to the center silver terminal along with the grounding strap, you create a stable electrical loop. This configuration provides the 240v necessary for the heating coils while safely managing the 120v requirements of the dryer’s internal controls. Always prioritize the use of 10-gauge wire and verify your connections with a multimeter to ensure your appliance operates efficiently and safely for years to come. In the world of DIY electrical work, the difference between a successful installation and a hazardous one is often found in the tightness of a single screw and the proper placement of the grounding bond.
Frequently Asked Questions
Where is the ground wire located in this setup?
In a 3-prong 240v setup, there is no dedicated green ground wire. Instead, the ground is bonded to the neutral wire at the center common terminal. This allows the center wire to provide both a return path for 120v circuits and a safety path for the appliance frame.
What does this dryer wiring diagram show?

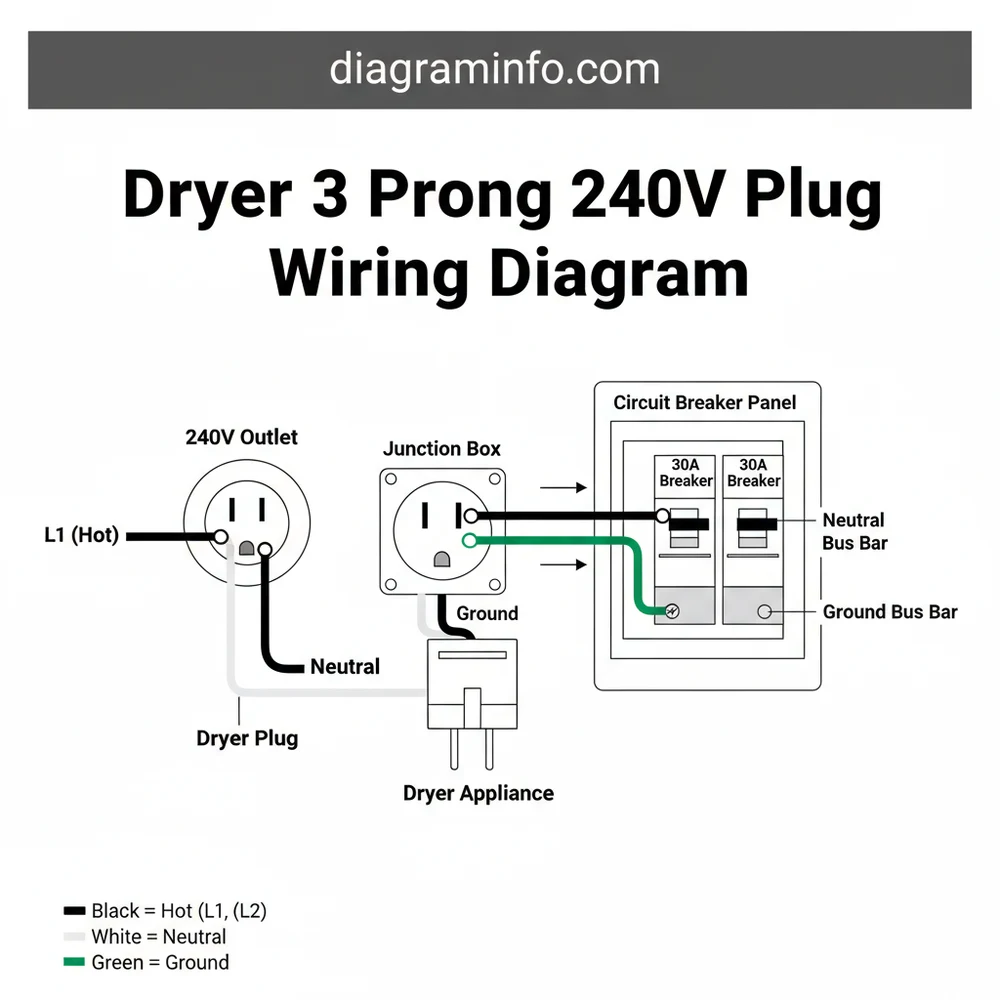

This diagram illustrates the internal and external connections for a NEMA 10-30 cord. It specifically highlights the two 120V hot wire legs and the shared neutral/ground center wire, ensuring the appliance receives proper voltage for both the motor and the high-heat drying coils.
How many connections does a 3-prong dryer plug have?
A 3-prong 240v dryer plug features three distinct connections. These consist of two outer hot wire terminals and one center common terminal. Unlike a traveler wire in a light switch, these wires remain energized to provide constant heavy-duty power to the dryer’s internal electrical components.
What are the symptoms of a bad dryer plug?
Common symptoms include the dryer drum spinning without heat, intermittent power, or the plug feeling hot to the touch. If the hot wire or neutral wire connections at the terminal block become loose or corroded, it can cause arcing, tripped breakers, or a complete failure to start.
Can I install a 3-prong cord on a new dryer?
You can install a 3-prong cord on a new dryer if your home has an older 3-slot outlet. You must follow the wiring diagram to ensure the neutral wire is properly bonded to the ground strap on the dryer frame, which is a specific requirement for 3-wire configurations.
What tools do I need for dryer plug wiring?
You will need a Phillips or nut driver to secure the terminal screws and a multimeter to test for 240 volts. Ensure you have a strain relief connector to protect the hot wire and neutral wire from pulling against the terminal block, which prevents dangerous shorts and fires.
