A make-up air unit (MAU) delivers replacement air into a facility to compensate for volume removed by commercial exhaust systems, process ventilation, or paint spray booths. Reading a make-up air unit diagram is an essential skill for technicians, mechanical engineers, and field installers who perform control integration, air balancing, and diagnostic troubleshooting. According to OEM technical specifications, improper wiring or misinterpreting damper actuator logic can lead to severe facility negative pressure, back-drafting, and nuisance safety limit trips. This guide provides a detailed technical breakdown of make-up air unit schematics, physical layout configurations, control sequences, and electrical troubleshooting procedures across modern HVAC and industrial equipment platforms.
Anatomy of a Make-Up Air Unit Diagram and System Layout

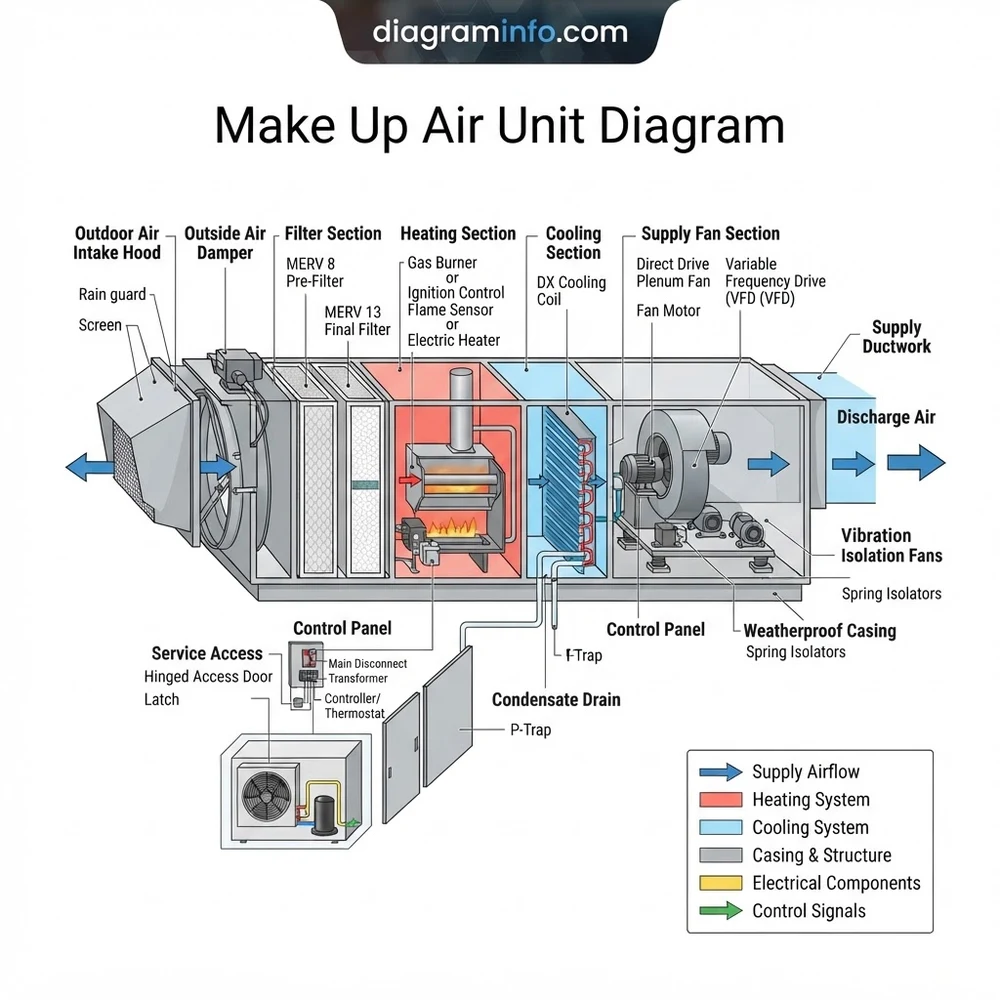

As shown in the diagram above, a standard commercial make-up air unit configuration consists of sequential mechanical and electrical stages arranged along the airflow path. The physical intake side begins with external weather hoods fitted with bird screens, followed by motorized fresh air dampers that control outdoor intake volume. Downstream from the damper assembly, a multi-stage MERV filter bank conditions incoming air before it reaches the heat exchanger or burner section.
In direct-fired gas configurations, the gas burner assembly is positioned directly within the supply airstream, utilizing raw outdoor air for combustion. Indirect-fired systems isolate combustion within a stainless steel heat exchanger vented through a dedicated flue stack. Supply air movement is driven by a heavy-duty forward-curved or backward-inclined centrifugal blower powered by a three-phase motor managed by a variable frequency drive (VFD). Integrating these systems requires precise alignment with associated commercial exhaust hood systems to maintain slight positive or neutral building pressure.
Standard operating parameters for gas-fired make-up air units require a minimum differential air pressure across the burner profile plate of 0.20 to 0.80 inches Water Column (W.C.), with supply air temperatures typically modulated between 55°F and 80°F depending on discharge air sensor settings.
Control panels housed within the unit enclosure contain the main disconnect switch, step-down control transformers, motor starters, flame safeguard controls, and modulating temperature controllers. Signal wiring routes through low-voltage terminal strips to connect external room thermostats, remote control panels, and gas valve actuators.
| Component Name | Schematic Symbol / ID | Wire Colors / Terminals | Technical Spec / Voltage |
|---|---|---|---|
| Main Blower Motor | M1 / BLW | T1, T2, T3 (Black/Red/Blue) | 208/230/460V 3-Phase, 60Hz |
| Motorized Damper Actuator | ACT-1 / M-DMP | Terminals 1, 2, 3 (Red/Black/White) | 24VAC / 2-10VDC Control Signal |
| Airflow Proving Switch | APS / AFS | NC/NO to Terminals 5 & 6 (Yellow) | 24VAC Control Circuit (0.05″-2.0″ W.C.) |
| Flame Safeguard Relay | FSR / IGN | L1, L2, S1, S2 (Blue/Orange) | 120VAC Supply, Microamp Flame Signal |
| Modulating Gas Valve | MGV / MGT | Terminals V1 & V2 (Purple/Gray) | 24VAC, 4-20mA or 0-10VDC Input |
How to Interpret a Make-Up Air Unit Wiring Schematic
Tracing a technical make-up air unit schematic requires a systematic approach, starting with incoming line-voltage power distribution and proceeding through the low-voltage safety interlock chain. Technical blueprints segment high-voltage supply lines (typically 208V, 230V, or 460V 3-phase) at the top or left of the electrical print, supplying line power through fuse blocks or circuit breakers to the VFD or magnetic motor starter contacts.
Follow these four steps to trace the electrical logic circuit on a standard OEM blueprint:
- Identify High-Voltage Supply Lines: Follow lines L1, L2, and L3 from the disconnect block through the motor starter contactor (C1) or VFD terminals (R/L1, S/L2, T/L3) down to the blower motor windings. Verify thermal overload relay heater sizes against full load amp (FLA) rating plates.
- Trace the Low-Voltage Control Loop: locate the step-down primary transformer (120V or 230/460V primary to 24VAC secondary). Line 24V (hot) routes through a series safety chain including the emergency stop switch, high-temperature limit switch (HLT), froststat, and intake damper end-switch (AUX-1).
- Verify Interlock and Start Command Logic: The start signal originates from a dry contact interlock connected to the main exhaust fan starter or a remote wall switch. Once closed, 24VAC energizes the motorized intake damper actuator. When the damper reaches 80% open, an internal end-switch closes, completing the circuit to energize motor contactor coil C1.
- Analyze Ignition and Flame Safety Sequencing: Blower motor rotation generates static pressure across the fan assembly, closing the diaphragm contacts on the differential air pressure switch. This action supplies 24VAC or 120VAC to the primary flame safeguard ignition controller, initiating pre-purge countdown (typically 15–30 seconds), pilot spark ignition, and main gas valve solenoid energization.
Modern variable-air-volume (VAV) make-up air units utilize 0-10VDC or 4-20mA analog signals from building automation systems (BAS) to control VFD output frequency. When reading control logic diagrams, dotted lines indicate field-installed low-voltage communication wiring, whereas solid lines represent factory-wired internal harnesses.
Diagnosing Faults Using the Make-Up Air Unit Diagram
Systematic troubleshooting of a non-functional make-up air unit relies on utilizing the electrical schematic to locate voltage drops across safety limit switches. When diagnosing faults, always use a calibrated digital multimeter set to AC voltage to test sequential test points relative to common ground or transformer common (C).
If the blower motor fails to start upon receiving a call for operation, refer to the wiring blueprint and verify voltage at terminal 24V-H. Trace voltage sequentially through the interlock contacts, fuse block, froststat contacts, and high-limit switch. A voltage reading across any single-pole limit switch indicates an open circuit, identifying the failing safety component or trip condition.
When the blower operates normally but burner ignition fails, locate the differential pressure switches on the schematic. Measure static pressure differential across the sensing ports using an inclined manometer. If air differential meets the OEM threshold (e.g., 0.35″ W.C.) but switch terminals remain open, replace the differential switch. If contacts close, trace power downstream to the flame ignition module terminals to verify purge timing power input.
High-voltage line terminals (208V to 460V 3-phase) present severe arc flash and electrocution hazards. Always perform lockout/tagout (LOTO) procedures prior to servicing mechanical drives, belts, or opening high-voltage junction boxes. Flame ionization testing must only be conducted by trained technicians using insulated test probes.
Burner short-cycling or discharge temperature oscillation usually stems from improper sensor feedback or faulty modulating gas valve control signals. Locate the discharge air temperature sensor (TS-1) on the schematic diagram and check DC voltage across signal terminals. Match measured resistance (Ohms) against the manufacturer’s NTC/PTC thermistor temperature curve to verify sensor accuracy before replacing modulation control boards.
Make-Up Air Unit Blueprint FAQs and Technical Specs
What is the main structural difference between direct-fired and indirect-fired make-up air unit diagrams?
Direct-fired unit diagrams show the gas burner directly positioned in the main supply airstream without a flue chimney or combustion heat exchanger. Indirect-fired unit blueprints show a sealed combustion chamber, secondary heat exchanger tubes, direct spark igniter, power venting draft blower motor, and a dedicated exhaust flue connection to route combustion products safely outside.
How is an interlock circuit wired between a commercial kitchen exhaust hood and a make-up air unit?
The interlock uses a dry auxiliary contact on the exhaust hood fan starter or a dedicated control relay. Wiring routes a 24VAC loop from the make-up air control panel terminals through the normally open (NO) auxiliary contact on the exhaust fan contactor. When the exhaust fan turns on, the contact closes, completing the circuit to trigger the make-up air unit intake damper and supply fan sequence.
What causes an airflow switch safety fault trip on a make-up air control schematic?
An airflow switch fault occurs when the differential pressure switch fails to prove sufficient static pressure across the supply blower or burner profile plate. Common mechanical causes include loose belt drive tension, reversed 3-phase motor rotation, clogged intake bird screens, dirty MERV filter banks, or blocked pitot tube pickup lines connected to the switch ports.
How do you measure flame current on an MAU flame safeguard controller?
Flame current is measured in microamps (µA DC) using a multimeter set to DC microamps inserted in series with the flame rod sensing wire, or by taking DC voltage readings across designated test jack terminals on the flame safeguard module (typically 1VDC = 1µA). According to manufacturer specs, a stable flame signal must continuously register between 2.0 µA DC and 5.0 µA DC during burner firing.
Step-by-Step Guide to Understanding the Make-Up Air Unit Diagram
Identify – Identify your make-up air unit model number and locate the corresponding electrical and mechanical layout diagram.
Locate – Locate the main power disconnect and trace incoming 120V, 230V, or 480V lines to the terminal block on the diagram.
Reference – Reference the 24VAC control circuit path, starting from the transformer to the primary safety limit switches.
Connect/Route – Connect control wiring to the damper actuator, differential pressure switch, and discharge temperature sensor terminals.
Verify – Verify correct supply fan motor rotation and check that damper linkages open smoothly during startup sequence.
Troubleshoot – Troubleshoot fault codes or open safety circuits by measuring AC voltage drops across line-item switches shown.
