2 Stroke Yamaha Outboard Wiring Harness Diagram: Pinout 2026
Standard 10-pin Yamaha 2-stroke outboard harnesses use Black for the main ground wire, Red for 12V hot wire constant power, Yellow for switched ignition power, Sky Blue/Pink for trim control, Green for tachometer pulse signal, and Light Green for the neutral wire safety switch pin assignment.
📌 Key Takeaways
- Standard main control harnesses use 10-pin circular connectors operating on 12V DC systems.
- Black is strictly reserved as engine ground wire; Red represents constant unswitched battery hot wire.
- Always torque terminal block posts to 15-20 in-lbs and apply dielectric grease to water-tight connectors.
- Corrosion inside multi-pin junction plugs causes 80% of intermittent ignition and gauge failures.
- DIY replacement of main harness extensions is simple, but CDI coil timing issues require technician tools.
Executing precision electrical work on a two-stroke Yamaha outboard motor requires exact mapping of the factory harness to protect sensitive solid-state ignition components. Whether servicing an inline 2-cylinder 25HP engine or a high-performance V6 225HP Precision Blend engine, using an accurate 2 stroke yamaha outboard wiring harness diagram prevents premature failure of the Capacitor Discharge Ignition (CDI) unit, voltage regulator-rectifier, and trim relays. This guide provides comprehensive circuit mapping, pinouts, wire gauge standards, and systematic troubleshooting instructions for professional marine technicians and advanced outboard DIYers restoring or repairing factory remote control systems and engine-side terminal blocks.
Recommended Best Deal Products

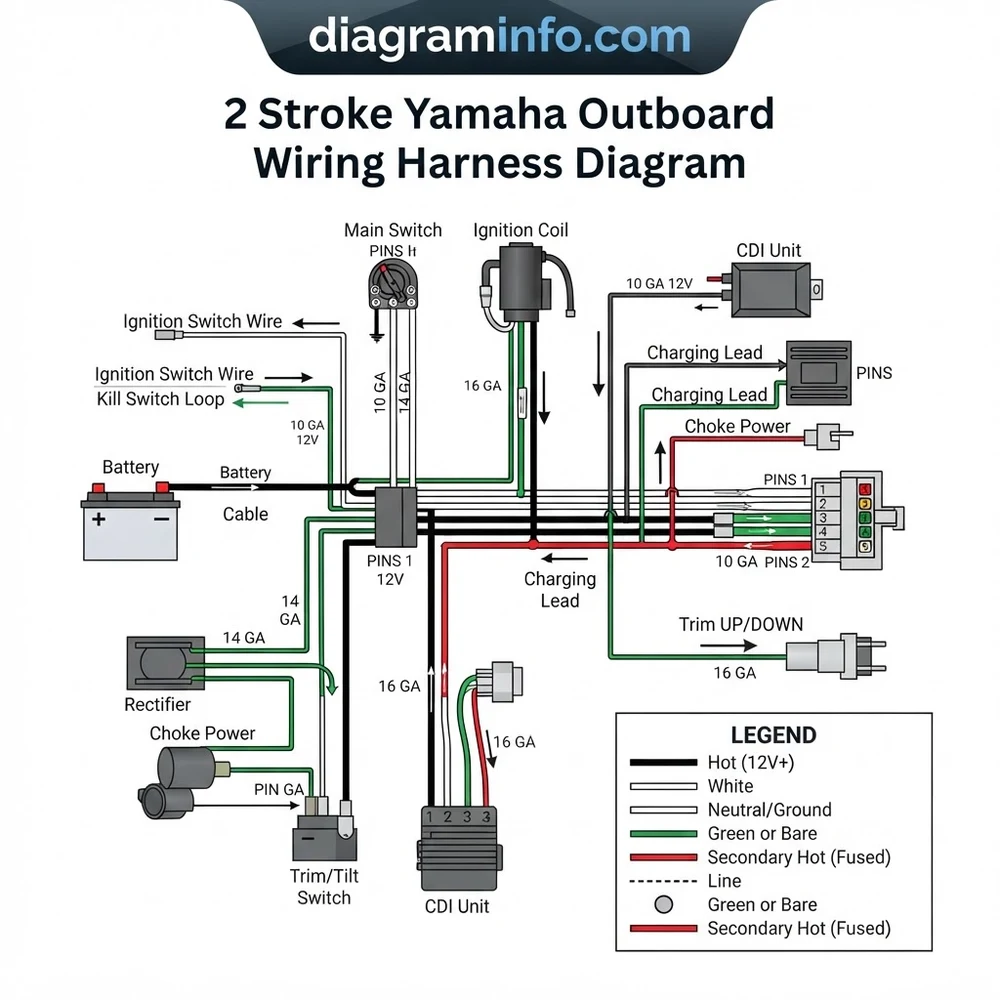

Diagram illustrates the 10-pin main connector, key switch assembly, CDI box inputs, stator coils, trim/tilt relay bank, thermo-switch, and multi-function tachometer connections.
Decoding the 2 Stroke Yamaha Outboard Wiring Harness Diagram Wire Color Code
Yamaha uses a standardized color coding system across its two-stroke outboard lineup manufactured from the late 1980s through the mid-2000s. Understanding these color assignments is essential prior to performing continuity testing or splicing extended control cables. A single miswired conductor can feed full battery voltage into a ground-referenced logic circuit, resulting in destroyed CDI modules or fried gauge clusters. Refer to our Yamaha 703 remote control box wiring guide when tracing circuits back to the helm console.
Always verify wire colors at both terminal ends using a digital multimeter set to DC volts or resistance. Marine environmental exposure can discolor insulation over time, making sun-faded light green wires appear white or yellow.
| Wire Color | Circuit / Function | Pin / Terminal Assignment | Operating Voltage & Signal Specs |
|---|---|---|---|
| Red | Main Battery Fused Power (Hot Wire) | 10-Pin Main Harness (Pin 1) / Starter Solenoid | +12.6V DC Constant Battery Power |
| Black | System Chassis Ground Wire | Engine Block / 10-Pin Main Harness (Pin 2) | 0V DC Reference / Common Ground |
| Yellow | Switched Ignition Power | Key Switch Terminal ‘A’ / Gauges / CDI Input | +12V DC Switched (Active in ON/START) |
| Brown | Starter Solenoid Relay Trigger | Key Switch Terminal ‘S’ / Solenoid Relay Terminal | +12V DC Momentary (Active in START position) |
| White | Ignition Kill / Engine Stop Circuit | Safety Lanyard Switch / CDI Stop Circuit | Ground Trigger (0V to Stop / Open to Run) |
| Green | Tachometer Signal Pulse | Stator Lighting Coil Output / Tachometer Input | 12V–20V AC Pulses (Frequency scales with RPM) |
| Pink | Engine Thermal Overheat Alarm | Thermo-Switch / Warning Horn / Tach Display | Switched Ground Signal (Normal = Open, Alarm = 0V) |
| Sky Blue | Power Trim & Tilt UP Signal | Control Box Switch / Trim Relay Assembly | +12V DC Trigger Signal |
| Light Green | Power Trim & Tilt DOWN Signal / Neutral Line | Control Box Switch / Trim Relay Assembly | +12V DC Trigger Signal |
| Dark Blue | Instrument Backlighting / Accessory Power | Key Switch Accent Terminal / Gauge Clusters | +12V DC Switched Power |
| Green/Red | Engine Sub-Oil Tank Low Alarm | Precision Blend Sensor / CDI / Warning Indicator | Ground Reference Resistance Signal |
| Green/White | Remote Engine Oil Tank Sensor Signal | Remote Reservoir Sensor / Transfer Control Unit | Variable Ohmic Signal (5 to 100 ohms) |
2 Stroke Yamaha Outboard Wiring Harness Diagram Pin Assignments and Terminal Block Layout
The core interface between the vessel operator console and the motor powerhead relies on the standard 10-pin circular main harness plug and an engine-mounted rubber terminal block. Mapping the exact pin assignment prevents costly wiring mistakes when connecting replacement control cables or aftermarket instrument displays.
Looking directly into the female plug face on the engine side, pin positions are indexed clockwise starting from the alignment notch: Pin 1 (Red, 12 o’clock), Pin 2 (Black), Pin 3 (Yellow), Pin 4 (Green), Pin 5 (Brown), Pin 6 (White), Pin 7 (Pink), Pin 8 (Sky Blue), Pin 9 (Light Green), and Pin 10 (Dark Blue). Always check continuity across pin terminals using male/female bullet test leads rather than jamming multimeter probes into housing sockets, which deforms pin contacts.
Recommended Best Deal Products
On the engine side, conductors terminate into a rigid plastic or vulcanized rubber terminal block typically anchored on the port side of the engine block near the starter solenoid. This distribution block splits primary power lines into localized engine sub-circuits:
- Main Solenoid Terminal: Accepts the positive battery cable from the battery switch alongside the 10-pin Red hot wire. This serves as the single-point distribution node for charging current back to the battery.
- Ground Wire Collector Plate: Direct-mounted to the engine block casting. All secondary grounds—including CDI unit grounds, tilt relay grounds, and oil sensor grounds—must terminate here to avoid ground loops.
- CDI Interface Strip: Houses bullet connections for ignition triggers (charge coils and pulser coils). These high-voltage AC pulse signal lines (Pink, White/Red, White/Black, White/Green) connect directly to the CDI and must remain shielded from high-current charging cables.
Electrical Gauge, Voltage Specs, and Ground Wire Architecture
Marine environments impose extreme thermal and corrosive stress on conductor materials. Yamaha utilizes tinned copper, multi-strand marine-grade wire compliant with SAE J1128 specifications. Replacing damaged sections requires exact gauge matching to prevent excessive electrical resistance and voltage drops across long runs from stern to helm.
• Primary Battery Cables: 2 AWG (up to 15 ft) or 1/0 AWG (>15 ft) | Max Voltage Drop: <0.2V DC at 200A cranking.
• Power Trim & Starter Relay Feed Circuits: 10 AWG to 12 AWG | Operating Range: 11.5V DC to 14.4V DC.
• Ignition & Accessory Feeds (Yellow/Red): 14 AWG to 16 AWG | Max Current Draw: 15A fused.
• Sensor & Signal Lines (Pink/White/Green): 18 AWG tinned copper | Signal Voltages: 0.5V DC to 18V AC.
• Ground Wire System Total Impedance: <0.1 Ohms from terminal block to zinc anode grounding straps.
A compromised ground wire path is the single leading cause of unexplainable engine misfires and erratic digital gauge readings on two-stroke outboards. Ground currents forced to trace back through engine mechanical linkages will accelerate galvanic corrosion across crankcase bolts and steering pivot shafts. Refer to our marine battery switch wiring schematics to verify complete DC isolation setup.
Step-by-Step Connection Guide for the 2 Stroke Yamaha Outboard Wiring Harness Diagram
Follow this exact wiring assembly sequence when reinstalling an engine harness, installing a new 703/704 remote control box, or rewiring an engine terminal block. Before starting, disconnect the negative marine battery cable at the isolation switch.
Step 1: Mount Main Harness and Secure Primary Ground Connections
Position the main harness trunk along the starboard engine pan, ensuring anti-chaffing rubber grommets seal properly within the lower cowl cutouts. Route the primary heavy-gauge black ground wire directly to the main engine block grounding bolt. Torque the bolt to 14 ft-lbs (19 Nm). Ensure the contact area is clean down to bare metal and sealed with dielectric grease.
Step 2: Terminate Battery Hot Wire and Solenoid Feed
Attach the primary Red 10 AWG power lead to the line-side terminal of the starter solenoid switch. Verify that the inline 20A or 30A main glass/blade fuse housing is accessible and installed directly within this Red hot wire leg before it feeds into the main 10-pin plug housing.
Step 3: Connect the Remote Control Box Wire Harness
Align the index keys on the 10-pin engine connector and the remote control extension cable. Firmly press the connectors together until the locking ring snaps shut. At the key switch terminal assembly inside the helm console, terminate connections matching terminal letters to wire colors:
- Connect Red wire to Terminal ‘B’ (Battery Constant +12V).
- Connect Yellow wire to Terminal ‘A’ (Accessories/Ignition Switched +12V).
- Connect Brown wire to Terminal ‘S’ (Starter Solenoid Trigger).
- Connect White wire to Terminal ‘M’ (Magneto/CDI Grounding Stop Circuit).
- Connect Black wire to Terminal ‘M’ ground lug alongside the safety lanyard switch line.
Step 4: Integrate Trim/Tilt Relays and Neutral Safety Wire Interlock
Connect the Sky Blue wire to the UP terminal post of the high-current trim relay module. Connect the Light Green wire to the DOWN terminal post. Route the neutral wire safety switch (typically Light Green or Brown/White) in series between the key switch ‘S’ terminal and the starter relay coil. This guarantees that +12V cranking voltage cannot energize the starter solenoid unless the remote control shift lever is locked in the neutral detent position.
Step 5: Perform Voltage Resistance and Continuity Verification
Before reconnecting primary battery leads, set your multimeter to Ohms ($\Omega$). Measure resistance between the White wire pin at the key switch and engine chassis ground. With the key ON and lanyard inserted, resistance must read infinite ($\infty \Omega$). Pulling the lanyard clip or turning the key to OFF must instantly drop resistance to zero ($0.0 \text{ to } 0.2 \Omega$), confirming active ignition ground protection.
Diagnosing Common 2 Stroke Yamaha Outboard Wiring Harness Diagram Failures
Electrical failures on vintage and modern two-stroke outboards generally manifest as loss of spark, failure to crank, or persistent alarm buzzers. Applying systematic circuit diagnostics according to the harness diagram eliminates expensive guesswork.
• Never apply external +12V DC battery power to the White ignition kill wire. Doing so will instantly burn out the internal stopping circuit diodes inside the CDI unit.
• Reversing battery cable connections (reverse polarity) destroys the solid-state diodes inside the charging system voltage regulator within milliseconds.
• Stator charge coils generate lethal peak voltages exceeding 250V AC during engine cranking. Use insulated test clips when taking peak-reading voltage measurements.
Symptom 1: No Spark Across All Cylinders (Kill Circuit Grounded)
When an engine cranks normally via the starter motor but exhibits no ignition spark on any cylinder, the White kill wire circuit is almost always shorted to ground. Disconnect the bullet connector on the main White wire where it exits the CDI box. Re-test for spark. If spark returns, the fault lies within the harness, safety lanyard switch, or key switch assembly. For broader starting system diagnostic steps, consult our outboard starter solenoid replacement guide.
Symptom 2: Engine Will Not Crank (Starter Solenoid Inactive)
If turning the key to START produces no clicking sound from the starter relay, verify voltage along the Brown trigger wire. Check for +12V at key switch Terminal ‘S’ during key engagement. If +12V is present at the key switch but absent at the starter relay, check the neutral wire safety switch inside the remote control box for continuity. Internal contact wear or misaligned shift linkages will open the neutral circuit, preventing starter engagement.
Symptom 3: Persistent Overheat/Low Oil Alarm Buzzer
A continuous warning horn sounding under normal engine operating temperatures indicates a grounded signal line. The warning horn sounds whenever the Pink wire (thermo-switch) or Green/Red wire (Precision Blend oil level sensor) connects to ground. Unplug the thermal sensor on the cylinder head. If the horn stops, replace the faulty thermo-switch. If the horn continues sounding, trace the Pink wire through the wiring harness to locate a chaffed insulation spot shorting against the metal chassis or lower cowl.
Symptom 4: Power Trim operates in One Direction Only
If the trim motor operates UP but fails to run DOWN (or vice versa), test the trigger inputs at the trim relay bank. Connect a voltmeter to the Sky Blue wire (UP trigger) and actuate the switch. You must read +12V DC. Repeat the test on the Light Green wire (DOWN trigger). If input triggers register +12V but the motor fails to turn, the fault lies within the high-current relay contacts or a loose motor ground wire connection rather than the control harness.
2 Stroke Yamaha Outboard Wiring Harness Diagram Frequently Asked Questions
How do I test the white kill switch wire on a Yamaha outboard wiring harness?
To test the White kill switch circuit, disconnect the main 10-pin harness or the bullet terminal exiting the CDI box. Set a digital multimeter to measure resistance ($\Omega$). Place one probe on the White wire and the other probe on engine chassis ground. With the safety lanyard clip fully installed and the ignition key ON, the meter must indicate open circuit ($\infty \Omega$). When you remove the lanyard clip or turn the key to OFF, resistance must drop to under $0.5 \Omega$. Any reading below $1,000 \Omega$ during operation indicates a partial ground short that will cause engine misfires or total loss of spark.
What gauge wire is required when extending a Yamaha 10-pin remote harness?
When extending a Yamaha 10-pin remote control harness over distances up to 20 feet, use marine-grade AWG 14 tinned copper wire for the main Red power wire and Black ground wire. The remaining signal lines (Yellow, Brown, Green, White, Pink, Sky Blue, Light Green, Dark Blue) require AWG 16 tinned multi-strand wire. For harness runs exceeding 20 feet, step up the Red hot wire and Black ground wire to AWG 12 to maintain acceptable voltage drop limits (<3%) under maximum load conditions.
Why is my Yamaha multi-function tachometer display not receiving a signal?
A non-responsive or erratic Yamaha multi-function digital tachometer is typically caused by a loss of the AC lighting coil pulse on the Green signal wire or a loose ground wire at the instrument cluster. First, test for voltage on the Green wire at the back of the gauge with the engine running. You should read between 12V and 22V AC depending on engine RPM. If voltage is present, verify that the dip switches on the rear of the multi-function gauge are set correctly for your motor’s alternator pole count (typically 12-pole / 6-pulse for V6 two-stroke models).
Can I wire an aftermarket tilt and trim switch to a two-stroke Yamaha harness?
Yes, you can integrate an aftermarket three-wire trim switch (such as a bow trim panel or stalk switch) into the factory Yamaha harness. Connect the switch power lead to the Yellow switched hot wire (+12V) or Red constant hot wire (+12V). Connect the switch UP contact output directly to the Sky Blue wire at the trim relay harness or remote box connector, and connect the DOWN contact output to the Light Green wire. Always install diodes or use isolated relay connections if wiring multiple parallel switches to prevent feedback loops into the helm switch.
What is the function of the Yellow wire in the Yamaha remote control harness?
The Yellow wire serves as the +12V DC switched ignition bus wire. It carries battery positive voltage from Terminal ‘A’ of the key switch to instrument cluster gauges, oil injection control units, choke solenoids, and CDI activation logic only when the key is turned to the ON or START position. Unlike the Red wire—which remains energized constantly—the Yellow wire de-energizes when the key switch is turned to OFF, preventing battery drain while the vessel is moored.
