Zurn Flush Valve Parts Diagram: 2026 Component Guide
A Zurn flush valve parts diagram details the internal layout of commercial flushometers. Key components include the control stop valve, vacuum breaker tube, flush handle assembly, and dual-filter diaphragm kit (e.g., Z6000 series). It illustrates the exact sequence from the water inlet pipe to the fixture spud connection for accurate disassembly.
📌 Key Takeaways
- The diaphragm assembly operates at standard commercial water pressures between 20 and 80 PSI.
- Zurn AquaVantage and AquaFlush diaphragms feature a dual-filtered bypass to prevent debris clogging.
- Tighten the valve cover bonnet to 25-30 ft-lbs using a smooth-jawed spud wrench to avoid finish damage.
- Continuous flushing is typically caused by a ruptured diaphragm or a clogged bypass orifice.
- Facility staff can replace internal seal cartridges, but full supply valve replacements require licensed plumbing work.
Commercial plumbing systems rely heavily on diaphragm-type flushometers for reliable water delivery and sanitation in high-traffic facilities. Understanding a zurn flush valve parts diagram is essential for facility maintenance engineers, commercial plumbers, and technical staff responsible for servicing AquaVantage and AquaFlush Z6000 series valves. This technical guide outlines the internal blueprint, fluid dynamics, component layout, and structural configuration of Zurn flushometer assemblies. By referencing manufacturer specifications and schematic layouts, technicians can swiftly identify worn components, execute precise rebuilds, and maintain operating pressures within standard OEM thresholds (15 to 100 PSI dynamic pressure).
Zurn Flush Valve Parts Diagram: Structural Component Breakdown
The structural layout of a standard Zurn diaphragm flush valve consists of three primary functional zones: the control stop supply inlet, the valve body with its internal metering assembly, and the discharge outlet with vacuum breaker protection. Each component is engineered to withstand chloramine-treated municipal water supplies while maintaining a precise gallon-per-flush (GPF) discharge calibration.
Recommended Best Deal Products
OEM Operating Pressure Range: 15 to 100 PSI (103 to 689 kPa). Recommended working pressure is 35 to 60 PSI. Handle nut torque spec: 25-30 ft-lbs. Valve cover cap tightness: Hand tight plus 1/4 turn with smooth-jaw spud wrench.

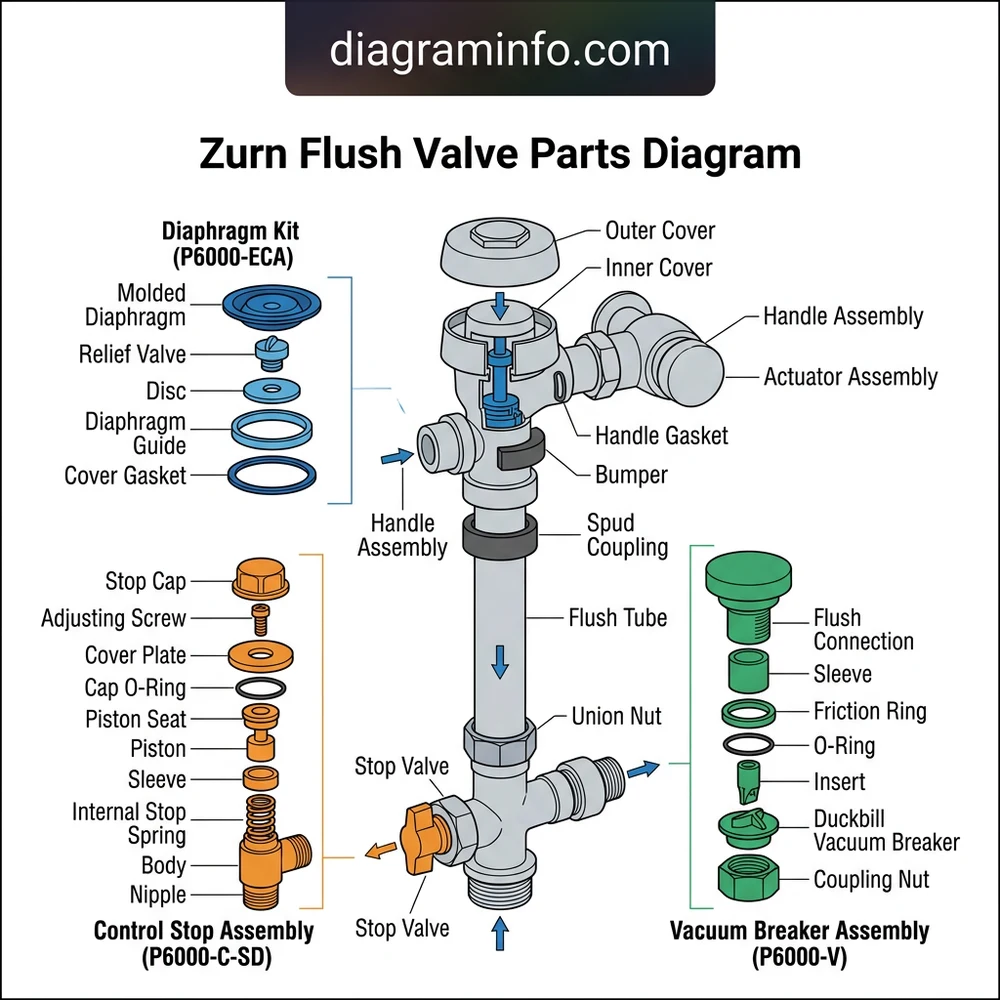

As illustrated in the primary schematic layout, key internal modules work in unison to control fluid motion. The top cap secures the synthetic rubber diaphragm assembly, which houses the dual-filtered bypass system. For detailed breakdown procedures, consult our technical reference on commercial flushometer maintenance protocols.
| Diagram Key | Component Description | Part Series / Material Spec | Functional Mechanical Role |
|---|---|---|---|
| 1 | Outer Cover Cap | P6000-E-CP (Heavy-Duty Brass) | Encloses upper pressure chamber and seals inner cover to body. |
| 2 | Inner Cover | P6000-L (Molded Polypropylene) | Isolates upper pressure chamber and aligns diaphragm stem. |
| 3 | Dual-Filter Diaphragm Kit | P6000-ECA / P6000-HY (TPE Rubber) | Controls main valve opening/closing via pressure differential; color-coded by GPF. |
| 4 | Actuating Handle Assembly | P6000-J-CP (ADA-Compliant Brass) | Depresses relief valve stem via internal plunger to initiate flush cycle. |
| 5 | Vacuum Breaker Assembly | V-600-AA (Silicone / ABS Construction) | Prevents back-siphonage into potable water lines during negative line pressure. |
| 6 | Control Stop Valve | P6000-C-CP (1″ or 3/4″ NPT/Sweat) | Provides water shutoff and line volume throttling to regulate flush spray velocity. |

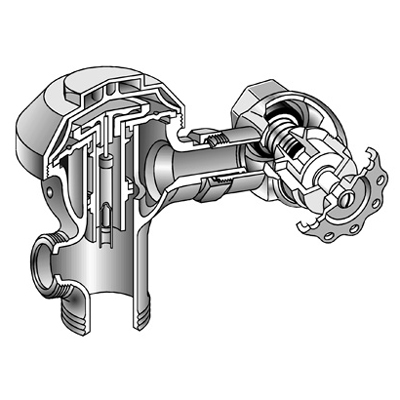

How to Read the Zurn Flush Valve Layout and Schematic
Navigating a technical zurn flush valve parts diagram requires understanding fluid mechanics and pressure differential operation. The valve operates using balanced hydraulic forces above and below the internal diaphragm assembly. Referencing the structural blueprint helps technicians track the path of fluid movement and identify critical mechanical interfaces during assembly.
Zurn AquaVantage diaphragms feature a clog-resistant dual-filter bypass ring made of thermoplastic elastomer (TPE). Never clean bypass orifices with wire tools, as expanding the hole diameter alters factory GPF metering timings.
Identifying the Upper Pressure Chamber Architecture
The upper body schematic depicts the outer brass cover, inner molded plastic cover, and dual-filtered diaphragm. Fluid enters the upper chamber through a microscopic bypass orifice in the diaphragm assembly. Because the surface area of the top side of the diaphragm is greater than the exposed area beneath it, dynamic water line pressure holds the diaphragm firmly against its lower brass valve seat, keeping the valve fully closed.
Tracing the Manual and Sensor Actuation Subsystems
On manual flushometers, the mechanical handle assembly attaches to the side body tapping. Depressing the handle forces the internal plunger against the tilting relief valve stem located in the diaphragm center. Moving this stem vents upper chamber pressure into the discharge tube. The higher line pressure below the diaphragm immediately forces the entire kit upward off its seat, initiating the primary flushing cycle. For automated configurations, see our comprehensive guide on sensor-operated flush valve troubleshooting.
Reassembling Control Stop and Adjustable Tailpiece Elements
The supply side layout reveals an adjustable tailpiece connected to the control stop with a locked coupling nut and elastomeric O-ring. The O-ring provides a watertight seal while allowing a 1/2-inch (+/- 1/4″) structural variance during installation. Ensure the tailpiece stop clip is fully seated inside the valve body housing to prevent seal displacement under static line pressure spikes.
Troubleshooting Common Zurn Flush Valve System Failures
When diagnosing malfunction patterns on commercial fixtures, cross-referencing field symptoms against the zurn flush valve parts diagram accelerates root-cause identification and minimizes downtime.
Always shut off supply line pressure at the control stop using a flat-head screwdriver before loosening the outer brass cover or handle assembly. Vented water pressure can cause immediate component ejection and severe workspace flooding.
Continuous Running or Failure to Shut Off
If water flows continuously through the fixture, trace the issue to the upper chamber components. The primary root cause is a clogged bypass orifice in the diaphragm assembly, which prevents upper pressure chamber recharge. Disassemble the upper cover using a smooth-jaw wrench, inspect the dual-filter bypass ring for debris build-up, and clean or replace the diaphragm with OEM kit P6000-ECA. Alternatively, inspect the relief valve seat for chemical corrosion or mineral scaling that prevents full seating.
Short Flushing or Insufficient Flush Volume
An abbreviated flush cycle indicates an mismatched diaphragm volumetric rating or severe debris inside the bypass filter. Installing a 1.0 GPF urinals diaphragm kit into a 1.6 GPF or 3.5 GPF water closet housing results in rapid upper chamber refill and premature closing. Always verify part number stamping on the color-coded diaphragm ring (e.g., Black = 3.5 GPF, Green = 1.6 GPF, Blue = 1.0 GPF, White = 0.5 GPF) against the fixture requirement.
Water Leakage at the Handle Nut or Vacuum Breaker Vents
Fluid leaking around the actuating handle indicates worn internal plunger seals (P6000-J kit). Replace the internal rubber seal, spring, and brass bushing. If water leaks from the vacuum breaker air vents during a flush, consult the lower discharge piping diagram. Replace the V-600-AA duckbill sleeve, as severe mineral deposits or chemical backpressure from bowl obstructions rupture the flexible vacuum breaker seal. For backflow preventer servicing details, check our vacuum breaker repair guides.
Zurn Flush Valve Parts Diagram Questions Answered
Are Zurn flushometer internal parts interchangeable with Sloan Royal valves?
Yes. Zurn AquaVantage and AquaFlush internal components, including diaphragm rebuild kits, handle assemblies, and vacuum breakers, are structurally designed to be directly interchangeable with Sloan Royal and Crown flushometer bodies. Thread patterns, tailpiece dimensions, and pressure chamber heights follow standard commercial brass industry standards.
How do I determine the correct diaphragm replacement kit using the parts diagram?
Identify the fixture type (water closet vs. urinal) and check the etched GPF rating on the fixture porcelain. Match this rating with the corresponding color-coded Zurn kit: 3.5 GPF (Water Closet – Black), 1.6 GPF (Low Consumption Closet – Green), 1.28 GPF (High Efficiency Closet – Purple), 1.0 GPF (Urinal – Blue), and 0.5 GPF (Micro-Plumb Urinal – White).
Why is water weeping continuously out of the vacuum breaker sleeve vents?
Continuous dripping at the vacuum breaker air vents typically occurs when line pressure drops below 15 PSI, preventing the inner silicone sleeve from expanding against the vent wall during a flush. Alternatively, physical degradation of the internal elastomeric duckbill seal from harsh water treatment chemicals requires complete replacement of the V-600-AA repair insert.
What is the torque procedure for reinstalling the outer cover cap?
Tighten the outer brass cap hand-tight first, ensuring the inner cover aligns correctly over the diaphragm central locator pin. Using a smooth-jawed spud wrench, tighten the cap an additional 1/4 to 1/2 turn until snug. Do not over-torque, as excessive force distorts the internal molded polypropylene cover and warps the main diaphragm perimeter seal.
Step-by-Step Guide to Understanding the Zurn Flush Valve Parts Diagram
Identify – Determine your specific model code (e.g., Z6000 or Z6003) stamped on the flush valve body.
Locate – Isolate the control stop valve stem and turn clockwise with a flathead screwdriver to shut off water supply.
Reference – Consult the zurn flush valve parts diagram to isolate the cover cap, diaphragm cartridge, and handle assembly.
Connect/Route – Reassemble internal seals, correctly seating the replacement diaphragm lip into the valve body groove.
Verify – Reopen the control stop valve, actuate the flush handle, and test for proper water discharge volume.
Troubleshoot – If leakage or continuous flushing occurs, inspect the handle plunger O-ring and diaphragm bypass hole for debris.
