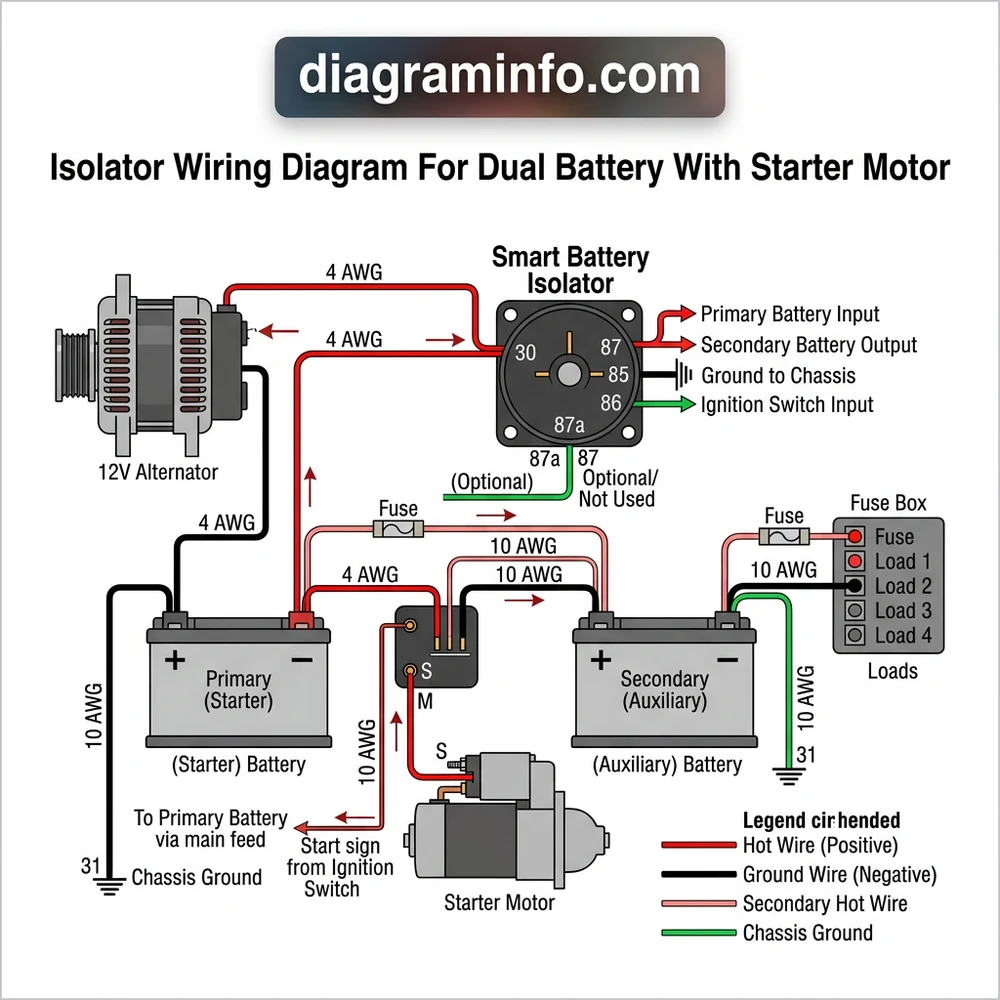

12V Isolator Wiring Diagram for Dual Battery with Starter Motor 2026
The isolator wiring diagram for dual battery with starter motor connects the primary battery directly to the starter solenoid using a 1/0 AWG hot wire. The isolator bridges primary and auxiliary positive studs, controlled by an ignition-switched hot wire. Both battery banks connect to a common chassis ground wire to ensure proper voltage sensing.
📌 Key Takeaways
- Main starter motor feed requires 1/0 AWG or 2/0 AWG red hot wire to support high cranking current.
- The isolator trigger terminal uses an ignition-switched 12V hot wire to prevent auxiliary battery feedback.
- Both primary and auxiliary batteries must share a direct, bare-metal chassis ground wire link.
- Smart voltage-sensitive isolators engage automatically at 13.3V alternator output and disconnect at 12.8V.
- Always fit 100A-150A inline fuses within 7 inches of each positive battery post to prevent thermal overload.
Installing a dual battery system with an automated isolator is essential for commercial equipment, expedition vehicles, and marine craft where secondary electrical loads must run without draining the primary starter battery. Integrating a high-amp battery isolator—whether a Voltage Sensitive Relay (VSR) or a solid-state solenoid—ensures that the engine alternator prioritizes charging the cranking battery before connecting the auxiliary bank. Referring to a precise isolator wiring diagram for dual battery with starter motor applications prevents high-resistance voltage drops, relay chatter, and inadvertent cranking damage to auxiliary electronics.
Wire Color Code and Terminal Block Pin Assignment
When executing high-current automotive or marine installations, standard wire color codes and precise pin assignment identification prevent short circuits and terminal cross-wiring. High-amperage direct current (DC) circuits utilize distinct insulation colors to indicate continuous battery power, switched ignition control, floating earth, and frame ground connections. Manufacturers follow standard SAE J1128 automotive wiring color codes, though marine implementations often adhere to ABYC standards.
| Wire Color Code | Circuit Function | Pin / Terminal Block ID | Gauge & Spec |
|---|---|---|---|
| Red (Primary) | Starter Battery Hot Wire to Isolator Input | Terminal A / Pin 30 (Line) | 1/0 AWG to 2/0 AWG, 12V/24V |
| Red (Secondary) | Isolator Output to Auxiliary Battery Hot Wire | Terminal B / Pin 87 (Load) | 2 AWG to 1/0 AWG, 12V/24V |
| Black / Yellow Tag | System Earth Ground Wire | Terminal C / Pin 86 (Coil Earth) | 14 AWG to 16 AWG |
| Blue / White Wire | Ignition Switch Sensing Lead | Pin 85 (Control Switch) | 16 AWG (Fuse protected 5A) |
| Yellow / Red Stripe | Emergency Start Override Switch | Pin 87a / Terminal S (Boost) | 14 AWG Momentary Control |
| White or Light Blue | Isolated Sense / Floating Earth (Neutral Wire Reference) | Terminal Block Sense Bus | 16 AWG Signal Line |
In heavy-duty power distribution centers, the terminal block acts as the centralized junction point connecting the smart isolator’s internal sensing board to the auxiliary chassis loads. Ensure every pin assignment matches the relay housing print. The control ground wire must attach directly to a cleaned, bare-metal chassis post or dedicated battery ground bus bar to avoid false voltage threshold triggers.
While direct current circuits do not use AC neutral wires, DC systems incorporating inverter chargers or isolated floating grounds utilize a white signal return line referred to in schematics as a DC neutral wire reference line. This reference maintains signal isolation between engine management electronics and high-current starter motor ground loops.
Cable Gauge and Voltage Drop Specs for High-Amp Starter Motors
The high current demanded by engine starter motors during initial inrush (typically 250A to 600A depending on displacement) requires strict adherence to wire gauge sizing. Undersized power cabling causes excessive voltage drop, causing starter motor sluggishness and internal contacts burning inside the dual battery isolator.
According to OEM electrical specifications, total system voltage drop during starter motor engagement must not exceed 0.5 Volts DC across the primary cranking circuit. Cable resistance increases over long distances, requiring larger conductors for runs exceeding 6 feet.
Starter Motor Draw & Cable Sizing Guide:
• Cranking Amperage < 200A (0-6 ft): 2 AWG Cable | Torque Studs: 85 in-lbs (9.6 Nm)
• Cranking Amperage 200A – 350A (0-6 ft): 1/0 AWG Cable | Torque Studs: 120 in-lbs (13.5 Nm)
• Cranking Amperage 350A – 500A+ (6-10 ft): 2/0 AWG Cable | Torque Studs: 135 in-lbs (15.2 Nm)
• Isolator Engagement Cut-in Voltage: 13.3V DC to 13.8V DC
• Isolator Disconnect Cut-out Voltage: 12.6V DC to 12.8V DC (after 10-second delay)
When routing heavy gauge hot wire leads parallel to engine blocks, select SGX or SGT cross-linked polyethylene insulated cable rated for at least 125°C (257°F) engine bay temperatures. Reviewing alternator charging circuit specs provides additional guidance on matching total alternator output capacity to the isolator continuous amp rating.
How to Wire an Isolator Wiring Diagram for Dual Battery with Starter Motor
Completing a dual battery isolator installation requires systematically making power connections, signal lines, and chassis earths. Disconnect all negative battery terminals prior to installing heavy-gauge power leads to prevent accidental arcing or welding of hand tools.
Step 1: Primary Starter Battery to Starter Motor Solenoid Installation
Route a continuous 1/0 AWG red hot wire from the positive terminal of the primary starter battery directly to the high-amperage B+ stud on the starter motor solenoid. Parallel to this main lead, run a secondary 2 AWG red hot wire from the primary battery positive post to Terminal A (Input) on the smart battery isolator module. Install an inline 200A high-amp ANL or MRBF fuse within 7 inches of the primary battery positive terminal post.
Step 2: Dual Battery Isolator Module to Auxiliary Battery Bank Wiring
Connect a 2 AWG red hot wire from Terminal B (Output) of the isolator module to the positive post of the auxiliary deep-cycle battery bank. As shown in the isolator wiring diagram for dual battery with starter motor layouts, place a second inline 200A fuse right near the positive terminal of the secondary battery. This dual-fuse placement protects the main feeder cable from high-current short circuits regardless of which battery source experiences an earth fault.
Failing to install inline fusing on both sides of the isolator output wire creates a severe fire hazard. If the isolator line chafes against the chassis, both primary and secondary battery banks will dump short-circuit amperage simultaneously into the fault.
Step 3: Starter Motor Solenoid Ignition and Boost Wiring
Locate the S-terminal on the starter motor solenoid. Run a 16 AWG blue wire from the ignition switch START position terminal block directly to the starter solenoid S-terminal. If your dual battery isolator features an automatic start-boost function, tap the yellow boost signal wire into this same starter solenoid S-terminal pin assignment. When turning the ignition key to the crank position, signal voltage energizes both the starter solenoid and momentarily bridges the isolator internal contacts to combine battery capacity for heavy cranking.
Step 4: Ground Wire Bus and Chassis Earth Termination
Run a full-gauge (1/0 AWG) black ground wire from the secondary battery negative post directly to the primary battery negative post or a solid engine block grounding point. Connect the small black 14 AWG ground wire from the isolator terminal block (Pin 86) to a clean chassis ground. Torque all negative ground wire studs according to manufacturer specifications, ensuring thread locking compounds or serrated washer assemblies are applied to avoid ground float under vibration.
Refer to our detailed guide on high-draw starter solenoid diagnosis if your starter fails to pull in after making these control circuit taps.
Isolator Wiring Diagram for Dual Battery with Starter Motor Troubleshooting
System anomalies in dual battery isolator setups usually stem from loose earth terminations, improper wire gauge selection, or low resting line voltage. Diagnostic routines require a Digital Multimeter (DMM) set to DC Volts and Low-Ohms resistance modes.
Fault Symptom 1: Isolator Relay Clicks Repeatedly (Relay Chatter)
If the isolator engages and rapidly disengages upon starting the engine, high internal resistance exists between the primary battery, starter motor, and isolator sense terminals. When the isolator combines the secondary battery, the sudden voltage drop across thin cables pulls total voltage below the 12.8V threshold, causing the isolator to disconnect. The voltage then rises, re-engaging the relay in a continuous cycle.
Fix: Upgrade the main interconnecting power wire gauge to 1/0 AWG. Inspect and clean all terminal lugs, removing surface oxidation down to bare copper or tinned brass.
Fault Symptom 2: Auxiliary Battery Fails to Charge While Engine Is Running
When the alternator charges the starter battery at 14.2V, but the secondary battery resting voltage stays below 12.5V, the isolator internal switch contact is failing to close or lacks a proper control circuit ground wire reference.
Fix: Measure DC voltage between Pin 86 (ground wire pin assignment) and Terminal A (Input hot wire). If voltage exceeds 13.3V DC but Terminal B shows no voltage, the isolator module ground wire has high resistance or the internal contacts are damaged. Re-establish a zero-ohm path from Pin 86 to negative earth.
Fault Symptom 3: Starter Motor Clicks or Cranks Slowly Despite Dual Batteries
When engaging the ignition switch, the starter motor clicks rapidly or turns slowly even though both primary and auxiliary batteries read fully charged. This points to excessive voltage drop across the starter motor solenoid power feed or an improperly sized ground return path.
Fix: Perform a dynamic voltage drop test across the starter hot wire while cranking. Place the positive DMM probe on the positive terminal post of the cranking battery and the negative probe on the starter motor B+ input stud. Crank the engine; if the multimeter reads higher than 0.5V DC, replace the primary starter wire with a larger gauge cable assembly or clean the high-current contact points.
For additional details regarding battery chemistries and sizing calculation procedures, read our comprehensive overview of deep cycle auxiliary battery sizing.
Isolator Wiring Diagram for Dual Battery with Starter Motor FAQ
What Cable Gauge Is Required Between the Isolator and Starter Motor?
The cable gauge connecting the primary battery to the starter motor solenoid should be at least 1/0 AWG for standard 12V automotive applications, and 2/0 AWG or larger for heavy-duty commercial equipment or long cable runs. The wire bridging the starter battery to the isolator module requires a minimum of 2 AWG rated for at least 150A to 200A continuous current. Always match cable gauge to both total alternator output and peak starter motor cranking current.
Why Does My Battery Isolator Click Rapidly When the Engine Is Running?
Rapid clicking (relay chatter) occurs when the system experiences severe voltage fluctuations at the isolator control sense terminals. When the isolator combines the primary and auxiliary batteries, the sudden electrical load from a depleted auxiliary battery causes primary system voltage to drop below the isolator cut-out threshold (typically 12.8V). The isolator immediately disconnects, system voltage rises back up above 13.3V, and the cycle repeats. Using larger gauge wire, lowering line resistance, or charging the auxiliary battery resolves this problem.
Can I Use a Solid-State Diode Isolator Instead of a Voltage Sensitive Relay?
Yes, solid-state diode isolators can be used, but they introduce a native 0.7V to 1.2V forward voltage drop across internal silicon diodes. This drop prevents the alternator from fully charging modern AGM or lithium auxiliary batteries unless the engine alternator is equipped with an external voltage sense line or stepped-up voltage regulator. Voltage Sensitive Relays (VSRs) and Field Effect Transistor (FET) solid-state isolators are preferred because they feature virtually zero voltage drop during operation.
Where Should Fuses Be Placed in a Dual Battery Isolator Circuit?
Install high-current fuses (such as ANL, Class T, or MRBF fuses) within 7 inches of each battery’s positive post along the isolator interconnecting hot wire line. Placing a fuse at both ends of the wire ensures that if the conductor short-circuits to the chassis frame at any point, both the primary starter battery and the secondary auxiliary battery are disconnected from the fault point, preventing cable meltdown or electrical fires.
How Does the Neutral Wire Reference Impact Signal Stability in Isolator Setup?
In DC systems incorporating smart isolators with internal microprocessor controls, the isolated reference ground (often designated as a signal neutral wire or floating sense earth) provides a clean 0V baseline. If this signal line is wired into high-current ground paths carrying starter motor draw, the momentary voltage shift across chassis grounds can trigger false disconnect signals or destroy fragile control board sense traces inside the isolator housing.
Step-by-Step Guide to Understanding the Isolator Wiring Diagram For Dual Battery With Starter Motor
Identify – Identify the primary battery, auxiliary battery, isolator main studs, ignition terminal, and starter motor solenoid.
Locate – Locate an ignition-switched 12V power tap inside the fuse box for the isolator relay pin assignment.
Reference – Reference the wire color code chart to verify positive hot wire lead sizes and negative ground wire return points.
Route – Route heavy-gauge 1/0 AWG hot wire from primary positive terminal directly to the starter motor solenoid.
Connect – Connect primary and auxiliary positive posts to isolator studs A and B, attaching ground wire cables to chassis metal.
Verify – Verify battery separation at rest (12.6V each) and combined operation (13.8V-14.4V) when the starter motor starts the engine.
