Rotary Phase Converter Wiring Diagram: Installation Setup 2026
A rotary phase converter wiring diagram typically illustrates single-phase input connections (L1, L2, Ground) to the converter’s motor and idler, and three-phase output (T1, T2, T3) to the load. Input wires often follow wire color code standards: black/red for hot wires, and green or bare for the ground wire. Output connections are L1, L2, and a manufactured L3 derived from the idler. Always confirm local electrical codes for safety.
📌 Key Takeaways
- Input single-phase voltage (typically 240V AC) requires two hot wires (L1, L2) and a ground wire connection to the converter.
- Proper identification of the manufactured third leg (T3 or L3) is crucial for balanced 3-phase output to the connected load, often requiring specific terminal assignment.
- Always verify all connections with a multimeter before applying power to ensure correct voltage and continuity, prioritizing electrical safety.
- The most common mistake involves incorrect sizing of the phase converter for the connected load, leading to voltage imbalance or motor overload.
- Consult a licensed electrician for complex installations, especially when connecting to main service panels or high-amperage industrial loads.
This comprehensive guide details the precise wiring procedures for a rotary phase converter (RPC), crucial for powering three-phase equipment from a single-phase supply. Understanding this diagram is paramount for safe, efficient, and reliable operation, preventing costly equipment damage or hazardous electrical failures. Proper wire color code identification, pin assignment, and terminal block connections, along with correct voltage and wire gauge selection, are fundamental to integrating your RPC into an automotive or industrial shop environment.

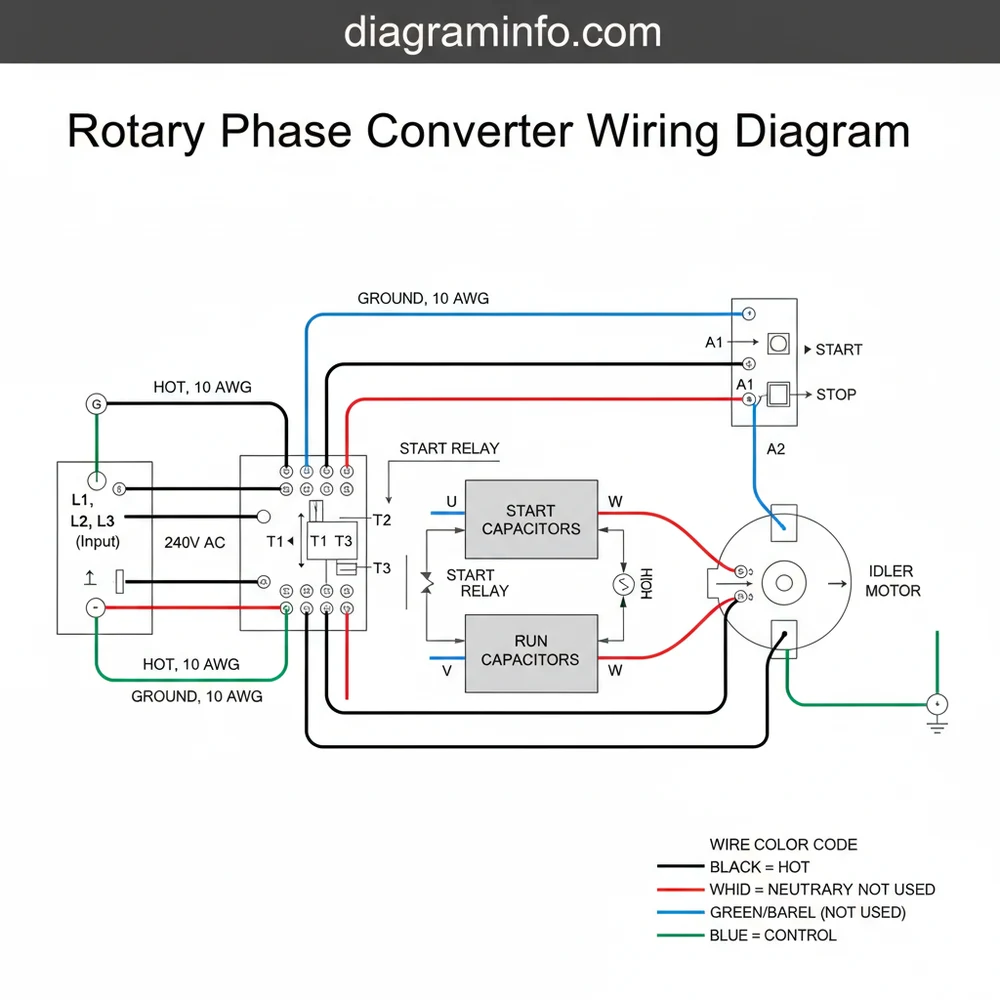

[DIAGRAM_PLACEHOLDER: A detailed wiring diagram for a rotary phase converter, showing single-phase input, RPC internal components (motor, capacitors, control board), and three-phase output to a load. Clearly labels L1, L2, L3, Ground, and potential Neutral connections, along with wire colors and terminal IDs.]
WIRE COLOR REFERENCE TABLE
| Wire Color (N.A.) | Function | Pin/Terminal (Typical) | Notes |
|---|---|---|---|
| Black | Single-Phase Input Line 1 (L1) / Three-Phase Output Line 1 (T1) | RPC Input Terminal L1 / RPC Output Terminal T1 | Primary unswitched hot wire. |
| Red | Single-Phase Input Line 2 (L2) / Three-Phase Output Line 2 (T2) | RPC Input Terminal L2 / RPC Output Terminal T2 | Secondary unswitched hot wire. |
| Blue (or Brown) | Three-Phase Output Line 3 (T3) – Manufactured Leg | RPC Output Terminal T3 (Manufactured) | The generated or manufactured phase by the RPC. |
| White | Neutral (Optional for Control Circuits) | RPC Control Terminal N (if present) | Not typically used for main power to RPC, but may be needed for internal control. |
| Green / Bare Copper | Ground Wire (Equipment Grounding Conductor) | RPC Chassis Ground Stud / Load Chassis Ground | Essential for safety and fault protection. |
STEP-BY-STEP CONNECTION GUIDE
Before commencing any wiring, always ensure that the main power supply to the circuit breaker or disconnect switch is completely de-energized and locked out. Failure to follow proper lockout/tagout procedures can result in severe injury or electrocution.
The successful installation of a rotary phase converter hinges on meticulous wiring, ensuring optimal performance and safety. This guide details the critical steps for connecting your RPC, referencing the provided diagram and standard wire color codes. Remember, RPCs vary; always consult your specific manufacturer’s installation manual in conjunction with these steps.
1. Prepare the Power Supply: Identify the single-phase power source (typically 240V AC for a 240V 3-phase RPC). Install a properly sized, dedicated circuit breaker in your main service panel to protect the RPC. The circuit breaker’s amperage must match or exceed the RPC’s maximum single-phase input current rating, as specified by the manufacturer. Run appropriate wire gauge conductors from this breaker to your RPC’s input disconnect switch or directly to its input terminal block. For instance, a 20HP RPC might require 6 AWG copper wire.
2. Connect Single-Phase Input to RPC: At the RPC’s input terminal block (typically labeled L1 and L2), connect your incoming single-phase power. The black hot wire from your service panel connects to the RPC’s L1 input terminal, and the red hot wire connects to the RPC’s L2 input terminal. Ensure these connections are secure, with terminal screws torqued to manufacturer specifications, commonly between 25-35 lb-in for larger gauges. Refer to your RPC’s pin assignment for exact terminal identification.
3. Establish Grounding for RPC: A robust ground wire is critical. Connect the green or bare copper ground wire from your service panel to the RPC’s chassis ground stud or designated grounding terminal. This ground wire must be continuous, terminating at the main service panel’s ground bus. This provides an essential safety path for fault currents, protecting both the equipment and personnel.
4. Connect RPC Output to Three-Phase Load: From the RPC’s output terminal block, run the appropriate wire gauge conductors to your three-phase load (e.g., a milling machine, lathe, or hydraulic press). Connect the RPC’s T1 output terminal to the load’s L1/T1 terminal using a black wire. Connect the RPC’s T2 output terminal to the load’s L2/T2 terminal with a red wire. The RPC’s manufactured phase, T3, will connect to the load’s L3/T3 terminal using a blue or brown wire, as indicated in the diagram. Always confirm proper phase rotation after initial power-up to prevent damage to sensitive equipment; this can be done with a phase rotation meter or by observing motor direction.
5. Ground the Three-Phase Load: Mirroring the RPC grounding, connect a green or bare copper ground wire from the RPC’s output ground terminal to the chassis ground stud of your three-phase equipment. This ensures that the equipment itself is properly grounded, preventing electrical shock hazards. All ground connections must be tight and free of corrosion. For more detailed insights into ensuring electrical safety, consult resources on proper grounding techniques and overcurrent protection.
6. Verify Control Wiring (if applicable): Some RPCs include internal control circuitry that may require a neutral wire (white) if the RPC’s control transformer is designed for a 120V reference. Consult your RPC’s manual to determine if a neutral connection is necessary for the control circuit and how to connect it. Typically, this is a separate, smaller gauge wire than the main power conductors.
According to NEC (National Electrical Code) Article 430 for Motors and Motor Circuits, branch-circuit conductors supplying a single motor shall have an ampacity not less than 125% of the motor’s full-load current rating. Always oversize wiring for RPCs and connected loads to account for starting currents and efficiency losses.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect wiring practices can lead to significant operational issues, reduced lifespan of equipment, or severe safety hazards. Avoid these common mistakes when installing a rotary phase converter:
1.
Incorrect Wire Gauge Selection
Mistake: Using undersized wire gauge (e.g., 10 AWG when 6 AWG is required) for the input or output circuits. This is a prevalent issue, particularly when dealing with higher horsepower RPCs or long wire runs.
Consequence: Undersized wiring leads to excessive voltage drop, causing the RPC to work harder, overheat, and potentially fail prematurely. It can also cause connected motors to draw higher current, leading to overheating, efficiency loss, and reduced lifespan. The circuit breaker may trip frequently, or, worse, the wiring could become a fire hazard.
Fix: Always adhere strictly to the RPC manufacturer’s recommendations and local electrical codes (e.g., NEC). Calculate wire size based on the RPC’s full load amperage, distance of the run, and ambient temperature, often requiring larger gauge than initially estimated due to RPC inefficiency. Refer to wire gauge charts and consider an additional safety margin.
2.
Improper Grounding or Missing Ground Wire
Mistake: Failing to properly connect the green or bare copper ground wire to both the RPC chassis and the connected three-phase load, or using a sub-standard connection. Some installers might mistakenly use the neutral wire as a ground or omit it entirely.
Consequence: This creates a significant shock hazard. In the event of an electrical fault (e.g., a hot wire touching the equipment’s metal casing), the fault current has no safe path back to the service panel, causing the equipment’s chassis to become energized. This can result in severe electrocution or even death. It also prevents overcurrent protection devices from tripping effectively.
Fix: Ensure a continuous, low-impedance ground path from the equipment chassis, through the RPC chassis, and back to the main service panel’s ground bus. All ground connections must be tight, secure, and free of corrosion. Confirm that the ground wire gauge is appropriate for the circuit.
3.
Incorrect Phase Rotation
Mistake: The three-phase output lines (T1, T2, T3) are connected to the motor in an incorrect sequence (e.g., T1-L1, T2-L2, T3-L3 versus T1-L1, T3-L2, T2-L3).
Consequence: Many industrial motors and equipment are sensitive to phase rotation. Incorrect rotation can cause motors to run backward, damaging pumps, compressors, or other mechanical components. For CNC machinery, incorrect rotation can severely damage servo drives or cause homing errors.
Fix: After initial RPC power-up, but before connecting sensitive equipment, use a phase rotation meter to verify the correct sequence. If equipment runs backward, simply swap any two of the three output phase wires (T1, T2, or T3) at either the RPC output or the load’s terminal block. Never swap the ground wire. For more advanced motor control applications, see our guide on “Troubleshooting Motor Control Circuits”.
4.
Loose Terminal Block Connections
Mistake: Failing to adequately tighten terminal screws on the RPC, disconnects, or load equipment. This is often overlooked in the rush to complete an installation.
Consequence: Loose connections create high resistance points in the electrical circuit. This resistance generates heat, which can melt wire insulation, damage terminals, and potentially cause a fire. It also leads to intermittent operation, voltage fluctuations, and premature failure of components due to arcing or poor current flow.
Fix: Always use a calibrated torque wrench or screwdriver to tighten all terminal screws to the manufacturer’s specified torque values. Recheck connections periodically, especially after initial operation, as thermal cycling can sometimes loosen connections.
5.
Overlooking Overcurrent Protection (Fusing/Breakers)
Mistake: Not installing proper overcurrent protection (circuit breakers or fuses) for the RPC’s input or output, or using incorrectly rated devices.
Consequence: Without adequate protection, a short circuit or overload condition can cause extensive damage to the RPC, connected equipment, and wiring, leading to fire hazards. Standard single-phase breakers are not designed to protect the manufactured leg of an RPC, which has different characteristics.
* Fix: Ensure the single-phase input circuit breaker is correctly sized for the RPC’s input current. For the three-phase output, the RPC may have internal overload protection, or you may need to install a separate three-phase circuit breaker or fuse block before the load, correctly sized for the motor’s full-load amperage, accounting for the RPC’s derating factor. Always follow NEC Article 430 guidelines.
FAQ
Q: Is a neutral wire always required for a rotary phase converter?
A: For the main power input and output to the RPC itself, a neutral wire is typically not required, as RPCs usually convert 240V single-phase (two hot wires) to 240V three-phase (three hot wires). However, a neutral might be necessary for the RPC’s internal control circuitry if it operates at 120V, or if your three-phase load requires 120V control power (e.g., a Y-connected system with a neutral point). Always check your specific RPC’s wiring diagram and the requirements of your three-phase equipment.
Q: What wire gauge should I use for my rotary phase converter?
A: The appropriate wire gauge depends on the RPC’s horsepower rating, the length of the wire run, and the applicable electrical codes. Generally, RPCs require larger wire gauges than their listed horsepower might suggest due to inherent inefficiencies and starting currents. Always consult the RPC manufacturer’s manual for recommended wire sizes and calculate based on the RPC’s maximum input current. For instance, a 10 HP RPC might require 8 AWG wire for its input. Oversizing by one or two gauges is often a prudent safety measure to minimize voltage drop and heat, enhancing overall system longevity and performance. For more on load requirements, refer to “Understanding Three-Phase Power Systems.”
Q: How do I identify the manufactured leg (T3) on my RPC output?
A: The manufactured leg (often labeled T3 or C) is the phase generated by the RPC’s capacitor bank and idler motor. On most modern RPCs, the output terminals will be clearly labeled T1, T2, and T3. T1 and T2 typically correspond to the direct pass-through single-phase input lines, while T3 is the manufactured phase. You can also identify it by measuring the voltage between phases: T1-T2 will typically be your incoming single-phase voltage, while T1-T3 and T2-T3 will be approximately the same, but potentially slightly lower than the incoming voltage, depending on the RPC’s balance. The T3 leg often exhibits higher current characteristics under load.
Q: Can I use a single-phase circuit breaker for the three-phase output of an RPC?
A: No. A single-phase circuit breaker is designed to interrupt current on two conductors. For a three-phase output, you must use a three-pole circuit breaker that simultaneously interrupts all three phase conductors (T1, T2, T3) in the event of an overload or short circuit. This ensures complete de-energization of the three-phase load and proper protection. Manufacturer specs indicate that using individual single-pole breakers for three-phase protection is non-compliant and unsafe.
Q: What is the significance of the voltage balance on the RPC output?
A: Voltage balance refers to how close the voltage readings are between each pair of output phases (T1-T2, T1-T3, T2-T3) under load. A well-balanced RPC will have voltages within a few percentage points of each other. Poor voltage balance (e.g., one leg significantly higher or lower than the others) can cause connected three-phase motors to run inefficiently, overheat, and experience reduced lifespan due to unequal current draws in their windings. Most quality RPCs have mechanisms to tune the capacitor bank to optimize voltage balance, especially under the typical load. Achieving optimal balance is crucial for sensitive machinery like CNC equipment.
Step-by-Step Guide to Understanding the Rotary Phase Converter Wiring Diagram: Installation Setup 2026
Identify – Determine the correct single-phase input voltage and amperage requirements for your rotary phase converter from its nameplate and the connected load.
Locate – Position the phase converter and the 3-phase load (e.g., motor, machine) in their final operating locations, ensuring proper ventilation, accessibility, and clear ground wire paths.
Reference – Carefully examine the rotary phase converter wiring diagram provided by the manufacturer, noting input (L1, L2, Ground) and output (T1, T2, T3) terminal assignments and wire color codes.
Connect/Route – Route appropriately sized wire from the single-phase supply to the converter’s input terminals, and then from the converter’s output terminals to the 3-phase load, ensuring secure and insulated connections for all hot wire and ground wire paths.
Verify – Before applying power, use a multimeter to check for continuity, proper voltage at output terminals, and absence of short circuits across all connections. Confirm proper ground wire connection and correct pin assignment.
Troubleshoot – If the converter or load does not operate correctly, check all connections against the diagram, inspect for loose wires, and verify input/output voltages. Refer to the troubleshooting section for common issues like voltage imbalance or incorrect phase rotation.
Frequently Asked Questions
What wire colors are typically used for the input hot, neutral, and ground wires on a rotary phase converter wiring diagram?
For the single-phase input, standard North American wire color code dictates black and red for the hot wires (L1, L2). While many phase converters don’t directly use a neutral wire for input power, a green or bare copper wire is always used for the ground wire. Always refer to the specific manufacturer’s wiring diagram and local electrical codes for precise identification and safety practices during installation.
What do the terminal designations mean on a rotary phase converter wiring diagram?
On a rotary phase converter wiring diagram, terminal designations typically label the single-phase input as L1, L2, and sometimes N (neutral) if required. The three-phase output to the load is usually labeled T1, T2, T3. Ground connections are marked GRD or G. These designations are critical for ensuring correct electrical phasing and safe operation of the connected 3-phase equipment, clarifying each pin assignment.
How many wires are typically involved in a rotary phase converter wiring diagram?
A standard rotary phase converter wiring diagram involves a minimum of five primary wires: two for the single-phase input hot wires (L1, L2), one for the input ground wire, and three for the three-phase output lines (T1, T2, T3) to the load. Some models might include additional control wiring or a neutral wire for input, increasing the total count depending on the system’s complexity and specific model.
What are common wiring mistakes with rotary phase converter wiring diagram?
Common wiring mistakes include misconnecting the manufactured leg (T3) as a direct input hot, inadequate grounding, or using undersized wiring for the load, leading to overheating. Incorrectly phasing the output to the motor can also cause reverse rotation or damage. Always double-check wire color codes, terminal assignments, and ensure all connections are secure to prevent operational issues and safety hazards, particularly for the ground wire.
What is the role of the idler motor in a rotary phase converter wiring diagram?
The idler motor is the core component of a rotary phase converter. Its wiring diagram shows how it’s connected to single-phase input power, acting as a generator to produce the third phase (T3) required for three-phase equipment. Proper connection of the idler’s windings is critical for creating a balanced three-phase output voltage, enabling smooth operation of connected machinery and proper phase conversion.
What gauge wire does rotary phase converter wiring diagram require?
The required wire gauge for a rotary phase converter depends entirely on the converter’s input amperage, the three-phase load’s current draw, and the length of the wire run. Consult the manufacturer’s specifications for the converter and the connected equipment to determine appropriate sizing. Always size conductors according to the National Electrical Code (NEC) or local regulations to prevent overheating and ensure safe, efficient power delivery for all hot wire and ground wire connections.
