Dodge 5.7 Hemi Serpentine Belt Diagram: Proper Routing 2026
Routing the 5.7 HEMI serpentine belt requires starting at the crankshaft pulley, running up to the automatic belt tensioner, over the alternator pulley, past the upper idler pulley, around the A/C compressor, and over the water pump. Ensure the ribbed side seats flush into each grooved pulley to prevent slip or alignment failure.
📌 Key Takeaways
- Standard 5.7L HEMI V8 uses a 6-rib serpentine belt (OEM Mopar 53032857AB or Gates K061305).
- Automatic belt tensioner requires a 3/8-inch drive breaker bar or 15mm socket to release spring pressure.
- Smooth idler pulley contacts the back (flat side) of the belt; grooved pulleys contact the ribbed side.
- Tensioner pulley assembly bolt torque spec is 30 ft-lbs (41 Nm).
- Inspect the belt tensioner mark; if the indicator sits past the limit stop, replace both tensioner and belt.
The Chrysler 5.7L V8 Hemi engine utilizes a continuous, multi-ribbed accessory drive system engineered to power the alternator, water pump, power steering pump (or electric power steering bypass), and air conditioning compressor. Maintaining the precise pulley routing path outlined in factory service manuals is essential for maintaining correct rotational direction on driven components, ensuring ideal rib engagement, and preventing premature belt shear. Incorrect belt installation compromises accessory drive efficiency, risks dynamic belt slippage under heavy engine acceleration, and can induce severe harmonic stress on crank-driven components.
5.7 Hemi Serpentine Belt Diagram Specifications and OEM Part Numbers
Selecting the correct OEM belt specification is critical for maintaining proper drive tension across varying ambient temperatures and engine loads. Differences in vehicle chassis, model year (such as pre-2009 Eagle updates), and the presence of Hydraulic Power Steering versus Electric Power Steering (EPS) alter both the required effective belt length and rib width.
| Application / Engine Variation | OEM Part # | Dimensions & Rib Count | Compatible Models |
|---|---|---|---|
| 5.7L Hemi with Hydraulic Power Steering | 53032125AD / 04892791AA | 6-Rib; Effective Length: 82.25 in (2089 mm) | 2003–2012 RAM 1500/2500, Charger, Durango |
| 5.7L Hemi with Electric Power Steering (EPS) | 04892791AB / 68138240AC | 6-Rib; Effective Length: 81.00 in (2057 mm) | 2013–2023 RAM 1500, Charger, Challenger |
| 5.7L Hemi HD Truck (Dual Alternator) | 68048121AA | 6-Rib; Effective Length: 104.50 in (2654 mm) | 2009–2018 RAM 2500/3500 HD Chassis |
| 5.7L Hemi Heavy-Duty Non-A/C Application | 04891823AA | 6-Rib; Effective Length: 71.50 in (1816 mm) | Fleet / Commercial RAM Tradesman Chassis |
Always verify whether your vehicle uses an auxiliary mechanical fan pulley or electric cooling setup before cross-referencing belt size. When completing an accessory overhaul, consult our technical resource on alternator charging system diagnostics to ensure proper pulley alignment post-installation.
Step-by-Step 5.7 Hemi Serpentine Belt Routing Path Instructions
Tracing the belt routing path correctly prevents reverse rotation of the water pump, which causes rapid thermal runaway and severe head gasket failure. Follow this sequence precisely, using the pulley identification diagram for reference.

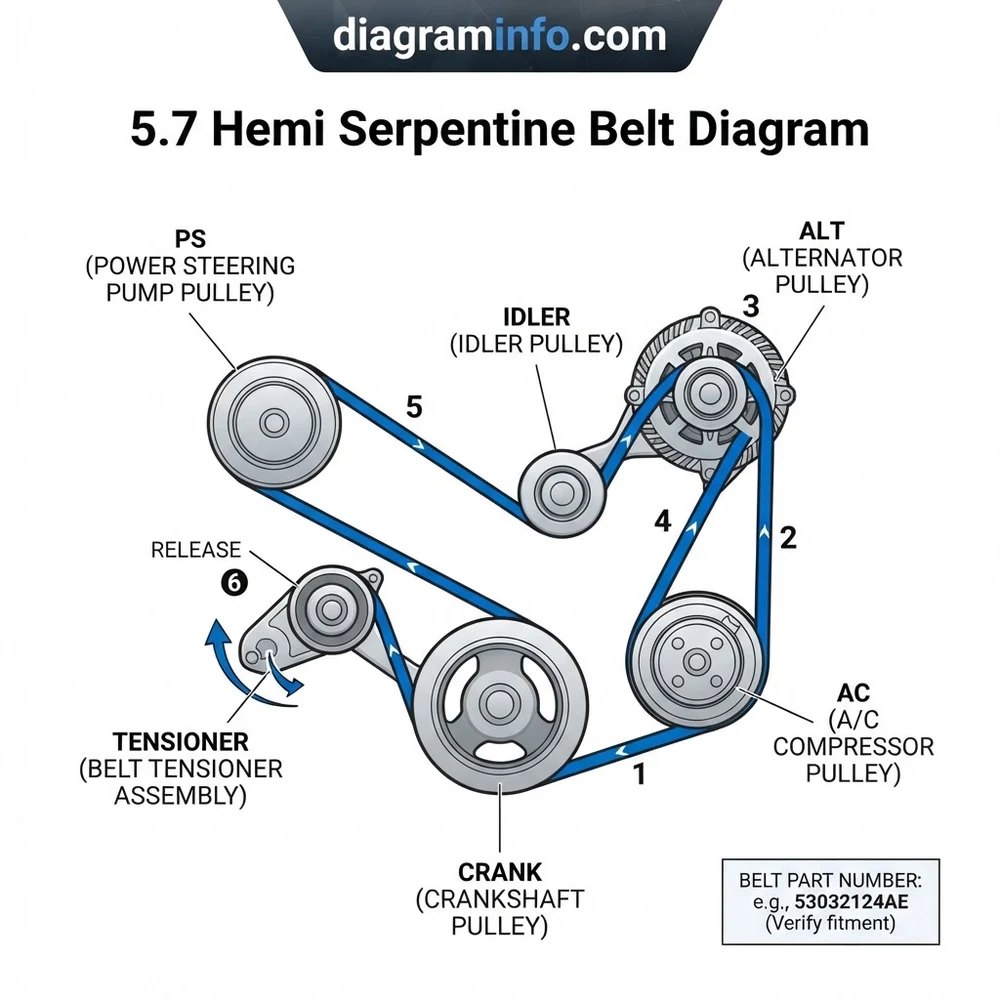

- Position at the Crankshaft Pulley (Harmonic Balancer): Begin by looping the multi-ribbed side of the serpentine belt around the bottom groove of the crankshaft pulley. The ribbed inner face must align fully within all six crank pulley grooves. Ensure the belt is seated parallel to avoid axial mistracking, as detailed in our guide on harmonic balancer alignment specifications.
- Route Upward to the Belt Tensioner Assembly: Pass the smooth outer back of the belt over the smooth roller of the spring-loaded belt tensioner located on the upper-passenger side of the timing cover. Unlike manual clutch drive mechanisms or deck engagement systems found on mechanical power take-offs, this tensioner maintains dynamic spring force and requires continuous smooth-surface friction.
- Wrap Around the Alternator Pulley: Route the grooved side of the belt over the top of the alternator pulley located at the top-center of the front accessory drive. Ensure the belt ribs sit squarely in the grooves to maintain proper amp output under electrical load.
- Cross Under the Upper Idler Pulley: Feed the smooth outer side of the belt down beneath the upper smooth idler pulley. This pulley changes the wrap angle over the alternator and power steering components to maximize belt contact arc.
- Engage the Power Steering / EPS Dummy Pulley: Loop the grooved side of the belt around the power steering pump pulley on hydraulic models (or the factory smooth/grooved idler assembly on models equipped with Electric Power Steering).
- Pass Down to the A/C Compressor Pulley: Route the belt straight down to the lower driver-side A/C compressor clutch pulley. Wrap the grooved inner face underneath the compressor drive hub.
- Finish over the Water Pump Pulley: Bring the smooth outer face of the belt over the top arc of the smooth water pump pulley. Rotate the belt tensioner counterclockwise using a 3/8-inch drive breaker bar to slip the remaining slack over the final pulley, then slowly release the tensioner arm to seat the assembly.
Belt Tensioner Calibration and Idler Pulley Torque Specifications
According to OEM factory service specifications, maintaining correct spring tension prevents dynamic belt whip, belt squeal, and bearing destruction. Automatic tensioners feature cast alignment marks on the tensioner housing to indicate normal tension limits. If the tensioner indicator arm rests outside the dual-mark range when a new OEM belt is installed, the tensioner spring has suffered fatigue and must be replaced.
Tensioner Mounting Bolt Torque: 30 ft-lbs (41 Nm)
Upper/Lower Idler Pulley Bolt Torque: 45 ft-lbs (61 Nm)
Belt Tension Deflection Limit: 0.25 in (6.35 mm) maximum lateral deflection across the longest span between the alternator and power steering pump under 10 lbs of manual force.
Never release the tensioner arm under full spring load without retaining control with a breaker bar. High spring force can snap the tensioner cast aluminum housing or cause severe personal injury. Inspect idler bearings for end-play and noise whenever performing a water pump replacement guide service.
Troubleshooting Common 5.7 Hemi Serpentine Belt Diagram Routing Errors
How Do You Determine if the 5.7 Hemi Belt Tensioner Assembly Has Failed?
A failing belt tensioner on the 5.7L Hemi exhibits visible arm chatter or vibration while the engine idles, high-pitched squealing during rapid throttle tip-in, or uneven wear along the outer belt margin. Mechanically test the tensioner by attaching a torque wrench to the 3/8-inch square drive cutout; if the spring moves bindingly, sticks before reaching full travel, or shows zero resistance, internal spring damping has degraded and requires immediate unit replacement.
What Is the Correct Rib Count and Belt Size for a 2014 RAM 1500 5.7 Hemi?
The 2014 RAM 1500 equipped with the 5.7L Hemi V8 utilizes a 6-rib serpentine belt measuring 81.0 inches (2057 mm) in effective length. This model year uses Electric Power Steering (EPS), eliminating the traditional hydraulic power steering pump pulley and altering total belt length compared to 2003–2012 hydraulic models.
Can Incorrect Serpentine Belt Routing Cause Engine Overheating on a 5.7 Hemi?
Yes. Routing the belt improperly around the smooth water pump pulley will rotate the water pump impeller backwards. Because the 5.7 Hemi reverse-rotation water pump relies on directional impeller vane geometry, reverse rotation drastically reduces coolant flow rates, causing immediate engine overheating, high localized cylinder head temperatures, and severe diagnostic trouble codes (DTC P0128/P0217).
How Does Electric Power Steering (EPS) Affect 5.7 Hemi Belt Routing Diagrams?
Models equipped with EPS substitute the hydraulic power steering pump hub with a smooth or grooved idler pulley mounted to the timing cover bracket. The overall belt routing path remains geometrically similar, but the required belt length decreases by approximately 1.25 inches. Always consult the vehicle chassis diagram label located on the radiator core support to confirm EPS pulley orientation.
What Tools Are Required to Release the Spring-Loaded Tensioner Pulley?
Releasing tension on the 5.7 Hemi dynamic tensioner requires a standard 3/8-inch drive breaker bar or a specialized low-profile serpentine belt tool inserted directly into the square recess cast into the tensioner arm. Apply steady counterclockwise pressure to pull the pulley away from the belt loop, allowing easy removal or installation over the final smooth water pump pulley.
5.7 Hemi Serpentine Belt Diagram: Frequently Asked Questions
What is the part number for the 5.7 hemi serpentine belt diagram?
The primary OEM belt part number for modern 5.7L HEMI engines (Ram 1500, Charger, Durango) is Mopar 53032857AB. Common aftermarket equivalents include Gates K061305 and Dayco 5061305. Always verify whether your model utilizes electric power steering, as belt length varies slightly.
How do I route the 5.7 hemi serpentine belt diagram correctly?
Loop the belt under the crank pulley, pull it up around the tensioner pulley, thread over the top alternator pulley, pass under the idler pulley, around the A/C compressor, and across the smooth water pump pulley. Reference the upper fan shroud belt routing diagram before starting.
What size belt does 5.7 hemi serpentine belt diagram use?
Most standard 5.7 HEMI V8 accessory drives utilize a 6-rib belt (6PK profile) measuring approximately 130.5 inches (3315 mm) in effective length. Vehicles with deleted options or hydraulic vs. electric power steering configurations may require slightly different lengths ranging from 129.5 to 131 inches.
How do I adjust belt tension on 5.7 hemi serpentine belt diagram?
The 5.7 HEMI uses an automatic spring-loaded belt tensioner, requiring no manual tension adjustment. Place a 3/8-inch drive ratchet or 15mm wrench on the tensioner arm lug, rotate counterclockwise to compress the internal spring, slide the belt over the last pulley, and release slowly.
What causes the 5.7 hemi serpentine belt diagram belt to slip?
Belt slippage on a 5.7 HEMI usually stems from a weak automatic tensioner spring, oil or coolant contamination on pulleys, worn idler pulley bearings, or glaze on the belt’s V-ribs. Replacing both the belt and automatic tensioner simultaneously resolves most slippage and squealing issues.
Can I replace the 5.7 hemi serpentine belt diagram belt myself?
Yes, replacing the belt on a 5.7 HEMI is a straightforward 20-to-30-minute DIY project. You only need a 3/8-inch drive breaker bar or 15mm socket wrench to retract the tensioner arm. Following the pulley diagram ensures proper alignment across all engine driven accessories.
