4-Pin Trailer Wiring Diagram: Wiring & Pinout Guide 2026
A 4-pin trailer wiring diagram typically assigns Pin 1 (White) to Ground, Pin 2 (Brown) to Tail/Running Lights, Pin 3 (Yellow) to Left Turn/Brake, and Pin 4 (Green) to Right Turn/Brake. This standard ensures proper signaling for towing basic trailers without electric brakes or auxiliary power.
📌 Key Takeaways
- The standard 4-pin trailer connector provides functions for Ground (White), Running Lights (Brown), Left Turn/Brake (Yellow), and Right Turn/Brake (Green).
- This wiring type does not support electric trailer brakes (requiring a brake controller) or auxiliary power, which are features of larger connectors like the 7-way RV blade.
- Always verify continuity and correct light function using a test light or multimeter before operating the trailer to ensure road safety.
- A common wiring mistake is an insufficient or corroded ground connection, leading to dim, flickering, or non-functional trailer lights.
- If experiencing complex electrical issues or if adapting to a different pin count, seeking professional assistance can prevent damage and ensure correct setup.
The 4-pin flat connector represents the most fundamental electrical interface for light-duty trailers, primarily facilitating essential lighting functions. This compact, widely adopted connector is engineered to transmit power for running lights, left turn signals, right turn signals, and brake lights from the tow vehicle to the trailer. Unlike more complex systems that accommodate features like electric brake control or auxiliary power, the 4-pin configuration is purpose-built for basic compliance with road safety regulations. Understanding its precise 4 pin trailer wiring diagram, pin assignments, and installation sequence is critical for ensuring reliable illumination and avoiding common electrical faults in smaller utility trailers, boat trailers, and some cargo trailers. This guide provides a technical overview for mechanics and experienced equipment owners, focusing on accurate wiring practices and diagnostic insights.
Always disconnect the tow vehicle’s battery terminal before performing any electrical work to prevent accidental shorts or injury. Use appropriate personal protective equipment (PPE), including safety glasses and gloves.
According to SAE J1283 standard, the 4-pin flat connector typically uses 18-gauge wire for signal circuits and 16-gauge or 14-gauge for the ground circuit, depending on total current draw and length. For trailers exceeding 20 feet in length or with multiple incandescent lamps, consider upgrading signal wires to 16-gauge and ground to 14-gauge to mitigate voltage drop.

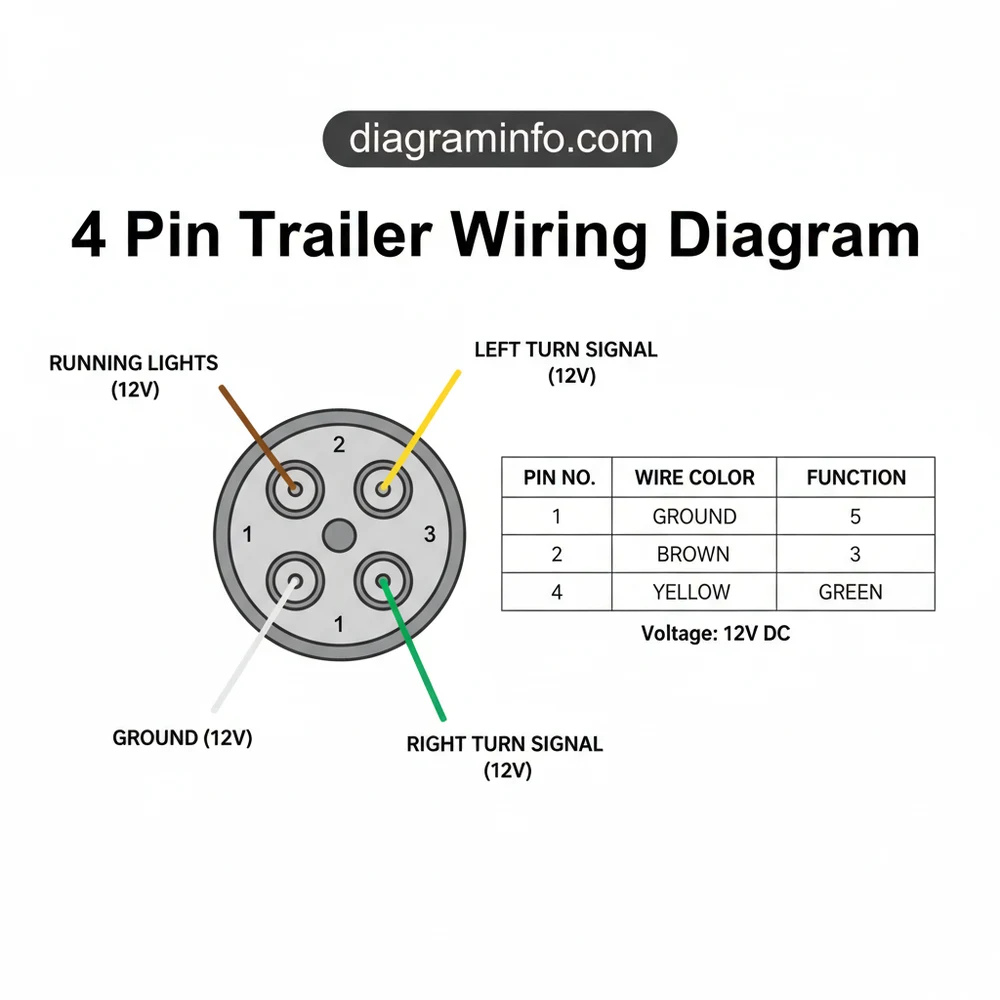

Pin Assignment Table
| Pin # (Viewed from Front of Trailer Connector) | Wire Color (Standard) | Function | Notes |
|---|---|---|---|
| 1 (White) | White | Ground | Provides common return path for all circuits. Crucial for system integrity. |
| 2 (Brown) | Brown | Tail Lights / Running Lights | Powers trailer’s marker lights, taillights, and license plate lights. |
| 3 (Yellow) | Yellow | Left Turn Signal / Stop (Brake) Light | Powers the left rear brake/turn light on trailers without separate brake lamps. |
| 4 (Green) | Green | Right Turn Signal / Stop (Brake) Light | Powers the right rear brake/turn light on trailers without separate brake lamps. |
While wire colors are standardized, it is imperative to verify functionality with a multimeter or circuit tester before making final connections. Some aftermarket harnesses or older trailer wiring may deviate from the conventional color scheme. Always confirm pin assignments against the tow vehicle’s output and the trailer’s intended functions. This standard color coding is crucial for interpreting any 4 pin trailer wiring diagram you might encounter.
Step-by-Step Wiring Guide
Properly wiring a 4-pin flat connector on the trailer side requires meticulous attention to detail to ensure safety and functionality. This guide outlines the sequence for connecting the trailer’s lighting circuits to the connector.
- Preparation and Safety:
Before beginning, ensure the tow vehicle’s battery is disconnected. Gather your tools, including wire strippers, crimping tools, heat gun, multimeter, and heat-shrink tubing. Inspect the trailer’s existing wiring for damage, corrosion, or inadequate splices. If installing a new harness, route the wires along the trailer frame, securing them every 12-18 inches with cable ties and protecting them in conduit where exposed to abrasion.
- Identify Trailer Circuits:
At the point where the 4-pin connector will be installed, identify the corresponding wires from the trailer’s lighting system. You will typically have a common ground wire, a wire for tail/running lights, a wire for the left turn/brake light, and a wire for the right turn/brake light. Use a continuity tester or a 12V power source (from a separate battery, not the vehicle) to confirm each wire’s function if they are not color-coded to the standard or if you are unsure.
- Strip Wire Ends:
Carefully strip approximately 3/8 to 1/2 inch of insulation from the end of each trailer wire and the corresponding wire on the 4-pin flat connector harness. Ensure the copper strands are not nicked or frayed during this process, as this can create weak points that lead to resistance and heat.
- Connect the Running Lights (Brown to Brown):
Take the brown wire from your 4-pin connector. This wire corresponds to Pin #2 as seen in the diagram above. Connect it securely to the brown wire from the trailer’s running light circuit. Utilize high-quality heat-shrink butt connectors for a durable, weather-resistant splice. Crimp firmly and apply heat to seal the connection. This circuit powers all auxiliary lights that illuminate when the tow vehicle’s headlights are on, including side markers and license plate lights.
- Connect the Left Turn/Brake Signal (Yellow to Yellow):
Locate the yellow wire on the 4-pin connector (Pin #3). Connect this to the yellow wire from the trailer’s left turn signal and brake light circuit. Ensure the crimp is solid and the heat-shrink tubing is properly applied to protect against moisture and vibration. This circuit carries both the left turn signal and the brake light signal for the left side of the trailer. For trailers with LED lighting, ensure the tow vehicle’s flasher relay is compatible with low current draw or install load resistors as needed. For more information on tow vehicle wiring, consult our guide on tow vehicle harness installation.
- Connect the Right Turn/Brake Signal (Green to Green):
Identify the green wire on the 4-pin connector (Pin #4). Splice this to the green wire from the trailer’s right turn signal and brake light circuit using the same secure, weather-resistant method. Confirm the connection’s integrity before proceeding. This circuit operates the right turn signal and brake light on the right side of the trailer.
- Connect the Ground Wire (White to White):
The white wire from the 4-pin connector (Pin #1) is the common ground pin. Connect this to the main ground wire of the trailer’s electrical system. This connection is paramount for the functionality of all other circuits. Ensure this ground connection is robust, preferably bolted directly to the trailer’s clean, unpainted frame or to a substantial common ground bus. A poor ground connection is the most frequent cause of trailer lighting malfunctions, often resulting in dim or flickering running lights or turn signals. For optimal performance, always ensure the ground path has the lowest possible resistance.
- Final Testing:
Once all connections are made and protected, reconnect the tow vehicle’s battery. Connect the trailer to the tow vehicle and systematically test each lighting function: running lights, left turn signal, right turn signal, and brake lights. Verify that all lamps illuminate correctly and without flicker. If any issues arise, refer to the “Common Wiring Mistakes” section for troubleshooting.
Common Wiring Mistakes
Even for experienced technicians, specific errors in 4-pin trailer wiring can lead to frustrating and potentially unsafe conditions. Recognizing and preventing these common pitfalls is essential:
- Inadequate Ground Connection: This is arguably the most prevalent issue. A ground pin that is corroded, loosely attached, or connected to a painted/rusty frame surface will cause intermittent or non-functional lights. All trailer lights rely on a solid, low-resistance ground path. Always scrape paint off the frame where the ground wire bolts on and use a star washer to ensure metal-to-metal contact. The white wire must be directly connected to a robust chassis ground.
- Incorrect Pin Assignment (Cross-Wiring): Swapping the left and right turn signal wires (yellow and green) is a frequent mistake, leading to signals activating on the wrong side. Another error is confusing a running light circuit with a turn/brake circuit if non-standard wire colors are encountered. Always verify each circuit’s function with a multimeter or test light before final crimping, consulting your specific 4 pin trailer wiring diagram.
- Poor Splices and Connections: Open-barrel crimps, electrical tape-only connections, or inadequate soldering allow moisture ingress, leading to corrosion and high-resistance points. This results in dim lights, flickering, or complete circuit failure. Always use heat-shrinkable butt connectors or marine-grade crimps, and seal all connections thoroughly with heat-shrink tubing to create a weather-tight barrier.
- Insufficient Wire Gauge: Using wire that is too thin (e.g., 20-gauge for long runs) can lead to significant voltage drop, especially with incandescent bulbs. This manifests as dim running lights or brake lights. While the SAE J1283 standard suggests minimums, increasing the gauge for longer trailers or multiple lights is a best practice. Refer to the SPEC BOX for recommended gauges.
- Overloading the 4-Pin System: The 4-pin connector is designed solely for basic lighting. Attempting to draw power for auxiliary systems like interior lights, reverse lights, or charging (e.g., small RV blade accessories) will overload the relatively thin wires, potentially blowing fuses or damaging the tow vehicle’s electrical system. For such requirements, a 5-pin, 6-pin, or 7-pin RV blade connector system is necessary.
Frequently Asked Questions
Can a 4-pin trailer connector be used for trailers with electric brakes?
No, a standard 4-pin flat connector does not have the necessary circuits to operate electric brakes. Electric brake systems require a dedicated brake controller wire, which is typically found on 6-pin or 7-pin RV blade connectors. Attempting to modify a 4-pin system for electric brakes is unsafe and will not function correctly.
What does it mean if my trailer lights are dim or flickering, especially the running lights?
Dim or flickering trailer lights, particularly the running lights or turn signals, are almost invariably indicative of a poor ground connection. The white ground wire and its connection to the trailer frame must be clean, tight, and free of corrosion. Other potential causes include corroded bulb sockets, faulty bulbs, or a voltage drop due to undersized wiring or poor splices. Always check the ground first when troubleshooting these symptoms.
Is it possible to convert a 4-pin connector to a 7-pin RV blade connector?
Yes, adapters are available to convert a 4-pin flat connector on the tow vehicle to a 7-pin RV blade receptacle. However, this conversion only provides the basic 4-pin functions (ground, running, left turn/brake, right turn/brake). It will NOT activate additional 7-pin functions such as electric brakes, auxiliary power, or reverse lights unless those circuits are separately wired from the tow vehicle’s electrical system to the adapter itself. For full 7-pin functionality, a dedicated 7-pin harness installation on the tow vehicle is required.
What is the typical lifespan of a 4-pin trailer wiring harness?
The lifespan of a 4-pin trailer wiring harness varies significantly based on environmental exposure, material quality, and installation robustness. Hoses exposed to saltwater, road salt, or frequent abrasion will degrade faster. High-quality harnesses with marine-grade wiring and sealed connections can last 10-15 years or more, while cheaper, less protected versions might only last 2-5 years before experiencing corrosion or insulation breakdown. Regular inspection and preventative maintenance, such as dielectric grease application to connections, can extend its life.
How do I diagnose a non-functional circuit on my 4-pin trailer system?
Begin by inspecting the corresponding bulb and its socket for corrosion or damage. If the bulb is good, use a multimeter to check for voltage at the connector pins on the tow vehicle side. With the vehicle’s engine running and relevant light function (e.g., turn signal, brake pedal) activated, test for ~12V at the respective pin. Then, check for continuity from the connector’s ground pin to a clean point on the tow vehicle’s chassis. If the tow vehicle side is functioning, move to the trailer side. Test for voltage at the trailer connector and then along the wire run to the light fixture. Most issues stem from ground faults, corroded connections, or a break in the wire.
Frequently Asked Questions
What is pin 1 on a 4 pin trailer wiring diagram?
On a standard 4-pin trailer wiring diagram, Pin 1 is universally designated as the Ground connection. This wire is typically colored white and is crucial for completing all electrical circuits for the trailer’s lights. A poor ground connection is a common cause of lighting issues, emphasizing its importance in the setup.
What wire color is the brake wire on 4 pin trailer wiring diagram?
For a 4-pin trailer wiring setup, the brake signals are combined with the turn signals. The yellow wire (typically Pin 3) handles the Left Turn/Brake light, and the green wire (typically Pin 4) handles the Right Turn/Brake light. When the brake pedal is pressed, both the yellow and green wires receive power simultaneously.
Can I use 4 pin trailer wiring diagram without a brake controller?
Yes, a 4-pin trailer wiring diagram is designed for trailers that do not have electric brakes, such as small utility trailers or boat trailers. Therefore, a separate brake controller is not necessary or compatible with this setup. Trailers requiring electric brakes will need a 7-way or similar connector and a brake controller.
What is the auxiliary pin on 4 pin trailer wiring diagram for?
The 4-pin trailer wiring diagram does not include an auxiliary power pin. Auxiliary power, often used for charging trailer batteries or powering accessories, is a feature found on larger connectors, such as the 7-way RV blade connector. A 4-pin system strictly supports basic lighting functions: ground, running lights, and turn/brake signals.
What causes trailer lights to not work with 4 pin trailer wiring diagram?
Common causes for non-functioning trailer lights with a 4-pin setup include a poor ground connection (often corroded), a blown fuse in the tow vehicle, damaged or corroded wiring/connectors, a faulty bulb, or an incorrect wiring sequence. Always check the tow vehicle’s fuses and the trailer’s ground first during troubleshooting.
