Standard Industrial Conveyor System Belt Conveyor Diagram: Component Breakdown 2026
A conveyor system belt conveyor diagram illustrates the complete structure and configuration of a belt conveyor, detailing key components like the motor, drive pulley, idlers, belt, and frame. It shows the layout and interaction of these parts for material transport, aiding in assembly, maintenance, and troubleshooting system functionality, crucial for any industrial system operation.
📌 Key Takeaways
- Belt tension is critical; proper configuration and maintenance prevent slippage and excessive wear, often requiring specific torque settings.
- Identify the drive unit (motor, gearbox, drive pulley) and tail pulley as primary points dictating belt movement and direction.
- Always de-energize and lock out power to the conveyor system before any inspection, maintenance, or component replacement to ensure safety.
- Misalignment of idlers or pulleys is a common failure point, leading to belt tracking issues, edge damage, and premature component wear.
- Seek professional assistance for complex structural repairs, drive motor failures, or intricate control system troubleshooting beyond basic component swaps.
Understanding the intricate conveyor system belt conveyor diagram is paramount for any technical professional involved in the installation, maintenance, or optimization of material handling equipment. This comprehensive guide dissects the typical schematic, offering a detailed component identification, insight into its structure, and practical applications. By mastering the interpretation of these essential blueprints, you enhance your ability to diagnose issues efficiently, ensure operational integrity, and prolong equipment lifespan within industrial and automotive settings. Prepare to delve into the core layout and functional configuration of modern belt conveyor systems.
Component Breakdown

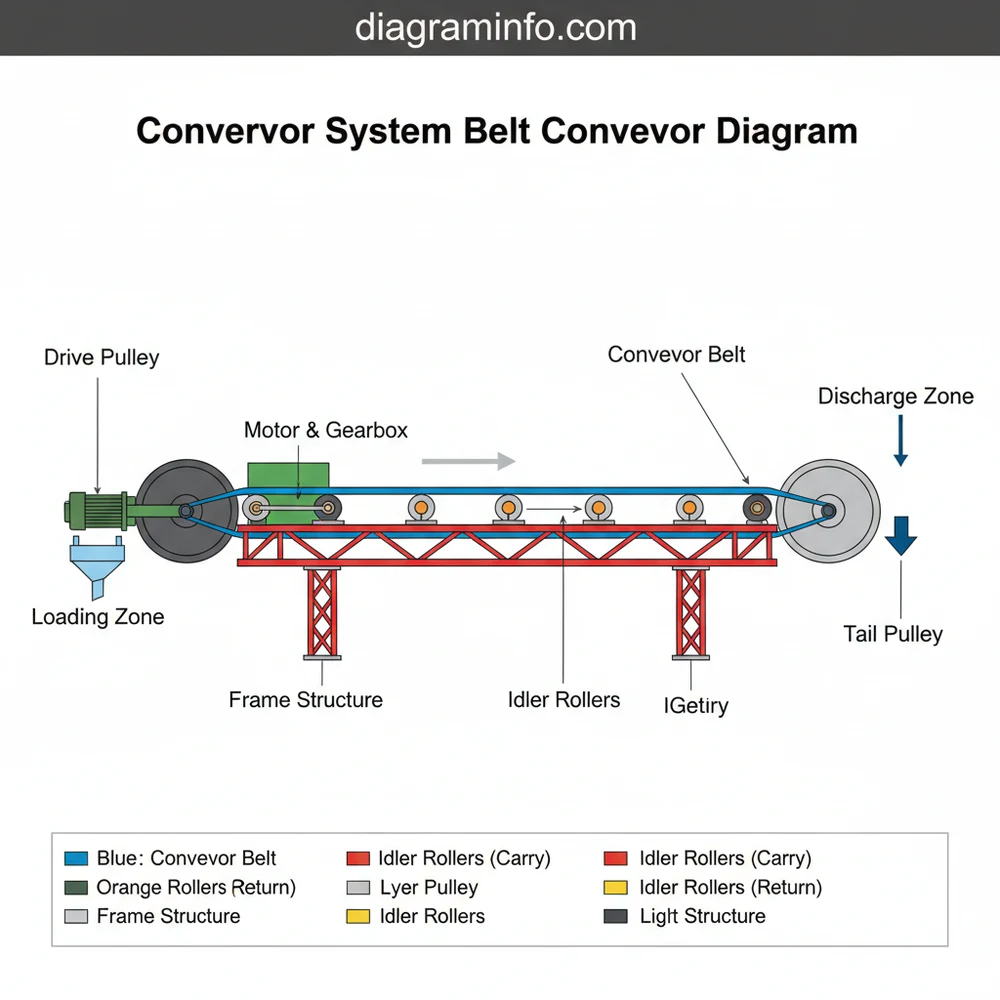

A typical conveyor system belt conveyor diagram provides an indispensable overview of the entire system’s structure. Each line, symbol, and label represents a critical component vital to the conveyor’s operation. Comprehending these individual parts is the first step in effective system management. As depicted in the accompanying diagram, the fundamental configuration typically includes several core elements.
At the heart of the system is the Conveyor Belt itself, often specified by material composition (e.g., PVC, rubber, cleated) and width (e.g., 24-inch, 36-inch). Its designation on a schematic might be “CB-01” or simply a bold line representing its path. The Drive Pulley (Head Pulley), usually located at the discharge end, provides the motive force. It’s driven by a Drive Motor, often a three-phase AC induction motor, coupled through a Reducer/Gearbox to manage speed and torque. Manufacturer specs indicate common motor types, such as a 5HP, 480V, 1750 RPM TEFC motor (part number XYZ-MTR-005) or a suitable equivalent.
Opposite the drive pulley is the Tail Pulley (Idler Pulley), which often incorporates a Belt Take-up System (e.g., screw take-up, gravity take-up) to maintain proper belt tension, crucial for preventing slippage and tracking issues. Idlers, both carry and return rollers, support the belt along its path. Carry idlers (troughing or flat) support the loaded belt, while return idlers support the empty belt. The quantity and spacing of these idlers are critical layout details, often detailed in an accompanying Bill of Materials. Specialized idlers, like impact idlers, may be shown at loading points. Safety devices are paramount; these include Pull Cords (emergency stops), Belt Misalignment Switches, and Speed Sensors (e.g., zero speed switches). Their wiring and activation points are clearly marked on electrical blueprints. Further details on motor control centers can be found in our article on Industrial Motor Control Centers.
| Component ID | Description | Typical Specification/Part No. |
|---|---|---|
| DRV-MOT-01 | Drive Motor | 5HP, 480V, 3-Phase, IP55, TEFC (e.g., Baldor EM2510T) |
| GBX-01 | Reducer/Gearbox | Shaft-mounted, 25:1 ratio (e.g., Dodge TXT425) |
| CB-01 | Conveyor Belt | 24in wide, 3-ply rubber, 3/16in top cover |
| PS-02 | Pull Cord Switch | NEMA 4X, Single-sided (e.g., Rockwell 800F-P3LX11) |
Step-by-Step Guide to Reading the Diagram
Interpreting a conveyor system belt conveyor diagram effectively is a critical skill for any technician. This schematic serves as a comprehensive overview, guiding you through the system’s operational flow and its mechanical and electrical layout. Here’s a methodical approach to extracting maximum information.
- Start with the Legend and Title Block: Always begin by reviewing the legend, which defines all symbols, line types, and abbreviations. The title block provides crucial data such as the drawing number, revision date (e.g., “Rev D, 2023”), project name, and scale. Note any year-specific variations in standard symbols, as older diagrams may use slightly different conventions.
- Identify the Direction of Flow: Locate the drive unit (motor and gearbox) and the associated drive pulley. This typically indicates the primary direction of material flow. Arrows on the belt path explicitly confirm this. Understanding the material path is fundamental to tracing potential blockages or wear points.
- Trace the Mechanical Configuration: Follow the belt path from the tail pulley through the loading zone, along the carry idlers, over the drive pulley, and back via the return idlers. Pay attention to specific component placements like chutes, skirting, and belt cleaners. For instance, observe how the structure supports each section, whether it’s a truss frame or channel stringer design. Details on conveyor frame types can be found in our resources on Heavy-Duty Material Handling Structures.
- Decipher the Electrical System: Locate the electrical panel or motor control center (MCC) on the diagram. Trace power circuits from the main disconnect, through motor starters (contactors, overloads), to the drive motor. Pay close attention to control circuits involving safety devices. For example, a pull cord switch might be shown wired in series with the motor’s control circuit, ensuring a direct stop upon activation. Reference our guide on Industrial Control Panel Wiring for detailed circuit interpretation.
- Locate Safety Devices and Sensors: Identify the placement of pull cords, belt misalignment switches, speed sensors (e.g., rotary shaft encoders or proximity switches), and emergency stop buttons. Note their specific wiring and whether they are normally open (NO) or normally closed (NC) contacts, as this impacts troubleshooting. Their integration into the control system is critical for operational safety.
- Understand Ancillary Components: Look for elements like belt cleaners (primary and secondary), magnetic separators, metal detectors, or scales if they are part of the overall system. These are often shown schematically with their own control inputs/outputs.
Always cross-reference the diagram with any accompanying Bill of Materials (BOM) or spare parts lists. Discrepancies may indicate field modifications not yet updated on the drawing, or simply different levels of detail across documentation.
Troubleshooting Common Issues Using Your Diagram
Your conveyor system belt conveyor diagram is an invaluable resource for systematic troubleshooting. Instead of guesswork, the diagram provides a logical roadmap to diagnose and resolve common operational faults. This section outlines how to leverage its schematic and layout information.
Before commencing any troubleshooting, always ensure the conveyor system is locked out and tagged out according to established safety protocols. Verify zero energy state before approaching moving parts or electrical components. Failure to do so can result in severe injury or fatality.
Motor Not Starting/Tripping Overload
If the drive motor fails to start or trips its thermal overload, consult the electrical blueprint. First, verify power at the motor’s terminals (L1, L2, L3) against the specified voltage (e.g., 480VAC). If no voltage, trace back through the motor starter (contactor, overload relay, fuses/circuit breakers) as shown on the diagram. Check control circuit integrity: ensure emergency stop buttons, pull cords (often wired NC, normally closed), and belt misalignment switches are not tripped. Look for auxiliary contacts on motor starters for feedback to the PLC or control system. A common issue might be a faulty safety interlock; the diagram will show its position in the circuit. Manufacturer specs indicate typical overload settings (e.g., 1.15 to 1.25 times motor full load amps, FLA).
Belt Tracking Issues
For a belt consistently running off-center, refer to the mechanical layout on the diagram. Check the alignment of the tail pulley, drive pulley, and all idlers. The diagram will show specific dimensions or reference points for alignment checks. Verify the take-up system; an improperly tensioned belt (too loose or too tight) is a common cause. Manufacturer specs for belt tension might be expressed as a percentage of belt ultimate tensile strength or via specific take-up travel dimensions. Ensure idlers are freely rotating and not seized, as this can create drag and pull the belt off-center. On some configurations, specialized training idlers might be depicted, which aid in automatic belt correction.
No/Low Material Flow
If material is not being conveyed effectively, inspect the diagram for the loading zone, chute configuration, and belt cleaner positions. A poorly designed or worn chute can cause spillage or blockages. Verify that the belt speed (derived from motor RPM and pulley diameters, as detailed in the diagram’s mechanical overview) matches the operational requirement. Check the condition of the belt surface itself against the diagram’s specifications; excessive wear or damage can reduce its ability to carry material. For systems with feeders, ensure they are operating correctly, providing material at the intended rate as specified in the system blueprint.
For a typical 480V, 5HP drive motor, check for 460-480VAC between phases. Control circuit voltage is often 120VAC or 24VDC. Torque specifications for pulley lagging bolts often range from 150-250 ft-lbs, requiring a calibrated torque wrench for critical assembly points identified on the diagram’s mechanical structure details.
FAQ
What is the primary difference between a general conveyor system belt conveyor diagram and an electrical schematic?
While both provide vital information, a general conveyor system belt conveyor diagram (often a mechanical layout or overview) focuses on the physical structure, component placement (like pulleys, idlers, frame), material flow, and overall configuration. An electrical schematic, on the other hand, details the wiring, control circuits, power distribution, and interconnections of electrical components (motors, sensors, switches, PLCs). You often need both for comprehensive system understanding and troubleshooting.
How do I identify specific component part numbers from the diagram?
Many comprehensive blueprints will include a Bill of Materials (BOM) alongside the diagram, listing specific part numbers for major components like motors, gearboxes, idlers, and safety switches. Each component on the diagram will typically have a corresponding tag or bubble number that links directly to an item in the BOM. If not directly on the diagram, the title block or referenced documents (like equipment manuals) will contain this information. Always cross-reference with actual equipment nameplates where possible, accounting for potential field changes or equipment upgrades over time (e.g., different motor brands in later years).
What does “belt take-up” refer to in a conveyor system layout?
Belt take-up refers to the mechanism used to maintain proper tension in the conveyor belt. This is critical for preventing belt slippage on the drive pulley, ensuring proper belt tracking, and compensating for belt stretch over time. The diagram’s layout will show the type of take-up (e.g., screw take-up at the tail pulley, gravity take-up, or automatic hydraulic take-up) and its location within the structure. Proper tension, as indicated by manufacturer specifications, is essential for the longevity and efficient operation of the entire conveyor system.
Why are safety devices so prominently featured on a conveyor system belt conveyor diagram?
Safety devices are highlighted on a conveyor system belt conveyor diagram because they are integral to preventing accidents and protecting personnel. The diagram provides a clear overview of their placement (e.g., pull cord locations along the walkway), their type (e.g., belt misalignment switch, emergency stop button), and crucially, how they are wired into the control system. Understanding their configuration is vital for both initial safety audits and subsequent troubleshooting, ensuring that the emergency stop circuit functions as designed, and that any trip conditions are readily identifiable to prevent further damage or injury.
Frequently Asked Questions
What does the conveyor system belt conveyor diagram show?
The diagram comprehensively shows the complete physical structure and mechanical configuration of a belt conveyor system. It details the precise layout of key components such as the drive motor, gearbox, head and tail pulleys, idler rollers (carry and return), the conveyor belt itself, and the supporting frame structure. This visual guide is essential for understanding the system’s operational flow and interconnected parts.
How do I read the conveyor system belt conveyor diagram?
To read the diagram, first identify the main components by their labels and symbols. Follow the belt path to understand the material flow direction. Pay attention to arrows indicating motion and specific measurements for component spacing or angles. Cross-reference any legends for specialized symbols or codes. Understanding the overall layout and interaction between each component is key to interpreting its function.
What are the main components in conveyor system belt conveyor diagram?
The main components typically include the conveyor belt (the carrying medium), the drive unit (motor, gearbox, and drive pulley), the tail pulley (for tensioning and return), idler rollers (carrying the loaded belt and supporting the return belt), the take-up unit (maintains belt tension), and the supporting frame or structure. Accessory components like chutes, skirts, and safety guards are also often depicted.
What are common problems with conveyor system belt conveyor diagram?
Common problems identifiable or diagnosed using the diagram include belt misalignment (tracking issues), idler roller failures, drive unit overheating, excessive belt wear or damage, and structural fatigue in the frame. The diagram helps pinpoint the location of these potential issues, allowing for targeted inspection and troubleshooting by indicating the affected component or section of the system’s configuration.
Can I use conveyor system belt conveyor diagram for DIY repair?
Yes, a detailed conveyor system belt conveyor diagram is invaluable for DIY repair of common issues like belt tracking adjustments, idler replacement, or minor belt repairs. However, for complex repairs involving the drive motor, gearbox overhauls, or significant structural damage, it’s generally advisable to consult a professional technician. Always prioritize safety and ensure power lockout procedures are followed.
What tools do I need for conveyor system belt conveyor diagram?
The diagram itself doesn’t require specific tools, but using it for maintenance or repair necessitates a standard set of industrial tools. This typically includes wrenches (metric and imperial), sockets, screwdrivers, a torque wrench for tensioning, measuring tape, levels for alignment, a belt cutting tool, and appropriate personal protective equipment (PPE) like gloves and safety glasses. Specialized tools may be needed for specific component types.
