The Frigidaire Gallery ice maker assembly layout includes an ice mold, 120V water inlet valve, bail shutoff arm, harness connector, and optic sensor board. The internal motor drives the ejector blades, while the microswitch controls cycle timing. Testing the heater element across terminals yields approximately 70-90 ohms.
📌 Key Takeaways
- Ice mold heating element should measure between 70–90 ohms for proper ice release.
- The shutoff arm optical sensor or mechanical microswitch controls auto-harvest cycling.
- Always disconnect the 120V power supply prior to servicing the wire harness system.
- A failed dual water inlet valve solenoid coil is the primary cause of no-water conditions.
- Modular ice maker replacement is DIY-friendly, but refrigerant issues require pro service.
Servicing Frigidaire Gallery ice production assemblies requires an advanced understanding of both electro-mechanical drive systems and micro-controller electronic circuits. The frigidaire gallery ice maker parts diagram serves as the primary technical blueprint for identifying wiring harness pinouts, component locations, fluid flow paths, and structural sub-assemblies. According to manufacturer specifications, proper diagnostic procedures depend on isolating high-voltage AC mechanical loads from low-voltage DC sensor feedback loops. Utilizing an exploded view layout allows technicians to systematically trace power delivery from the main power board to the water valve, drive motor, mold heater, and thermistor assemblies.
Decoding the Frigidaire Gallery Ice Maker Parts Diagram and Components

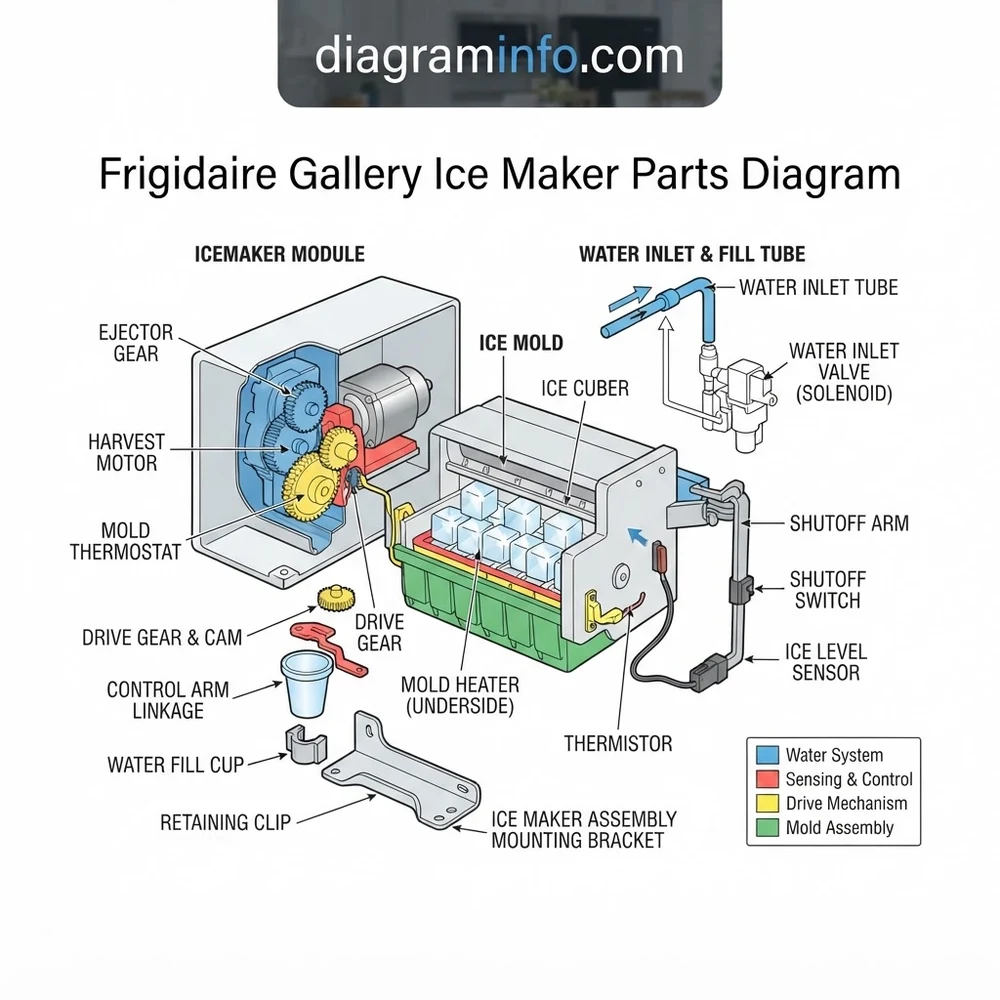

The structural layout of a Frigidaire Gallery ice maker combines mechanical harvest components with automated electronic sensor loops. When analyzing a structural overview diagram, each numerical callout links directly to specific OEM component assemblies that maintain strict operational tolerances during freeze and harvest cycles.
Recommended Best Deal Products
| Diagram Reference | Component Name | Electrical / Mechanical Specifications | OEM Part Reference |
|---|---|---|---|
| 1 | Ice Mold & Heater Assembly | 115V AC, 185W, 72–85 Ω Resistance | 241798201 |
| 2 | Synchronous Drive Motor | 120V AC, 60Hz, 3 RPM Clockwise Rotation | 241696501 |
| 3 | Bimetal Thermostat / Thermistor | 15°F Close (±3°F) / 48°F Open (±5°F) | 5304456685 |
| 4 | Dual Water Solenoid Inlet Valve | 120V AC, 15W, 20–120 PSI Line Pressure | 242252702 |
| 5 | Ejector Arm & Stripper Plate | High-impact Food Grade Polycarbonate | 240352411 |
As illustrated in the schematic configuration, the ice production cycle begins at the aluminum mold cavity. The mold is lined with a non-stick coating to minimize physical ice resistance during the ejection sweep. The integral heating element, bonded to the underside of the mold structure, receives power exclusively during the harvest cycle to flash-melt the outer boundary of the ice cubes.
The control head houses the timing gear array, micro-switches, and harness connector block. Drive torque is generated by a heavy-duty synchronous motor through a reduction gear layout designed to handle high mechanical resistance. A spring-loaded shut-off arm (bail arm) or an infrared optical sensor array monitors bin capacity. When the ice storage bin reaches capacity, the mechanical linkage trips the internal shut-off switch, breaking the circuit to the harvest motor.
Manufacturer specifications mandate that the internal bimetal thermostat must reach 15°F (-9.4°C) before the internal cam switch activates the harvest motor. Thermistor-based digital models monitor resistance values through the main electronic board, triggering harvest when thermistor resistance reaches approximately 30kΩ at cold temperatures.
How to Read a Frigidaire Ice Maker Electrical Schematic and Layout
Navigating the electrical schematic requires matching wiring harness terminal designations with physical module test points. Frigidaire Gallery units generally utilize standard 6-pin or 8-pin Molex connectors integrated into the rear frame of the freezer compartment. Understanding wire color coding and terminal labels prevents misdiagnosis and short circuits during manual forced-cycle testing.
To read the wiring layout correctly, follow the power flow from Line 1 (L) through the safety controls to Neutral (N):
Recommended Best Deal Products
- Terminal L (Black / Pink Wire): Supplies direct 120V AC power to the internal module switches through the cabinet door switch.
- Terminal N (White Wire): Connects the neutral side of the power supply to the motor, mold heater, and water valve coils.
- Terminal H (Blue or Red Wire): Powers the 185-watt mold heater element when the thermostat completes the freeze circuit.
- Terminal M (Brown Wire): Delivers line voltage to the drive motor field windings during the harvest rotation.
- Terminal V (Yellow or Purple Wire): Sends a timed 120V AC signal (5 to 7 seconds) to the water inlet valve solenoid to refill the mold.
- Terminal T (Tan / Brown Wire): Links the internal bimetal thermostat directly to the motor switch circuit.
When reviewing cross-reference manuals or related technical resources such as fridge defrost control schematics and water line inlet valve replacement guides, ensure that power to the unit is interrupted before running continuity tests. Performing a forced harvest manual test involves placing an insulated jumper wire across terminals T and H on the front faceplate of the control module while the freezer door switch is held depressed.
Jumpering terminals T and H manually bypasses the bimetal thermostat. The drive motor will energize and begin a 360-degree rotation. Remove the jumper once the motor rotates approximately 20 degrees, or risk damaging the internal timing cam switch.
Troubleshooting Failures Using the Frigidaire Gallery Ice Maker Parts Diagram
System failures usually manifest as no ice production, undersized ice cubes, hollow cubes, or continuous harvesting. Utilizing the systematic layout of the frigidaire gallery ice maker parts diagram allows technicians to trace root causes based on electrical and mechanical symptoms.
Follow this diagnostic flow to isolate faults efficiently:
- No Ice Production (Motor Inoperative): Check for 120V AC across Terminal L and Terminal N at the main harness connector. If voltage is present, measure resistance across the motor windings (Pins L and M). A reading of infinity indicates an open internal motor winding requiring drive module replacement. If power is missing, refer to refrigerator control board diagnostics to verify door switch contacts.
- Small or Hollow Ice Cubes: Hollow cubes indicate premature harvesting or insufficient fill volume. Check water line pressure at the dual-solenoid inlet valve; operating pressure must read between 20 and 120 PSI. Inspect the fill tube extension for ice blockages caused by a weeping valve coil. Test solenoid coil resistance using a multimeter; nominal coil resistance should measure between 1500 and 2200 ohms.
- Ejector Arm Jammed / Stripped Gears: If the motor hums but the ejector blades fail to rotate, inspect the timing gear array behind the front cover assembly. Broken gear teeth or a deformed stripper plate place excessive mechanical drag on the drive shaft, requiring complete module assembly replacement.
- Ice Mold Overfilling: Check for a shorted solenoid valve or a stuck micro-switch within the motor housing module. If the valve remains energized beyond the 7-second timing window, replace the internal timing cam housing.
Line voltage (120V AC) is present at terminal points during manual diagnostics. Disconnect main power before removing mechanical components or disconnecting harness plugs. Wear appropriate personal protective equipment and ensure ESD grounding when handling optical sensor boards.
Frigidaire Gallery Ice Maker System Configuration FAQs
How do I test the mold heater coils on a Frigidaire Gallery unit?
Disconnect main power to the appliance and remove the harness connector from the ice maker module. Set a digital multimeter to the Resistance (Ohms) scale and measure between the heater terminal pins (typically blue/red to white neutral). A functional 185W heater should show a resistance reading between 72 and 85 ohms. An infinite (OL) reading confirms an open element, requiring replacement of the mold heater assembly.
What water pressure is required for the dual-solenoid inlet valve configuration?
Frigidaire Gallery water inlet valves require a dynamic water pressure range of 20 to 120 PSI (138 to 827 kPa) to operate correctly. Pressure below 20 PSI can cause the internal diaphragm to fail to seal properly, leading to continuous water dripping, fill tube freeze-ups, and oversized/fused ice production.
Where are test points located on the motor module schematic?
Test points are located on the front faceplate of the control module directly behind the protective snap-on cover. Letter markings (L, N, T, H, M, V) are stamped directly into the plastic housing adjacent to each diagnostic test port. Standard multimeter test probes can be inserted directly into these openings while the unit remains powered.
Can I replace individual gears shown on the blueprint or must the entire module be swapped?
While component-level breakdown diagrams illustrate individual timing gears, OEM manufacturer guidelines recommend replacing the entire ice maker module assembly (e.g., Part #241798201). Replacing individual plastic gears often leads to premature failure due to wear on adjacent housing pinions and micro-switch contacts.
Why does my ice maker run harvest cycles without ejecting ice?
This condition occurs when the mold heater fails to heat, or the thermal fuse opens. If the heater does not melt the thin bond between the ice and the aluminum mold, the ejector blades will stall against the ice. The internal slip-clutch will ratchet, or the motor will stall until the thermal cut-out breaks the circuit. Check continuity across the inline thermal fuse located on the underside of the mold assembly.
Step-by-Step Guide to Understanding the Frigidaire Gallery Ice Maker Parts Diagram
Identify – Examine the overall component layout on the Frigidaire Gallery ice maker parts diagram to match your specific model variant.
Locate – Unplug the refrigerator power cord and locate the ice maker assembly mounting screws inside the freezer compartment structure.
Reference – Consult the diagram scheme to trace the wire harness plug, water line connection, and mounting bracket locations.
Connect/Route – Remove damaged parts and route new harness lines or tube connections according to the exact diagram configuration.
Verify – Restore power and perform a manual force cycle or test mode to verify water fill level and ejector gear rotation.
Troubleshoot – Check solenoid coil continuity with a multimeter if the system fails to harvest ice after 24 hours.
