Rain Bird Sprinkler Parts Diagram: 2026 Repair Guide
A Rain Bird sprinkler parts diagram illustrates the structural layout of irrigation heads, valves, and zone piping. It details the spray head configuration—including the nozzle, wiper seal, stem, spring, and body—alongside the inline valve assembly featuring the solenoid, bleed screw, bonnet, and diaphragm for precise system maintenance.
📌 Key Takeaways
- Inline zone valves operate on standard 24VAC control wiring from the irrigation controller.
- The rubber diaphragm and solenoid assembly represent over 70% of valve maintenance issues.
- Pop-up spray heads use internal retract springs that require proper flushed clearance at 30-40 PSI.
- Debris accumulation under the wiper seal is the main cause of head retraction failure.
- Replace worn internal diaphragms or seals individually before replacing entire valve bodies.
Navigating commercial and residential irrigation maintenance requires a precise understanding of internal component relationships and hydraulic flow pathways. A comprehensive Rain Bird sprinkler parts diagram serves as an essential schematic guide for irrigation contractors, grounds managers, and technicians performing field teardowns, seal replacements, and valve retrofits. Whether servicing pop-up spray heads like the 1800 Series, gear-driven rotors such as the 5000 Series, or heavy-duty PGA and HV in-line control valves, utilizing an OEM exploded view schematic allows you to accurately identify part numbers, verify internal structural configuration, and execute proper reassembly torque specs during field repairs.

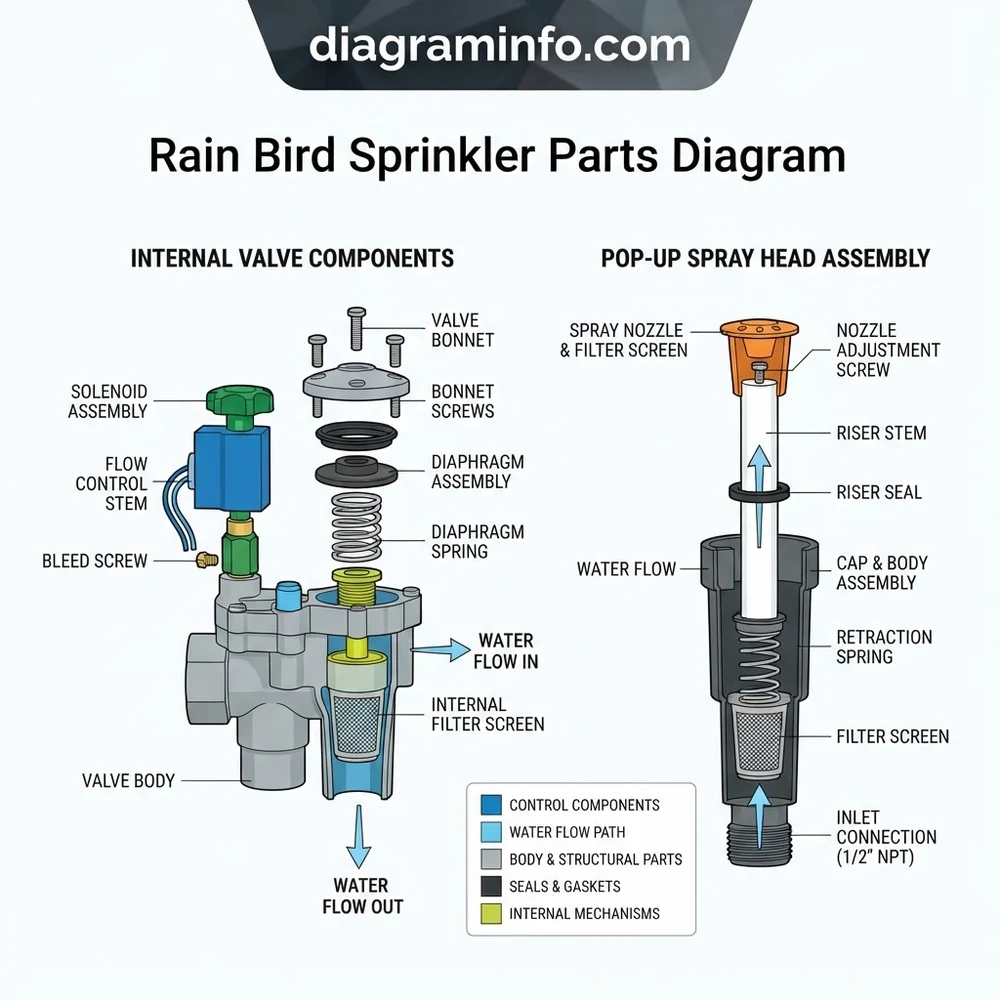

Rain Bird Sprinkler Parts Diagram: Exploded View and Component Breakdown
Deconstructing an irrigation emitter or control valve into its individual schematic components reveals how hydraulic pressure balances mechanical movement. Rain Bird equipment utilizes precision-molded polymers, stainless steel drive springs, and elastomeric seals engineered to operate within fluid pressure ranges between 15 PSI and 100 PSI. Understanding each internal part in the structural overview prevents premature wear and operational failure.
Recommended Best Deal Products
Pop-Up Rotor Assembly Components (5000/5004 Series)
The interior architecture of a gear-driven rotor comprises several distinct sub-assemblies stacked vertically within the outer canister body:
- Top Cap and Rubber Cover: Shields the internal adjustment mechanism from debris ingress while providing marked indicators for arc adjustment (+/-) and radius reduction screws.
- Rain Curtain Nozzle Assembly: Features a primary micro-stream port for distance, an intermediate port for distribution uniformity, and a close-in port to eliminate brown rings near the head. Retained by a stainless steel nozzle radius adjustment screw.
- Co-Molded Wiper Seal: A multi-function pressure-activated seal that prevents stem-to-cap blow-by, clearing grit from the riser during retraction.
- Heavy-Duty Retraction Spring: Constructed from 304 stainless steel, calibrated to pull the pop-up stem flush into the housing when line pressure drops below 15 PSI.
- Water-Lubricated Gear Drive: The central planetary gear train that converts laminar water flow into controlled rotational torque, utilizing a stator plate to regulate turbine rotation speeds regardless of incoming system pressure.
- Bottom Filter Screen and Optional Seal-A-Matic (SAM) Check Valve: Captures particulate down to 100 mesh and prevents low-head drainage up to 10 feet of elevation head (4.3 PSI backpressure).
In-Line Remote Control Valve Components (PGA and HV Series)
Zone control valves utilize a reverse-flow design to balance internal pressure across a reinforced elastomeric diaphragm. Key elements in the valve blueprint include:
- 24VAC Solenoid Operator: Encapsulated coil assembly housing an internal stainless steel plunger, spring, and rubber seat face that opens or closes the internal bleed port.
- Bonnet Assembly and Stainless Steel Screws: A glass-filled nylon top cover secured by multi-drive captive bonnet screws to the valve body, designed to withstand burst pressures exceeding 350 PSI.
- Fabric-Reinforced Buna-N Diaphragm: Features a self-cleaning metering pass-through orifice that continuously purges debris, ensuring smooth opening and drop-tight closing.
- Manual Internal/External Bleed Control: Permits manual operation without opening the main electrical controller, venting water downstream or to atmosphere.
Rain Bird 100-PGA Valve Specifications: Operating Pressure: 20 to 150 PSI (1.4 to 10.3 bar); Flow Range: 2 to 40 GPM; Solenoid Inrush Current: 0.30 A (7.2 VA) at 60 Hz; Holding Current: 0.19 A (4.6 VA) at 60 Hz; Internal Bleed: Manual operation with 1/4-turn of solenoid.
Interpreting the Rain Bird Sprinkler System Layout and Schematic Blueprint
Reading an OEM parts breakdown requires translating 2D exploded diagrams into 3D mechanical relationships. Understanding the orientation of seal lips, thread pitches, and internal fluid pathways ensures that maintenance actions restore factory operating efficiency. Referencing the technical blueprint prevents errors such as installing inverted wiper seals or misaligning internal valve metering pins.
Hydraulic Flow Routing through Spray and Rotor Heads
Water enters the base of the unit via either 1/2-inch NPT (spray heads) or 3/4-inch NPT (rotors) bottom inlets. As system pressure builds past 15 PSI, water passes through the lower basket filter, forcing the dynamic bypass seal upward against the cap underside to seal the system. Fluid then routes through the central drive turbine assembly, driving the gear drive before exiting through the nozzle orifice. When consulting a backflow preventer layout schematic alongside your zone blueprint, verify that supply pressures account for head loss across the turbine mechanism (typically 2 to 5 PSI pressure drop).
Electrical Circuitry and Valve Wiring Diagrams
When analyzing automatic control valve schematics, notice the dual electrical pathways integrated into the valve body overview. The 24VAC control circuit drives an electromagnetic coil:
| Component / Wire | Electrical Specification | System Function / Pathway |
|---|---|---|
| White Wire (Common) | 24 VAC Return (0V Neutral) | Connects to all valve solenoid return leads in a multi-zone layout. |
| Colored Wire (Hot) | 24 VAC Active (24V Line) | Dedicated terminal lead from controller zone module to specific solenoid. |
| Solenoid Coil Resistance | 20 to 60 Ohms (Nominal) | Internal coil integrity indicator measured via multimeter at controller terminals. |
| Inrush Amperage | 0.35 A to 0.45 A peak | Initial surge required to lift internal solenoid plunger off bleed seat. |
Understanding these electrical connections alongside our solenoid valve electrical diagnostic guide facilitates rapid identification of open circuits, shorted coils, or damaged field wiring splices.
When reviewing an exploded diagram for 1800 Series spray heads with PRS pressure regulation (PRS-30 or PRS-45), note that the pressure regulating module is located inside the pop-up stem. It maintains constant nozzle pressure at 30 PSI or 45 PSI regardless of inlet pressures up to 70 PSI, preventing misting and wind drift.
Field Servicing and Overhaul Steps Guided by the Rain Bird Sprinkler Parts Diagram
Executing an operational overhaul on a malfunctioning rotor or zone valve requires a structured, step-by-step disassembly and rebuild workflow. Relying on the structural layout ensures all internal O-rings, check valves, and spring seats are placed in exact OEM configuration.
Rotor Drive and Seal Replacement Procedure
- Isolate Zone Pressure: Shut off the main water supply valve or deactivate the specific zone at the controller before servicing any emitter.
- Unscrew Top Cap: Counter-rotate the outer cap assembly using a specialized rotor wrench or smooth-jaw strap wrench to avoid damaging the outer canister threads.
- Extract Internal Drive Core: Pull the internal riser assembly vertically upward, removing the pop-up stem, gear drive module, and spring assembly as a single core from the outer body housing.
- Inspect and Replace Wiper Seal: Pry the aged co-molded wiper seal from the underside of the top cap. Clean cap seating grooves thoroughly. Install the new OEM seal, ensuring the soft elastomeric sealing lip faces downward toward the incoming water pressure.
- Clean or Replace Bottom Screen: Flush the lower basket filter with clean water. If retrofitting with a SAM check valve, insert the rubber check seal mechanism directly into the base of the riser cylinder until fully seated.
- Reinsert Internal Core and Torque Cap: Align internal alignment tabs on the core with guide channels in the canister. Hand-tighten cap, then torque an additional 1/8 turn until snug against outer body shoulder.
Zone Control Valve Diaphragm Rebuild Steps
- Depressurize and Drain: Turn off main supply. Rotate the manual internal bleed screw counterclockwise to relieve captive pressure inside the valve bonnet chamber.
- Remove Bonnet Screws: Using a 5/16-inch nut driver or cross-head screwdriver, loosen captive bonnet bolts in a cross-pattern to prevent warping the bonnet casting.
- Inspect Diaphragm and Pressure Cavity: Lift the bonnet assembly. Inspect the Buna-N diaphragm for micro-tears, debris embedding, or stretching around the central support ring.
- Clean Porting Channels: Clear the upper bonnet bleed port and internal metering orifice using compressed air or fine monofilament line. Do not enlarge brass or plastic ports.
- Install Replacement Diaphragm Kit: Seat the replacement diaphragm flat onto the lower valve body housing, ensuring the spring seating plate and stainless steel support spring align directly beneath the bonnet center guide pin.
- Re-torque Bonnet Fasteners: Uniformly tighten bonnet screws in an alternating star pattern to approximately 18 to 22 in-lbs of torque. Over-tightening can pinch or tear outer diaphragm flanges.
Never apply pipe dope, thread tape, or petroleum-based lubricants to internal valve diaphragms, O-rings, or internal rotor cap threads. Petroleum products compromise ethylene propylene and Buna-N elastomers, causing structural swelling, seal blowouts, and total valve failure.
Troubleshooting Equipment Failures Using System Configuration Schematics
When field components fail to operate, referencing the Rain Bird sprinkler parts diagram provides a structured visual tree for fault isolation. System failure modes typically trace back to mechanical debris contamination, spring fatigue, or hydraulic imbalance within internal cavities.
Pop-Up Stem Fails to Retract or Fully Elevate
If pop-up heads fail to rise fully or stay extended after zone shut-off, cross-reference the internal riser components on your diagram with these failure mechanisms:
- Sand or Debris Binding: Grit jammed between the pop-up stem wall and top cap wiper seal. Unscrew cap, flush core under clean water, and replace wiper seal if vertical scoring is present on stem shaft.
- Damaged Retraction Spring: Internal 304 stainless steel spring snapped or bound. Replace complete internal core or spring sub-assembly as indicated on the parts breakdown.
- Inadequate Dynamic Line Pressure: Operating pressure measured at nozzle base falls below 20 PSI due to lateral pipe breaks or excessive friction loss. Reference our irrigation zone pressure regulation manual to calculate line friction losses.
Control Valve Weeping, Constant Leakage, or Non-Closure
A zone that continues weeping water at low elevations long after the controller deactivates signals an issue in the control valve assembly layout:
- Debris Held Under Diaphragm Seat: Small stones or PVC shavings trapped between the flexible diaphragm rubber bead and rigid valve body seating ring prevent a complete hydraulic seal. Dismantle bonnet and flush seating plane.
- Blocked Metering Pass-Through: Clogged diaphragm orifice stops high-pressure water from filling upper bonnet chamber, preventing the valve from hydraulically forcing the seat closed.
- Solenoid Plunger Binding: Corrosion or sand inside solenoid tube stops internal plunger spring from driving rubber seat tip down over internal bleed port. Clean tube or install replacement solenoid assembly (Part #236239).
Rain Bird Sprinkler Parts Diagram Frequently Asked Questions
Where can I find exact exploded part diagrams for legacy Rain Bird models?
Exploded schematics and technical specification documentation for current and discontinued Rain Bird rotors (such as older 5000, 7005, and Maxipaw lines) and valves (such as 100-DV, PEB, and PGA series) are maintained within Rain Bird’s technical support database and authorized distributor technical manuals. Cross-referencing part numbers on original technical blueprints ensures complete compatibility with updated replacement parts assemblies.
How do I know if I need to replace the entire head core or just the wiper seal?
Consult your parts diagram schematic to trace seal contact areas. If water leaks continuously around the cap during full elevation pop-up, replacing the co-molded wiper seal resolves the leak. However, if the vertical stem shaft shows heavy vertical scoring grooves, or if internal gear drive rotation has stopped entirely, the entire internal riser assembly core must be replaced to restore internal hydraulic seal tolerances.
Are internal components interchangeable between Rain Bird 1800 Series and 5000 Series?
No. The 1800 Series spray head and 5000 Series gear-driven rotor utilize entirely different internal mechanical configurations, dynamic thread sizes, and flow rates. The 1800 Series uses a 1/2-inch NPT base inlet with direct spray or rotary nozzles, while the 5000 Series uses a 3/4-inch NPT base inlet housing an internal planetary gear-drive mechanism. Always reference model-specific part diagrams to order exact matched components.
Why does my internal valve bleed screw leak water externally when opened?
According to OEM design schematics, manual external bleed screws feature a dedicated elastomeric O-ring sealed against the valve bonnet wall. If water leaks around the bleed screw threads during manual operation, turn off main water, unscrew the bleed screw completely, inspect the O-ring for dry rot or cracking, apply silicone grease (non-petroleum), or replace the O-ring according to part numbers specified in the valve parts list.
What torque specification should be used on valve bonnet bolts?
Rain Bird commercial valve bonnet bolts should be tightened uniformly in an alternating cross-pattern to 18–22 inch-pounds (in-lbs). Avoid using high-torque impact drivers, as over-torquing strips plastic housing threads or distorts the perimeter diaphragm seal, leading to high-pressure external body leaks during system line surges.
Step-by-Step Guide to Understanding the Rain Bird Sprinkler Parts Diagram
Identify – Locate the specific Rain Bird model number on the spray head cap or valve body.
Locate – Reference the matching exploded schematic to view all internal component positions.
Reference – Trace the physical assembly layout from nozzle cap down to the housing inlet thread.
Connect/Route – Disassemble worn components in order and clean grit from internal valve seats.
Verify – Reassemble internal seals, diaphragm, and spring ensuring correct alignment before tightening caps.
Troubleshoot – Test zone activation at 24VAC to verify proper head elevation and seal shut-off.
