Yamaha Golf Cart Solenoid Wiring: Complete Troubleshooting Guide 2026
The Yamaha golf cart solenoid connects the main battery positive to the controller/motor when activated. It typically has two large terminals (B+ in, B+ out) and two small terminals for the activation coil. The small terminals usually receive power from the key switch (often red) and ground through the pedal microswitch (often black/white or green/white) when the pedal is pressed.
📌 Key Takeaways
- Verify solenoid resistance: typically ~90-120 ohms for 36V and ~120-180 ohms for 48V systems across the small terminals.
- Identify large terminals for high-current (main battery bank connection), and small terminals for the low-current activation coil.
- Always disconnect the main battery bank’s negative terminal before working on any Yamaha golf cart solenoid wiring for safety.
- A common failure point is worn internal contacts in the solenoid, indicated by a click but no power delivery to the motor.
- Seek professional help if complex controller wiring issues arise, or if voltage testing indicates potential damage to expensive components.
Mastering the intricacies of your Yamaha golf cart’s electrical system is fundamental for optimal performance and reliable operation. This comprehensive guide delves into the essential “yamaha golf cart solenoid wiring,” providing technicians and experienced DIY enthusiasts with precise instructions for diagnosis, replacement, and proper connection. Whether you operate a 36-volt system or a 48-volt system, understanding the solenoid’s critical role in managing high-current flow from your battery bank to the motor controller is paramount. We will meticulously detail wire colors, pin connections, and terminal identifications to ensure your Yamaha golf cart operates safely and efficiently.
WIRE COLOR REFERENCE TABLE
Refer to this table for common wire color assignments in Yamaha golf cart solenoid and related circuits. Note that wire colors can vary by model year and specific system (e.g., 36 volt system vs. 48 volt system), so always consult your specific model’s service manual for definitive identification.
| Wire Color (Common) | Function | Connect To | Notes |
|---|---|---|---|
| RED (Large Gauge) | Main Battery Positive (B+) | Solenoid Large Terminal (Input), Battery Bank Positive | Direct connection from positive terminal of the entire battery bank. Typically 2 AWG. |
| RED (Large Gauge) | Controller Power Input (B+) | Solenoid Large Terminal (Output), Controller B+ | Connects from the solenoid’s switched output to the controller’s main power input. Typically 2 AWG. |
| BLACK (Large Gauge) | Main Battery Negative (B-) | Controller B-, Motor Housing/Frame (Ground) | Direct connection from negative terminal of the entire battery bank to controller. Typically 2 AWG. |
| BLUE (Small Gauge) | Solenoid Activation (Switched B+) | Solenoid Small Terminal, Key Switch / Forward Reverse Switch / Controller Output | Provides full system voltage (36V/48V) to activate the solenoid coil. Typically 16-18 AWG. |
| YELLOW (Small Gauge) | Solenoid Ground / Controller Switched Ground | Solenoid Small Terminal, Controller Output / Main Ground | Completes the solenoid coil circuit. Can be direct ground or switched by controller/OBC. Typically 16-18 AWG. |
| ORANGE (Small Gauge) | OBC Interlock / Charger Port Signal | Solenoid Control Circuit, OBC, Charger Port | Used by the On-Board Computer (OBC) to prevent cart operation while charging. Can interrupt solenoid activation. |
| WHITE (Small Gauge) | Key Switch Output | Solenoid Control Circuit, Forward Reverse Switch | Carries switched battery positive after the key switch. |
COMPONENT CONNECTION GUIDE
Accurate connection of each component within your Yamaha golf cart’s electrical system is non-negotiable for safe and reliable operation. This guide provides detailed steps for solenoid wiring, controller, OBC, and motor connections, emphasizing terminal identification and proper wiring sequence. Always ensure your run/tow switch is in the “TOW” position and the battery bank is disconnected before performing any wiring procedures.
Before commencing any work on your golf cart’s electrical system, ensure the main battery bank is completely disconnected. Failure to do so can result in severe electrical shock, component damage, or fire. Always wear appropriate personal protective equipment, including insulated gloves and eye protection.

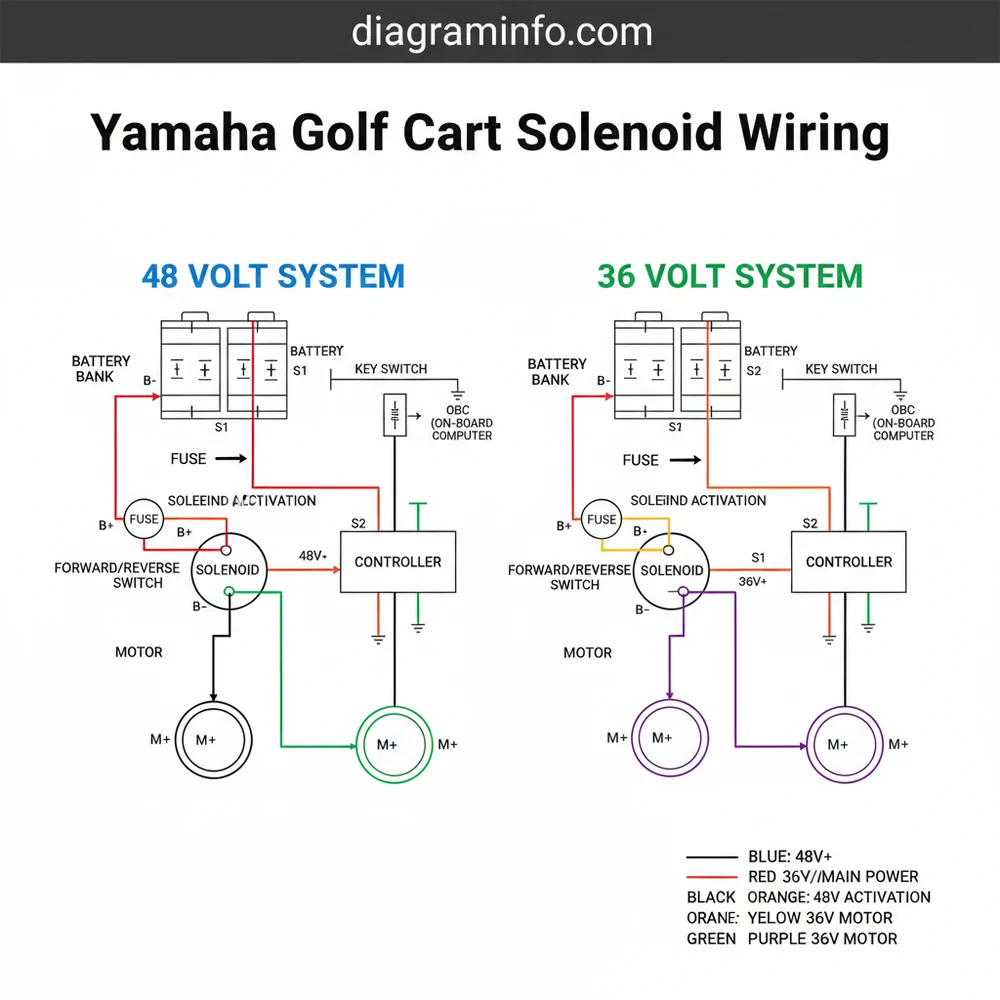

Solenoid Wiring
The solenoid serves as a high-current relay, controlled by a low-current signal. It has four terminals: two large (main power) and two small (control circuit).
- Main Battery Positive to Solenoid Input: Locate the largest RED cable directly connected to the positive terminal of your entire battery bank. This cable connects to one of the large terminals on the solenoid. Manufacturer specs indicate this is typically the terminal closest to the battery bank. Secure the connection with the appropriate nut and washer, torquing to OEM specifications (often 10-12 ft-lbs for large terminals).
- Solenoid Output to Controller B+: Connect the other large terminal of the solenoid to the B+ (Battery Positive) input terminal on your motor controller. This is also a large RED cable. This connection provides switched, high-current power to the controller when the solenoid is activated. Torque to OEM specifications.
- Solenoid Activation (Switched B+): Identify the small terminal on the solenoid that receives full system voltage (36V or 48V) when the key switch is ON, the forward reverse switch is engaged (in some older models), and the OBC allows operation. This is typically a BLUE or WHITE small-gauge wire originating from the key switch, often routed through the F/R switch or an interlock. Connect this wire to one of the small solenoid terminals.
- Solenoid Ground/Switched Negative: The remaining small terminal on the solenoid completes the coil circuit. This wire can go directly to the main battery negative (ground) in simpler systems or be switched by the controller or OBC in more advanced models (e.g., Yamaha G22, G29). If switched by the controller, it will be a specific output from the controller. If direct ground, it will often be a YELLOW or BLACK small-gauge wire connected to the main negative bus.
- Pre-Charge Resistor and Diode (If Applicable): Many modern controllers (especially 48-volt systems) utilize a pre-charge resistor across the large solenoid terminals to slowly charge the controller’s capacitors, preventing a sudden inrush current and arcing. A diode is also typically wired in parallel across the small control terminals to suppress voltage spikes when the solenoid de-energizes, protecting control electronics. Ensure these components, if present, are correctly installed according to the diagram and OEM guidelines.
Controller Wiring
The motor controller is the brain of your electric cart, translating pedal input into motor power. It receives power from the solenoid and sends modulated power to the motor.
- B+ (Input): As mentioned, a large RED cable connects from the solenoid’s output terminal to the controller’s B+ terminal.
- B- (Input): A large BLACK cable connects from the main battery bank’s negative terminal to the controller’s B- terminal.
- Motor Connections: Typically four large terminals (A1, A2, F1, F2) connect to the motor windings. Consult your motor’s specific wiring diagram for correct phase and field connections. Common wire colors for these may include Yellow, Green, Blue, and White. Proper torque is critical for these high-current connections.
- Throttle Input: Smaller gauge wires connect the accelerator pedal’s throttle position sensor (TPS) to the controller. These typically include a 5V reference, a signal return, and a ground.
- Solenoid Control Output: In many systems, the controller provides the switched negative (ground) for the solenoid activation circuit, often a YELLOW or ORANGE small-gauge wire.
- Run/Tow Switch: A dedicated circuit connects the run/tow switch to the controller, allowing it to disengage for maintenance or towing.
OBC (On-Board Computer/Charger Port) Wiring
The OBC manages battery charging and often plays a role in solenoid activation and lockout functions.
- Battery Connections: The OBC receives power directly from the battery bank via a RED (B+) and BLACK (B-) connection.
- Charger Port: The charger port connects directly to the OBC. When a charger is plugged in, the OBC detects it and initiates the charging cycle.
- Solenoid Interlock: A crucial function of the OBC is to prevent cart operation while charging. It typically achieves this by interrupting the solenoid’s activation circuit. This often involves an ORANGE wire from the OBC to the solenoid’s control circuit, or it may send a signal directly to the controller which then manages the solenoid ground. Verify the specific interlock method for your Yamaha model. For example, some Yamaha G22 models utilize a grey wire from the OBC to control solenoid activation.
Motor Wiring
The electric motor is the power output unit, driven by the controller.
- A1/A2 (Armature) and F1/F2 (Field): These are the four large terminals on series motors, connecting to the corresponding A1, A2, F1, F2 terminals on the controller. AC motors (found in newer 48 volt system Yamaha Drive/Drive2 models) will have different wiring, typically three large phase wires. Always match the motor terminals precisely to the controller outputs according to the OEM wiring schematic.
- Speed Sensor (If Equipped): Many modern motors include a speed sensor that communicates with the controller for regenerative braking and speed regulation. This will be a small-gauge multi-wire connector.
For Yamaha golf cart solenoids, a continuous duty solenoid is recommended for controller-based systems (e.g., G19, G22, G29). Typical coil resistance is 150-180 ohms for 36V and 200-240 ohms for 48V. Ensure replacement solenoids meet or exceed OEM specifications for voltage and current rating.
COMMON WIRING PROBLEMS & FIXES
Troubleshooting electrical issues in a Yamaha golf cart requires a systematic approach. Many common problems stem from faulty solenoid wiring or related control circuits. Below are 3-5 specific problems with their diagnoses and effective fixes.
Problem 1: Solenoid Clicks, Cart Does Not Move
This is a frequent indication that the solenoid’s control circuit is functioning, but the high-current contacts within the solenoid are failing to close or are corroded, preventing power from reaching the controller and motor.
- Diagnosis:
- Verify full system voltage (36V or 48V) at both small solenoid terminals when the key is on and pedal depressed.
- With the solenoid clicked, use a multimeter to check for full system voltage across the two large terminals. There should be less than 0.5V drop if the contacts are good. If you read full battery voltage (e.g., 48V) across the large terminals, the contacts are open and failing to conduct.
- Inspect the large terminals and cables for corrosion, loose connections, or physical damage.
- Fix: In most cases, a clicking solenoid that doesn’t pass power indicates internal contact failure. The solenoid requires replacement. Ensure all high-current connections are clean, tight, and free of corrosion during reinstallation.
Problem 2: Solenoid Does Not Click At All
If the solenoid remains silent, the issue lies within its control circuit, meaning the small activation terminals are not receiving the necessary power to energize the coil.
- Diagnosis:
- Check for full battery voltage (36V or 48V) at the input side of the key switch.
- With the key ON, check for voltage coming out of the key switch (typically on a WHITE wire). If no voltage, the key switch is faulty.
- Trace the switched positive wire (e.g., BLUE) from the key switch through the forward reverse switch, run/tow switch, and any other interlocks (like the charger port/OBC) to one of the small solenoid terminals. Identify where the voltage is lost.
- Verify the negative/ground path for the solenoid coil (e.g., YELLOW wire). This could be a direct ground or switched by the controller or OBC. Ensure this path has continuity to the main battery negative or is correctly switched by the controller.
- Check the OBC (On-Board Computer) interlock. If the charger is plugged in, or the OBC believes it is, it will often prevent solenoid activation. Unplug the charger and inspect the charger port for debris.
- Fix: Replace the faulty component identified during diagnosis (key switch, F/R switch, run/tow switch, OBC, or a broken control wire). If both small terminals receive appropriate voltage/ground and the solenoid still doesn’t click, the solenoid coil is likely open and requires replacement.
Problem 3: Solenoid Stays Engaged / Welded Contacts
This hazardous condition means the solenoid’s high-current contacts are stuck closed, even when the control circuit is de-energized. The cart could move unexpectedly.
- Diagnosis:
- Immediately disconnect the main battery bank.
- Visually inspect the solenoid for signs of overheating or arcing, especially around the large terminals.
- With the battery disconnected, check for continuity between the two large terminals. If there is continuity, the contacts are welded.
- Ensure the small control terminals are de-energized when the key is OFF and the pedal is up. If they remain energized, there’s a short in the control circuit keeping the solenoid active.
- Fix: The solenoid is compromised and must be replaced. Welded contacts are a critical safety failure. Investigate the control circuit for any shorts that might have kept the solenoid continuously activated, leading to premature failure.
On some Yamaha models, the controller provides a low-amperage output to the solenoid’s control circuit, rather than a direct path from the key switch or F/R switch. This allows the controller to prevent solenoid engagement during fault conditions (e.g., over-temperature, low battery voltage). Always reference your specific Yamaha golf cart wiring diagram for accurate control circuit analysis.
FAQ
What is the primary function of the solenoid in a Yamaha golf cart?
The solenoid acts as a high-current switch, connecting the main battery bank’s positive terminal to the motor controller’s B+ input only when activated. This prevents continuous power draw and provides a safety cutoff for the high-amperage circuit, protecting the system from electrical faults and ensuring the cart only operates when intended.
How do I test a golf cart solenoid for proper operation?
To test a solenoid, first, ensure 36V or 48V is present at one small terminal and a complete ground path at the other small terminal when the cart’s activation sequence (key ON, pedal depressed) is met. If these conditions are met, the solenoid should audibly click. Second, use a multimeter to check for full battery voltage (e.g., 48V) across the two large terminals when the solenoid is activated. A reading of less than 0.5V indicates good contacts; a reading of full system voltage means the contacts are open or failing. For detailed troubleshooting of your Yamaha golf cart’s electrical system, consider consulting a specialized diagnostic guide.
Can I bypass the solenoid in my Yamaha golf cart?
Bypassing the solenoid is strongly discouraged and unsafe. The solenoid is a critical safety component designed to interrupt the high-current flow from the battery bank. Bypassing it eliminates this safety feature, risking uncontrolled cart operation, severe electrical damage, and potential fire. Never operate a golf cart with a bypassed solenoid. Understanding your battery bank’s health is paramount to prevent solenoid overstress.
What causes a golf cart solenoid to fail prematurely?
Premature solenoid failure is often due to arcing across worn contacts, particularly during repeated high-current switching cycles. Low battery voltage can also exacerbate this, as the solenoid may chatter, leading to increased arcing. Continuous duty solenoids are designed to handle prolonged engagement, but repeated short-cycling or exposure to excessive heat can also degrade internal components. Ensure proper voltage is always supplied to the control circuit.
What is the purpose of the pre-charge resistor and diode often found with solenoids?
The pre-charge resistor, typically wired across the large terminals of the solenoid, provides a small, controlled path for current to flow into the controller’s capacitors before the main solenoid contacts close. This prevents a sudden surge of current (inrush current) that can cause arcing and prematurely wear out the solenoid contacts. The diode, wired across the small control terminals, protects the control circuit (e.g., controller, key switch) from voltage spikes (back EMF) generated by the solenoid coil when it de-energizes. These components are essential for the longevity of your golf cart controller and solenoid.
Step-by-Step Guide to Understanding the Yamaha Golf Cart Solenoid Wiring: Complete Troubleshooting Guide 2026
Identify – Locate your specific Yamaha golf cart model (e.g., G29 Drive) and its system voltage (36V or 48V) to ensure you have the correct wiring diagram.
Locate – Pinpoint the solenoid component on your wiring diagram, noting its position relative to the main battery bank, controller, and motor.
Reference – Use the provided ‘Wire Color Reference Table’ to identify the function of each wire connected to the solenoid’s large and small terminals.
Connect/Route – Follow the diagram meticulously to correctly connect the heavy-gauge battery cables and smaller activation wires to the appropriate solenoid terminals.
Verify – Before reconnecting the main battery bank, double-check all connections against the ‘Component Connection Guide’ for accuracy, secure fit, and proper wire routing.
Troubleshoot – If the cart doesn’t operate after wiring, refer to the ‘Common Wiring Problems & Fixes’ section, specifically focusing on solenoid activation and controller wiring issues.
Frequently Asked Questions
What voltage is yamaha golf cart solenoid wiring?
Yamaha golf cart solenoid wiring primarily operates with either 36-volt or 48-volt DC systems. The solenoid coil itself is specific to the system voltage, ensuring proper activation. Always confirm your cart’s battery bank voltage (e.g., six 6V batteries for 36V, six 8V batteries for 48V) to match the correct solenoid for safe and efficient operation of your golf cart.
What do the wire colors mean on yamaha golf cart solenoid wiring?
On a Yamaha golf cart, the large wires connected to the solenoid’s main terminals are typically heavy gauge red (from battery positive) and black/blue (to controller/motor). The smaller activation wires vary; often, a red or yellow wire provides key switch power, and a black/white or green/white wire connects to the pedal microswitch for ground completion, part of the overall controller wiring.
How do I troubleshoot yamaha golf cart solenoid wiring that won’t run?
First, check the overall battery bank voltage. Then, verify if the solenoid clicks when the pedal is pressed. If it clicks but no power, test for continuity across the large terminals when activated. If no click, check for power at the small terminals from the key switch and pedal microswitch. A faulty controller wiring or low battery voltage can also prevent activation, requiring careful diagnosis.
What is the solenoid wiring on yamaha golf cart solenoid wiring?
The solenoid acts as a heavy-duty switch, connecting the main battery positive from the battery bank to the controller/motor when its activation circuit is complete. The high-current path runs through its large terminals. The low-current activation path typically involves the key switch, F/R switch, and pedal microswitch, which energize the solenoid’s internal coil, enabling the main current flow for propulsion.
How many batteries does yamaha golf cart solenoid wiring have?
A Yamaha golf cart typically uses either six 6-volt batteries for a 36-volt system or six 8-volt batteries for a 48-volt system. These batteries are wired in series to achieve the desired system voltage. This battery bank powers the entire electrical system, including the solenoid, controller wiring, and the electric motor, essential for the cart’s operation.
What gauge wire does yamaha golf cart solenoid wiring use?
For the main high-current path through the solenoid on a Yamaha golf cart, expect heavy-gauge battery cables, typically 4-gauge or 2-gauge, depending on the system voltage (36-volt or 48-volt) and motor size. The smaller activation wires are usually 16 or 18-gauge, sufficient for the low-current coil circuit, differentiating them from the main battery bank connections.
