NEMA Forward Reverse Single Phase Drum Switch Connection Diagram: 2026
To connect a single-phase motor to a 6-terminal drum switch, reverse the start winding leads (typically T5 and T8) relative to the main winding (T1 and T4). Connect line voltage L1 and L2 to switch terminals 1 and 3, routing T5 and T8 to terminals 2, 4, or 5 to alter current polarity during directional switching.
📌 Key Takeaways
- Reversing a single-phase induction motor requires swapping start winding terminals T5 and T8, keeping main winding terminals T1 and T4 constant.
- Terminal contacts 1 through 6 on the drum switch handle internal bridging across Forward, Off, and Reverse positions.
- Ensure line voltage (L1/L2 or 120V/240V) is isolated and de-energized before altering any internal wiring connections.
- Incorrect start-capacitor wiring lead placement causes the motor to hum without starting or blow fuses instantly.
- Consult certified electricians if motor lead colors deviate from standard dual-voltage NEMA terminal designations.
Single-phase induction motors rely on two distinct electrical circuits within the stator: the main run winding and the auxiliary start winding. Because single-phase alternating current produces a pulsating field rather than a rotating one, the auxiliary circuit incorporates a start capacitor and a centrifugal switch to establish an initial phase offset, determining initial shaft rotation. Reversing the directional torque of a single-phase motor requires reversing the current flow through the auxiliary start winding relative to the main run winding. A manual drum switch achieves this by mechanically altering the internal contact bridges across terminal posts. This technical guide explains the complete forward reverse single phase drum switch connection diagram, covering terminal identification, wire color conventions, internal jumper bridging, and multi-voltage wiring procedures for industrial machinery.

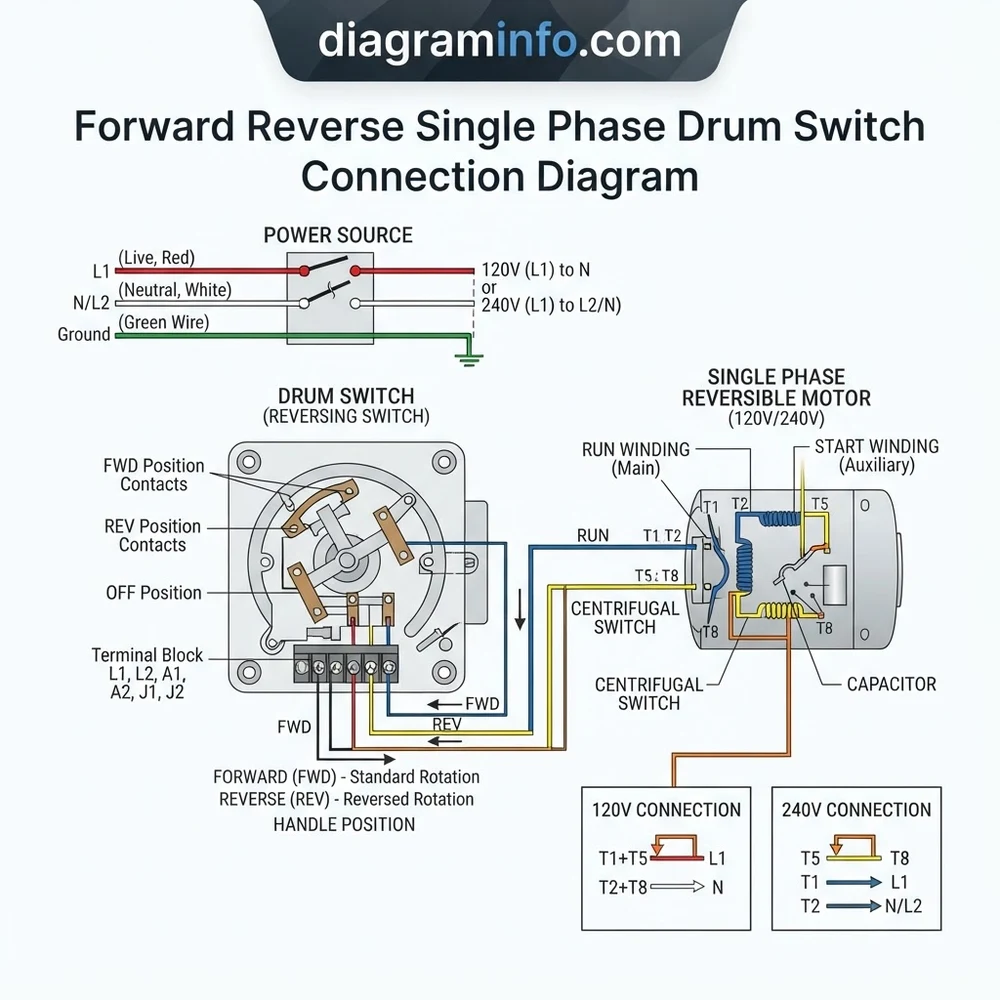

Deconstructing the Forward Reverse Single Phase Drum Switch Connection Diagram Component Structure
Understanding the electrical blueprint of a reversing system requires analyzing both the internal drum switch mechanism and the standard NEMA motor lead terminal layout. A standard single-phase reversing drum switch (such as a Furnas, Dayton, or Square D Class 2601) utilizes a central rotating cylinder fitted with conductive contact bars. These contact bars bridge stationary terminal screws mounted along the switch housing.
Recommended Best Deal Products
According to NEMA MG-1 standards, single-phase motor leads are numbered T1 through T8. Dual-voltage single-phase motors (120V/240V) feature two main run windings (T1-T2 and T3-T4) and one auxiliary start winding (T5-T8). When operating at 120V AC, the main run windings are connected in parallel; at 240V AC, they are connected in series. Reversal in both voltage configurations is achieved exclusively by swapping the polarity of lead T5 relative to lead T8.
| Terminal / Lead Designator | Standard Insulation Wire Color | System Function & Circuit Association | Drum Switch Connection Point |
|---|---|---|---|
| L1 / Line 1 | Black (Hot) | Primary AC Power Line Input | Switch Terminal 1 or Line Post |
| L2 / Line 2 (or N) | Red (240V Hot) / White (120V Neutral) | Secondary AC Power Line Input | Switch Terminal 3 or Line Post |
| Motor Lead T1 | Blue / Black | Main Run Winding 1 (Start Terminal) | Terminal 2 (Jumpered to L1) |
| Motor Lead T2 / T3 | White / Red | Main Run Winding Center Junction (240V Series) | Insulated Tie-Point / Switch Terminal 4 |
| Motor Lead T4 | Yellow | Main Run Winding 2 (Finish Terminal) | Terminal 4 (Jumpered to L2) |
| Motor Lead T5 | Black (Auxiliary) | Start Winding Input (Reversing Pole) | Switch Terminal 5 |
| Motor Lead T8 | Red / Violet (Auxiliary) | Start Winding Output / Centrifugal Switch | Switch Terminal 6 |
| PE / Ground | Bare Copper / Green | Safety Chassis Earth Ground | Enclosure Ground Stud |
Internal Cam Contact Layout and Terminal Architecture
Inside the drum switch housing, six stationary contact terminals are arranged in two vertical rows of three (labeled 1-2, 3-4, 5-6 or A-B-C-D-E-F depending on manufacturer schematics). When the switch handle is shifted to Forward, the internal cam forces bridge contacts to connect Terminal 1 to 2, Terminal 3 to 4, and Terminal 5 to 6. Shifting the handle to Reverse realigns the internal bridge contacts, maintaining the L1-to-Run-Winding orientation while cross-connecting Terminal 5 to 4 and Terminal 6 to 2. This inverted bridge flipping changes the current trajectory through start winding leads T5 and T8 by 180 electrical degrees.
Motor Terminal Box Lead Configurations
Capacitor-start single-phase motors route internal leads into an external conduit connection box. For successful integration with a drum switch blueprint, you must distinguish between fixed run winding connections and switched auxiliary connections. Leads T1 through T4 power the running electromagnetic field. Leads T5 and T8 series-connect through the start capacitor and mechanical centrifugal switch located on the rotor shaft. If your motor utilizes non-standard factory wire colors, consult the internal door motor schematic or use an ohmmeter to measure winding resistance: the run winding typically registers lower resistance (1 to 3 Ohms), while the start winding displays higher resistance (4 to 12 Ohms) due to thinner copper wire gauges.
• Switching Capacity: 1.5 HP at 120V AC / 3.0 HP at 240V AC (Single Phase)
• Contact Rating: NEMA A600 Heavy Duty, 600V AC Maximum
• Mechanical Life: Minimum 100,000 Operations at Full Rated Amperage
• Terminal Screw Torque Specification: 16 to 20 in-lbs (1.8 to 2.3 Nm)
• Permissible Conductor Gauge: 14 AWG to 10 AWG Copper Wire
How to Wire a Forward Reverse Single Phase Drum Switch Connection Diagram Configuration
Wiring a drum switch to a single-phase equipment motor requires methodical pin-to-lead termination, accurate jumper installation, and strict adherence to input line isolation protocols. Follow this structured assembly procedure to execute a complete installation.
For heavy-duty metalworking machinery requiring magnetic drop-out protection during power interruptions, integrate this switch setup with a specialized magnetic starter schematic guide ahead of the line terminals.
Step 1: System Power Isolation and Conductor Prep
Disconnect all primary AC mains supplying the equipment panel and apply Lockout/Tagout (LTO) hardware. Using a calibrated digital multimeter set to AC Voltage mode, verify zero potential between line conductors and chassis ground. Strip 3/8-inch (10mm) of insulation from each incoming line conductor and motor terminal lead. Crimp high-quality ring or spade tongue terminals onto fine-stranded copper leads to prevent stray wire strands from bridging adjacent terminals inside the compact drum switch enclosure.
Step 2: Installing Jumpers on Drum Switch Terminal Posts
Most forward/reverse drum switches require internal jumper links installed across specific stationary contacts to establish constant voltage distribution across the run winding while leaving auxiliary contacts floating for reversal. Refer to your specific switch model blueprint (e.g., Furnas Style RS or Dayton 2X440):
- Install a copper jumper strip between Terminal 1 and Terminal 3 if using single-line switching configurations.
- Ensure contacts 2, 4, 5, and 6 remain isolated from each other except through the internal cam contact bridges.
- Tighten all jumper terminal screws to 18 in-lbs to prevent high-resistance thermal expansion under high inductive starting currents.
Step 3: Connecting Auxiliary Start Windings T5 and T8
To establish the reversing switching loop, land auxiliary lead T5 directly onto Switch Terminal 5. Route auxiliary lead T8 directly to Switch Terminal 6. When the drum switch is toggled to FORWARD, internal cam slider bars connect Terminal 5 to L1 (via Terminal 1/2) and Terminal 6 to L2 (via Terminal 3/4). When shifted to REVERSE, the cam cross-bridges internal contacts so that Terminal 5 bridges to L2 and Terminal 6 bridges to L1. This reverses the relative phase vector across the starting circuit, causing the rotor to launch in the opposite direction.
Step 4: Main Run Winding Terminations for 120V vs 240V Line Voltage
Connect the main run winding leads based on your line supply voltage requirements. For 120V AC operation, main run leads T1 and T3 link to L1 (Terminal 2), while T2 and T4 link to L2 (Terminal 4). For 240V AC operation, run leads T2 and T3 are wire-nutted together and insulated off-switch, while T1 lands on Terminal 2 (L1) and T4 lands on Terminal 4 (L2).
| Operating Voltage | Run Winding Jumpers & Terminations | Start Winding (T5 / T8) Connections | Incoming Line Terminal L1 / L2 |
|---|---|---|---|
| 120V AC Single Phase | T1 & T3 to Switch Term 2 T2 & T4 to Switch Term 4 |
T5 to Switch Term 5 T8 to Switch Term 6 |
L1 (Hot) to Switch Term 1 L2 (Neutral) to Switch Term 3 |
| 240V AC Single Phase | T1 to Switch Term 2 T4 to Switch Term 4 T2 tie to T3 (Isolated) |
T5 to Switch Term 5 T8 to Switch Term 6 |
L1 (Line 1) to Switch Term 1 L2 (Line 2) to Switch Term 3 |
Step 5: Equipment Grounding and System Enclosure Closure
Connect the incoming equipment grounding conductor (green or bare copper) directly to the internal metallic ground screw of the drum switch housing. Run a grounding jumper from the drum switch housing ground terminal to the motor frame grounding lug. Verify earth continuity using an ohmmeter (must read under 0.5 Ohms). Inspect the internal wiring chamber to confirm wire insulation is clear of moving cam arms, reinstall the switch cover gasket, and torque the cover screws.
When working on older equipment built prior to standardized numbering, cross-reference lead identification with a standard NEMA motor frame lead identification chart to map non-standard colors back to modern T-lead conventions.
Diagnosing Forward Reverse Single Phase Drum Switch Connection Diagram Errors and Faults
When a newly wired drum switch setup fails to operate correctly, systematically test connections to locate terminal wiring errors, open auxiliary circuits, or contact degradation.
Never shift a single-phase drum switch directly from FORWARD to REVERSE while the shaft is spinning! Single-phase centrifugal switches remain open at operating RPM, preventing the start winding from energizing. Shifting directions on a spinning motor will cause it to continue running in its original direction while drawing high locked-rotor current, damaging windings and pitting contact points. Always bring the motor to a complete stop before reversing handle position.
Motor Hums Without Shaft Rotation or Trips Thermal Overload
If the motor hums loudly upon energizing in either direction without initiating shaft rotation, the auxiliary start circuit is not receiving current.
- Miswired Start Leads: Verify lead T5 is landed firmly on Terminal 5 and lead T8 is landed on Terminal 6. Check for loose screw clamps.
- Defective Centrifugal Switch: Inspect the mechanical weights and contact points located inside the motor rear bell housing. Oxidation or stuck weights will hold the circuit open.
- Blown Start Capacitor: Check the capacitor for fluid leaks, bulging domes, or open-circuit readings on a capacitance meter.
- Incorrect Voltage Series Wiring: Verify that dual-voltage motors configured for 240V do not have parallel run winding taps connected to 120V mains, which halves starting torque.
Motor Rotates in Only One Direction Regardless of Switch Position
If the motor starts normally in Forward but continues to run in Forward when the switch is thrown to Reverse, perform the following diagnostic steps:
- Missing Cross-Bridge Jumpers: Open the drum switch housing and check if the internal contact bridge between Terminals 2-4 and 5-6 is operating correctly. If an internal leaf spring contact is bent or broken, the switch will fail to invert polarity across T5 and T8.
- Shortened Start Winding Circuit: Ensure lead T5 or T8 has not been tied directly to line voltage ahead of the drum switch mechanism.
- Pitted or Carbon-Fouled Contacts: High-arcing single-phase disconnects can deposit non-conductive carbon across switch contacts. Clean contacts with 600-grit electrical contact abrasive cloth.
Severe Switch Arcing, Contact Welding, or Voltage Spikes
Premature terminal degradation or rapid contact pitting indicates mechanical misapplication or incorrect sequence switching. Verify that wire insulation is not pinched under terminal pressure plates, creating intermittent shorts to the metal switch casing. If the installation powers heavy industrial drives, evaluate three-phase dual voltage wiring methods and consider upgrading to a magnetic reversing contractor system to provide zero-voltage protection and automatic electrical interlocks.
Forward Reverse Single Phase Drum Switch Connection Diagram Technical FAQ
How do I reverse a single-phase motor that only has four leads coming out of the frame?
A four-lead single-phase motor typically exposes leads T1, T4 (main run winding) and T5, T8 (auxiliary start winding). To wire this motor to a drum switch, connect L1 to switch Terminal 1, L2 to switch Terminal 3, motor lead T1 to Terminal 2, motor lead T4 to Terminal 4, motor lead T5 to Terminal 5, and motor lead T8 to Terminal 6. Install jumper links between Terminal 1 and 2, and Terminal 3 and 4 as directed by the drum switch wiring schematic.
Why does my single-phase motor refuse to reverse when I throw the drum switch while running?
Single-phase induction motors utilize a centrifugal switch that disconnects the start winding once the rotor reaches approximately 75% of full rated operating speed. If you move the drum switch handle from Forward to Reverse while the motor is running at full speed, the start winding circuit remains electrically open. The motor will continue running in its original direction under the influence of the main run winding field. You must allow the motor to decelerate below the centrifugal switch re-engagement threshold (or complete stop) before reversing handle position.
Can I use a 3-pole three-phase drum switch to reverse a single-phase motor?
Yes, a standard 3-pole reversing drum switch designed for three-phase motors can be configured for single-phase reversing duty. Two of the switch poles are used to cross-invert auxiliary start leads T5 and T8, while the remaining pole switches L1 or L2 power to the main run winding. Always install jumper bridges across the designated terminals according to the specific switch wiring diagram to ensure continuous current pathing to run leads T1 and T4.
What size wire gauge and fuse protection should I use for a drum switch installation?
Wire gauge selection depends on full-load motor amperage (FLA) and conductor distance. For a typical 1.5 HP motor operating at 120V AC drawing 16 to 20 Amps, use a minimum of 12 AWG copper conductors rated for 75°C. For a 3 HP motor operating at 240V AC drawing 15 Amps, 12 AWG copper wire is also standard. Fuse or circuit breaker protection should be sized according to NEC Article 430, utilizing time-delay dual-element fuses rated at 175% to 225% of motor nameplate FLA to handle initial inrush currents without nuisance tripping.
How do I wire a drum switch if my single-phase motor has built-in thermal overload protection?
If the motor features a manual or automatic reset thermal overload protector integrated into the terminal box (P1 and P2 leads), the overload protector must remain wired in series with incoming line power L1 before the drum switch power input terminals. Connect incoming Hot line L1 directly to motor overload lead P1. Connect overload output lead P2 to switch Terminal 1. This ensures that if an over-current or over-temperature condition occurs, the overload protector interrupts power to both the run and start windings simultaneously, regardless of drum switch position.
Step-by-Step Guide to Understanding the Forward Reverse Single Phase Drum Switch Connection Diagram
Identify – Inspect motor nameplate wiring diagram to confirm leads T1, T4 (run winding) and T5, T8 (start winding) are isolated.
Locate – Position the drum switch box and remove the cover to access terminals labeled 1, 2, 3, 4, 5, and 6.
Reference – Use the connection diagram to assign incoming power L1 to terminal 1 and incoming neutral/L2 to terminal 3.
Connect/Route – Wire run lead T1 to terminal 1, run lead T4 to terminal 3, and start leads T5 and T8 to cross-switching terminals 2 and 4.
Verify – Perform a continuity test in Forward, Off, and Reverse handle settings to ensure correct contact closure without short circuits.
Troubleshoot – Energize circuit; if motor hums without rotating, re-check start capacitor circuit and centrifugal switch contact continuity.
