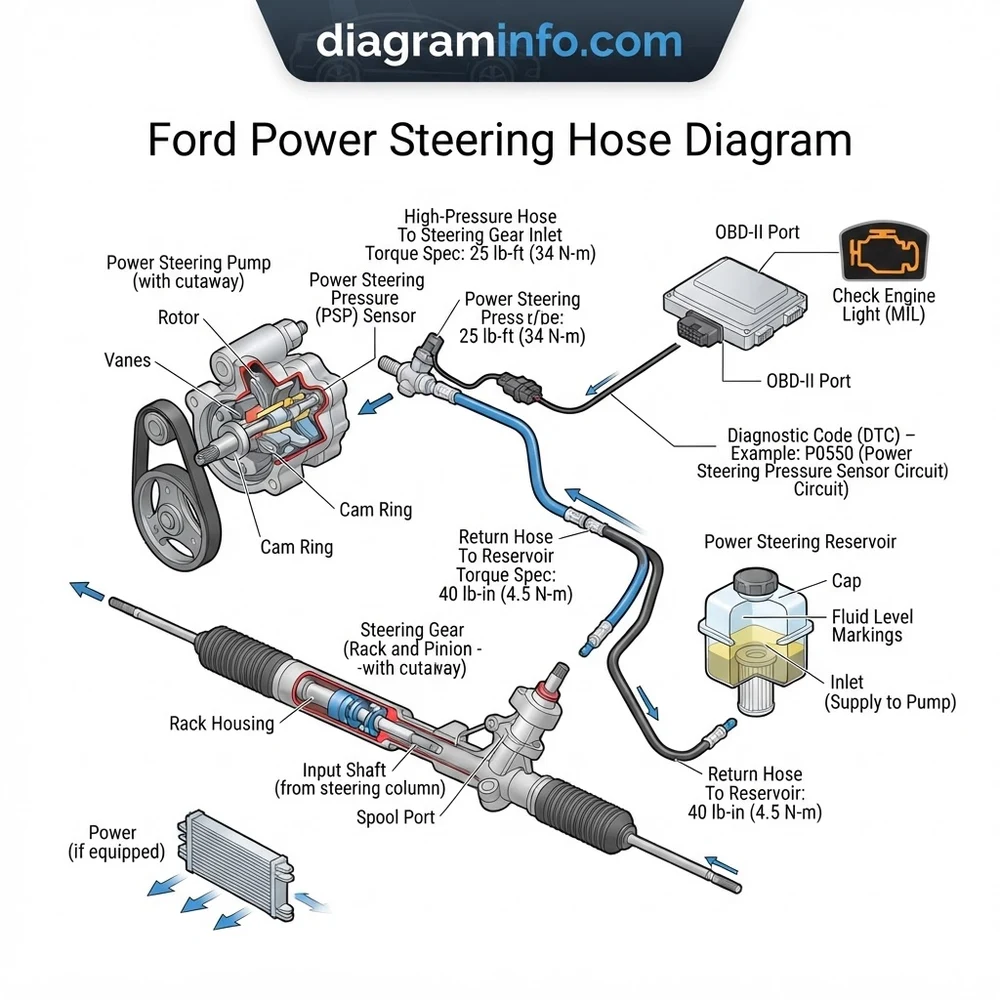

Ford Power Steering Hose Diagram: 2026 Routing
A Ford power steering hose diagram maps the high-pressure supply line from the pump to the steering gear and the low-pressure return line back to the reservoir. High-pressure fittings require a torque spec of 20–25 lb-ft, while low-pressure lines use spring clamps. It also shows the power steering pressure switch connector.
📌 Key Takeaways
- High-pressure flare nut fittings require a strict torque spec of 20-25 lb-ft to prevent leaks.
- The power steering pressure switch sends continuous engine load signals directly to the ECU.
- A shorted pressure switch wire can trigger a check engine light and set an active diagnostic code.
- Rubber-to-hardline crimp junctions are the most common points for high-pressure fluid leaks.
- Replacing low-pressure return hoses is suitable for DIY, but high-pressure line installs require system bleeding.
Navigating the hydraulic architecture of a Ford hydraulic power steering system requires a precise understanding of high-pressure fluid routing, return line placement, and sensor integration. The OEM Ford power steering hose diagram serves as the definitive blueprint for tracing high-pressure feed lines, low-pressure return loops, power steering cooler lines, and electronic switch connections across Modular V8, Duratec, and EcoBoost engine platforms. Understanding line paths, connection interface types, and proximity to thermal boundaries is essential for accurate diagnostics, leak prevention, and maintaining optimal hydraulic assist dynamics without inducing pump cavitation or mechanical seal failure.
Ford Power Steering Hose Diagram: Comprehensive Component Identification
A standard Ford power steering system relies on a closed-loop hydraulic circuit operating under static and dynamic pressure conditions. Tracing lines on a Ford power steering hose diagram requires identifying five main physical components and their interconnecting hydraulic lines. The high-pressure line delivers pressurized fluid from the power steering pump directly to the rack and pinion valve body or recirculating ball steering gear. This line features multi-layer reinforced synthetic rubber mated to double-braided steel tubing and swaged crimp fittings engineered to withstand peak operating pressures exceeding 1,500 PSI.
Recommended Best Deal Products
The low-pressure return hose routes spent fluid from the steering gear back to the remote or pump-mounted fluid reservoir. Depending on the vehicle package—such as Super Duty towing configurations—the return circuit routes fluid through an auxiliary fluid-to-air cooler mounted behind the front grille. The power steering pressure (PSP) switch is inline on the high-pressure side or directly threaded into the power steering pump housing. This sensor monitors hydraulic pressure spikes and relays real-time voltage inputs to the engine ECU to trigger engine idle compensation.
Understanding physical line routing is critical during engine service. High-pressure lines often pass within close proximity to the timing chain cover, lower radiator coolant flow pipes, and engine oil pressure sending units. Incorrect line installation or missing routing brackets can lead to chassis contact vibration, thermal degradation from nearby exhaust plumbing, or abrasive wear against front timing cover castings.
| Component Name | Diagram Identification | Operating Pressure Range | Interface Type |
|---|---|---|---|
| High-Pressure Feed Hose | Pump Outlet to Steering Rack Valve Body | 800 – 1,500 PSI | Swivel Nut with O-Ring / O-Ring Captive Fitting |
| Low-Pressure Return Line | Steering Gear to Fluid Cooler / Reservoir | 30 – 100 PSI | Beaded Hose Barb with Worm-Drive or Constant-Tension Clamp |
| Power Steering Fluid Cooler Line | Inline Return Loop across Front Core Support | 15 – 50 PSI | Quick-Connect Spring-Lock / Barb Fitting |
| PSP Switch / Sensor Port | Inline High-Pressure Hose or Pump Body | 800 – 1,500 PSI (Hydraulic Input) | M10x1.25 Threaded Port with Viton Seal |
| Reservoir Suction Hose | Reservoir Base to Power Steering Pump Inlet | Atmospheric / Gravity Feed | Molded Low-Pressure Hose with Spring Clamp |
Engine ECU Integration, Torque Specs, and Hydraulic Line Interconnections
Modern Ford hydraulic steering systems do not operate in total isolation from engine electronics. The integrated Power Steering Pressure (PSP) switch provides vital feedback to the engine ECU. When steering load increases—such as turning the wheels at a full lock while stationary—hydraulic system pressure rises sharply. The PSP switch closes (or alters its internal resistance), sending a signal to the ECU. The ECU responds immediately by adjusting the idle air control (IAC) valve position or advancing the electronic throttle body plate to prevent engine speed sag or stalling.
If the high-pressure line leaks or the PSP switch circuit experiences an electrical open or short, the ECU logs a diagnostic code such as P0550, P0551, or P0552. This event illuminates the check engine light on the instrument cluster. Diagnosis via an OBD-II scanner can distinguish between mechanical pressure drops and sensor circuit faults. For complete pinout details and circuit testing protocols, refer to our comprehensive Ford Engine Control Module Wiring Guide.
• High-Pressure Line Swivel Fitting to Steering Rack: 25 lb-ft (34 Nm)
• High-Pressure Line Fitting to Power Steering Pump: 26 lb-ft (35 Nm)
• Power Steering Pressure (PSP) Switch to Hose Port: 17 lb-ft (23 Nm)
• Steering Gear Return Hose Tube Nut: 20 lb-ft (27 Nm)
• Pump Mounting Bracket Bolts (to Front Engine Cover): 35 lb-ft (47 Nm)
Physical clearance around adjacent mechanical assemblies is another essential technical consideration. On Ford 4.6L, 5.4L V8, and 3.5L EcoBoost engines, the high-pressure steering hose routes directly over the timing chain front cover and close to the lower engine oil pressure sender. Improper orientation of the swivel fittings can cause mechanical chafing against the timing cover or bend nearby oil pressure switch terminals. Always verify that line hold-down brackets align with OEM cross-member studs to maintain minimum clearances from rotating accessory belts and engine coolant flow hoses.
Common Ford Power Steering Hose Diagram Failures and Leak Symptoms
Hydraulic power steering hoses operate under severe thermal, mechanical, and chemical stress. Over time, rubber degradation and mechanical fatigue create distinct failure modes requiring immediate service. Tracing these issues using a Ford power steering hose diagram simplifies pinpointing the root cause before catastrophic hydraulic pressure loss occurs.
Never attempt to check for high-pressure power steering leaks using your bare hands while the engine is running. System operating pressures reaching 1,500 PSI can cause fluid injection injuries. Always use a piece of cardboard or an ultraviolet leak-detection lamp to trace fluid weeping near crimped line fittings.
The primary failure modes and technical symptoms include:
- Metal-to-Rubber Crimp Separation: Thermal cycling causes the outer rubber wall to harden and shrink away from the swaged metal collar on the high-pressure hose. This failure presents as chronic fluid weeping that spraying fluid across the engine bay, often dripping onto lower control arms or timing chain cover seals.
- Teflon O-Ring Seal Deformation: The quick-connect swivel fittings on Ford steering racks use a non-reusable Teflon sealing ring. Reusing an old seal or over-torquing the fitting warps the ring, causing low-volume pressure leaks that contaminate nearby engine oil pressure sensors.
- Fluid Aeration and Pump Cavitation: A pinhole leak or loose clamp on the low-pressure reservoir suction hose allows air to be drawn into the pump without showing visible external fluid leaks. This air entrainment causes fluid foaming, severe pump whining during turns, and erratic steering assist.
- PSP Switch Internal Membrane Blowout: High-pressure fluid can bypass the internal diaphragm of the PSP switch and leak directly into the electrical connector housing. This creates a high-resistance short circuit, triggering an OBD-II diagnostic code, illuminating the check engine light, and causing erratic idle speed under steering load.
Diagnostic Steps for Tracing the Ford Power Steering Hose Line
Diagnosing Pressure Drops and Air Entrainment
Begin diagnostic procedures by confirming fluid level and condition in the power steering reservoir. If the fluid appears milky or foamy, air enters the system from the suction side of the pump or through a degraded reservoir-to-pump O-ring seal. Clean all fluid residue from the hose assembly using solvent. Connect an OBD-II diagnostic scanner to check for pending P0550 series trouble codes if the vehicle experiences engine stall conditions during parking maneuvers. To review related steering gear diagnostic procedures, check our Ford Rack and Pinion Diagnostic Manual.
Step-by-Step High-Pressure Hose Replacement
When replacing a failed high-pressure hose using the OEM Ford power steering hose diagram as your routing reference, follow this technical procedure:
- System Depressurization & Fluid Recovery: Suction spent power steering fluid out of the master reservoir using a fluid extractor. Place a drain basin directly beneath the rack and pinion valve body.
- Disconnect Electrical Interfacing: Disconnect the wiring harness connector from the PSP switch attached to the high-pressure hose line.
- Remove Swivel Fittings: Use a dedicated flare-nut wrench (typically 18mm or 16mm depending on model year) to loosen the high-pressure fitting at the steering rack. Disconnect the upper fitting at the power steering pump. Do not use open-ended wrenches, as they risk rounding the soft brass line nuts.
- Replace Sealing Elements: Discard old Teflon seals from the tube ends. Install a fresh Teflon seal using a tapered installation tool to prevent stretching the ring beyond its yield point.
- Torque Fasteners to OEM Specification: Route the new line following the exact path indicated on the Ford power steering hose diagram. Thread fittings by hand to prevent cross-threading, then torque the pump and rack fittings to 26 lb-ft and 25 lb-ft respectively using a calibrated torque wrench.
System Vacuum Bleeding Protocol
Improper bleeding causes fluid cavitation and rapid pump wear. Never bleed a newly serviced Ford power steering system solely by starting the engine and turning the wheel. Instead, follow the OEM vacuum evacuation protocol:
Attach a hand vacuum pump equipped with a rubber stopper cone to the top neck of the power steering reservoir. Draw a vacuum of 20–25 in-Hg. With the front wheels lifted off the ground and engine off, slowly cycle the steering wheel lock-to-lock 15–20 times while maintaining vacuum pressure. This draws trapped air pockets out of the rack valve body and high-pressure hose loops without aerating the fluid.
After purging trapped air, top off the reservoir with specified fluid (e.g., MERCON V or MERCON LV per owner specification). Start the engine and verify smooth, silent operation across the entire steering sweep. For complete system fluid specifications, refer to our detailed Ford Hydraulic System Bleeding Specification Chart.
Ford Power Steering Hose System Technical FAQ
What causes the check engine light to illuminate after replacing a Ford power steering hose?
The check engine light typically illuminates if the Power Steering Pressure (PSP) switch connector was left unplugged, if the harness wire was damaged during service, or if the switch itself shorted internally from fluid intrusion. The engine ECU detects an open circuit or constant incorrect voltage reading, logging an OBD-II diagnostic code such as P0550 or P0551. Reconnect the sensor or clear stored codes using an OBD-II scan tool after repairing the connection.
Why does the high-pressure fitting on the steering rack leak even after installing a new hose?
This issue almost always stems from reusing an old Teflon sealing ring, failing to install the ring using the correct flared sizing tool, or over-torquing the swivel nut. The fitting relies on a dedicated Teflon ring that crushes slightly upon initial installation to form a hydraulic seal. If over-torqued beyond the 25 lb-ft torque spec, the soft sealing surface warps, allowing high-pressure fluid to escape past the threads.
How does power steering hose routing affect timing chain cover and oil pressure sender clearance?
On Ford Modular V8 and EcoBoost engines, the high-pressure steering hose routes around the lower front corner of the engine block near the front timing chain cover and oil pressure sending unit. If the hose bracket is installed incorrectly or rotated out of its index notch, engine movement causes the hard steel line to rub against the aluminum timing chain cover or snap the fragile pin connector on the oil pressure sender.
What is the correct torque spec for Ford high-pressure power steering fittings?
The standard OEM torque spec for the high-pressure fitting at the rack and pinion valve body is 25 lb-ft (34 Nm). The fitting connecting the high-pressure hose to the power steering pump outlet requires 26 lb-ft (35 Nm). The PSP switch threaded directly into the hose port requires 17 lb-ft (23 Nm). Always use a flare-nut socket or crowfoot wrench attached to a torque wrench to ensure accurate fastener tension.
Can a failing power steering pressure switch cause the engine to stall at low speeds?
Yes. When turning the steering wheel at idle (such as during parallel parking), hydraulic pressure climbs rapidly, creating mechanical drag on the engine serpentine belt drive. The PSP switch signals the ECU to increase idle air control bypass or throttle plate angle to compensate. If the switch fails to send this signal due to an internal fault or blocked hydraulic port, the ECU will not adjust idle speed, causing the engine to bog down or stall completely.
