Ford F-150 Fuel System Diagram: Component & Repair Guide 2026

This comprehensive guide details the intricacies of the 6.7L Power Stroke V8 diesel engine’s fuel system, commonly found in the Ford F-150 and Super Duty series from 2011 onwards. The accompanying ford f150 fuel system diagram provides a visual roadmap, illustrating the flow of diesel fuel from the tank, through multiple filtration stages, to the high-pressure injection system. Understanding this complex network is crucial for accurate diagnosis, preventative maintenance, and effective repair, ensuring optimal performance and longevity for your Ford F-150.

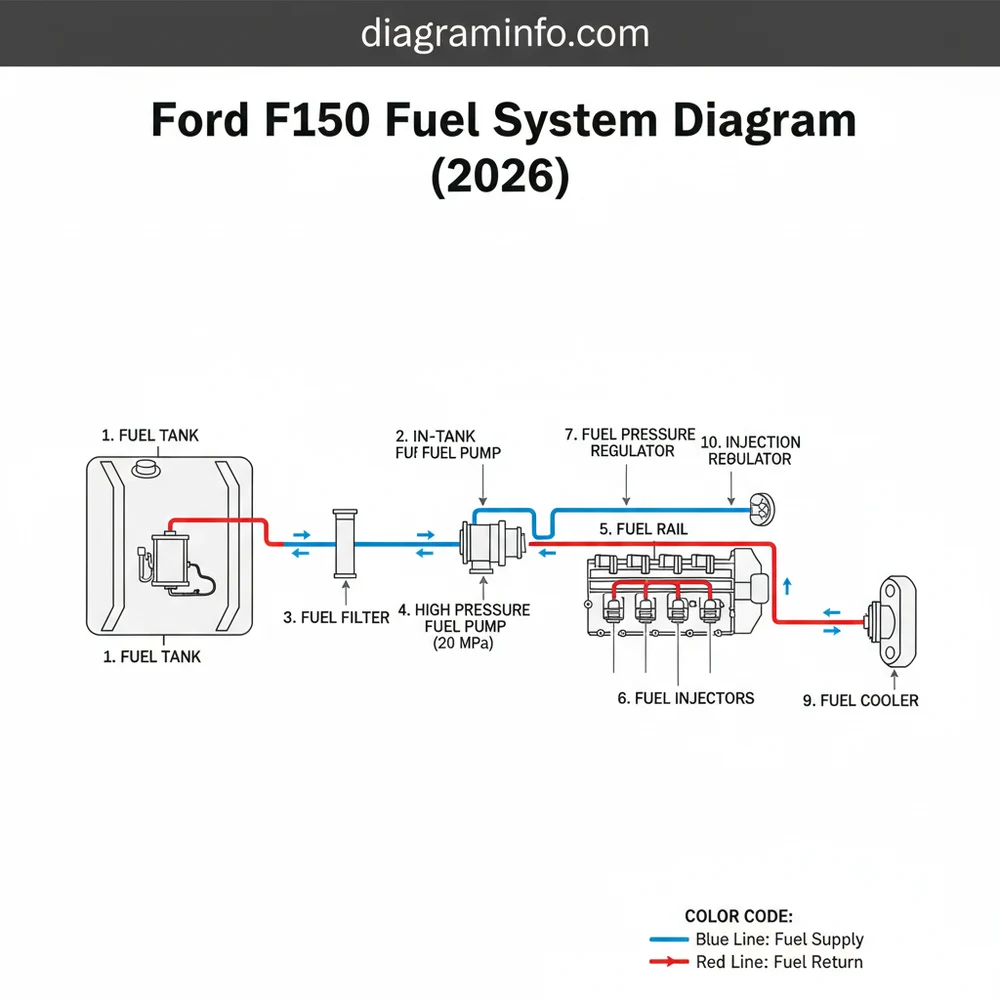

[Insert detailed diagram of the 6.7L Power Stroke fuel system here, clearly labeling all components discussed below, including fuel tank, lift pump, primary fuel filter, fuel cooler, HPFP, fuel rails, injectors, fuel pressure sensor, fuel return line, etc.]

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

FUEL SYSTEM COMPONENTS BREAKDOWN

The 6.7L Power Stroke fuel system, as depicted in the ford f150 fuel system diagram, is a sophisticated low-pressure and high-pressure architecture designed to deliver precisely metered, highly atomized fuel to the combustion chambers. Each component plays a vital role:

• Fuel Tank: Stores the diesel fuel. Equipped with a sending unit to monitor fuel level and an in-tank fuel pickup module.
• Low-Pressure Fuel Pump (Lift Pump): Located in the frame rail, this electric pump (often integrated with the primary fuel filter housing) draws fuel from the tank and supplies it under moderate pressure (typically 45-75 psi) to the rest of the low-pressure system. It often functions as a primer pump during filter changes or air introduction.
• Primary Fuel Filter/Water Separator (Fuel Bowl): This crucial filter, often located on the frame rail, removes larger contaminants and separates water from the diesel fuel. It typically incorporates a water-in-fuel (WIF) sensor and a drain valve. Some designs also integrate a fuel heater to prevent gelling in cold temperatures.
• Fuel Cooler: Positioned in the fuel return line, this component reduces the temperature of unused fuel returning to the tank. Excess heat can degrade fuel quality and impact pump life.
• High Pressure Fuel Pump (HPFP): Mounted on the front of the engine, driven by the camshaft, this pump (e.g., Bosch CP4.2) increases fuel pressure dramatically, up to 29,000 psi (2000 bar), for delivery to the fuel rails. It’s a critical, high-precision component.
• Secondary Fuel Filter: Located on the engine, this filter (often a finer micron rating than the primary) provides a final stage of filtration before the HPFP, protecting its sensitive internal components.
• Fuel Rails: These common rails distribute high-pressure fuel evenly to each injector. They contain pressure sensors and the injection pressure regulator (or Fuel Quantity Control Valve/Fuel Metering Unit on the HPFP itself), which electronically controls the rail pressure.
• Fuel Injectors: Piezoelectric injectors, precisely controlled by the Powertrain Control Module (PCM), spray atomized fuel directly into the combustion chambers. They are capable of multiple injection events per combustion cycle.
• Fuel Pressure Sensor (FPS): Measures fuel pressure in the high-pressure rail, providing feedback to the PCM for precise pressure regulation.
• Fuel Return Line: Carries excess fuel, not used by the injectors or required by the HPFP, back to the fuel tank. This line often passes through the fuel cooler.
• Fuel Temperature Sensor: Monitors fuel temperature, providing data to the PCM for adjustments to injection timing and quantity, and for managing the fuel heater.

According to Ford’s service literature, maintaining specified fuel pressure throughout the system is paramount for engine performance and emission control. Any deviation, as indicated by Diagnostic Trouble Codes (DTCs) such as P0087 (Fuel Rail/System Pressure – Too Low) or P0088 (Fuel Rail/System Pressure – Too High), warrants immediate investigation of these components.

COMMON FAILURE POINTS & SYMPTOMS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Understanding the common failure points in your Ford F-150’s 6.7L Power Stroke fuel system is key to proactive maintenance and efficient troubleshooting. Referring to the ford f150 fuel system diagram will aid in pinpointing the affected component:

1. High Pressure Fuel Pump (HPFP) Failure:
   • Symptom: Sudden loss of power, engine stalling, hard starting, rough idle, metallic grinding noises from the engine. DTCs P0087, P0088, P0191, P0193.
   • Diagnosis: Often catastrophic, leading to internal component wear and metal debris contamination of the entire high-pressure system. A fuel sample check for metal particulates (gold/silver flecks) is a critical diagnostic step. Low fuel rail pressure during cranking or running, observed via a scan tool, is a strong indicator.
2. Low-Pressure Fuel Pump (Lift Pump) Failure:
   • Symptom: Engine cranking but no start, extended cranking times, reduced engine power under load, whistling or whining noise from the frame rail. DTCs P0087, P0230.
   • Diagnosis: Verify fuel pressure at the primary filter housing. OEM specifications typically call for 45-75 psi. A clogged primary filter can also cause low pressure, mimicking a failing pump.
3. Clogged Fuel Filters (Primary and Secondary):
   • Symptom: Reduced engine power, poor acceleration, hesitation, hard starting, engine stalling, fuel gelling in cold weather. DTC P0087.
   • Diagnosis: Inspect filter condition. Pressure drop across filters (if test ports are available) can indicate restriction. Replacing filters is a common first step for fuel delivery issues.
4. Fuel Injector Issues (Sticking, Leaking, Clogging):
   • Symptom: Rough idle, misfires (DTC P030x), excessive smoke (black or white), poor fuel economy, increased exhaust gas temperature (EGT), fuel dilution in engine oil.
   • Diagnosis: Conduct an injector contribution test using a diagnostic scanner. A cylinder balance test can identify underperforming injectors. A return flow test can pinpoint leaking injectors.
5. Injection Pressure Regulator (IPR) / Fuel Rail Pressure Sensor (FRPS) Failure:
   • Symptom: Unstable rail pressure, engine stalling, hard starts, rough idle, inability to build high pressure. DTCs P0191, P0192, P0193.
   • Diagnosis: Monitor desired vs. actual fuel rail pressure with a scan tool. A significant discrepancy suggests an IPR issue, while an erratic or implausible reading might point to the FRPS.
6. Water-in-Fuel (WIF) Sensor Malfunction:
   • Symptom: WIF light illuminated on the dashboard, even after draining the primary fuel filter.
   • Diagnosis: Check sensor continuity and wiring. Ensure the primary filter housing is indeed free of water. A faulty sensor can lead to unnecessary draining or, worse, not alert you to actual water presence.

REPAIR & REPLACEMENT STEPS: 6.7L Power Stroke Fuel Filter Service

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Regular fuel filter replacement is paramount for the longevity of your 6.7L Power Stroke and is arguably the most common preventative maintenance task on the ford f150 fuel system diagram. Ford recommends replacement every 20,000 to 22,500 miles or 30,000 km, or every 2 years, whichever comes first. This procedure covers both the primary (frame-mounted) and secondary (engine-mounted) filters.

Tools and Materials:

• New Ford OEM Primary Fuel Filter (FC-4093) and Secondary Fuel Filter (FD-4615)
• Fuel filter wrench (specific for Ford 6.7L Power Stroke)
• Drain pan (minimum 2-gallon capacity)
• Gloves, safety glasses
• Shop rags

Procedure:

1. Preparation & Safety:
   • Park the vehicle on a level surface and engage the parking brake.
   • Allow the engine to cool.
   • Locate the primary fuel filter on the driver’s side frame rail and the secondary fuel filter on top of the engine, towards the front. Refer to your ford f150 fuel system diagram for exact locations.
   • Place the drain pan beneath the primary fuel filter housing.
   • Open the yellow drain valve on the bottom of the primary filter housing to drain any water and fuel. Allow it to drain completely. Close the valve once drained.
2. Primary Fuel Filter Replacement:
   • Using the specialized fuel filter wrench, carefully unscrew the primary fuel filter housing cap counter-clockwise. This cap may be tight.
   • Once the cap is loose, lower the entire assembly (cap and filter) into the drain pan.
   • Remove the old filter from the cap. Note the orientation of the filter (usually, the larger sealing ring is towards the cap).
   • Remove and discard the old O-ring from the cap and replace it with the new O-ring supplied with the new filter. Lightly lubricate the new O-ring with clean diesel fuel.
   • Install the new primary fuel filter onto the cap, ensuring it’s fully seated and oriented correctly.
   • Carefully lift the cap and filter assembly back into position and thread it clockwise onto the housing. Hand-tighten until snug, then use the wrench to tighten it an additional 1/4 to 1/2 turn. Do not overtighten, as this can crack the plastic housing. Manufacturer specs indicate tightening to 25 Nm (18 lb-ft).
3. Secondary Fuel Filter Replacement:
   • Place a few shop rags around the secondary fuel filter housing on top of the engine to catch any spilled fuel.
   • Using the fuel filter wrench, unscrew the secondary fuel filter cap counter-clockwise.
   • Lift out the cap and old filter element.
   • Remove and discard the old O-ring from the cap and replace it with the new O-ring. Lightly lubricate the new O-ring with clean diesel fuel.
   • Install the new secondary fuel filter into the housing, ensuring it drops all the way down and seats properly.
   • Install the cap and hand-tighten, then use the wrench to tighten an additional 1/4 to 1/2 turn. The specified torque for this cap is also around 25 Nm (18 lb-ft).
4. Priming the Fuel System:
   • With both new filters installed and all drain valves closed, turn the ignition to the “ON” position (do not start the engine).
   • You will hear the low-pressure fuel pump (primer pump) activate. Allow it to run for approximately 30 seconds.
   • Turn the ignition “OFF,” then “ON” again. Repeat this cycle at least 6-8 times to fully prime the system and remove air. On some models, cycling the key 2-3 times is sufficient, but 6.7L Power Strokes benefit from extra priming to ensure the HPFP and fuel rails are full.
   • Listen for the pump sound to change or quiet down, indicating the system is pressurized.
5. Final Checks:
   • Start the engine. It may crank a little longer than usual as residual air is purged.
   • Allow the engine to idle for several minutes.
   • Carefully inspect both fuel filter housings for any leaks.
   • Shut off the engine and re-check for leaks after a few minutes.

FAQ

What is the function of the fuel return line in a Ford F-150 diesel fuel system?

The fuel return line is a critical component that carries unused diesel fuel from the fuel rails and the high-pressure fuel pump back to the fuel tank. This continuous circulation helps to regulate fuel temperature, prevent pressure buildup in the high-pressure system, and ensure that the fuel delivered to the injectors is always fresh and properly conditioned. As shown in the ford f150 fuel system diagram, it typically passes through the fuel cooler to dissipate heat absorbed during its journey through the engine.

How often should I drain the water from the primary fuel filter on my 6.7L Power Stroke?

Ford recommends draining the water from the primary fuel filter/water separator whenever the “Water In Fuel” (WIF) warning light illuminates on your instrument cluster. If you frequently operate in humid climates or use fuel from less reputable sources, it’s a good practice to check and drain it every 5,000 to 10,000 miles as a preventative measure, even if the light hasn’t come on. Regular draining prevents water from reaching the more sensitive components like the HPFP and injectors.

What are the common symptoms of a failing High Pressure Fuel Pump (HPFP) on the 6.7L Power Stroke?

A failing HPFP can manifest with severe symptoms due to its central role in delivering fuel at extremely high pressures. Common indicators include sudden and significant loss of engine power, engine stalling, extended cranking times without starting, rough idling, and the illumination of the “Check Engine” light with DTCs such as P0087 (Fuel Rail/System Pressure – Too Low). In catastrophic failures, metallic grinding noises from the pump area and metal shavings found in the fuel filter or tank are tell-tale signs, often necessitating a complete fuel system replacement. For more on diagnosing engine performance issues, see our article on Engine Performance Diagnostics.

Can I use biodiesel in my Ford F-150 6.7L Power Stroke?

The 6.7L Power Stroke engine is generally approved for use with up to B20 biodiesel (a blend containing 20% biodiesel and 80% petroleum diesel) meeting ASTM D7467 specifications. Using higher blends (B30, B50, B100) or non-approved biodiesel can lead to issues such as fuel filter clogging, injector problems, fuel system component degradation, and potential warranty voidance. Always verify specific blend recommendations in your vehicle’s owner’s manual. Biodiesel can also affect fuel heater performance and require more frequent fuel filter changes. Understanding fuel types and their compatibility is crucial, similar to optimizing your vehicle’s exhaust system upgrade.

Where is the injection pressure regulator located and what does it do?

In the 6.7L Power Stroke, the function of an injection pressure regulator is often integrated into the High Pressure Fuel Pump (HPFP) assembly or managed by a Fuel Rail Pressure Sensor and a Fuel Quantity Control Valve. The primary control for fuel rail pressure is typically handled by a metering valve on the HPFP that controls the amount of fuel entering the high-pressure pumping elements, and a Pressure Relief Valve on the fuel rail itself acts as a safety mechanism. The Fuel Rail Pressure Sensor provides feedback to the PCM, which then commands the metering valve to achieve the desired rail pressure for optimal combustion. This precise control is critical for efficiency and emissions, just as careful selection of components is for a turbocharger upgrade guide.
