6.7 Cummins Fuel System Diagram: Component & Repair Guide 2026
The 6.7 Cummins fuel system diagram typically illustrates the path from the fuel tank through the lift pump, fuel filters (primary and secondary, often including a fuel bowl), high-pressure fuel pump (HPFP), common rail, fuel injectors, and the fuel return line back to the tank. It highlights the high-pressure and low-pressure circuits.
📌 Key Takeaways
- Verify fuel pressure at the lift pump, typically 10-25 PSI, and at the common rail, which can exceed 25,000 PSI under load.
- Identifying the high-pressure fuel pump (HPFP) and injection pressure regulator is crucial for diagnosing common rail issues.
- Always relieve fuel system pressure before disconnecting lines to prevent injury and spills, ensuring proper torque on fittings upon reassembly.
- The most common failure point in the 6.7 Cummins fuel system is often fuel contamination leading to damage of the HPFP.
- Complex diagnostic issues involving injector balance rates or HPFP failure often require specialized tools and professional Cummins diagnostics.
The 6.7L Cummins Turbo Diesel engine, a mainstay in Ram heavy-duty trucks from 2007.5 onward, relies on a sophisticated high-pressure common rail (HPCR) fuel system for its impressive power and efficiency. Understanding the intricacies of this system is paramount for diagnostics, maintenance, and optimizing engine performance. This detailed guide, accompanied by a comprehensive `6.7 cummins fuel system diagram`, dissects the components and operational flow, highlighting critical points that experienced technicians and owners must know. The diagram illustrates the complete path of diesel fuel from the tank, through filtration and pressurization, to the precise injection into the cylinders, and its return. Note that specific component layouts and designs can vary between model years, particularly pre- and post-2013 revisions.
FUEL SYSTEM COMPONENTS BREAKDOWN

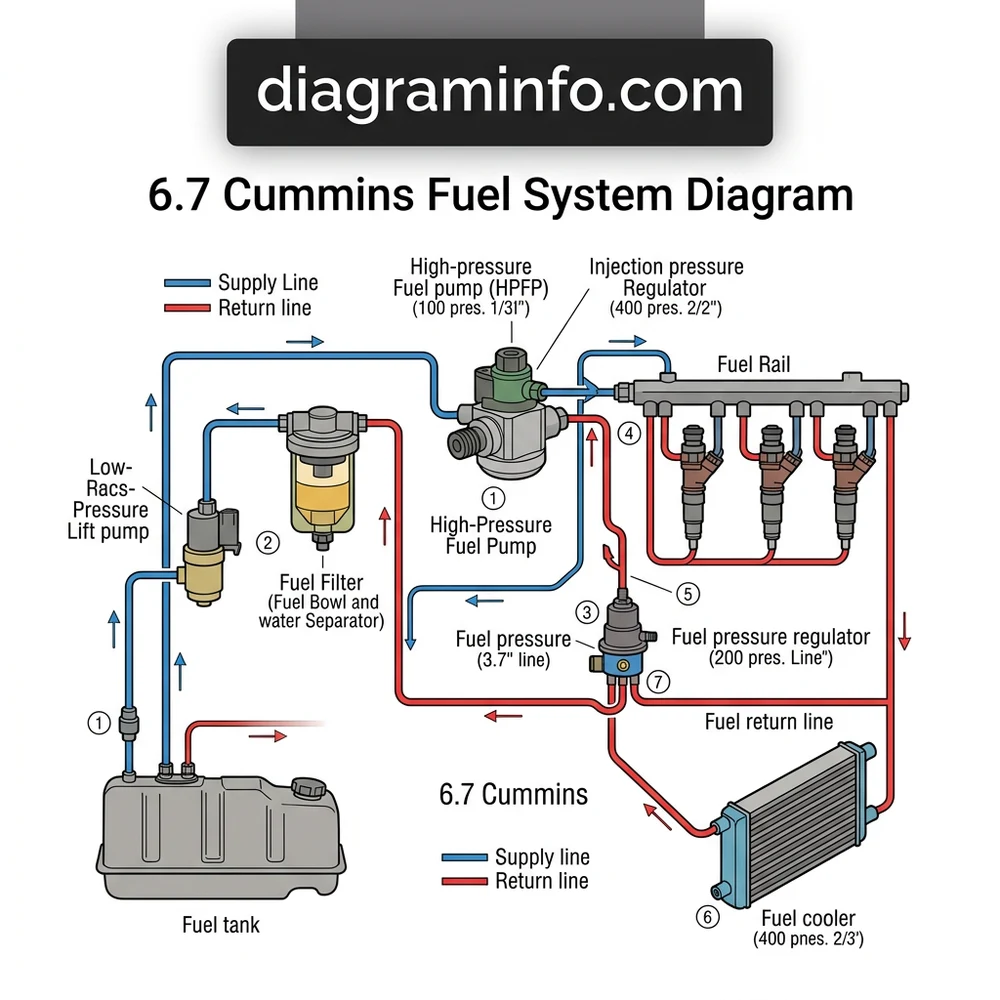

The 6.7L Cummins fuel system is a complex network designed for precision fuel delivery. As depicted in the diagram above, fuel travels through multiple stages of filtration and pressurization before injection.
- Fuel Tank and Sending Unit: The reservoir for diesel fuel, equipped with a sending unit to monitor fuel level and sometimes an integrated fuel pump (on later models).
- Fuel Heater: Located within the fuel module or filter housing on some models, the `fuel heater` uses either an electric heating element or engine coolant to prevent fuel gelling in cold temperatures, ensuring uninterrupted flow.
- Lift Pump (Fuel Transfer Pump): Early 6.7L Cummins (2007.5-2012) typically use a frame-mounted lift pump. Post-2013 models integrate the lift pump within the fuel tank module. This low-pressure pump draws fuel from the tank and supplies it to the primary fuel filter and `high pressure fuel pump` (`HPFP`). Its consistent operation is crucial for preventing cavitation in the HPFP.
- Primary Fuel Filter Housing / `Fuel Bowl`: This assembly, often located on the engine or frame rail, houses the primary fuel filter. On many models, it incorporates the Water-in-Fuel (WIF) sensor and the `primer pump`. The `fuel bowl` is designed to separate water from the diesel fuel, protecting downstream components.
- `Primer Pump`: An essential component, often integrated into the primary `fuel bowl` on pre-2013 models or accessible via specific procedures on later models. It’s used to manually re-prime the fuel system after filter changes or fuel system repairs, removing air that could otherwise prevent starting.
- Secondary Fuel Filter: Beginning in 2013, the 6.7L Cummins adopted a dual fuel filter system, adding a second, finer micron filter on the engine block to further purify the fuel before it reaches the `HPFP` and injectors.
- `High Pressure Fuel Pump` (`HPFP`): The heart of the common rail system, this pump (initially a Bosch CP3, later a Bosch CP4 for specific model years) generates pressures exceeding 26,000 PSI. It draws low-pressure fuel from the lift pump and pressurizes it for the common rail. Understanding the specific `HPFP` generation is vital for diagnosing metal contamination issues, particularly with the CP4. For in-depth diagnostics of `High Pressure Fuel Pump` failures, consult our dedicated article on CP3 vs. CP4 Reliability and Service.
- `Injection Pressure Regulator` (IMV/MPROP/FCA): Also known as the Inlet Metering Valve (IMV), Metering/Proportioning Valve (MPROP), or Fuel Control Actuator (FCA), this solenoid-controlled valve regulates the amount of fuel entering the `HPFP` to control rail pressure. Its precise operation is critical for maintaining desired injection pressures at various engine loads.
- Fuel Rail (Common Rail): A high-strength steel accumulator that stores fuel pressurized by the `HPFP`. It distributes this high-pressure fuel to each injector. A pressure relief valve is typically integrated into the rail as a safety measure.
- Fuel Injectors: Electronically controlled, precision-engineered components that receive high-pressure fuel from the common rail and spray it into the combustion chambers at exact timings and quantities. Their operation is critical for power, emissions, and fuel economy.
- `Fuel Return Line` System: Collects unused fuel from the injectors, the `HPFP`, and the pressure relief valve on the common rail. This fuel, now heated from pressurization, is routed back towards the fuel tank.
- `Fuel Cooler`: Positioned within the `fuel return line` circuit, often near the engine or frame. The `fuel cooler` is crucial for reducing the temperature of the hot return fuel before it re-enters the main tank. This prevents excessive heating of the tank fuel, which can lead to density changes and vapor lock issues.
- Fuel Pressure and Temperature Sensors: Throughout the system, various sensors monitor pressure (e.g., fuel rail pressure sensor, low-pressure fuel sensor) and temperature to provide crucial data to the Engine Control Module (ECM) for precise fuel system management.
COMMON FAILURE POINTS & SYMPTOMS
The sophisticated nature of the 6.7 Cummins fuel system means that several components are susceptible to failure, each with distinct symptoms that aid in diagnosis. Referencing the `6.7 cummins fuel system diagram` helps locate these critical points.
- Lift Pump (Fuel Transfer Pump):
- Symptom: Extended cranking, hard starting (especially after sitting), loss of power under load, P0148 (Fuel Delivery 1 Malfunction), P0087 (Fuel Rail/System Pressure – Too Low) at low RPMs.
- Diagnosis: Monitor low-side fuel pressure (before the `HPFP`). OEM specifications typically require 10-20 PSI. Pressure below 5-7 PSI indicates a failing lift pump or severe restriction. Check for proper voltage to the pump.
- `High Pressure Fuel Pump` (`HPFP` – CP3 or CP4):
- Symptom: Severe loss of power, stalling, inability to start, excessive black smoke, persistent P0087 or P0088 (Fuel Rail/System Pressure – Too High), metal contamination in fuel filters. CP4 pumps are particularly known for catastrophic internal failure leading to widespread metal contamination.
- Diagnosis: Monitor actual vs. desired rail pressure. A significant deviation, especially during cranking or acceleration, points to `HPFP` or `injection pressure regulator` issues. Disassemble fuel filters to inspect for metallic debris if a CP4 is suspected.
- Fuel Injectors:
- Symptom: Rough idle, misfires (P030X codes), excessive white, blue, or black smoke, poor fuel economy, fuel dilution of engine oil, knocking noises.
- Diagnosis: Perform injector return flow test, balance rates (if available via scan tool), or perform cylinder contribution tests. Fuel in the `fuel return line` should be within specified limits. If you’re experiencing persistent misfires, further details on troubleshooting and rebuilding options can be found in our resource for 6.7 Cummins Injector Maintenance.
- `Injection Pressure Regulator` (FCA/MPROP/IMV):
- Symptom: Erratic rail pressure (spiking or dropping), stalling, P0087, P0088. Symptoms can mimic `HPFP` failure.
- Diagnosis: Monitor FCA/MPROP duty cycle and actual vs. desired rail pressure. A faulty FCA can stick open or closed, directly affecting rail pressure control. Often, a physical inspection for debris or electrical checks are necessary.
- Fuel Filters (Primary and Secondary):
- Symptom: Reduced power, hard starting, frequent illumination of Water-in-Fuel (WIF) light, rough running, P0087. Severe restriction can starve the `HPFP`.
- Diagnosis: Regular maintenance is key. If symptoms occur, replace both filters. Always drain the `fuel bowl` (water separator) regularly as part of routine service.
- `Fuel Return Line` Leaks or Restrictions:
- Symptom: Fuel smell, visible fuel leaks, engine running issues (less common as a direct cause, more as a symptom of injector issues), low rail pressure (if severe restriction prevents proper return flow or allows air entry).
- Diagnosis: Visual inspection of lines and fittings, pressure testing the return system (if applicable). Pay close attention to the banjo bolt seals and plastic quick-connect fittings.
Early 6.7L Cummins engines (2007.5-2012) utilized a Bosch CP3 `HPFP`. Later models (2013-2018.5) transitioned to a Bosch CP4 `HPFP` for emissions compliance, although some 2019+ models reverted to an updated CP3 or a similar design. The CP4 is notorious for internal wear and introducing metal particulate into the fuel system, which necessitates different diagnostic and preventative strategies.
REPAIR & REPLACEMENT STEPS: FUEL FILTER REPLACEMENT (2013+ DUAL FILTER SYSTEM)
Proper fuel filtration is paramount for the longevity of your 6.7L Cummins fuel system. This procedure details the replacement of both the chassis-mounted primary filter and the engine-mounted secondary filter on 2013 and newer models. This service directly impacts the functionality of the `fuel bowl` and the subsequent fuel delivery.
Always wear appropriate personal protective equipment (PPE), including eye protection and fuel-resistant gloves, when working with diesel fuel. Diesel fuel is flammable and can cause skin irritation. Disconnect the negative battery cable before beginning work to prevent accidental starting or electrical shorts. Ensure the engine has cooled to prevent burns.
- Preparation:
- Park the vehicle on a level surface and engage the parking brake.
- Gather necessary tools: suitable filter wrenches (cap-style for the primary, strap-style or large adjustable for the secondary), drain pan, shop rags, and new OEM or equivalent quality filters (e.g., Mopar 68197867AA for primary, 68157291AA for secondary, or equivalent aftermarket such as Fleetguard FS53000/FS53001).
- Ensure you have a clean container to inspect the drained fuel for contamination.
- Primary Fuel Filter Replacement (Chassis-Mounted):
- Locate the primary fuel filter housing, typically on the driver’s side frame rail, forward of the fuel tank. This housing contains the `fuel bowl`.
- Place a drain pan beneath the filter housing. Open the drain valve at the bottom of the `fuel bowl` to allow fuel and any separated water to drain.
- Once drained, use a suitable cap-style filter wrench to loosen and remove the filter cartridge. Be prepared for some residual fuel spillage.
- Carefully remove the old filter and O-ring. Thoroughly clean the filter housing and cap mating surfaces.
- Lubricate the new O-ring with clean diesel fuel or a small amount of engine oil. Install the O-ring onto the new filter cartridge.
- Thread the new filter cartridge onto the housing by hand until snug. Use the filter wrench to tighten to the manufacturer’s specified torque.
- Secondary Fuel Filter Replacement (Engine-Mounted):
- Locate the secondary fuel filter housing on the top front of the engine, typically above the engine oil cooler.
- Place a drain pan beneath the filter housing to catch any fuel.
- Using a strap wrench or large adjustable wrench, carefully loosen the secondary fuel filter cap. Once loose, remove the cap and the old filter element.
- Clean the filter housing bore and the cap threads. Remove the old O-rings from the cap.
- Lubricate the new O-rings (typically one large, one small) with clean diesel fuel or engine oil and install them onto the filter cap.
- Install the new filter element into the housing. Ensure it sits flush.
- Thread the filter cap back onto the housing by hand, then tighten with the wrench to the specified torque.
- Priming the Fuel System:
- This is a critical step to remove air from the system, preventing hard starting or damage to the `HPFP`. The 6.7L Cummins (2013+) utilizes an in-tank `primer pump` that activates when the ignition is cycled.
- Turn the ignition key to the “RUN” position (without starting the engine). Listen for the lift pump to run (a distinct hum). This cycle typically lasts about 20-30 seconds.
- Turn the ignition key to “OFF”. Repeat this “RUN-OFF” cycle 4-6 times. This allows the lift pump to push fuel through the new filters, displacing air back to the tank via the `fuel return line`.
- After priming, attempt to start the engine. It may take a few extra seconds of cranking to push out any remaining air. Do not excessively crank the engine, as this can overheat the starter or put undue stress on the `HPFP`. If the engine doesn’t start after a reasonable amount of cranking, repeat the priming procedure.
- Final Inspection:
- Once the engine is running, visually inspect both filter housings for any signs of fuel leaks. Pay attention to the O-ring seals.
- Check for any illuminated dashboard warning lights (e.g., Check Engine, Water-in-Fuel).
- Top off the fuel tank if necessary. To optimize fuel quality and understand the benefits of specific additives, see our guide on Diesel Fuel System Additives.
Primary Fuel Filter Torque (Chassis): 17 ft-lbs (23 Nm)
Secondary Fuel Filter Torque (Engine): 17 ft-lbs (23 Nm)
Always consult your specific vehicle’s service manual for the most accurate and up-to-date torque specifications, as they may vary slightly by model year.
FAQ
What is the main difference between early (2007.5-2012) and late (2013+) 6.7 Cummins fuel systems?
The primary differences lie in the lift pump location and the fuel filtration system. Early models often used a frame-mounted lift pump and a single combined fuel filter/water separator. Later models (2013+) typically integrate the lift pump within the fuel tank and employ a dual fuel filter system: a primary filter on the frame and a secondary, finer filter on the engine. Some model years also saw a change from the Bosch CP3 `HPFP` to the Bosch CP4.
How often should I replace the fuel filters on my 6.7 Cummins?
Manufacturer specifications recommend replacing both fuel filters every 15,000 miles or 12 months, whichever comes first, under normal operating conditions. If you operate the vehicle in severe conditions (e.g., dusty environments, frequent towing, or using lower quality fuel), more frequent replacement may be necessary. Always drain the `fuel bowl` (water separator) whenever the Water-in-Fuel (WIF) light illuminates, or at regular intervals as part of preventative maintenance.
What does a P0087 code (Fuel Rail/System Pressure – Too Low) typically indicate on a 6.7 Cummins?
A P0087 code signifies that the actual fuel rail pressure is significantly lower than the desired pressure commanded by the ECM. Common causes include a failing lift pump, restricted fuel filters, a faulty `high pressure fuel pump` (`HPFP`), a malfunctioning `injection pressure regulator` (FCA/MPROP), or leaking fuel injectors. Less common causes can be a plugged fuel tank sending unit screen or issues with the fuel rail pressure sensor itself. A detailed flow chart for diagnosing low fuel rail pressure codes like P0087 is available in our Advanced Diagnostics for 6.7L Cummins Fuel Systems.
What is the purpose of the `fuel return line` and the `fuel cooler`?
The `fuel return line` serves two main purposes: it returns unused fuel from the `HPFP`, common rail, and injectors back to the fuel tank, and it also functions as a pathway for excess fuel when the `injection pressure regulator` is bypassin. This continuous flow helps cool the `HPFP` and common rail components. The `fuel cooler` is then placed in this return path to reduce the temperature of the returning fuel. High fuel temperatures in the tank can lead to fuel degradation, vapor lock issues, and can affect the density of the fuel, impacting fuel system performance. The `fuel cooler` ensures that the fuel returning to the tank is at an optimal temperature.
Step-by-Step Guide to Understanding the 6.7 Cummins Fuel System Diagram: Component & Repair Guide 2026
Identify – Locate the lift pump, fuel filter housing (including fuel bowl), high-pressure fuel pump (HPFP), common rail, and injectors on the diagram.
Locate – Trace the fuel supply path from the tank to the HPFP and the fuel return line back, noting the placement of filters and sensors.
Reference – Use the diagram to understand the flow of fuel, identifying low-pressure and high-pressure sections and the role of the injection pressure regulator.
Connect/Route – If replacing components, use the diagram to ensure proper routing of fuel lines and electrical connections to the HPFP and injectors.
Verify – After any work, use the diagram to double-check all connections, ensuring no lines are kinked and all components are correctly installed.
Troubleshoot – If issues persist, reference the diagram to isolate specific components in the fuel path (e.g., lift pump, filters, HPFP) for targeted diagnosis.
Frequently Asked Questions
What are the main components of the 6.7 cummins fuel system diagram?
The 6.7 Cummins fuel system includes the fuel tank, lift pump, primary and secondary fuel filters (often with a fuel bowl), the high-pressure fuel pump (HPFP), common rail, fuel injectors, and the fuel return line. The injection pressure regulator plays a critical role in controlling rail pressure.
What are symptoms of a failing 6.7 cummins fuel system diagram pump?
Symptoms of a failing lift pump or HPFP can include hard starting, loss of power under load, rough idle, engine stalling, excessive smoke, and diagnostic trouble codes related to low fuel pressure. Contamination in the fuel bowl can also impact pump performance.
How do I diagnose a fuel leak in 6.7 cummins fuel system diagram?
To diagnose a fuel leak, visually inspect all fuel lines, especially the fuel return line, connections, and components like the fuel filter housing and injectors. Look for wet spots or fuel puddles. A dye test or a professional pressure test may be necessary for intermittent or hidden leaks.
What is the fuel pressure spec for 6.7 cummins fuel system diagram?
The low-pressure side (lift pump output) typically maintains 10-25 PSI. The high-pressure fuel pump (HPFP) generates common rail pressure ranging from about 5,000 PSI at idle to over 25,000 PSI under heavy load. The injection pressure regulator manages this immense pressure.
How long does 6.7 cummins fuel system diagram fuel pump last?
A 6.7 Cummins lift pump can last 100,000-200,000 miles, while the high-pressure fuel pump (HPFP) typically lasts longer, often 150,000-300,000 miles, if properly maintained with clean fuel. Fuel contamination is the primary cause of premature HPFP failure.
Can I replace the 6.7 cummins fuel system diagram fuel filter myself?
Yes, replacing the 6.7 Cummins fuel filters (primary and secondary, often part of the fuel bowl assembly) is a common DIY maintenance task. It typically involves draining the fuel bowl, unscrewing the old filters, lubricating new filter seals, and hand-tightening. Proper bleeding is crucial afterward.
