Craftsman Air Compressor Parts Diagram: Identification Guide
A craftsman air compressor parts diagram provides a visual breakdown of the unit’s internal structure and component layout. It illustrates how the motor, pump, tank, and pressure switches work together as a cohesive system. This schematic is essential for identifying specific part numbers when ordering replacements for repairs or routine maintenance.
📌 Key Takeaways
- Provides a complete map of the internal system structure
- Identifying the pressure switch and manifold is critical for safety
- Always depressurize the tank before interacting with any components
- Use the diagram to cross-reference OEM part numbers accurately
- Essential for troubleshooting air leaks and motor startup issues
Maintaining your machinery requires precision, and finding a clear craftsman air compressor parts diagram is the critical first step for any DIY enthusiast or professional technician. These diagrams serve as the definitive map for your equipment, revealing the complex internal system that powers your pneumatic tools. Whether you are dealing with a sudden drop in pressure or performing routine seasonal maintenance, having a detailed overview of the machine’s configuration ensures you can identify the exact component needed without guesswork. In this guide, we will break down the structural layout of common Craftsman models, explain how to interpret a technical schematic, and provide a comprehensive blueprint for troubleshooting your air system effectively. By the end of this article, you will have the confidence to navigate any parts list and restore your compressor to peak operational efficiency.
Understanding the Core System Configuration

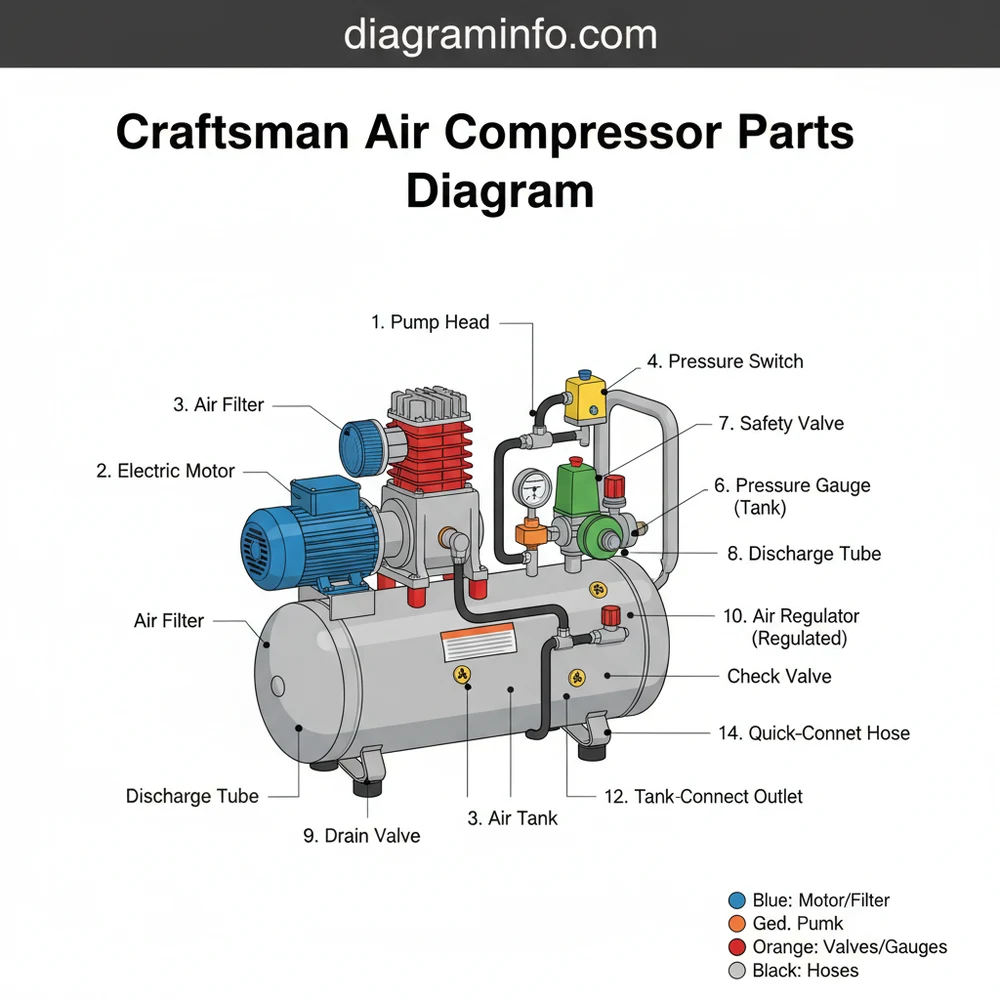

When you first look at a craftsman air compressor parts diagram, you are viewing an “exploded” perspective of the machine. This means every component is visually pulled apart from the main body while remaining aligned with its mounting point. This specific layout is designed to show the relationship between the motor, the pump assembly, and the storage tank. Understanding the structure begins with identifying the primary sub-assemblies that make up the whole.
The heart of the diagram is typically the pump assembly. In many Craftsman models, particularly the oil-free versions, this includes the piston, the cylinder sleeve, and the valve plate. The schematic will show these stacked vertically or horizontally depending on the model. You will notice that the piston is connected to a rod, which in turn attaches to an eccentric bearing on the motor shaft. This mechanical configuration is the primary source of air compression. Surrounding this are the cooling fins and the shroud, which are essential for heat dissipation.
Another critical section of the blueprint is the manifold and pressure control system. This area is often the most crowded part of the diagram because it contains the pressure switch, the regulator, the gauges, and the safety relief valve. Each of these parts is linked by specific fittings and tubes. The diagram will clearly label the “unloader tube,” which is a small copper or plastic line that connects the pressure switch to the check valve. Identifying this specific component is vital for fixing issues where the motor struggles to start under pressure.
Finally, the diagram illustrates the tank and its peripheral hardware. This includes the drain valve at the bottom, the wheels or rubber feet for stability, and the handle assembly. By studying the overview provided in the parts list, you can see how the high-pressure air travels from the pump, through the check valve, and into the reservoir. This visual breakdown helps you understand that a leak at the regulator might not require a new pump, or a faulty gauge does not mean the tank is compromised.
Most Craftsman diagrams use a numerical reference system. Each part in the drawing has a small number next to it, which corresponds to a master list containing the official part name, its part number (e.g., KK-4835), and the quantity required for the assembly.
Step-by-Step Guide to Reading and Using the Diagram
Interpreting a craftsman air compressor parts diagram requires a systematic approach. It is not just about finding a picture that looks like your machine; it is about matching the technical specifications to the physical hardware in front of you. Follow these steps to master the art of reading your compressor’s schematic.
1. Locate the Model Number and Series
Before you even open a diagram, you must find the data plate on your compressor. Craftsman models often start with a prefix like “919” or “106.” This prefix identifies the original manufacturer. Once you have the full model number, you can ensure you are looking at the correct version of the blueprint. Even models that look identical on the outside may have different internal configurations based on their production year or series.
2. Orient the Schematic to Your Machine
Place your compressor on a workbench and rotate it so it matches the orientation of the primary diagram. If the diagram shows the motor on the left, position your machine the same way. This prevents “mirroring” errors where you might mistake a left-side intake for a right-side exhaust. Look for large landmarks in the drawing, such as the air tank or the power cord entry point, to anchor your perspective.
3. Identify the Failure Zone
Instead of looking at the whole layout at once, focus on the specific area where you are experiencing trouble. If your compressor is running but not building pressure, focus on the “Top End” or “Head Assembly.” The diagram will show the head bolts, the head gasket, the valve plate, and the cylinder seal. By isolating this section of the schematic, you can see exactly which gaskets or reeds need to be inspected.
4. Trace the Air Flow Path
Use the diagram to follow the path air takes through the system. Start at the air filter (intake), move through the valve plate into the cylinder, out through the discharge tube, past the check valve, and into the tank. Then, follow it from the tank through the manifold to the regulator and out to the quick-connect couplers. Following this logical flow on the blueprint allows you to identify “bottlenecks” or leak points in the system.
5. Distinguish Between Individual Parts and Assemblies
One common mistake beginners make is ordering an individual screw when they actually need a complete kit. Many Craftsman diagrams use boxes or dashed lines to group parts together. For example, a “piston kit” might be represented by a box surrounding the piston, the ring, the screw, and the cylinder sleeve. If you see a bracketed group, it often means those parts are sold as a single unit to ensure proper fitment and performance.
6. Cross-Reference Part Numbers with Specifications
Once you identify a component on the layout, find its number in the legend. Take note of any specific measurements provided. For example, a belt might be listed with its length and width, or an O-ring might have its inner diameter specified. This is your insurance policy against ordering the wrong size, especially for older models where parts might have been superseded by newer versions.
7. Verify Fastener Requirements
The schematic is an excellent tool for identifying missing hardware. If you bought a used compressor or took one apart months ago, the diagram will show you exactly what type of bolt (hex, Torx, or Phillips) and what size (1/4-20, M6, etc.) is required for each mounting point. It also indicates where washers or lock-nuts are necessary to prevent vibration from loosening the structure.
Before attempting to disassemble any part shown in the diagram, you must unplug the unit and completely bleed all air from the tank. A pressurized system can cause parts to eject with dangerous force when bolts are loosened.
Common Issues and Troubleshooting with Diagrams
A craftsman air compressor parts diagram is more than just an ordering tool; it is a diagnostic weapon. Most common issues can be traced back to a specific failure point on the schematic. For instance, if your compressor is “leaking down” (losing pressure while turned off), the diagram directs your attention to two specific spots: the check valve and the pressure switch unloader.
The check valve, usually located where the discharge tube enters the tank, prevents air from flowing backward into the pump. The schematic shows its internal structure, including a spring and a rubber disc. If the diagram shows these as separate pieces, you may be able to clean them; if it shows them as a sealed unit, you know you need a full replacement. Similarly, if air is leaking specifically from the pressure switch, the blueprint helps you identify the unloader valve—a small component that often fails due to debris.
Another frequent problem is a “stalling” motor. By looking at the motor and capacitor layout in the schematic, you can identify the start capacitor. If the diagram shows a plastic cover over the motor end, you know exactly where to look for this component. The diagram serves as a visual checklist: Check the belt (if applicable), check the capacitor, check the pressure switch contacts, and check the check valve. By eliminating these points one by one based on the layout, you save hours of frustration.
Tips and Best Practices for Maintenance
To keep your compressor running as smoothly as the day you bought it, use the craftsman air compressor parts diagram as a roadmap for preventative maintenance. Don’t wait for a breakdown to study the system’s structure. Instead, use the blueprint to create a maintenance schedule.
- ✓ Drain the Tank Daily: Locate the drain valve on your diagram. Opening this after every use prevents moisture from rusting the tank from the inside out.
- ✓ Inspect the Air Filter: The schematic shows the filter housing at the intake. A clogged filter forces the pump to work harder, shortening the life of the piston rings.
- ✓ Check Fastener Torque: Vibration is the enemy of any mechanical system. Use the diagram to identify all structural bolts and ensure they remain snug.
- ✓ Lubricate Only When Specified: Use the diagram to determine if your model is “Oil-Free” or “Oil-Lube.” Adding oil to an oil-free pump will ruin the PTFE piston ring shown in your schematic.
When it comes to purchasing components, always prioritize high-quality replacements. While generic parts may seem like a cost-saving measure, they often lack the precise tolerances shown in the original craftsman air compressor parts diagram. A piston ring that is off by even a fraction of a millimeter can lead to reduced CFM (Cubic Feet per Minute) and increased heat.
If your model is older and the specific part is discontinued, use the schematic to find the “Specs” of the part. You can often find a “Universal” replacement for items like pressure switches or gauges by matching the NPT thread size and PSI range indicated on the original diagram.
Conclusion: Mastering Your Compressor’s Layout
Navigating a craftsman air compressor parts diagram is a fundamental skill for anyone who relies on pneumatic power. By understanding the visual language of the schematic—from the pump’s internal configuration to the manifold’s complex layout—you transform a mysterious machine into a manageable project. Remember that the diagram is your best resource for identifying the specific component that needs attention, ensuring that your repairs are accurate and long-lasting.
Whether you are performing a simple valve replacement or a full pump overhaul, always refer back to the blueprint to confirm the placement of seals, the orientation of gaskets, and the sequence of assembly. By following the steps outlined in this guide and adhering to safety precautions, you can maintain the structural integrity of your Craftsman air compressor for years to come. Your machine is an investment in your productivity; using the correct parts diagram ensures that investment continues to pay off with every trigger pull of your air tools.
Frequently Asked Questions
Where is the check valve located?
The check valve is typically located at the point where the discharge tube enters the air tank. In the craftsman air compressor parts diagram, you will find it between the pump and the tank. It prevents pressurized air from flowing backward into the pump head once the motor stops.
What does a parts diagram show?
This diagram shows the complete internal structure and configuration of the compressor. It illustrates the spatial relationship between the motor, pump, pressure switch, and manifold. It helps users understand the layout of fasteners, gaskets, and seals required for a full teardown or specific component replacement during maintenance.
How many electrical connections does the pressure switch have?
Most craftsman air compressor pressure switches have four primary electrical connections: two for the incoming power supply and two leading to the motor. Additionally, there is often a physical connection for the unloader valve line. Always refer to the specific wiring schematic within your system configuration for safety.
What are the symptoms of a bad pressure switch?
Symptoms include the compressor failing to start when the tank is empty or refusing to shut off after reaching maximum pressure. If the unloader valve leaks constantly after the motor stops, the switch or the check valve might be failing. Checking the diagram helps locate these connected components.
Can I replace the pump seals myself?
Yes, replacing pump seals is a common DIY task if you have a clear parts diagram. The diagram ensures you understand the order of the component stack and gasket orientation. However, ensure the unit is unplugged and the air tank is completely drained before starting any repair.
What tools do I need for component replacement?
You will generally need a set of adjustable wrenches, hex keys, and a screwdriver set. For deeper repairs shown in the layout, a torque wrench may be required to properly seat head bolts. Always keep thread sealant or Teflon tape handy for reassembling any threaded air connections.
