3.9L Dodge Dakota V6 Vacuum Engine Diagram: Routing & Identification 2026
The 3.9L V6 vacuum system connects the intake manifold to components like the PCV valve, brake booster, and emission controls. Key lines include the main brake booster hose, PCV valve hose from the valve cover, and smaller lines to EGR and cruise control. Proper routing is crucial for preventing leaks and maintaining optimal engine performance.
📌 Key Takeaways
- Vacuum manifold pressure for a healthy 3.9L V6 typically ranges from 17-21 inches Hg at idle, indicating system integrity.
- Identify the PCV valve hose connecting the passenger-side valve cover to the intake manifold, crucial for crankcase ventilation.
- Always use application-specific vacuum hose material (e.g., silicone, reinforced rubber) to prevent collapse or degradation under heat.
- The most common failure point is deteriorated or cracked vacuum hoses, leading to lean conditions, rough idle, and misfires.
- While hose replacement is DIY, complex vacuum reservoir or sensor diagnostics often require specialized tools and professional expertise.
Navigating the complex systems of the Dodge Dakota 3.9L V6 engine, particularly its intricate vacuum network, is critical for maintaining optimal performance and emissions compliance. This Magnum-series power plant, widely used across Dodge Dakota, Ram 1500, and Durango models from the early 1990s through the early 2000s, relies heavily on a properly functioning vacuum system for various ancillary components. This comprehensive article provides a detailed examination of the 3.9L V6’s vacuum diagram, offering essential insights for diagnosis, maintenance, and repair, ensuring you can precisely identify and address vacuum-related issues. Understanding this system is paramount for any technical professional working with these robust engines.
Engine Component Breakdown: Decoding Your 3.9L V6 Vacuum System
While a vacuum diagram primarily illustrates the pathways and components of the engine’s vacuum system, it inherently connects to the fundamental operations of the internal combustion engine itself. A properly functioning vacuum system directly influences air-fuel mixture, emissions control, and even ancillary systems that support the main mechanical components like the cylinder head and valve train. Below, we identify key vacuum-related components visible in the diagram, along with their roles in the 3.9L V6 Magnum engine.
- Intake Manifold Vacuum Tree/Ports: The primary source of engine vacuum, located on the intake manifold. This central point distributes vacuum to various accessories and control systems. Any leaks here directly affect engine idle quality and performance. Manufacturer specifications indicate a typical vacuum reading of 17-21 in. Hg at idle for a healthy 3.9L V6.
- PCV (Positive Crankcase Ventilation) Valve & Hoses: Essential for removing blow-by gases from the engine block and oil pan, preventing sludge buildup and maintaining crankcase pressure. The PCV valve typically connects to a vacuum port on the intake manifold and, when functioning correctly, ensures these gases are re-combusted, promoting cleaner emissions and extending engine life.
- Brake Booster Vacuum Line: A large-diameter hose connecting the intake manifold to the brake booster. This vacuum provides power assist for the braking system. A leak in this line or a faulty booster diaphragm results in a hard brake pedal and often a noticeable engine vacuum leak, manifesting as a rough idle.
- EGR (Exhaust Gas Recirculation) Valve & Solenoid: On the 3.9L V6, the EGR system typically uses vacuum to open the EGR valve, allowing a metered amount of exhaust gas into the intake manifold to lower combustion temperatures and reduce NOx emissions. The EGR solenoid, often controlled by the PCM, regulates the vacuum supply to the valve.
- MAP (Manifold Absolute Pressure) Sensor: While not a vacuum line itself, the MAP sensor measures the absolute pressure within the intake manifold (which is inverse to vacuum) and sends this data to the Powertrain Control Module (PCM). This input is critical for calculating engine load, timing, and fuel delivery. Its vacuum port must be clear and sealed.
- EVAP (Evaporative Emission Control) System Purge Solenoid/Valve: Connects to the intake manifold vacuum and controls the flow of fuel vapors from the charcoal canister into the engine for combustion. This prevents fuel vapors from escaping into the atmosphere, contributing to the engine’s overall emissions compliance.
- Vacuum Reservoir: Some configurations of the 3.9L V6, especially those with vacuum-operated cruise control or HVAC blending doors, include a vacuum reservoir. This component stores vacuum to ensure consistent operation of these accessories during periods of low engine vacuum (e.g., wide-open throttle).
- Cruise Control Servo (if vacuum-actuated): For models equipped with vacuum-operated cruise control, a vacuum line connects to a servo that actuates the throttle. A leak here can disable cruise control and introduce an engine vacuum leak.
While the LSI keywords like crankshaft, camshaft, connecting rod, and piston represent the core mechanical elements generating power within the engine block, the vacuum system is intrinsically linked to their efficient operation. For instance, an accurate MAP sensor reading, influenced by manifold vacuum, ensures the correct air-fuel mixture for optimal combustion above the pistons, preventing conditions that could stress the connecting rods and crankshaft. Thus, a robust vacuum system is not just about emissions but about the overall health and performance envelope of your 3.9L V6.
Year & Generation Coverage Table: Dodge Dakota 3.9L V6
The 3.9L V6 Magnum engine, based on Chrysler’s LA-series small-block, saw significant application in Dodge Dakota and related vehicles. Understanding its generational nuances, particularly regarding emissions and vacuum system revisions, is crucial for accurate diagnosis and repair.
| Year | Generation Code | Engine Changes/Key Characteristics | Notes on Vacuum System |
|---|---|---|---|
| 1992-1995 | 1st Gen Magnum (LA-derived) | Sequential Multi-Port Fuel Injection (SMPFI), redesigned cylinder heads for improved airflow, roller camshaft and lifters. | Early EVAP systems; prone to vacuum line degradation, particularly around EGR and PCV valves. MAP sensor design may vary slightly. |
| 1996-2003 | 2nd Gen Magnum (Refined) | Improved PCM control, OBD-II compliance, minor sensor revisions. | More complex EVAP systems with leak detection pump and multiple solenoids. Vacuum reservoir more common for accessories. Intake manifold gasket integrity becomes a critical concern for vacuum leaks. |
Common Failure Points & Troubleshooting for the 3.9L V6 Vacuum System
The 3.9L V6, while robust, is susceptible to common vacuum-related issues that can significantly impact its driveability, fuel economy, and emissions. Proactive diagnosis based on the vacuum diagram can save considerable time and expense.
Always use caution when diagnosing vacuum leaks with combustible fluids. Ensure adequate ventilation and have a fire extinguisher readily available. Exercise extreme care around rotating engine components and hot surfaces.
- Degraded Vacuum Hoses: This is the most prevalent issue. Over time, heat and engine vibrations cause rubber and plastic vacuum lines to become brittle, crack, or completely separate.
- Symptoms: Rough idle, engine surging, reduced engine power, illuminated Check Engine Light (CEL) with lean codes (e.g., P0171, P0174), malfunctioning vacuum-operated accessories (cruise control, HVAC).
- Diagnosis: Visually inspect all accessible vacuum lines for cracks, kinks, or disconnections. A smoke machine is the most effective tool, forcing smoke into the intake manifold and revealing leaks with visible plumes. Alternatively, carefully spray unlit propane or a non-flammable carburetor cleaner around vacuum connections; a change in engine RPM indicates a leak.
- Repair: Replace compromised lines with OEM-grade or high-quality silicone vacuum hose of the correct diameter.
- Intake Manifold Gasket Leaks: Particularly common on later 3.9L V6 Magnum engines, the intake manifold plenum gasket can fail, allowing oil into the intake and causing significant external or internal vacuum leaks.
- Symptoms: Oil consumption, white smoke from the exhaust (internal leak), rough idle, lean condition codes (P0171/P0174), excessive PCV system activity, whistling/hissing noises from the manifold area.
- Diagnosis: A smoke test is highly effective. Also, a vacuum gauge showing a fluctuating or low vacuum reading at idle can point to this. Often, you can see oil residue around the manifold gasket lines.
- Repair: Requires replacement of the intake manifold plenum gasket, often with upgraded components for improved durability.
- PCV Valve Malfunction: A stuck-open PCV valve acts as a continuous vacuum leak, while a stuck-closed valve can lead to excessive crankcase pressure.
- Symptoms: Stuck open: rough idle, lean codes. Stuck closed: oil leaks (due to pressure buildup), sludge formation, increased oil consumption.
- Diagnosis: Remove and shake the valve; a working valve should rattle. Visually inspect the hose for blockages or cracks.
- Repair: Replace the PCV valve and its associated hose as part of routine maintenance, typically every 30,000-50,000 miles.
- EGR Valve/Solenoid Issues: Carbon buildup can prevent the EGR valve from fully closing, causing a vacuum leak or allowing exhaust gas recirculation at incorrect times. The solenoid can also fail electrically or mechanically.
- Symptoms: Rough idle, stalling, poor acceleration, pinging/detonation (if EGR is stuck closed), CEL with P040X series codes.
- Diagnosis: Check vacuum supply to the EGR solenoid. Test the solenoid for proper operation (usually with a scan tool or by applying power/ground). Inspect the EGR valve for carbon buildup; vacuum-testing the valve directly should reveal if it holds vacuum and moves freely.
- Repair: Clean or replace the EGR valve and/or solenoid.
- Brake Booster Diaphragm Leak: A tear in the brake booster’s internal diaphragm causes a significant, constant vacuum leak.
- Symptoms: Hard brake pedal, prolonged stopping distances, distinct hissing sound from the brake pedal area when the engine is running, rough idle.
- Diagnosis: With the engine off, pump the brake pedal several times to deplete vacuum. Start the engine while holding the pedal; it should drop slightly. If it doesn’t, suspect a booster or vacuum line issue. A smoke test can confirm a booster leak.
- Repair: Replace the brake booster assembly.
Frequently Asked Questions About the Dodge Dakota 3.9L V6 Vacuum System
How do I effectively diagnose a vacuum leak on my 3.9L V6 engine?
The most effective method for locating vacuum leaks is a smoke test. A specialized smoke machine introduces non-toxic smoke into the intake manifold. The smoke will visibly escape from any cracks, disconnected hoses, or faulty gaskets, pinpointing the exact location of the leak. Alternatively, for smaller leaks, carefully spraying a non-flammable automotive starting fluid or propane (with the engine running and extreme caution) around suspected areas can cause a temporary change in engine RPM, indicating a leak. Always ensure proper ventilation and fire safety precautions.
What is the function of the PCV system on the 3.9L V6, and how does vacuum play a role?
The Positive Crankcase Ventilation (PCV) system is crucial for evacuating harmful blow-by gases (unburnt fuel and combustion byproducts) from the engine crankcase. Engine vacuum draws these gases through the PCV valve and into the intake manifold, where they are re-burned. This process prevents pressure buildup in the crankcase, which can lead to oil leaks and sludge formation, while also reducing emissions. A properly functioning PCV valve and its associated vacuum hoses are vital for maintaining engine cleanliness and efficiency.
Can a vacuum leak directly cause my 3.9L V6 to trigger “lean” diagnostic trouble codes like P0171 or P0174?
Absolutely. A vacuum leak introduces unmetered air into the intake manifold, bypassing the Mass Air Flow (MAF) sensor (if equipped, though the 3.9L V6 primarily uses a MAP sensor) and causing the air-fuel mixture to become excessively lean. The oxygen sensors detect this lean condition, and the Powertrain Control Module (PCM) attempts to compensate by adding more fuel (positive fuel trims). When this compensation reaches its limit, the PCM sets lean codes like P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2, if applicable), indicating a significant unmetered air intrusion, often due to a vacuum leak.
Where is the primary source of engine vacuum for accessories and control systems on the 3.9L V6?
The main source of engine vacuum on the 3.9L V6, as depicted in the vacuum diagram, is the intake manifold. This component generates manifold vacuum when the throttle plate is closed, creating a low-pressure area that can be harnessed. A dedicated “vacuum tree” or multiple vacuum ports are typically located on the intake manifold, distributing vacuum to various systems such as the brake booster, PCV valve, EGR solenoid, EVAP purge solenoid, cruise control servo, and sometimes HVAC controls. Maintaining the integrity of these connections is critical for the proper operation of all vacuum-dependent components.
What common symptoms might indicate a problem with the EGR vacuum system on my 3.9L V6?
Issues with the EGR vacuum system on your 3.9L V6 can manifest in several ways. If the EGR valve is stuck open due to a vacuum leak or a faulty solenoid, you might experience a rough idle, stalling, or hesitation, as exhaust gases are introduced into the intake at inappropriate times. Conversely, if the EGR valve is stuck closed (often due to carbon buildup or lack of vacuum), you might notice engine pinging or detonation, especially under acceleration, as combustion temperatures become too high. A Check Engine Light illuminating with codes in the P040X range (EGR system malfunction) is also a direct indicator of a problem with this vacuum-controlled system.

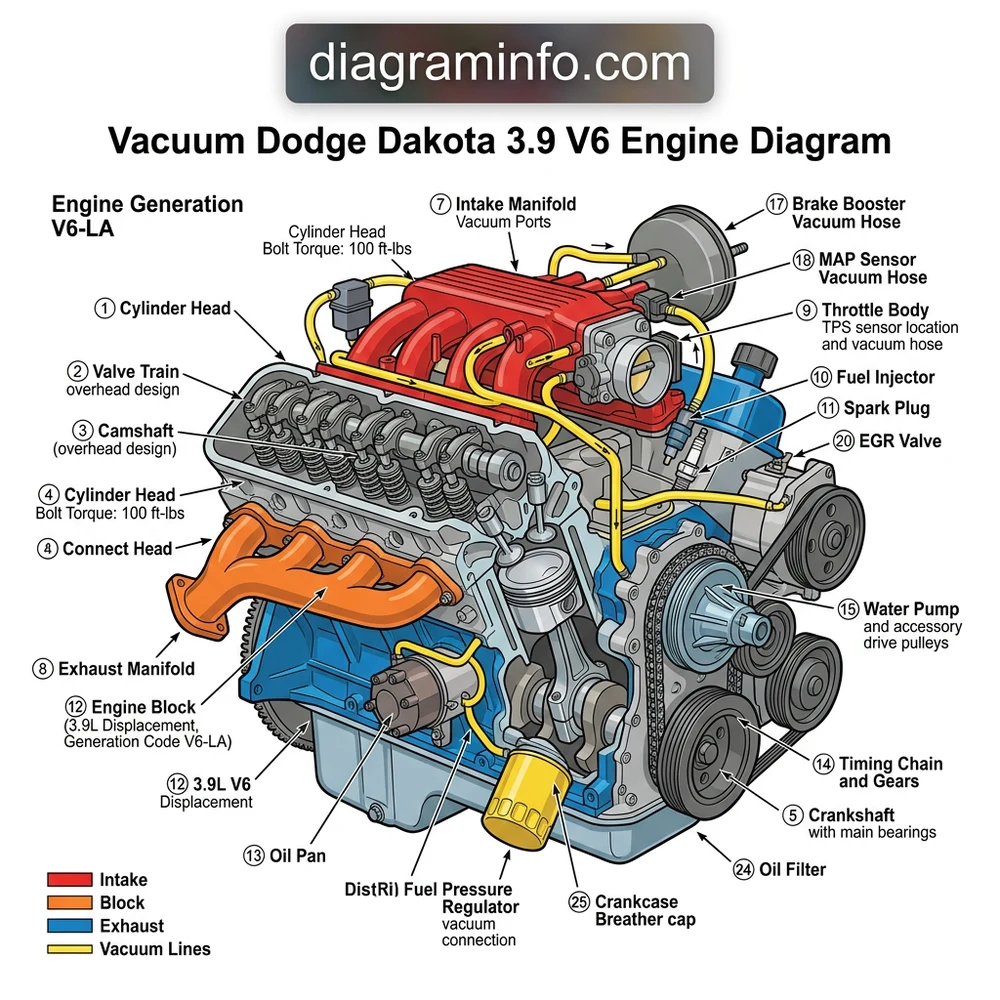

Step-by-Step Guide to Understanding the 3.9L Dodge Dakota V6 Vacuum Engine Diagram: Routing & Identification 2026
Identify – Locate the overall vacuum diagram for your specific 3.9L V6 Dakota year and engine configuration in the service manual.
Locate – Pinpoint the starting point, typically the intake manifold vacuum tree, and trace lines to destination components.
Reference – Use the diagram to confirm hose sizes, routing paths, and the connection points for the PCV valve, brake booster, and EGR valve.
Connect/Route – Carefully route new or replacement vacuum hoses, ensuring they are not kinked, pinched, or touching hot engine components.
Verify – Perform a visual inspection of all vacuum connections for tightness, and conduct a vacuum test using a gauge to confirm proper system integrity.
Troubleshoot – If vacuum levels are low or engine issues persist, use a smoke machine or carb cleaner spray to pinpoint elusive vacuum leaks before replacing components.
Frequently Asked Questions
What generation is the vacuum dodge dakota 3.9 v6 engine diagram?
The 3.9L V6 (Magnum) engine was primarily used in the first (1987-1996) and second (1997-2003) generation Dodge Dakota. Diagrams vary slightly between these generations, mainly concerning emission control components and vacuum routing specific to those model years. Always match the diagram to your specific vehicle year.
What are the main components visible in vacuum dodge dakota 3.9 v6 engine diagram?
The diagram highlights key vacuum components including the intake manifold, PCV valve, brake booster hose, EGR valve vacuum lines, cruise control servo connection, and fuel pressure regulator vacuum line. It also shows connections for evaporative emissions (EVAP) system components.
What are common failure points in vacuum dodge dakota 3.9 v6 engine diagram?
Common failure points include cracked or brittle vacuum hoses, a faulty PCV valve, leaks at the intake manifold gasket, or a failing brake booster. These issues can cause rough idle, misfires, check engine lights, and poor braking performance due to insufficient vacuum.
What is the displacement of vacuum dodge dakota 3.9 v6 engine diagram?
The engine depicted in the diagram is the 3.9-liter (239 cubic inch) V6 Chrysler LA/Magnum engine. This power plant was a popular choice for the Dodge Dakota, known for its robust design and suitability for light-duty truck applications.
How do I identify vacuum dodge dakota 3.9 v6 engine diagram year by VIN?
The tenth character of your Dodge Dakota’s VIN indicates the model year. For instance, ‘V’ typically denotes 1997, ‘W’ for 1998, and so on. Cross-reference this VIN character with a decoder chart to precisely determine your vehicle’s year and find the corresponding vacuum diagram.
What vehicles use vacuum dodge dakota 3.9 v6 engine diagram?
The 3.9L V6 engine, and thus similar vacuum system configurations, were primarily used in the Dodge Dakota pickup truck from its introduction through the 2003 model year. It was also found in the Dodge Ram Van/Wagon and Jeep Grand Cherokee (ZJ) for a brief period.
