Kitchen Sink P Trap Diagram: Step-by-Step Instructions
A kitchen sink p trap diagram illustrates the curved pipe beneath your sink designed to hold a water seal. This seal prevents sewer gases from entering your home while allowing wastewater to flow through the tailpiece and drain assembly into the main vent pipe and sewer line.
📌 Key Takeaways
- The P-trap creates a water seal to block dangerous sewer gases.
- Identifying the connection between the tailpiece and the garbage disposal.
- Hand-tighten slip nuts to prevent cracking plastic threads.
- Always use a bucket when disconnecting the drain assembly.
- Use this diagram for new installations or leak repairs.
Understanding the plumbing under your sink is essential for any homeowner looking to perform basic repairs or upgrades. When you look at a kitchen sink p trap diagram, you are seeing a specialized plumbing configuration designed to perform two critical tasks: directing wastewater into the drainage system and preventing hazardous sewer gases from entering your living space. This guide provides a comprehensive breakdown of the entire drain assembly, helping you identify components like the tailpiece, slip joint, and PVC connections. By the end of this article, you will have the technical knowledge required to install, maintain, or troubleshoot your kitchen plumbing with confidence.
Recommended Best Deal Products
The standard size for a kitchen sink P-trap is 1-1/2 inches in diameter. While bathroom sinks often use 1-1/4 inch piping, the kitchen requires the larger diameter to handle higher volumes of water and food particles from the garbage disposal.
Anatomy of a Kitchen Sink P Trap Diagram
To interpret a kitchen sink p trap diagram correctly, you must understand the sequence of components starting from the sink strainer and ending at the wall. The drain assembly is modular, meaning it is composed of several interlocking pieces held together by slip joint nuts and washers.
The first component is the sink tailpiece. This is a straight vertical pipe that connects directly to the sink strainer or the outlet of a garbage disposal. If you have a double-bowl sink, you will see a continuous waste pipe—a horizontal tube that connects the two drains before they enter a single P-trap. The P-trap itself is the “U-shaped” pipe. It consists of two parts: the trap bend (the bottom curve) and the trap arm (the horizontal piece that goes into the wall).
The geometry of the P-trap is intentional. Water sits in the bottom of the “U” curve, creating a liquid seal. This seal is the only thing standing between your kitchen and the methane, carbon monoxide, and hydrogen sulfide gases found in the municipal sewer lines. Beyond the trap arm, the pipe connects to a sanitary tee inside the wall. This tee leads down to the drain and up to the vent pipe, which allows air into the system to prevent a vacuum from siphoning the water out of the trap.

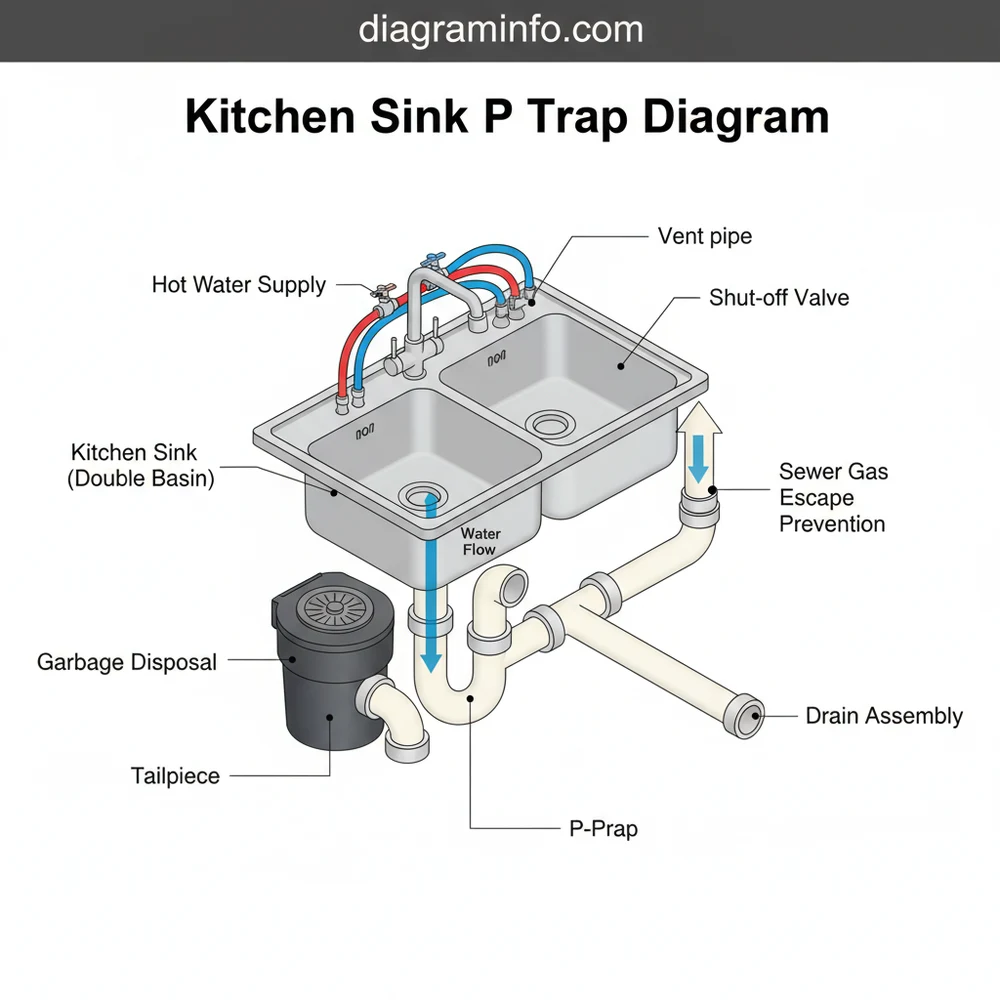

Figure 1: Typical PVC Kitchen Drain Assembly with Garbage Disposal Integration
In modern homes or during island sink installations, you might encounter an AAV valve (Air Admittance Valve). This is a one-way mechanical valve located above the drain line that opens to let air in when water flows, but closes to keep gases out. It replaces the need for a traditional vent pipe through the roof in specific plumbing codes.
Step-by-Step Installation Guide
Following a kitchen sink p trap diagram for installation requires a logical approach. Before beginning, ensure you have the right materials. Most modern DIY installations use PVC because it is easy to cut and creates a reliable seal with hand-tightened slip joints.
Always place a bucket under the sink before loosening any joints. Even a drain that hasn’t been used in hours will contain “trap water” inside the U-bend that will spill out as soon as the pipe is removed.
-
✓ Step 1: Prepare the Tailpiece.
Attach the vertical tailpiece to the sink strainer using a slip nut and a flanged washer. If you are connecting a garbage disposal, the disposal will have its own discharge tube that acts as the tailpiece. Ensure the tailpiece is long enough to reach the level of the trap arm but not so long that it sits too low for the wall exit. -
✓ Step 2: Install the Trap Arm.
Slide the trap arm into the wall drain opening. Do not glue or tighten it fully yet. The trap arm needs to have a slight downward slope (typically 1/4 inch per foot) toward the wall to ensure gravity carries the water away effectively. -
✓ Step 3: Align the U-Bend.
Take the curved P-trap bend and align it between the tailpiece and the trap arm. This is where most beginners struggle. The beauty of the slip joint system is that the pieces can swivel and slide. Adjust the height of the tailpiece or the depth of the trap arm until the U-bend fits perfectly between them. -
✓ Step 4: Seat the Washers.
Place a slip joint washer at every connection. The beveled (pointed) side of the washer should always face the joint or the threaded end of the pipe. This creates a compression seal when the nut is tightened. -
✓ Step 5: Tighten the Nuts.
Hand-tighten all the slip joint nuts. PVC threads are soft and easily stripped; if you can’t stop a leak with a firm hand-turn, you may use large pliers to turn the nut another quarter-turn, but no more. -
✓ Step 6: Test for Leaks.
Fill the sink basin with water and release it all at once. This puts maximum pressure on the joints. Check every connection with a dry paper towel to spot tiny beads of water.
Required Tools and Materials
- ✓ PVC P-trap kit (1-1/2 inch)
- ✓ Hacksaw or PVC tubing cutter
- ✓ Channel-lock pliers
- ✓ Plumber’s tape (optional for metal threads, usually unnecessary for PVC)
- ✓ Bucket and rags
Common Issues & Troubleshooting
Even with a perfect kitchen sink p trap diagram as a guide, issues can arise. Understanding how the diagram translates to real-world problems helps you identify the root cause of failures quickly.
Leaking Joints: This is the most common issue. It is usually caused by a misaligned washer or a nut that was cross-threaded. If a joint leaks, disassemble it, check that the washer isn’t cracked or backwards, and re-tighten.
Sewer Odors: If you smell sewer gas, the water seal in the P-trap has likely failed. This can happen if the sink hasn’t been used in weeks and the water evaporated, or if the system is improperly vented. If the vent pipe is clogged, a vacuum will form, “sucking” the water out of the trap as it drains.
Slow Drainage: While clogs often happen in the P-trap bend (where heavy debris settles), a slow drain can also indicate a trap arm that is sloped incorrectly. If the trap arm is angled upward toward the wall, water will struggle to exit, leading to buildup and frequent clogs.
If you are experiencing frequent gurgling sounds from the drain, your vent pipe might be obstructed. Check for bird nests or leaf debris in the vent stack on your roof, or ensure your AAV valve hasn’t become stuck in the closed position.
Tips & Best Practices for Maintenance
Maintaining your kitchen drain assembly ensures longevity and prevents the need for emergency repairs. While the P-trap is designed to be easily removed, you can avoid most issues with regular care.
1. Avoid Harsh Chemicals: Liquid drain cleaners can be highly corrosive, especially to older metal pipes or the rubber washers in a PVC system. They can also damage the finish of your sink. Instead, use a mechanical snake or remove the P-trap bend manually to clear clogs.
2. Inspect the Trap Seal: If you are going on a long vacation, pour a tablespoon of mineral oil down the drain. The oil sits on top of the water in the P-trap and prevents evaporation, keeping the sewer gas seal intact while you are away.
3. Proper Slope is Critical: When referring to your diagram, notice the horizontal trap arm. It must maintain a 1/4 inch per foot drop. If the pipe is too flat, food particles will settle and rot. If the pipe is sloped too steeply (often called a “S-trap” configuration), the momentum of the water can pull the entire trap seal down the drain, leaving the pipe dry.
4. Quality Over Cost: When purchasing replacement parts, opt for thick-walled PVC over thin-walled “poly” kits. While both work, the thicker PVC resists warping from hot water and provides a much more secure base for the slip joint nuts.
By following this kitchen sink p trap diagram and the associated installation steps, you can ensure your plumbing remains efficient and odor-free. Whether you are dealing with a garbage disposal integration or a standard single-bowl setup, the principles of the P-trap remain the cornerstone of safe residential plumbing.
Frequently Asked Questions
Where is the P-trap located?
The P-trap is located directly under the kitchen sink, connected to the sink tailpiece or garbage disposal. It sits before the drain pipe enters the wall, forming a U-bend that holds water to block gases from the vent pipe or sewer from entering your home.
What does a kitchen sink p trap diagram show?
This diagram shows the complete drain assembly, including the sink strainer, tailpiece, P-trap, and connection to the wall drain. It highlights how water flows from the basin, through the trap, and safely out into the home’s primary plumbing and ventilation system without leaking sewer odors.
How many connections does a kitchen sink drain assembly have?
A standard kitchen P-trap typically has two main slip-joint connections. One connects the top of the J-bend to the vertical tailpiece, and the other connects the wall arm to the wall drain pipe. Garbage disposal setups may require an additional baffle tee or specialized discharge tube connection.
What are the symptoms of a bad P-trap?
Symptoms of a failing P-trap include persistent sewer smells, slow drainage, or visible puddles inside the sink cabinet. If the trap is cracked or the slip nuts have loosened over time, water will leak, potentially causing significant water damage to your kitchen cabinetry and the subfloor.
Can I replace a kitchen P-trap myself?
You can definitely replace a P-trap yourself as it is a beginner-friendly DIY task. Most modern assemblies use hand-tightened slip nuts and plastic washers. No soldering or specialized machinery is required, making it a quick and cost-effective fix for any homeowner or renter looking to stop leaks.
What tools do I need for a P-trap installation?
For this task, you will need a bucket to catch excess water, a pair of tongue-and-groove pliers for stubborn nuts, and potentially a pipe cutter if you are installing a new drain assembly. Keep a few clean rags and a bottle of mild pipe sealant handy.
