Chevy 350 AC Bracket Diagram: Troubleshooting Guide 2026
A Chevy 350 AC bracket diagram illustrates the mounting assembly securing the HVAC compressor to the cylinder head and water pump. Upper cast-iron or aluminum brackets secure using 3/8-16 bolts torqued to 30-35 lb-ft, while lower adjustment straps attach to the exhaust manifold studs to maintain pulley alignment with the crankshaft and water pump.
📌 Key Takeaways
- Secures the A6 or R4 HVAC compressor directly to the passenger-side Chevy 350 cylinder head and water pump housing.
- Requires 3/8-16 UNC bolts torqued precisely to 30-35 lb-ft to prevent bracket flex and V-belt or serpentine belt misalignments.
- Incorrect spacer thickness or missing rear support straps causes premature compressor clutch bearing failure.
- Must be fully aligned before charging the system with R134a or R12 refrigerant to avoid belt slippage and system failure.
- Replace bent stamped-steel stock brackets with cast aluminum or heavy-duty aftermarket billet options during high-output engine builds.
Small block Chevy (SBC) 350 engine factory and aftermarket accessory drives rely on precise bracket mounting to keep the A/C compressor, alternator, and power steering pump properly aligned. Interpreting an OEM or aftermarket chevy 350 ac bracket diagram requires understanding engine timing cover depths, water pump hub height variations, and cylinder head mounting hole provisions. Correct bracket orientation prevents belt squeal, pulley throwing, and premature shaft bearing failure in your automotive HVAC system, while ensuring maximum heat dissipation across the front condenser and radiator assembly.

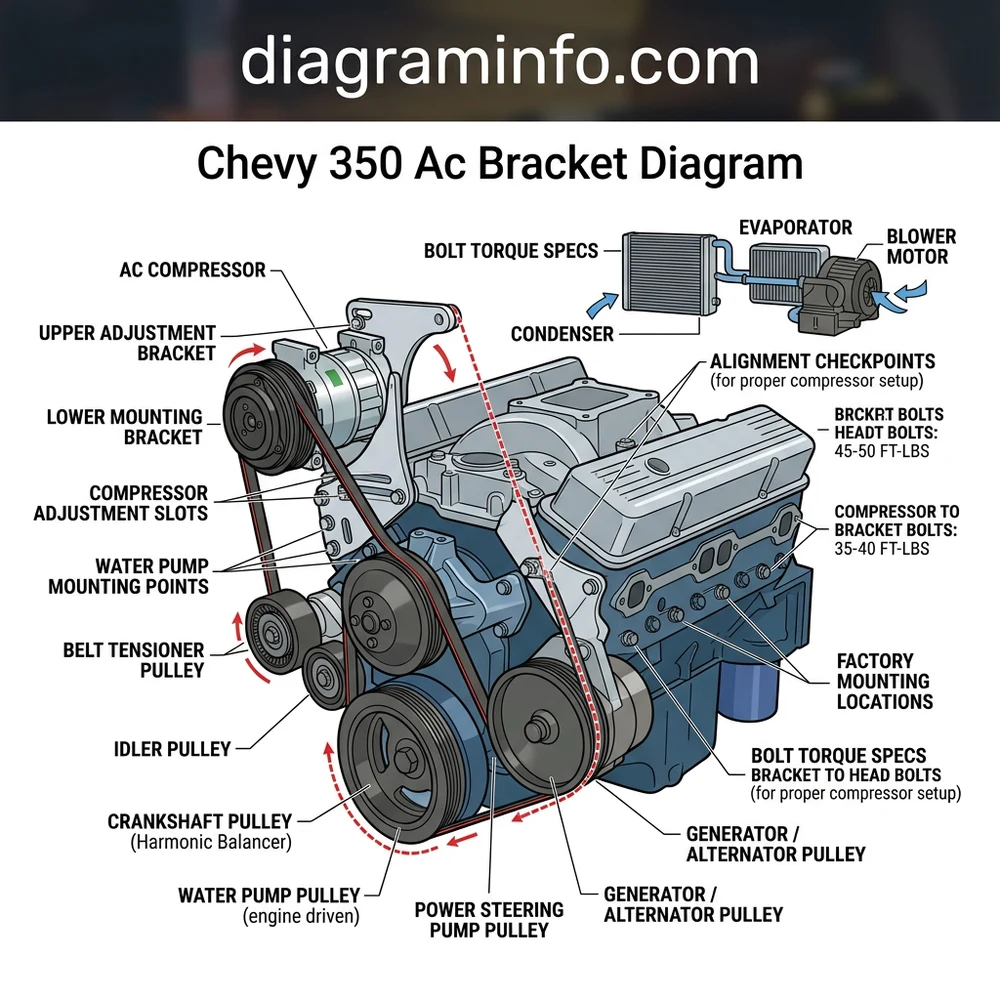

Chevy 350 AC Bracket Diagram: Component Identification and Layout
A standard Small Block Chevy A/C bracket assembly consists of three primary structural members designed to triangulate the compressor against engine torque and belt tension. Manufacturer specs indicate that improper triangulation leads to bracket flex, causing misalignment between the clutch pulley, crank pulley, and water pump pulley.
Main Compressor Cradle Bracket
The primary cradle bracket secures directly to the front face of the passenger-side or driver-side cylinder head using 3/8″-16 UNC tapped holes. On pre-1969 cylinder heads lacking accessory bolt holes, custom retro-fit brackets attach via the water pump bypass bolts and exhaust manifold studs. The cradle supports the lower mounting ears of the compressor—typically a legacy Harrison A6, Delco R4, or aftermarket Sanden 508/709 unit. The compressor pumps high-pressure vaporized refrigerant directly to the front-mounted heat exchanger (condenser), initiating the cooling cycle.
Rear Support Brace and Upper Tensioner Arm
The rear support strut is a rigid steel bar that bridges the rear cylinder head lug or intake manifold bolt to the back cap of the compressor housing. Omitting this brace causes bracket chatter under heavy load when the blower motor demands full cooling performance. The upper slotted arm allows rotational adjustment for V-belt tensioning, or provides a fixed mounting point when using an automatic tensioner on a serpentine conversion system. Once compressed, chilled vapor moves through the evaporator core housed inside the firewall air handler, where heat from the cabin air drawn through the return duct is absorbed.
Factory torque specs require 30–35 ft-lbs for 3/8″-16 cylinder head bolts and 20–25 ft-lbs for 5/16″-18 water pump face fasteners. Maximum allowable pulley offset is 0.030 inches (0.76 mm) across the entire plane from crank pulley to A/C clutch groove.
| Bracket Configuration | Water Pump Style | Compressor Compatibility | Primary Mounting Location |
|---|---|---|---|
| Early OEM V-Belt (1969–1975) | Long Water Pump (LWP) | Harrison A6 (Monster Axial) | Driver Side Cylinder Head / Intake |
| Late OEM V-Belt (1976–1986) | Long Water Pump (LWP) | Delco R4 (Radial Short) | Passenger Side Cylinder Head |
| Factory Serpentine (1988–1995 TBI/TPI) | Reverse Rotation LWP | Delco R4 / HR6 | Passenger Cast Aluminum Bracket Assembly |
| Aftermarket Street Rod Kit | Short Water Pump (SWP) or LWP | Sanden 508 / SD7H15 | Top-Center or Mid-Mount Passenger Side |
How to Install Accessories Using a Chevy 350 AC Bracket Diagram
Installing an A/C compressor mounting system on a Small Block Chevy requires methodical step-by-step alignment to prevent belt slippage and frame interference. Refer to your specific mechanical diagram during assembly to ensure spatial clearance for high-pressure hose connections.
Step 1: Prep Mounting Bosses and Threaded Ports
Clean all cylinder head accessory mounting threads using a 3/8″-16 bottoming tap. Remove paint overspray, rust, and old threadlocker from the bolt holes. If installing on aftermarket aluminum cylinder heads, verify that bolt engagement depth is at least 1.5 times the bolt diameter to prevent thread stripping.
Step 2: Mount Main Cradle to Cylinder Head and Water Pump
Align the main bracket plate with the cylinder head holes. Place designated tubular spacers behind the bracket if using a Long Water Pump setup to bridge the offset distance between the head face and water pump plane. Thread fasteners hand-tight. For technical details on drive belt tracking, reference the Chevy SBC Serpentine Belt Routing Guide.
Step 3: Position Compressor and Attach Rear Stabilizer
Set the compressor body onto the cradle ears. Insert main mounting bolts through the front and rear tabs. Attach the rear brace to the back cap of the unit and extend it to the nearest intake manifold runner bolt or cylinder head stud. This brace ensures that high head pressures produced when sending superheated vapor to the condenser do not flex the mounting plate.
Step 4: Check Laser Alignment and Final Torque
Place a straightedge or laser alignment tool against the face of the crankshaft pulley and check alignment across the A/C clutch pulley groove. Torque all head-to-bracket bolts to 35 ft-lbs, and water pump attachment points to 25 ft-lbs. Tighten adjusting slot bolts once belt tension reaches 120–140 lbs for new V-belts or 150 lbs for serpentine systems measured via a belt tension gauge.
Over-tightening bracket bolts into cast aluminum cylinder heads will pull threads out of the casting. Always use anti-seize lubricant on aluminum threads and torque to manufacturer specification. Excessive belt tension will destroy the A/C compressor front nose bearing and shaft seal within 500 miles of operation.
Troubleshooting AC Compressor Bracket Flex and Belt Misalignment
When an engine throws belts at high RPM or exhibits excessive front accessory chatter, the primary culprit is structural flex or improper spacer selection in the mounting assembly. Inspect the entire system systematically according to the troubleshooting steps below.
Diagnosing Bracket Flex and Angular Misalignment
If the compressor pulley visibly tilts under engine acceleration, the rear support rod is either missing, loosely fastened, or installed on the incorrect manifold lug. Inspect aluminum cast brackets (common on 1988–1995 TBI SBC engines) for hairline cracks around the water pump bolt mounting bosses. Replace cracked cast brackets immediately, as fatigue failure can cause the unit to drop into the engine cooling fan. Review the GM R4 to Sanden Compressor Upgrade for improved durability and lighter weight options.
Resolving Clearance and HVAC Duct Interference
In custom retrofits, aftermarket high-mount brackets may cause suction and discharge hard lines to contact the hood structure or inner fender wells. Ensure high-pressure lines leading to the front heat exchanger maintain a minimum 1-inch clearance from exhaust manifolds. Interior airflow restrictions inside the air handler, blocked cabin return duct passages, or a failing blower motor cause high system head pressures, placing elevated mechanical drag on the belt drive and exacerbating bracket deflection. Verify operating pressures with our Automotive HVAC Pressure Specs Chart.
Chevy Small Block Short Water Pumps (SWP) have a block-to-hub flange distance of 5-5/8 inches, whereas Long Water Pumps (LWP) measure 6-15/16 inches. Installing LWP brackets on an SWP engine creates a 1-5/16 inch forward pulley offset, rendering the belt drive completely unusable without custom spacer blocks.
Chevy 350 AC Bracket Diagram Technical FAQ
What is the difference between short and long water pump Chevy 350 AC brackets?
Short water pump (SWP) brackets mount the compressor flush against the front face of the cylinder head, often placing the unit low on the driver side or directly above the valve cover. Long water pump (LWP) brackets feature extended steel tubular spacers or cast offset feet to push the compressor forward by 1-5/16 inches, aligning its pulley with the outer grooves of the LWP crank pulley.
Can I convert a stock Chevy 350 A6 compressor bracket to a Sanden 508?
Yes. Aftermarket conversion adapter plates bolt directly into the factory Harrison A6 cradle bracket. These billet steel or aluminum adapter plates bridge the gap between the wide original A6 mounting ears and the narrower ear spacing of a modern Sanden 508 or SD7H15 compressor, maintaining perfect belt groove alignment without changing pulleys.
Why does my V-belt squeal even after replacing the Chevy 350 AC bracket?
V-belt squeal is caused by pulley angular misalignment, improper belt width selection (e.g., placing a 3/8″ belt in a 1/2″ pulley groove), or glazed pulley sheaves. Measure groove alignment using a laser line guide and ensure belt tension is set to 120–140 lbs using a mechanical gauge rather than checking deflection by hand.
How does bracket flex impact overall automotive HVAC cooling efficiency?
When an A/C bracket flexes under load, the compressor clutch slips and speed fluctuates. This reduces refrigerant flow rate through the loop, reducing subcooling at the condenser exit and superheat at the evaporator outlet. As a result, the air passing through the cabin air handler and out the vents remains warm despite the blower motor operating at max speed.
Step-by-Step Guide to Understanding the Chevy 350 Ac Bracket Diagram
Identify – Match bracket mounting points on your Chevy 350 cylinder head, water pump, and intake manifold using the diagram.
Locate – Position the main bracket housing and align factory spacer bushings between the head surface and rear mounting ears.
Reference – Use the diagram to select correct 3/8-16 bolt lengths for upper cylinder head and water pump mounting holes.
Connect/Route – Mount the compressor, position the tensioning strap, and route drive belts around the crank, water pump, and AC pulleys.
Verify – Check pulley offset using a straightedge or laser tool, then torque all bracket fasteners to 30-35 lb-ft.
Troubleshoot – Inspect for belt squeal, flex, or refrigerant leaks at compressor fittings after running the engine and blower motor.
