Yamaha G1 Golf Cart Parts Diagram: Wiring & Troubleshooting Guide 2026
The Yamaha G1 golf cart parts diagram illustrates key electrical components including the 36V or 48V battery bank, solenoid, and controller. Main power typically routes from the battery positive to the solenoid, then to the controller’s B+ terminal, with the motor connected to M- and B- on the controller for propulsion.
📌 Key Takeaways
- Always disconnect the 36V or 48V battery bank negative terminal before working on the Yamaha G1’s electrical system for safety.
- Identify the main solenoid as the primary electrical on/off switch; a clicking solenoid without motor engagement often indicates a power or connection issue.
- The Yamaha G1 controller (often 36V/48V compatible) manages motor speed and direction; verify correct input/output voltages before assuming controller failure.
- Common G1 wiring issues include corroded battery terminals, loose connections at the solenoid or controller, and damaged wire insulation.
- Seek professional diagnosis for persistent motor or controller issues after verifying all basic wiring, battery bank integrity, and switch functions.
Navigating the electrical architecture of your Yamaha G1 golf cart requires a precise understanding of its intricate wiring system. This comprehensive guide provides a detailed examination of the Yamaha G1’s electrical components, focusing on the critical connections and pathways that enable its operation. Whether your G1 operates on a 36 volt system or has been modified to a 48 volt system, deciphering the wiring diagram is essential for accurate diagnostics, maintenance, and performance upgrades. This resource aims to empower mechanics and experienced DIYers with the knowledge to confidently identify components, trace circuits, and troubleshoot common electrical issues, ensuring the sustained reliability of your equipment.

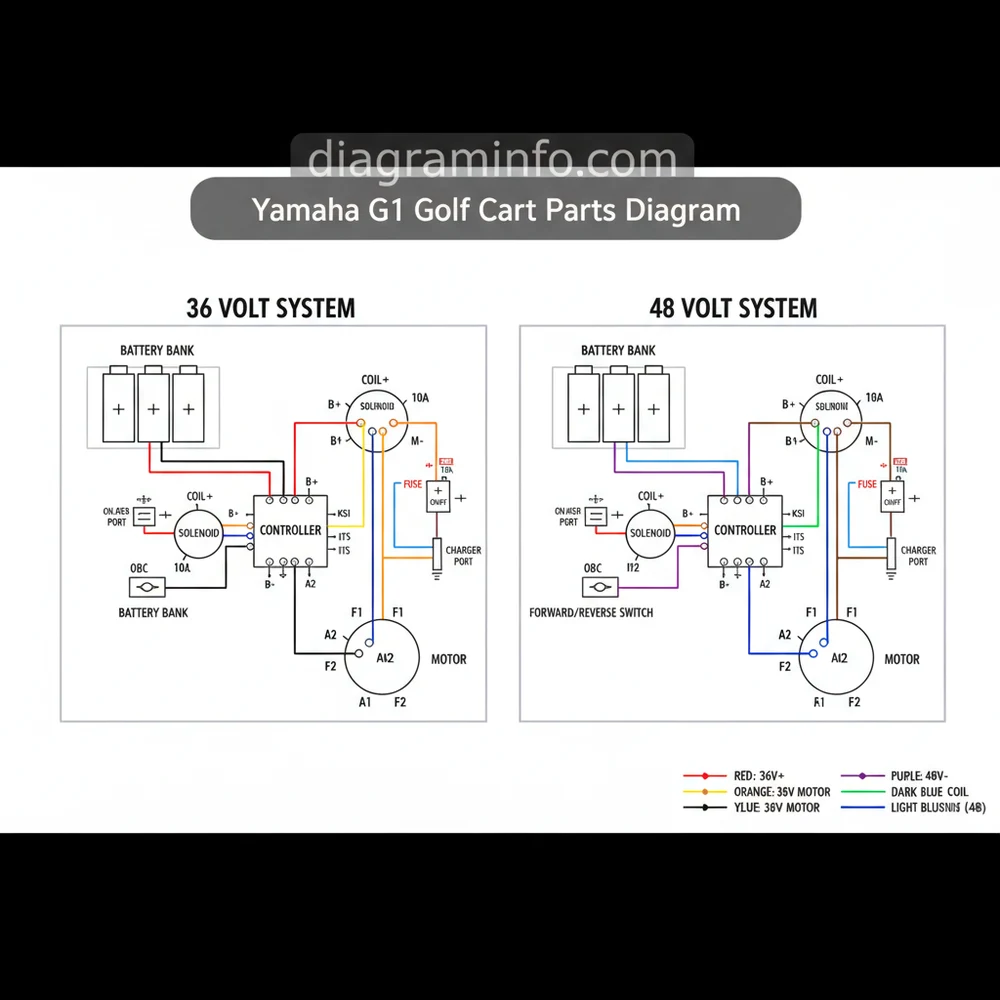

[DIAGRAM_PLACEHOLDER – A detailed wiring diagram for a typical Yamaha G1 electric golf cart, illustrating the battery bank, solenoid, controller, motor, forward/reverse switch, key switch, accelerator pedal switch, and charger port connections, with corresponding wire colors and component labels.]
Wire Color Reference Table
Understanding the standard wire color codes is paramount for effectively utilizing any Yamaha G1 golf cart parts diagram. While some variations may exist between specific model years or aftermarket installations, the following table outlines the most common wire colors and their corresponding functions within the G1’s electrical system. Always cross-reference with your specific model’s service manual, as this information is provided as a general reference.
| Wire Color | Function | Connects To | Notes |
|---|---|---|---|
| Heavy Gauge Red | Main Positive (+) | Battery Bank Positive, Solenoid Large Terminal | Constant battery voltage. |
| Heavy Gauge Black | Main Negative (-) / Ground | Battery Bank Negative, Controller B-, Motor (Series A2) | Primary ground path. |
| Heavy Gauge Blue | Motor Armature (A1) | Controller A1, Motor A1 Terminal | Carries current to motor armature. |
| Heavy Gauge Yellow | Motor Field (F1) | Controller F1, Motor F1 Terminal (Series) | Carries current to motor field windings. |
| Heavy Gauge Green | Motor Field (F2) | Controller F2, Motor F2 Terminal (Series) | Completes motor field circuit. |
| Light Gauge Red | Solenoid Activation Positive | Key Switch Output, Solenoid Small Terminal (+) | Switched positive to activate solenoid coil. |
| Light Gauge Black/White | Solenoid Activation Negative | Controller Output, Solenoid Small Terminal (-) | Ground path for solenoid coil, often controlled by controller. |
| Light Gauge White | Key Switch Input | Battery Positive via Fuse, Key Switch Input | Provides fused battery voltage to key switch. |
| Light Gauge Orange | Forward/Reverse Switch Signal | F/R Switch, Controller Input | Signals controller for direction. |
| Light Gauge Purple | Throttle Input (Wiper) | Accelerator Pedal Sensor, Controller Input | Variable voltage signal indicating throttle position. |
| Light Gauge Grey | Charger Receptacle Sense | Charger Port, Controller / OBC | Indicates charger is connected/active, disables cart operation. |
Component Connection Guide
A functional understanding of how each major component integrates into the overall Yamaha G1 golf cart wiring scheme is critical for both troubleshooting and upgrades. Referencing your Yamaha G1 golf cart parts diagram, follow these guidelines for accurate connections.
Always disconnect the main battery bank negative cable before performing any electrical work on your Yamaha G1. Failure to do so can result in severe electrical shock, burns, or damage to components. Ensure the run/tow switch is in the “Tow” position.
Solenoid Wiring
The solenoid acts as the main contractor, connecting the high-current battery bank to the controller. A typical Yamaha G1 solenoid features two large terminals for main power and two small terminals for activation.
- Main Positive Input: Connect a heavy-gauge (e.g., 2 AWG) red cable from the main positive post of the battery bank to one of the large terminals on the solenoid.
- Main Positive Output: Connect another heavy-gauge red cable from the other large terminal on the solenoid to the B+ terminal of the speed controller.
- Activation Positive: A smaller gauge (e.g., 16 AWG) red wire typically runs from the output of the key switch, through the pedal box limit switch and forward/reverse switch safety interlocks, to one of the small terminals on the solenoid. This provides the activation voltage.
- Activation Negative/Ground: The remaining small terminal on the solenoid often connects to the controller’s M- (or B- in some setups) or a dedicated ground wire, depending on whether the controller provides the ground path for activation. In many G1 models, the controller provides the ground when pedal is depressed. Some systems incorporate a diode or resistor across the small terminals to prevent voltage spikes, as shown in detailed Yamaha G1 wiring schematics.
Controller Wiring
The controller is the brain of your electric Yamaha G1, modulating power from the battery bank to the motor based on throttle input, direction, and safety interlocks. Most G1s utilize a series-wound motor, meaning controllers have distinct B+, B-, A1, and A2 terminals, with F1 and F2 for the field windings.
- Battery Positive (B+): Connect the heavy-gauge cable from the output side of the solenoid to the B+ terminal on the controller.
- Battery Negative (B-): Connect a heavy-gauge black cable from the main negative post of the battery bank to the B- terminal on the controller.
- Motor Armature (A1, A2): Connect a heavy-gauge blue cable from the controller’s A1 terminal to the motor’s A1 terminal. For series motors, A2 is often directly connected to the battery negative or the controller’s B- (consult your specific Yamaha G1 golf cart parts diagram).
- Motor Field (F1, F2): Connect heavy-gauge yellow and green cables from the controller’s F1 and F2 terminals to the corresponding F1 and F2 terminals on the motor. The controller reverses the polarity of the field windings relative to the armature to change motor direction.
- Throttle Input: Typically a 3-wire potentiometer or inductive sensor (ITS) connected to dedicated terminals on the controller (e.g., ‘Wiper’, ‘0V’, ‘+5V’). A purple wire often carries the variable signal from the pedal assembly.
- Direction Input: Wires from the forward reverse switch (e.g., orange) connect to designated controller terminals to signal desired direction.
- Safety Interlocks: Various smaller wires integrate the key switch, charger port interlock, and run/tow switch with the controller to prevent operation under unsafe conditions.
Battery Bank Wiring (36 Volt System / 48 Volt System)
The battery bank supplies the motive power. Most Yamaha G1 models originally featured a 36 volt system (six 6V batteries), though some have been upgraded to a 48 volt system (eight 6V or six 8V batteries). Ensure all connections are clean and secure, torqued to manufacturer specifications.
- Series Connections: Connect the positive terminal of one battery to the negative terminal of the next battery using short, heavy-gauge cables. Continue this process until all batteries are connected in series, achieving the desired 36V or 48V total voltage.
- Main Positive: The remaining unconnected positive terminal (of the last battery in the series) becomes the main battery bank positive, which connects to the solenoid input.
- Main Negative: The remaining unconnected negative terminal (of the first battery in the series) becomes the main battery bank negative, which connects to the controller’s B- terminal.
For battery terminal connections, utilize 2 AWG cables for optimal current flow and minimal voltage drop. Manufacturer specifications indicate a torque value of 110-120 in-lbs (12.4-13.6 Nm) for battery terminal nuts to ensure proper conductivity and prevent overheating. Refer to a detailed golf cart battery maintenance guide for optimal lifespan practices.
Charger Port Wiring
The charger port allows the battery bank to be replenished. It also typically incorporates a safety interlock.
- Positive Input: A heavy-gauge red cable connects from the main battery bank positive (or sometimes the solenoid input) to the positive terminal of the charger port.
- Negative Input: A heavy-gauge black cable connects from the main battery bank negative to the negative terminal of the charger port.
- Interlock/Sense Wire: A smaller gauge wire (e.g., grey) often runs from the charger port to the controller or a dedicated On-Board Computer (OBC) if present. This wire signals the controller that the charger is plugged in, inhibiting cart operation for safety. This is a critical safety feature when analyzing a Yamaha G1 golf cart parts diagram.
Common Wiring Problems & Fixes
Even with a clear Yamaha G1 golf cart parts diagram, electrical issues can be challenging. Here are common wiring-related problems encountered by owners and technicians, along with their diagnostic approaches.
1. Cart Does Not Move, Solenoid Clicks
Diagnosis: A clicking solenoid indicates that the control circuit (key switch, F/R switch, pedal switch, activation wiring) is successfully energizing the solenoid coil. However, if the cart fails to move, the issue lies in the high-current circuit after the solenoid or within the motor itself.
- Check Solenoid Output: With the key on and pedal depressed, measure voltage across the large terminals of the solenoid. You should read full battery voltage (36V or 48V). If not, the solenoid’s main contacts are failing internally.
- Inspect Controller Input: Measure voltage at the controller’s B+ and B- terminals. If no voltage, check the high-current cable between the solenoid and controller.
- Motor Winding Integrity: Disconnect motor cables from the controller. Use an ohmmeter to check resistance between A1-A2 and F1-F2. Near-zero resistance (continuity) is expected. Infinite resistance indicates an open winding.
- Internal Link: For further diagnostics on this specific issue, refer to our detailed article on golf cart solenoid testing and replacement.
2. Cart Moves but Only Very Slowly or Jerkily
Diagnosis: This often points to issues with the throttle input signal, a failing controller, or compromised battery bank integrity.
- Throttle Potentiometer/ITS: Use a multimeter to test the throttle signal. For a 3-wire potentiometer, measure resistance or voltage across the wiper and common terminals as the pedal is depressed. Look for a smooth, consistent change from low to high (or vice-versa). Erratic readings suggest a faulty throttle sensor.
- Battery Bank Health: Conduct a load test on individual batteries or measure the voltage drop across the entire bank under load. A significant drop (more than a few volts) indicates weak batteries unable to supply sufficient current.
- Controller Malfunction: If throttle input is good and batteries are strong, a faulty controller that isn’t modulating power correctly is likely. This often requires professional diagnosis or replacement.
3. No Power to Any Components, No Solenoid Click
Diagnosis: This indicates a complete interruption in the main power circuit, usually before the key switch or at the main battery bank connection.
- Main Battery Connections: Visually inspect all battery terminals and main cables for corrosion, looseness, or breaks. Check the integrity of the main positive and negative cables connecting to the solenoid and controller.
- Main Fuse/Breaker: Many Yamaha G1 models have a main fuse or circuit breaker near the battery bank or charger port. Test for continuity across the fuse or check if the breaker has tripped.
- Key Switch: Test for voltage input to the key switch (main battery voltage) and voltage output when the key is in the “ON” position. If input is present but no output, the key switch is faulty.
4. Cart Charges But Won’t Run (Charger Interlock)
Diagnosis: A common safety feature prevents the cart from running while the charger is connected. If it won’t run after disconnecting the charger, the interlock system may be stuck in the “charger connected” state.
- Charger Port Switch: Many charger ports have a microswitch or sensing wire (e.g., light gauge grey wire) that signals the controller. Inspect this switch for mechanical failure or corrosion, ensuring it indicates “charger disconnected” when no charger is present.
- OBC (On-Board Computer): If your G1 has an OBC, it controls both charging and the interlock. A faulty OBC might perpetually signal “charger connected.” Consult your specific Yamaha G1 golf cart parts diagram for OBC wiring to check inputs and outputs.
FAQ
What is the primary function of the run/tow switch on a Yamaha G1?
The run/tow switch is a crucial safety and maintenance feature on your Yamaha G1 golf cart. In the “Tow” position, it safely disconnects power to the controller and motor, preventing accidental operation during transport or when performing maintenance. This protects both technicians and the cart’s electrical components, especially when working on the high-current systems or charging the battery bank. Always engage the “Tow” switch before any significant electrical work or when leaving the cart unattended for extended periods.
Can I upgrade my 36 volt system to a 48 volt system on a Yamaha G1?
Yes, upgrading a Yamaha G1 from a 36 volt system to a 48 volt system is a common modification to achieve higher speed and torque. However, it is not a simple battery swap. This upgrade typically requires replacing the original 36V speed controller with a compatible 48V model, and in many cases, upgrading the solenoid and potentially the motor if it’s not rated for the higher voltage. Failure to upgrade all necessary components can lead to premature failure and safety hazards. Always consult a professional or a comprehensive golf cart performance upgrade guide before attempting such a modification.
Where is the main fuse or circuit breaker located on a Yamaha G1?
On most Yamaha G1 golf cart models, the main fuse or circuit breaker is typically located near the battery bank, often mounted on the frame rail or within the battery compartment itself. It’s usually a large, high-amperage fuse (e.g., 200-400 amps) or a resettable circuit breaker designed to protect the entire electrical system from overcurrent situations. Referencing your specific Yamaha G1 golf cart parts diagram will provide the exact location and rating for your model year.
What is the significance of the forward reverse switch in the wiring circuit?
The forward reverse switch (F/R switch) on a Yamaha G1 electric golf cart is responsible for changing the direction of the motor’s rotation, thereby allowing the cart to move forward or in reverse. In series-wound motor systems common to the G1, this switch typically reverses the polarity of the field windings (F1 and F2) relative to the armature (A1 and A2) to achieve directional change. It’s a heavy-duty switch designed to handle significant current. Modern controllers often manage direction electronically, with the F/R switch acting as a signal input to the controller rather than directly handling motor current, as depicted in advanced Yamaha G1 wiring schematics.
How does the charger port interact with the controller in a Yamaha G1?
The charger port on a Yamaha G1 golf cart has a direct electrical link to the controller or an On-Board Computer (OBC) if present. This connection serves as a crucial safety interlock. When the charger is plugged into the port, a dedicated signal wire (often a light gauge grey wire, as seen in the Yamaha G1 golf cart parts diagram) signals the controller that the charging process is active. Upon receiving this signal, the controller is inhibited from allowing the cart to move, preventing accidental operation while charging. This interlock also often prevents the controller from powering the motor if a fault is detected in the charging circuit.
Step-by-Step Guide to Understanding the Yamaha G1 Golf Cart Parts Diagram: Wiring & Troubleshooting Guide 2026
Identify – Locate and identify the main electrical components on your Yamaha G1, including the 36V or 48V battery bank, solenoid, and motor controller.
Locate – Pinpoint the main power cables running from the battery bank to the solenoid, and from the solenoid to the controller, noting any accessory wiring shown on the diagram.
Reference – Consult the Yamaha G1 parts diagram to cross-reference wire colors and terminal connections for each component, paying attention to specific LSI keywords like solenoid wiring.
Connect/Route – Carefully inspect all connections for tightness and corrosion, ensuring proper wire routing to prevent pinching or abrasion as indicated by the diagram.
Verify – Using a multimeter, verify correct voltage readings at the battery bank, across the solenoid terminals (activated/deactivated), and at the controller’s main inputs (B+/B-).
Troubleshoot – If issues persist, systematically test individual components (solenoid, switches, motor) following the diagram, isolating the fault before attempting repairs, and considering common wiring problems.
Frequently Asked Questions
What voltage is yamaha g1 golf cart parts diagram?
The original Yamaha G1 golf cart typically operated on a 36V electrical system, utilizing six 6-volt batteries. However, many units have been converted to 48V for increased performance, which would involve eight 6-volt batteries or six 8-volt batteries. Always confirm your specific cart’s battery bank configuration.
What do the wire colors mean on yamaha g1 golf cart parts diagram?
Wire colors on a Yamaha G1 golf cart parts diagram vary by circuit and component. Generally, heavy gauge red wires indicate main positive power, and black for main negative. Smaller control wires might include colors like blue for signals, yellow for speed sensors, or green for motor field circuits. Always refer to a specific G1 wiring diagram.
How do I troubleshoot yamaha g1 golf cart parts diagram that won’t run?
If your Yamaha G1 golf cart won’t run, first check the 36V or 48V battery bank voltage and ensure all connections are clean and tight. Verify the solenoid clicks when the pedal is pressed; if not, test the key switch, pedal switch, and fuse. If it clicks but doesn’t move, test solenoid continuity or controller input/output.
What is the solenoid wiring on yamaha g1 golf cart parts diagram?
The Yamaha G1 solenoid wiring includes two large terminals for high current (one from the battery bank positive, one to the controller’s B+ terminal). It also has two small terminals for the activation coil: one connects to battery negative, and the other receives 36V/48V positive power via the key switch and pedal switch when activated.
How many batteries does yamaha g1 golf cart parts diagram have?
A standard 36V Yamaha G1 golf cart typically uses six 6-volt deep-cycle batteries, wired in series to achieve the total 36-volt output. For G1 models converted to a 48V system, this usually involves either eight 6-volt batteries or six 8-volt batteries, also connected in series to meet the higher voltage requirement.
What gauge wire does yamaha g1 golf cart parts diagram use?
The main power circuits on a Yamaha G1 golf cart parts diagram, connecting the battery bank, solenoid, and controller, typically use heavy gauge wiring, such as 4-gauge or 2-gauge, to handle high current. Smaller control circuits for switches and sensors generally use lighter 14-16 gauge wire to prevent resistance and heat.
