Navigating the intricate architecture of a modern automotive engine requires precision and a deep understanding of its constituent systems. For owners and technicians working on the 2012 Chevy Sonic, deciphering the engine diagram is not merely an academic exercise but a critical step in effective diagnostics, maintenance, and repair. The 2012 Sonic was primarily equipped with two robust Ecotec powertrains: the naturally aspirated 1.8L (LUW) and the turbocharged 1.4L (LUV) inline-four engines. Both units share a fundamental design philosophy, though their specific implementations differ. This comprehensive guide will illuminate the key components, their interrelationships, and practical applications, enabling you to master the complexities of your 2012 Chevy Sonic engine diagram.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

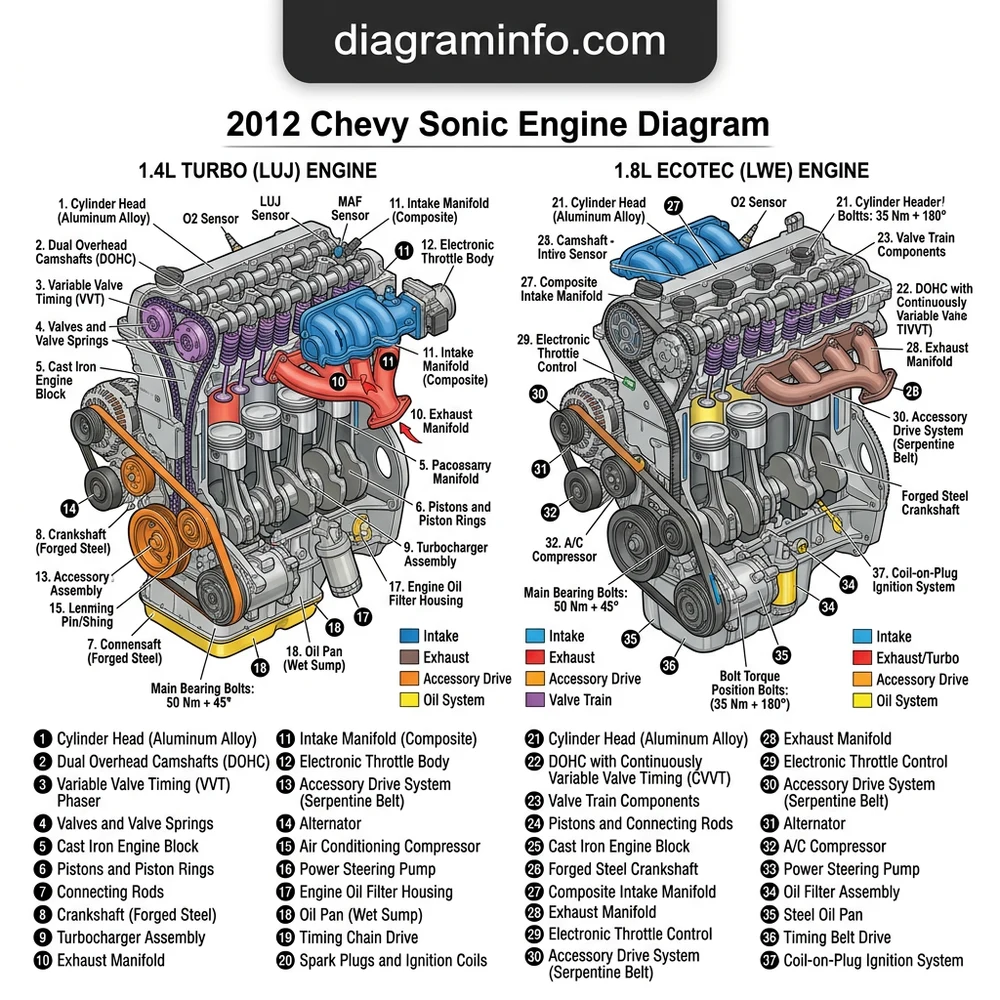

Engine Component Breakdown

Understanding each component’s function is paramount when working with your 2012 Chevy Sonic engine diagram. The Ecotec architecture, whether the 1.8L LUW or 1.4L LUV, relies on a sophisticated interplay of mechanical and electronic systems.

Engine Block

The foundational structure, the `engine block`, forms the robust housing for the pistons, crankshaft, and connecting rods. Typically cast from high-strength aluminum alloy in these Ecotec engines for weight reduction, it features integrated cooling passages and oil galleries essential for thermal management and lubrication. Within the block, precision-machined bores accommodate the pistons.

Cylinder Head

Mounted atop the engine block, the `cylinder head` is a critical assembly housing the combustion chambers, intake and exhaust ports, and the entire valve train. For the 2012 Sonic, both Ecotec engines feature a DOHC (Dual Overhead Camshaft) design, integrating complex coolant passages and spark plug wells. Gasket integrity between the head and block is crucial for maintaining compression and preventing fluid leaks.

Valve Train

The `valve train` precisely controls the opening and closing of intake and exhaust valves, regulating gas flow into and out of the combustion chambers. This system includes the camshafts, lifters, rocker arms (where applicable), and the valves themselves. In the DOHC Ecotec engines, the `camshafts` directly actuate the valves, often incorporating Variable Valve Timing (VVT) solenoids to optimize performance and emissions.

Crankshaft

Residing in the lower section of the engine block, the `crankshaft` is the engine’s primary rotating component. It converts the linear reciprocating motion of the pistons into rotational energy, which is then transmitted to the transmission. Precision balance and robust construction are vital for smooth operation and longevity.

Piston

The `piston` is a movable component housed within each cylinder bore. It compresses the air-fuel mixture during the compression stroke and is driven downwards by the expanding gases during the power stroke. Pistons are typically made from aluminum alloy and fitted with compression and oil control rings to seal the combustion chamber and manage oil.

Connecting Rod

Linking each piston to the `crankshaft`, the `connecting rod` transmits the force generated by combustion to the crankshaft, facilitating its rotation. These robust components are subjected to immense tensile and compressive forces and are typically forged steel or powder metal for strength.

Oil Pan

Affixed to the bottom of the `engine block`, the `oil pan` serves as a reservoir for the engine’s lubricating oil. It often incorporates baffling to prevent oil starvation during aggressive driving and houses the oil pump pickup tube. Proper sealing is crucial to prevent leaks and maintain adequate oil levels.

Ancillary Systems

Beyond these core mechanical components, the diagram will detail numerous ancillary systems critical to engine operation, including the intake manifold, exhaust manifold, fuel injectors, ignition coils, various sensors (e.g., Crankshaft Position Sensor, Camshaft Position Sensor, Oxygen Sensors), and the intricate wiring harnesses that connect them to the Engine Control Module (ECM). Identifying these on your 2012 Chevy Sonic engine diagram is crucial for electrical diagnostics.

Practical Application & Reading the Diagram

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Effectively utilizing your 2012 Chevy Sonic engine diagram extends beyond simple component identification; it involves understanding flow, connections, and diagnostic pathways. When you observe the diagram, pay close attention to specific conventions. Solid lines typically represent mechanical connections or fluid passages, while dashed lines might indicate internal passages or less rigid connections. Electrical diagrams, often integrated or cross-referenced, will use standardized symbols for components like sensors (e.g., thermistor, potentiometer), actuators (e.g., solenoids, motors), and control modules, along with distinct wire colors and gauge indicators.

For instance, if you are diagnosing a coolant leak, tracing the coolant flow path from the water pump (often indicated by an impeller symbol) through the engine block’s cooling jackets, then to the cylinder head, and finally out to the thermostat housing and radiator, as depicted in the diagram, can pinpoint the potential failure point. Similarly, when troubleshooting an electrical issue, locate the specific sensor or actuator on the diagram, then follow the associated wire colors (e.g., “WH/BK” for White with Black stripe) back to its ECM pinout. Understanding these visual cues and their real-world counterparts allows for precise diagnosis and repair, minimizing guesswork. Referencing the `2012 Chevy Sonic service manual` provides further detail on component locations and diagnostic procedures.

Year & Generation Coverage Table

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Common Failure Points

Even with robust Ecotec designs, the 2012 Chevy Sonic’s engines exhibit characteristic failure points that experienced technicians should be aware of. Familiarity with these issues, often visually identifiable or indicated by specific DTCs, is crucial for efficient diagnosis.

PCV System Issues (1.4L LUV & 1.8L LUW)

A prevalent concern for both Ecotec variants is the Positive Crankcase Ventilation (PCV) system. The plastic intake manifold on the 1.4L LUV is prone to cracking internally, often near the PCV check valve, leading to unmetered air leaks. This results in lean conditions, rough idle, P0171 codes, and potentially excessive oil consumption. For the 1.8L LUW, issues often stem from the PCV valve integrated into the valve cover, which can stick or fail, leading to similar symptoms.

Coolant Leaks (Thermostat Housing & Water Pump)

Coolant leaks are another common complaint. The plastic thermostat housing, especially on the 1.8L LUW, is notorious for developing cracks, leading to slow or significant coolant loss. Similarly, the water pump, particularly on early production models, can develop leaks around the shaft seal. Regular inspection of these areas, as well as checking coolant levels, is advised. A visible drip near the timing cover area is often indicative of a failing water pump. You can learn more about specific cooling system diagnostics by consulting dedicated resources like a “Chevy Sonic Cooling System Diagnostics” guide.

Oil Cooler Leaks (1.4L LUV)

The 1.4L turbocharged engine is susceptible to oil cooler failures. The cooler, integrated into the engine block, can develop internal leaks where engine oil mixes with coolant, or external leaks where oil seeps from the assembly. This can manifest as a “chocolate milk” appearance in the coolant reservoir or noticeable oil stains on the block. Immediate attention is required to prevent severe engine damage from lubricant degradation.

Timing Chain Wear (Higher Mileage Ecotec Engines)

While less common in lower mileage 2012 models, higher mileage Ecotec engines, both LUW and LUV, can experience timing chain stretch. This typically manifests as a rattling noise, particularly on cold start, and can trigger P0016 or P0017 DTCs (Crank/Cam Correlation). For detailed inspection and replacement procedures, refer to a “Ecotec 1.8L LUW Timing Chain Replacement Guide.”

FAQ

What are the primary differences between the 1.4L Turbo (LUV) and 1.8L NA (LUW) Ecotec engines in the 2012 Sonic?

The fundamental distinction lies in forced induction. The 1.4L LUV utilizes a turbocharger, increasing horsepower and torque (138 hp/148 lb-ft) compared to the 1.8L LUW (138 hp/125 lb-ft), and typically provides a flatter torque curve across the RPM range. Structurally, while both are Ecotec designs, the 1.4L LUV features a more robust bottom end to handle higher cylinder pressures, often including forged connecting rods and a specific piston design for its compression ratio. Its `cylinder head` incorporates direct fuel injection, contrasting with the 1.8L LUW’s port fuel injection, necessitating different fuel system components and control strategies as seen in the diagram. The 1.4L also features an integrated exhaust manifold/turbocharger assembly for efficiency.

How do I interpret the symbols for sensors and actuators on a 2012 Chevy Sonic engine diagram?

Interpreting symbols requires familiarity with automotive electrical diagram standards. Sensors are often depicted as squares or circles with specific internal geometries representing their function: a zigzag line for a thermistor (temperature sensor), a resistor with an arrow for a potentiometer (throttle position sensor), or a coil for an inductive sensor (crankshaft position sensor). Actuators, such as fuel injectors or ignition coils, are typically shown as coils or rectangles with an internal ‘M’ for a motor. Wires are usually color-coded (e.g., BN for Brown, YE for Yellow) with accompanying numbers for pin identification on connectors. Always cross-reference with the legend or key provided in the full service manual to ensure accurate interpretation for your specific 2012 Chevy Sonic engine diagram.

What specific torque specifications are critical when reassembling the cylinder head on a 2012 Sonic Ecotec engine?

When reassembling the `cylinder head` on either Ecotec engine, critical torque specifications are essential for preventing warpage, ensuring proper gasket seal, and maintaining engine integrity. According to OEM specifications for the 1.8L LUW, `cylinder head` bolts typically require a multi-stage torque-to-yield (TTY) procedure. This usually involves an initial torque value (e.g., 22 lb-ft), followed by specific angular turns (e.g., 90° + 90° + 90°). `Camshaft` bearing cap bolts also have precise, lower torque values, often around 7-9 lb-ft, applied in a specific sequence. Always consult the latest GM service manual for the exact procedure, as deviations can lead to catastrophic failures.

What diagnostic steps should I take if the 2012 Sonic Ecotec experiences excessive oil consumption?

Excessive oil consumption in a 2012 Chevy Sonic Ecotec engine warrants a systematic diagnostic approach. Begin by verifying the consumption rate (e.g., how much oil added per 1,000 miles). Next, inspect the exterior of the engine, particularly around the `oil pan`, valve cover, and oil filter housing, for visible leaks. If no external leaks are present, focus on internal causes. This includes testing the PCV system for proper function, as a clogged or malfunctioning PCV valve (or internal manifold crack on 1.4L) can draw excessive oil into the intake. Perform a compression test and a leak-down test to assess the integrity of the piston rings and valve seals. For the 1.4L LUV, inspect the turbocharger for shaft play and signs of oil in the charge pipes, and check the oil cooler for internal leaks. If these basic steps fail to identify the source, more intrusive diagnostics, possibly involving bore scope inspection or `engine block` disassembly, may be necessary. For detailed `engine block machining specifications`, consult relevant OEM service literature.

Where can I find detailed wiring diagrams for the 2012 Chevy Sonic’s engine management system?

Detailed wiring diagrams for the 2012 Chevy Sonic’s engine management system are indispensable for electrical diagnostics and are typically found within the official General Motors Service Information (GMSI) database, accessible through subscription-based online platforms or specialized shop software. These diagrams provide precise component locations, connector pinouts, wire colors (e.g., Dark Green/White – DG/WH), and voltage/resistance specifications crucial for pinpoint testing. Additionally, reputable third-party repair manuals, such as those from Haynes or Chilton, often include simplified versions. Always refer to the most current OEM resource for accuracy, particularly when troubleshooting complex circuits involving the Engine Control Module (ECM) or critical `valve train` sensors.
