Chevy HEI Distributor Wiring Diagram: Pinout Guide 2026
The Chevy HEI distributor typically requires a switched 12V hot wire for power (often red/pink) connected to the B+ terminal, and a green or white wire for the tachometer signal connected to the TACH terminal. A robust ground wire is essential, usually connecting the distributor housing to the engine block for optimal performance.
📌 Key Takeaways
- Chevy HEI distributors require a full 12V constant power source; bypass any original ballast resistor or resistance wire.
- Crucially identify the ‘BAT’ (B+) and ‘TACH’ terminals on the HEI cap for correct wiring.
- Utilize a 10- or 12-gauge wire for the primary 12V hot wire to prevent voltage drop and ensure sufficient current.
- The most common HEI wiring mistake is an inadequate ground wire connection or using a resisted power source, leading to weak spark.
- Seek professional assistance if experiencing persistent misfires or no spark after verifying all wiring connections and component integrity.
Understanding the precise wiring sequence for your Chevy High Energy Ignition (HEI) distributor is paramount for achieving optimal engine performance and ensuring the longevity of your ignition system. This comprehensive guide and accompanying chevy hei distributor wiring diagram provides the technical specifications, wire color codes, and step-by-step instructions necessary for a correct and reliable installation or troubleshooting. Meticulous attention to detail, particularly regarding power source and grounding, directly impacts spark intensity, engine timing, and overall operational efficiency. Utilize this resource to ensure your HEI system operates exactly as engineered.
WIRE COLOR REFERENCE TABLE
| Wire Color (Common) | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Red (Thick) | Main 12V Switched Power | “BATT” (Large Terminal) | Provides constant 12V+ when ignition is ON. Must be a full 12V source, not through a resistor wire. |
| Brown / White (Thin) | Tachometer Signal Output | “TACH” (Small Terminal) | Provides engine RPM signal to an external tachometer. |
| Black (Typically internal) | Ground | Distributor Housing (Implicit) | Distributor grounds through its mounting to the engine block. Ensure clean, corrosion-free contact. |
STEP-BY-STEP CONNECTION GUIDE
Properly connecting your Chevy HEI distributor is crucial for accurate ignition timing and consistent spark delivery. This guide assumes you are working with a standard GM HEI unit, typically found in vehicles from the mid-1970s through the late 1980s. Always refer to the provided chevy hei distributor wiring diagram for visual confirmation of these connections.
Before commencing any electrical work, always disconnect the negative terminal of your vehicle’s battery to prevent accidental short circuits or electrical shock. Verify power is off using a multimeter.
1. Identify the HEI Connector: Locate the dual-pin connector on the HEI distributor cap. This connector typically has one large “BATT” terminal and one smaller “TACH” terminal. The orientation may vary slightly, but their functions are universally recognized.
2. Locate the Main 12V Switched Power Source: The HEI system requires a full 12-volt, constant power supply when the ignition is in the “RUN” and “CRANK” positions. For vehicles originally equipped with points or early electronic ignitions, you MUST bypass any existing ballast resistor wire or external ballast resistor. These components reduce voltage, which is detrimental to HEI operation. Identify a 12V switched source that provides full battery voltage (12.0-14.5V) during both cranking and running. A common tap point is directly from the ignition switch’s “IGN” terminal or a dedicated relay circuit.
Failure to provide a full 12V source will result in a weak spark, leading to engine misfires, poor acceleration, and potential damage to the HEI module. Manufacturer specifications indicate a minimum sustained voltage of 10.5V during cranking for proper HEI function. Consult your vehicle’s factory wiring diagrams for optimal power sourcing, or consider installing a dedicated relay for consistent voltage delivery.
3. Connect the 12V Power Wire: Connect a new 12-gauge primary wire (typically red) from your identified 12V switched power source directly to the “BATT” terminal on the HEI connector. Ensure this wire is appropriately fused (e.g., a 15-amp fuse) close to the power source to protect the circuit. Secure all connections using crimp terminals or solder, then insulate with heat shrink tubing for a robust, weather-resistant bond.
4. Connect the Tachometer Signal Wire: If your vehicle uses an external tachometer, connect a 16-gauge primary wire (commonly brown or white) from the “TACH” terminal on the HEI connector to the tachometer’s signal input. Verify your tachometer’s specific input requirements, as some aftermarket units may require a different signal type or resistance. Refer to your tachometer’s installation instructions for precise connection details.
5. Verify Grounding: The HEI distributor grounds through its metal housing to the engine block. Ensure the distributor base, engine block, and vehicle chassis have clean, corrosion-free metal-to-metal contact. A robust ground path is as critical as the positive power supply. If engine components are painted or powder-coated, ensure paint is removed from mating surfaces for optimal conductivity. According to OEM specs, distributor mounting bolts should be torqued to specifications (typically 15-20 lb-ft) to ensure proper mechanical and electrical contact.
6. Final Checks: Before reconnecting the battery, double-check all wiring connections against the chevy hei distributor wiring diagram. Ensure no wires are pinched, exposed, or routing near hot exhaust components. Reconnect the battery’s negative terminal and perform a functional test. You may need to verify timing after installation or replacement; refer to “Understanding Distributor Advance Mechanisms” for details.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect wiring of a Chevy HEI distributor can lead to a range of performance issues, from intermittent misfires to a complete no-start condition. Addressing these common pitfalls methodically is key to reliable operation.
1. Using a Resistor Wire for 12V Power:
Mistake: Connecting the HEI “BATT” terminal to the original points-style ignition wire that incorporates a ballast resistor. These wires reduce voltage (typically to 6-9V) to protect older points-style coils.
Consequence: The HEI module and internal coil are designed for a full 12V supply. Running on reduced voltage causes a weak spark, hard starting, misfires under load, and premature failure of the HEI ignition module. Symptoms include a “ghost” misfire or engine cutting out at high RPM.
Fix: Completely bypass or remove the resistor wire. Route a new 10-12 gauge wire directly from a full 12V switched ignition source (e.g., from the ignition switch or a dedicated relay) to the HEI “BATT” terminal. Verify 12V+ at the HEI terminal with a multimeter during both cranking and running.
2. Inadequate Wire Gauge for Power:
Mistake: Using too thin a wire (e.g., 18-gauge or smaller) for the main 12V power supply to the “BATT” terminal.
Consequence: A thin wire creates excessive resistance, leading to a voltage drop under load. This mimics the effect of a resistor wire, starving the HEI unit of necessary current, especially during cranking. It can also cause the wire to overheat.
Fix: Use a minimum of 12-gauge wire for the 12V power feed to the HEI. For longer runs or high-performance applications, a 10-gauge wire is recommended to minimize voltage drop and ensure robust current delivery.
3. Poor Ground Connection:
Mistake: The distributor’s ground path is compromised due to corrosion, paint under the distributor base, loose mounting bolts, or poor engine-to-chassis ground straps.
Consequence: An unreliable ground path can cause intermittent spark, erratic timing, or a complete loss of spark. The ignition module requires a solid ground reference to function correctly. This can often manifest as a “no spark” condition despite 12V being present at the BATT terminal.
Fix: Ensure the distributor base has clean, bare metal contact with the engine block. Check the integrity of engine-to-chassis ground straps; replace if corroded or damaged. Torque distributor hold-down bolts to spec (typically 15-20 ft-lbs). Consider running a dedicated ground wire from the distributor base to the chassis if persistent issues arise. For further diagnostics on your vehicle’s electrical system, refer to “Vehicle Electrical System Diagnostics.”
4. Incorrect Tachometer Connection:
Mistake: Connecting the tachometer to the wrong terminal, or using a tachometer incompatible with the HEI’s signal.
Consequence: Inaccurate RPM readings, a non-functional tachometer, or in rare cases, damage to the tachometer or HEI module if miswired to a power source.
Fix: The tachometer signal exclusively connects to the “TACH” terminal on the HEI connector. Verify your tachometer is compatible with a standard inductive ignition signal. Some older aftermarket tachometers may require an adapter or specific internal wiring changes.
5. Damaged HEI Connector or Wires:
Mistake: Over time, the plastic HEI connector can become brittle, cracking or leading to poor terminal retention. Wires can also suffer from abrasion, heat damage, or corrosion within the insulation.
Consequence: Intermittent connection issues, leading to misfires, engine stalls, or no start. A loose terminal can cause arcing and further damage.
* Fix: Visually inspect the HEI connector for cracks, melted plastic, or bent/corroded terminals. Tug gently on each wire to ensure good terminal retention. Replace the connector and associated wiring harness if any damage is found. Use high-quality, heat-resistant wiring.
According to ignition system testing protocols, verify the HEI module receives a minimum of 10.5V during cranking and maintains 12.0-14.5V when the engine is running. Any deviation indicates a power supply issue. For detailed ignition system component checks, consult “Ignition Coil Testing Procedures.”
FAQ
What voltage does an HEI distributor require to operate correctly?
An HEI distributor requires a full 12-volt, uninterrupted power supply during both the engine cranking and running states. This typically means battery voltage, which ranges from approximately 10.5-11.5V during cranking to 13.5-14.5V when the engine is running and the alternator is charging. It is critical that the power source does not pass through any voltage-reducing resistor wires or ballast resistors.
Can I use my old resistor wire from a points ignition system with an HEI distributor?
No, you absolutely cannot use an old resistor wire with an HEI distributor. The resistor wire reduces the voltage to the coil for points-style ignition systems, which require lower voltage. An HEI system, with its integrated coil and electronic module, demands a full 12V to function properly. Using a resistor wire will result in a weak spark, misfires, poor performance, and premature failure of the HEI module. You must bypass the resistor wire and provide a direct 12V switched source.
How do I test if my HEI distributor is receiving adequate power?
To test for adequate power, use a digital multimeter. Set it to measure DC voltage. With the ignition key in the “RUN” position, place the multimeter’s positive lead on the “BATT” terminal of the HEI connector and the negative lead on a known good engine ground. You should read full battery voltage (around 12.0-12.6V). Then, have an assistant crank the engine (briefly) while you observe the voltage; it should not drop below 10.5V. If it does, your power source or wiring gauge is insufficient.
What wire gauge is recommended for the main 12V power feed to the HEI distributor?
For the main 12V power feed to the HEI distributor’s “BATT” terminal, a minimum of 12-gauge primary wire is recommended. For vehicles that experience high under-hood temperatures, have long wire runs, or are performance-oriented, stepping up to a 10-gauge wire can further reduce voltage drop and ensure the HEI unit receives optimal current, especially during heavy load or high RPM operation.
What is the purpose of the tachometer (TACH) terminal on the HEI distributor?
The “TACH” terminal on the HEI distributor provides a pulsed electrical signal proportional to engine RPM. This signal is used to drive an external tachometer in the vehicle’s dashboard or an aftermarket unit. It’s a low-current signal and should only be connected to a tachometer input; connecting it to a power source or ground can damage the HEI module.
Step-by-Step Guide to Understanding the Chevy Hei Distributor Wiring Diagram: Pinout Guide 2026

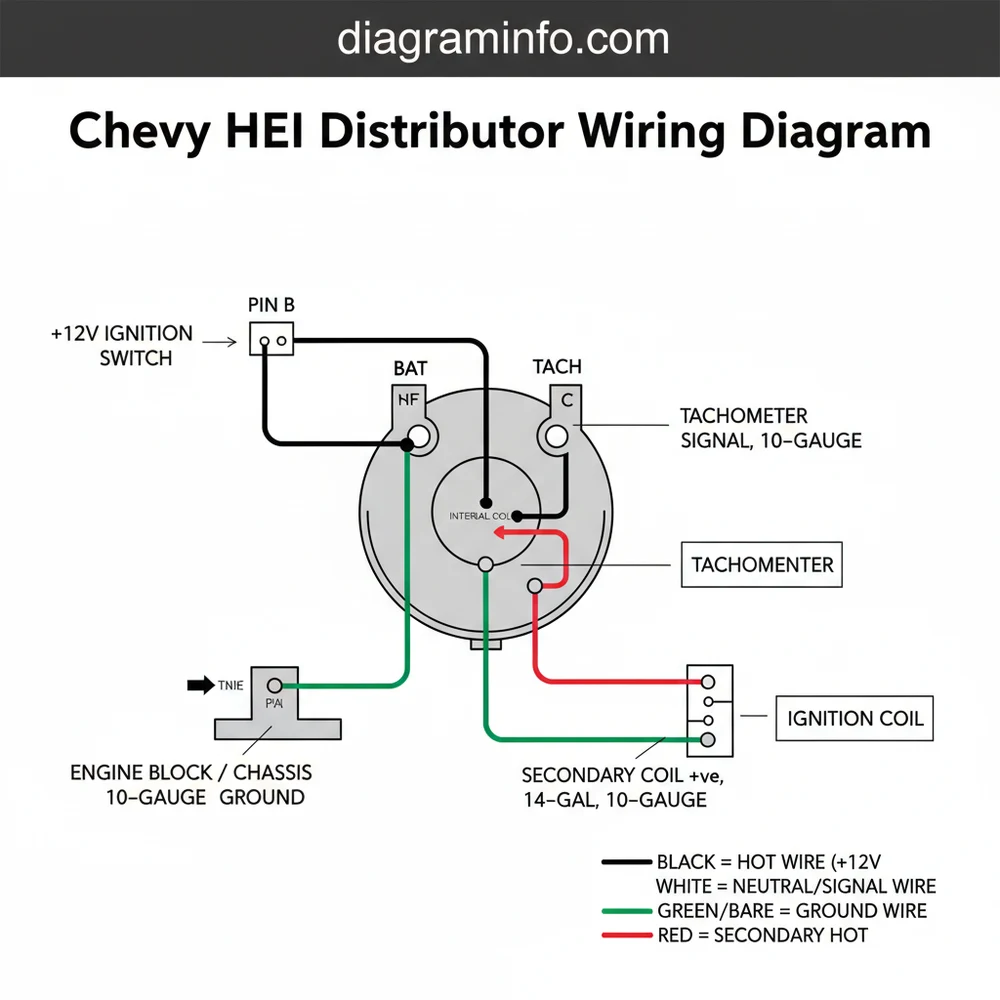

Identify – Locate the ‘BAT’ (B+) and ‘TACH’ terminals on your Chevy HEI distributor cap using the provided chevy hei distributor wiring diagram.
Locate – Find a switched 12V hot wire source in your vehicle that provides full battery voltage when the ignition is on, ensuring it bypasses any existing ballast resistor or resistance wire.
Reference – Consult the specific chevy hei distributor wiring diagram for your model to confirm the correct wire color code and pin assignment for each connection.
Connect/Route – Securely connect the switched 12V hot wire (typically 10-12 gauge) to the HEI’s ‘BAT’ terminal. Connect your tachometer’s signal wire to the ‘TACH’ terminal and ensure a solid ground wire connection from the distributor housing to the engine block.
Verify – Use a multimeter to confirm 12V at the HEI’s ‘BAT’ terminal with the ignition on and verify continuity for the ground connection to ensure proper power delivery.
Troubleshoot – If no spark or engine misfires occur, re-check all connections, confirm power source voltage, and inspect the ground wire for proper conductivity and security, referring back to the wiring diagram.
Frequently Asked Questions
What wire color is [function] on chevy hei distributor wiring diagram?
For a Chevy HEI distributor wiring diagram, the main power wire (hot wire) from a switched 12V source is typically red or pink and connects to the ‘BAT’ or ‘B+’ terminal. The tachometer signal wire is usually green or white and connects to the ‘TACH’ terminal. The ground wire uses the distributor’s metal housing itself, though some units might have a dedicated ground wire, ensuring a robust connection to the engine block is crucial for proper operation.
What do the pin numbers mean on chevy hei distributor wiring diagram?
While not always numbered, the HEI distributor diagram primarily references two key terminals on the cap. The ‘BAT’ or ‘B+’ terminal is for the switched 12-volt power input, providing the necessary voltage to the ignition module and coil. The ‘TACH’ terminal is the output for the tachometer signal, which connects to your vehicle’s tachometer. A good ground wire connection is implicitly made through the distributor body to the engine block.
How many wires does chevy hei distributor wiring diagram have?
A basic Chevy HEI distributor wiring diagram typically involves two primary external connections: a switched 12-volt hot wire for power, and a wire for the tachometer signal. The third essential connection is the ground wire, which is usually achieved by securely mounting the metal distributor housing to the engine block, ensuring a clean, low-resistance path for the electrical current to prevent issues related to pin assignment.
What are common wiring mistakes with chevy hei distributor wiring diagram?
Common wiring mistakes include connecting the HEI to a resisted power source (like the original ballast resistor wire), leading to insufficient voltage and weak spark. Another frequent error is an inadequate ground wire connection, causing erratic performance. Reversing the B+ and Tach wires, though less common, can also prevent the system from operating correctly. Always ensure a dedicated 12-gauge, switched 12V hot wire.
What voltage does a chevy hei distributor wiring diagram require?
The Chevy HEI distributor requires a full, unresisted 12 volts (B+) to operate correctly and deliver maximum spark energy. It is crucial to bypass any original ballast resistor or resistance wire that might have been used with a points-style ignition system. Providing less than 12 volts to the HEI can lead to a weak spark, poor engine performance, and potential damage to the HEI module due to insufficient hot wire voltage.
What gauge wire does chevy hei distributor wiring diagram require?
For the main switched 12-volt hot wire (B+) supplying power to the Chevy HEI distributor, a 10-gauge or 12-gauge wire is typically recommended. This ensures sufficient current flow without excessive voltage drop, especially under load. Using too small a gauge wire can restrict current, leading to a weak spark and potential overheating of the wire. The tachometer wire can generally be a smaller gauge, like 16-18 gauge for its wire color code.
