12V Dual Electric Fan Wiring Diagram: Complete Connection Guide 2026
A typical dual electric fan wiring diagram utilizes two 30-40 amp relays, a temperature switch, and a 12V fused power source. Commonly, a red wire is 12V power, black is ground, and blue/green wires control the fan motors via the relays, activating based on engine temperature or A/C signal.
📌 Key Takeaways
- Relays are crucial: Each fan requires a dedicated 30-40 amp relay for proper operation and circuit protection, preventing direct current draw through switches.
- Power source: Connect directly to a fused 12V constant battery source with appropriate gauge wire (e.g., 10-12 AWG) to handle combined fan amperage.
- Ground wire: Ensure all ground wires (typically black) are securely connected to a clean chassis ground point, vital for fan functionality and preventing electrical issues.
- Most common mistake: Overlooking proper wire gauge for high amperage draw often leads to overheating wires, blown fuses, or premature fan motor failure.
- When to seek professional help: For complex setups involving ECU triggers or custom fan controllers, consult a certified automotive electrician to prevent damage or ensure safety.
This comprehensive guide details the precise wiring procedures for a dual electric fan system, a critical component for maintaining optimal engine temperature and performance in automotive and heavy equipment applications. Understanding the exact dual electric fan wiring diagram is paramount for proper installation, ensuring efficient cooling, preventing costly overheating, and achieving precise operational control. This document provides a meticulous breakdown of wire color codes, pin assignments, terminal identification, and the correct sequence for connection, empowering technicians and experienced DIYers to execute this task with confidence and accuracy.
While this diagram represents a common and robust dual electric fan wiring configuration, always consult the specific OEM service manual for your vehicle or equipment. Wiring color codes and pin assignments can vary significantly between manufacturers and model years. This guide assumes a positive-switched, dual-relay system for independent or simultaneous fan control based on a thermostatic trigger.

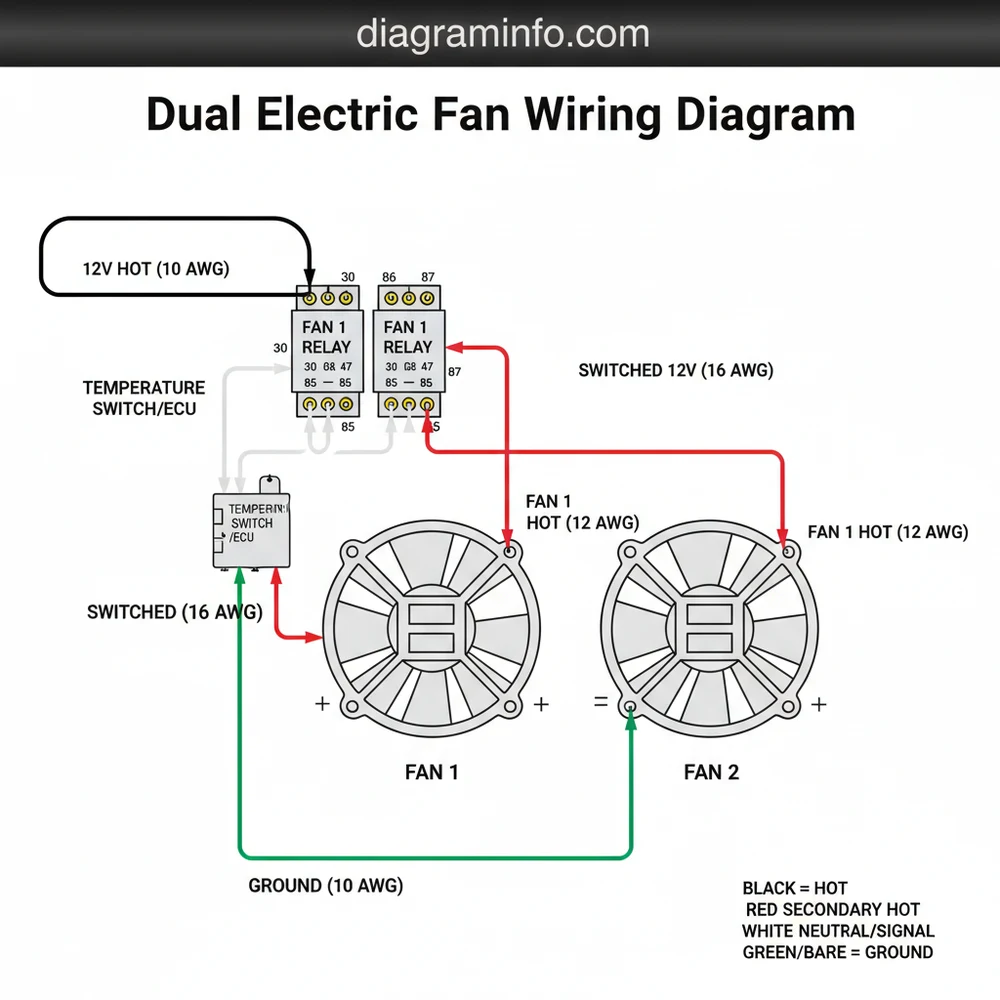

[INSERT DUAL ELECTRIC FAN WIRING DIAGRAM HERE]
WIRE COLOR REFERENCE TABLE
This table outlines the typical wire color codes, their functions, associated pin/terminal numbers, and important notes for a dual electric fan setup utilizing two independent relays. Adhering to these conventions simplifies troubleshooting and ensures correct operation.
| Wire Color (Typical) | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Red (Heavy Gauge) | Main Power (Battery +) | Relay 1 (30), Relay 2 (30) | Fused direct connection to battery positive. |
| Black (Heavy Gauge) | Main Ground (Chassis/Battery -) | Fan 1 Motor (-), Fan 2 Motor (-), Relay 1 (85), Relay 2 (85) | Secure connection to a clean, unpainted chassis ground or battery negative. |
| Blue (Relay 1 Output) | Switched Power to Fan 1 | Relay 1 (87), Fan 1 Motor (+) | Provides positive voltage to Fan 1 when Relay 1 is activated. |
| Green (Relay 2 Output) | Switched Power to Fan 2 | Relay 2 (87), Fan 2 Motor (+) | Provides positive voltage to Fan 2 when Relay 2 is activated. |
| Yellow (Trigger Input) | Ignition Switched Power (Relay Coils) | Relay 1 (86), Relay 2 (86) | Powers the relay coils; ensures fans only operate when ignition is ON. |
| Orange (Sensor 1 Output) | Thermostatic Switch 1 Output | Relay 1 (86) (alternative to Yellow connection) | If using a thermostatic switch that provides ground when activated. If providing +12V, this would go to Relay 86. For this diagram, we assume a ground-switching sensor activating a relay coil already supplied with ignition +12V. |
| Purple (Sensor 2 Output) | Thermostatic Switch 2 Output | Relay 2 (86) (alternative to Yellow connection) | Similar to Orange; for independent fan 2 activation. |
| Brown (Optional) | Manual Override Switch Input | Connects to Relay (86) alongside thermostatic switch output. | Allows manual activation of fans, typically fused. |
For most automotive dual electric fan applications, a minimum 10-gauge wire is recommended for the main power (battery to relay 30) and output (relay 87 to fan motor) circuits. Control circuit wires (relay pins 85, 86) can typically be 16-18 gauge due to lower current draw. Ensure all fuse holders and wire terminals are rated for the anticipated current draw. Manufacturer specs often recommend specific wire gauges based on fan amperage and wire run length.
STEP-BY-STEP CONNECTION GUIDE
Accurate execution of each step is crucial for the safe and reliable operation of your dual electric fan system. Refer to the dual electric fan wiring diagram above for visual guidance throughout this process.
1. Establish Main Power Connection: Identify a robust, constant 12V source, typically directly from the positive terminal of the vehicle battery or a main power distribution block. Connect a heavy-gauge (e.g., 10 AWG) Red wire from this source to a appropriately rated inline fuse holder. From the fuse holder’s output, create a fused `hot wire` connection that splits to power pin 30 on Relay 1 and pin 30 on Relay 2. This ensures both relays receive direct battery power when activated. Ensure this main power feed is protected by a fuse sized slightly above the combined maximum amperage draw of both fans. For example, if each fan draws 20 amps, a 40-amp fuse is a suitable starting point, but always verify fan specifications.
2. Connect Main Grounding Points: Securely connect heavy-gauge Black wires from the negative terminal of Fan 1 and Fan 2 directly to a clean, unpainted chassis ground point or the battery’s negative terminal. Additionally, connect a smaller gauge (e.g., 16-18 AWG) Black wire from pin 85 on Relay 1 and pin 85 on Relay 2 to the same reliable ground point. Proper grounding is critical for circuit completion and preventing voltage drops. Ensure all ground connections are tight and free from corrosion.
3. Route Switched Power to Fans: From pin 87 of Relay 1, connect a Blue wire to the positive terminal of Fan 1. Similarly, from pin 87 of Relay 2, connect a Green wire to the positive terminal of Fan 2. These wires will carry the high-amperage current to activate the fan motors once their respective relays are triggered. Verify pin assignment on your chosen relays carefully.
4. Wire Relay Coil (Ignition Switched Power): Connect a smaller gauge (e.g., 16-18 AWG) Yellow wire from an ignition-switched 12V source (a circuit that is only live when the ignition key is in the “ON” or “RUN” position) to pin 86 on both Relay 1 and Relay 2. This ensures the fan system is only active when the vehicle is running, preventing battery drain when the vehicle is off. This connection powers the relay’s internal coil.
5. Install Thermostatic Control Switches: This step involves the primary trigger for the fans.
Option A (Ground-Sensing Thermostat): If your thermostatic switch provides a ground signal when the temperature threshold is met, connect the output of Thermostatic Switch 1 to pin 86 of Relay 1, and Thermostatic Switch 2 to pin 86 of Relay 2. In this configuration, the Yellow wire from step 4 would be connected directly to pin 86 as a constant 12V for the coil, and the thermostatic switch would provide the ground path to activate the coil. (Our diagram assumes the Yellow wire goes to 86, and the thermostatic switch provides a ground path to 85, allowing for a single positive 12V for both 86s). Let’s revise for clarity: For a common setup where Relay 86 receives positive trigger, and 85 is ground: The Yellow wire from step 4 would go to an intermediate junction, then Orange wire from Thermostatic Switch 1 (positive output) goes to Relay 1 Pin 86, and Purple wire from Thermostatic Switch 2 (positive output) goes to Relay 2 Pin 86.
Revised Step 5 (Positive-Sensing Thermostat & Shared Ignition +12V for Coil): For our specific dual electric fan wiring diagram, where Relay 85 is grounded, and Relay 86 receives the positive trigger: Connect the output of Thermostatic Switch 1 (Orange wire, providing +12V upon activation) to pin 86 of Relay 1. Similarly, connect the output of Thermostatic Switch 2 (Purple wire, providing +12V upon activation) to pin 86 of Relay 2. Ensure the input to these thermostatic switches is also an ignition-switched 12V source, possibly branching off the same Yellow wire from step 4 or a separate fused ignition source. This setup allows for independent activation of each fan based on individual temperature thresholds, which can be beneficial for staged cooling.
Internal Link: For more information on different types of automotive triggers and switches, refer to our detailed article on Selecting the Right Thermostatic Switch for Engine Cooling.
6. Secure All Connections and Test: After all wires are connected according to the dual electric fan wiring diagram, ensure all terminals are crimped, soldered, and insulated correctly. Use heat shrink tubing or high-quality electrical tape. Mount the relays in a cool, dry location away from extreme heat. Perform continuity tests and voltage checks before starting the engine. Verify fan operation manually if possible, then allow the engine to warm up to test automatic activation via the thermostatic switches.
Incorrect wire gauge selection or inadequate fusing can lead to overheating, wire degradation, and potential fire hazards. Always use fuses that are properly rated for the circuit and never bypass a fuse. Ensure all connections are robust and corrosion-free, particularly for high-current applications.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect wiring of a dual electric fan system can lead to serious performance issues or component damage. Here are common mistakes and their professional remedies.
1.
Reversed Polarity on Fan Motors
Consequence: The fan will run, but it will pull air away from the radiator rather than pushing it through, severely hindering cooling efficiency. This is a common oversight when the fan motor’s terminals aren’t clearly marked.
Fix: Observe the fan’s rotation direction and airflow. If incorrect, reverse the `hot wire` (Blue or Green, from relay 87) and `ground wire` (Black, from fan to chassis) connections at the fan motor terminals. Some fans have directional indicators. Always double-check your fan’s designated direction of rotation before final assembly.
2.
Inadequate Wire Gauge for Main Power and Fan Circuits
Consequence: Excessive voltage drop across the wires, leading to reduced fan speed, decreased cooling performance, overheating of wires, and potential fire. This is especially critical for the `hot wire` from the battery to the relay (Pin 30) and from the relay (Pin 87) to the fan motors.
Fix: Always use wire gauges appropriate for the current draw and length of the wire run. For most high-amp automotive fans, 10 AWG wire is a minimum for primary power and fan motor connections. Use a wire gauge chart to ensure proper sizing, considering a safety margin for peak loads. See our in-depth resource on Understanding Automotive Wire Gauge Selection for detailed guidance.
3.
Improper Grounding or Multiple Ground Points
Consequence: Intermittent fan operation, flickering lights, or complete fan failure. A poor `ground wire` connection creates resistance, causing voltage drops and erratic behavior, often manifesting as low fan speed or a non-functional fan even when the relay clicks.
Fix: Consolidate ground connections to a single, clean, robust chassis point or directly to the battery negative terminal. Ensure the ground point is free of paint, rust, and debris. Use appropriately sized ring terminals and secure them tightly with a bolt or screw. Avoid daisy-chaining grounds if possible; dedicated ground paths are more reliable.
4.
Incorrect Relay Pin Assignment or Faulty Relay
Consequence: Fans fail to operate, run constantly, or blow fuses. Miswiring pins 85, 86, 30, and 87 of an automotive relay is a frequent error. A faulty relay might click but not conduct power, or remain stuck open/closed.
Fix: Double-check your relay’s pinout against the `pin assignment` diagram. Ensure 30 is constant power, 87 is switched output, 85 is ground, and 86 is the trigger. If wiring is correct, test the relay with a multimeter or replace it with a known good unit. Remember to use only automotive-grade relays (often SPDT or SPST, 4 or 5-pin) rated for the fan’s amperage.
5.
No Ignition-Switched Power for Relay Coil
Consequence: Fans run constantly even when the vehicle is off, leading to a dead battery. This occurs if the `hot wire` supplying `voltage` to the relay’s trigger (pin 86) is connected to a constant 12V source rather than an ignition-switched source.
* Fix: Reroute the trigger `hot wire` (Yellow in our diagram) from pin 86 of both relays to a circuit that only receives power when the ignition is in the “ON” position. Use a multimeter to identify a suitable ignition-switched circuit. This is a fundamental aspect of `terminal block` wiring for auxiliary systems.
FAQ
What is the purpose of using two relays for a dual electric fan system?
Using two relays provides independent control and enhanced safety for a dual electric fan setup. Each fan has its dedicated power circuit, meaning if one relay or fan motor fails, the other fan can still operate, offering some redundancy for cooling. This also allows for staged operation (e.g., one fan for mild heat, both for extreme conditions) if controlled by separate thermostatic switches or an ECU. It also distributes the electrical load, reducing stress on a single relay or power circuit.
How do I determine the correct fuse size for my dual electric fans?
To determine the correct fuse size, you need to know the maximum current draw (amperage) of each fan. Add the amperage of both fans together to get the total maximum draw. Then, select a fuse that is approximately 25-50% higher than this total, allowing for inrush current when the fans initially start. For instance, if each fan draws 20 amps, the total is 40 amps, so a 50-amp or 60-amp fuse for the main power feed would be appropriate. Always verify with the fan manufacturer’s specifications. This is a critical `terminal block` consideration.
Can I use a single thermostatic switch to control both fans?
Yes, you can use a single thermostatic switch to control both fans simultaneously. In this configuration, the output from the single thermostatic switch would be connected to pin 86 of both Relay 1 and Relay 2 (assuming a positive-switched sensor). While simpler, this setup doesn’t allow for staged cooling or redundancy. Some advanced systems utilize an ECU to control fan activation based on various sensor inputs, offering precise, variable fan speed control; for more on this, explore our content on ECU Control Systems for Engine Fans.
What type of relays are typically used for electric cooling fans?
For electric cooling fans, technicians typically use 12V automotive-grade SPST (Single Pole, Single Throw) or SPDT (Single Pole, Double Throw) relays. SPST relays are 4-pin relays, simply switching power ON or OFF. SPDT relays are 5-pin relays, which allow for switching power between two different circuits and are sometimes used for multi-speed fan applications or more complex control schemes. Ensure the relay’s current rating (e.g., 30A, 40A) exceeds the fan’s maximum draw.
What does “pin assignment” refer to in a wiring diagram?
“Pin assignment” refers to the specific function designated for each electrical pin or terminal on a component, such as a relay, sensor, or connector. For relays, standard `pin assignment` uses numbers (30, 85, 86, 87, 87a) to indicate Battery Positive, Coil Ground, Coil Positive Trigger, Normally Open Output, and Normally Closed Output, respectively. Understanding these assignments is fundamental for correctly interpreting any `wiring diagram` and making accurate electrical connections to ensure components receive the correct `voltage` and current.
Step-by-Step Guide to Understanding the 12V Dual Electric Fan Wiring Diagram: Complete Connection Guide 2026
Identify – Locate the components: dual electric fans, two relays, temperature switch or controller, and appropriate gauge wire harness.
Locate – Find a suitable mounting position for the fans on the radiator, ensuring adequate clearance, and identify a secure chassis ground point.
Reference – Consult your specific dual electric fan wiring diagram to understand the connections for constant power, switched power, triggers, and grounds.
Connect/Route – Route heavy gauge power (hot wire) from a fused 12V source to relay pin 30, fan output (relay pin 87) to the fan motors, and control signal (relay pin 86) from your trigger source. Connect all ground wires to the chassis.
Verify – Before final power connection, perform continuity checks for all circuits. Apply temporary power to test fan operation, ensuring both fans spin in the correct direction and relays click.
Troubleshoot – If fans do not activate, re-check fuses, verify all ground wire connections, ensure relays are receiving trigger signals, and confirm power supply is stable. Consult the diagram for specific diagnostic points.
Frequently Asked Questions
What wire color is power on a dual electric fan wiring diagram?
Typically, the primary 12V hot wire for dual electric fan systems is red and connects to a fused battery source. Individual fan motor positive wires might be different colors (e.g., blue, green) and are switched by relays. Always confirm with the specific fan kit’s wire color code to ensure correct connection and prevent damage.
What do the pin numbers mean on dual electric fan relays?
Standard automotive relays (e.g., Bosch style) use common pin assignments: Pin 30 is constant 12V hot wire from the battery, Pin 87 is the switched 12V output to the fan motor, Pin 85 is the relay coil ground, and Pin 86 is the 12V trigger input from a switch or temperature sensor. This ensures correct current flow.
How many wires does a typical dual electric fan system have?
A dual electric fan system typically involves multiple wires: two heavy gauge 12V hot wires (one for each fan, post-relay), two heavy gauge ground wires (one for each fan), two trigger wires for the relays, a fused constant 12V hot wire to power the relays, and a main ground wire for the relay circuit. This totals 8-10 wires.
What are common wiring mistakes with dual electric fan diagrams?
Common mistakes include using inadequate wire gauge, bypassing relays, incorrect hot wire or ground wire connections, and improper fuse sizing. Reversing polarity to the fan motors can cause them to run backward (if reversible) or not at all. Always follow the dual electric fan wiring diagram precisely and double-check connections.
Do I need a fan controller for a dual electric fan setup?
While not always strictly required, a dedicated fan controller is highly recommended for dual electric fan setups. It provides sophisticated control based on engine temperature, A/C activation, and even vehicle speed, ensuring optimal cooling and preventing constant fan operation, which extends fan and component lifespan. It simplifies the wiring process.
What gauge wire does a dual electric fan require?
For the main power and ground wires feeding the fans, 10 AWG wire is typically recommended for fans drawing up to 30 amps each. For smaller fans (under 20 amps), 12 AWG might suffice. Trigger wires for relays can be 16-18 AWG. Always refer to the fan’s current draw specifications to select the appropriate gauge wire, preventing overheating.
