12V Simple Camper Wiring Diagram: Easy Setup Guide
A 12v simple camper wiring diagram illustrates the connection between a deep-cycle battery, a central fuse block, and various DC appliances. The positive hot wire runs through a fuse to provide power, while the ground wire returns to the negative terminal or chassis to complete the circuit safely.
📌 Key Takeaways
- Provides a roadmap for distributing DC power from a battery to camper accessories
- The fuse block is the most critical component for circuit protection
- Always use appropriately gauged wire to prevent overheating and voltage drop
- Labeling every wire at both ends saves hours during future maintenance
- Ideal for small van conversions, teardrop trailers, and off-grid builds
Setting out to build your own mobile living space is an exciting journey, but the complexity of electrical systems can often feel like a major hurdle. Whether you are converting a van, a truck camper, or a small trailer, understanding a 12v simple camper wiring diagram is the essential first step toward independence on the road. A clear, well-structured diagram serves as your roadmap, ensuring that your lights, fans, and chargers function reliably without risking a short circuit or fire. By following a standardized wiring plan, you can demystify the process of connecting batteries to appliances, allowing you to focus on the adventure ahead. In this guide, you will learn the fundamental principles of DC circuits, how to identify terminal connections, and the proper sequence for installing a safe and efficient power system in your vehicle.
Understanding the 12v Simple Camper Wiring Diagram
The primary purpose of a 12v simple camper wiring diagram is to illustrate the flow of direct current (DC) from your power source to your various electronic devices. Unlike a home electrical system that uses alternating current (AC), a camper system relies on a loop where electricity leaves the positive terminal of a battery, travels through a fuse and a switch, powers a device, and returns to the negative terminal. The diagram visualizes this loop, emphasizing the distinction between the “hot” side and the “return” side of the circuit.
In a standard diagram, you will see several key components represented by specific symbols or blocks. At the heart of the system is the deep-cycle battery, often a Lithium (LiFePO4) or AGM variety. From the battery, a heavy-gauge cable leads to a primary circuit breaker or a high-capacity fuse. This then connects to a distribution point known as a fuse block. The fuse block acts as the “common terminal” for the positive side of your system, branching out into individual circuits for your LED lights, water pump, and USB ports.
Color-coding is the most critical visual element of any wiring diagram. In a 12v DC system, the standard convention uses red for positive (hot) wires and black or white for negative (ground) wires. However, it is important to note that some components might use different colors for specific functions, such as a “traveler wire” in a specialized three-way switch setup or a yellow wire for constant memory power in a stereo system.
The diagram also specifies the wire gauge required for each run. Because 12v systems are sensitive to voltage drop, using the correct thickness of wire is paramount. A diagram will typically label runs with “10 AWG,” “12 AWG,” or “14 AWG” depending on the distance of the run and the amperage draw of the appliance.

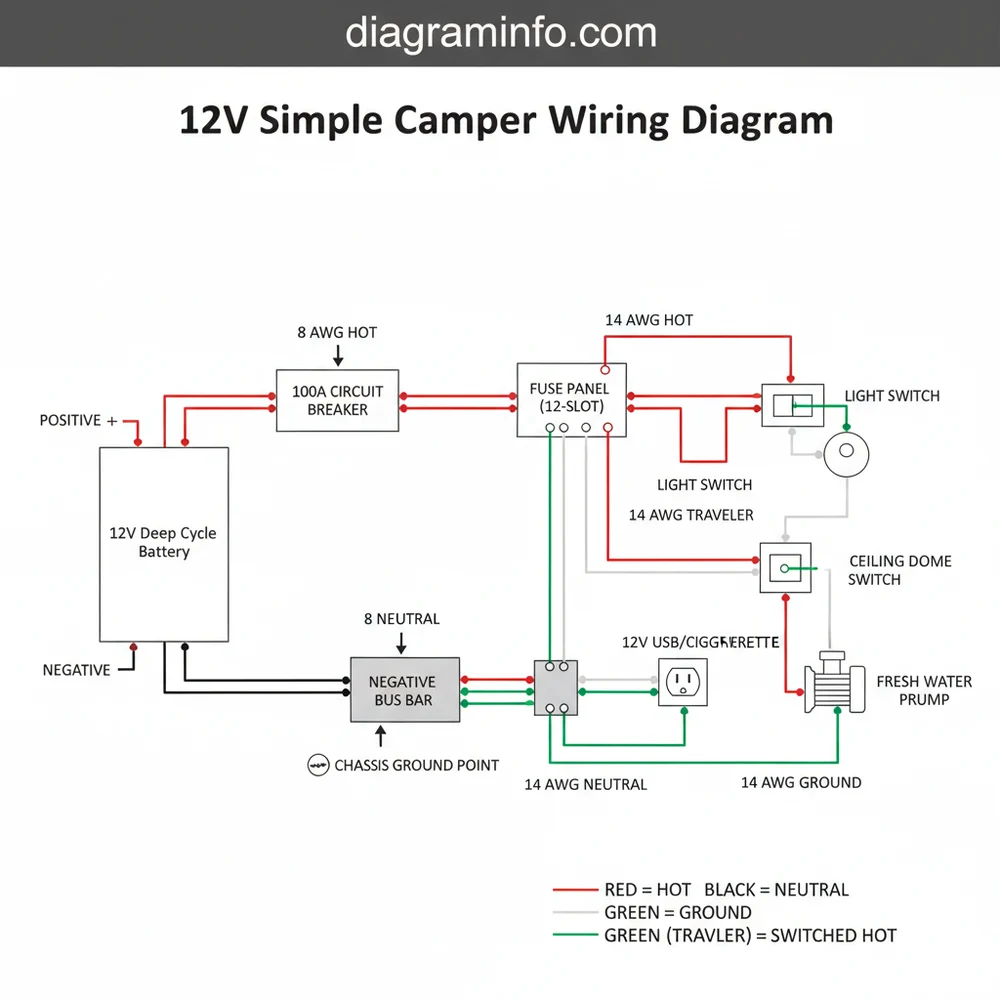

[DIAGRAM_PLACEHOLDER: A visual representation showing a 12V Battery connected to a 100A Main Fuse, leading to a 6-circuit Fuse Block. Each circuit shows a positive red wire going to a load (light/fan) and a negative black wire returning to a Common Ground Bus Bar, which then connects back to the battery negative terminal.]
Detailed Component Identification
To successfully implement the wiring diagram, you must be able to identify the physical connection points on your hardware. Most 12v appliances and sockets follow a standard design. For instance, when wiring a 12v cigarette lighter-style socket or a USB charging port, you will often find a brass screw and a silver or nickel-plated screw. The brass screw is almost universally used for the positive or “hot wire” connection, while the silver screw is designated for the negative or “ground wire.”
Another common point of confusion is the “common terminal.” In the context of a fuse block, the common terminal is the main lug where the large battery cable enters, distributing power to all the individual fuse slots. In a switch, the common terminal is the pin that receives power from the source before the switch redirects it to one or more outputs. If you are installing a three-way lighting system (allowing you to turn a light on from the bed or the door), you will encounter a traveler wire. This wire carries the current between the two switches, and its position on the terminal is crucial for the circuit to function correctly.
While AC systems use the term “neutral wire,” in a 12v DC camper setup, we refer to the return path as the negative or ground wire. However, many beginners use these terms interchangeably. Just remember: Positive (Red) provides the pressure, and Negative (Black) provides the path home.
Step-by-Step Installation Guide
Following a 12v simple camper wiring diagram requires a methodical approach to ensure safety and longevity. Follow these steps to bring your system to life.
Step 1: Calculate Your Load and Wire Gauge
Before stripping any insulation, you must calculate the total amperage your system will pull. Add up the amps for every device you plan to run simultaneously. Use a voltage drop chart to determine the appropriate gauge for your wires. For example, a 10-amp load over a 15-foot distance usually requires at least a 10-gauge wire to prevent the voltage from dropping below functional levels.
Step 2: Mount the Major Components
Secure your battery box, fuse block, and ground bus bar in a central, accessible location. It is best to keep the fuse block close to the battery to minimize the length of the main high-current cables. Ensure the area is well-ventilated, especially if you are using lead-acid or AGM batteries that can outgas.
Step 3: Establish the Main Ground Path
Run a heavy-gauge black wire from the negative terminal of the battery to your common ground bus bar. From this bus bar, you can also run a ground wire to the metal chassis of the vehicle. This “chassis ground” acts as a massive return path and is standard in automotive wiring, though many modern builders prefer a “fully floated” system where every device has a dedicated return wire to the bus bar.
Step 4: Install the Primary Protection
Connect a red “hot wire” from the battery’s positive terminal to a high-amperage circuit breaker or fuse. This protection should be placed as close to the battery as possible—ideally within 7 inches. This ensures that if the main cable chafes against the metal body of the van, the fuse will blow before the cable starts a fire.
Step 5: Wiring the Fuse Block
Run the output from your main breaker to the common terminal on your fuse block. Now, your fuse block is “live.” You can begin connecting individual circuits. For each device, run a red wire from a fused slot on the block to the “hot” side of your switch or appliance. If using a switch, the wire goes to the brass screw or the terminal marked “Line.”
Step 6: Completing the Circuit
From the “Load” side of your switch, run a wire to the appliance. Finally, run a black wire from the negative terminal of the appliance back to your common ground bus bar. This completes the loop shown in your 12v simple camper wiring diagram.
Step 7: Terminating and Crimping
Use high-quality heat-shrink ring terminals or spade connectors for all connections. Avoid twisting wires together and using electrical tape, as the vibrations of a moving vehicle will eventually shake these connections loose. Use a proper ratcheting crimp tool to ensure a gas-tight connection at every terminal.
Step 8: Final Testing
Before inserting fuses, use a multimeter to check for continuity and to ensure there are no “dead shorts” between the positive and negative sides. Once confirmed, insert the appropriate fuses (e.g., a 5A fuse for LED lights, a 15A fuse for a fridge) and test each device one by one.
Never use a fuse larger than the ampacity of the wire it is protecting. If a wire is rated for 15 amps and you use a 30 amp fuse, the wire will melt and potentially catch fire before the fuse ever blows.
Tools and Materials Needed
- ✓ Multimeter for testing voltage and continuity
- ✓ Ratcheting wire crimper and wire strippers
- ✓ Various gauges of duplex marine-grade wire (10, 12, 14 AWG)
- ✓ Heat shrink tubing and a heat gun
- ✓ Fuse block with ground bus bar
- ✓ High-quality deep-cycle battery
Common Issues & Troubleshooting
Even with a perfect 12v simple camper wiring diagram, issues can arise during installation or after a few months on the road. The most frequent problem is a “voltage drop,” where a device receives less than the required 12 volts despite the battery being full. This is almost always caused by using a wire gauge that is too thin or having a loose, corroded connection at the ground wire or common terminal.
If a device fails to turn on, the first step is to check the fuse. If the fuse is intact, use your multimeter to check for voltage at the device’s connection point. If you see 12.6V at the battery but only 10V at the light, you have a high-resistance connection somewhere in the circuit. Check the brass screw connections on your switches and outlets, as these are common points for vibration-induced loosening.
Another common issue is “phantom loads,” where the battery drains even when everything is turned off. This can be traced back to devices like stereo head units or propane detectors that have a constant “hot wire” connection. The diagram helps solve this by allowing you to visualize where a master disconnect switch should be placed to completely sever the battery’s connection when the camper is in storage.
Tips & Best Practices
Label both ends of every wire using a label maker or a piece of tape. Six months from now, if a light stops working, you won’t want to play a guessing game with a bundle of identical red wires.
To ensure a professional-grade installation, always use marine-grade tinned copper wire. Unlike standard automotive wire, tinned copper resists corrosion, which is vital in the humid or salty environments often encountered during camping. While it costs slightly more, it significantly increases the reliability of your system.
Regarding cost-saving, do not skimp on your terminal connections. Cheap, non-branded fuses can fail to blow at their rated amperage, and poor-quality crimps are the number one cause of electrical fires in DIY builds. Buy a reputable brand of fuse block and high-quality heat-shrink terminals.
Another best practice is to include a “service loop” in your wiring. This means leaving a few extra inches of wire coiled behind panels or near the fuse block. If you ever need to replace a terminal or move a component, you will have enough slack to work with without having to re-run the entire length of the wire.
Maintenance is also key. Every few months, or after a particularly bumpy off-road trip, inspect your battery terminals and common ground points. Vibration can loosen even the best crimps. Ensure that the nuts on your battery terminals are snug and that there is no sign of heat discoloration on the wire insulation, which would indicate a poor connection and high resistance.
Summary of Wiring Standards
When you look at your 12v simple camper wiring diagram, remember that it is more than just lines on a page; it is a safety document. By adhering to the color codes (Red for hot, Black for ground), respecting the limits of your wire gauge, and ensuring every circuit is fused, you create a power system that is both functional and secure. The use of a common terminal for distribution and a dedicated ground wire for returns will minimize the “electrical noise” and voltage instability that plagues many amateur builds.
Whether you are dealing with the intricacies of a traveler wire in a dual-switch light setup or simply connecting a single vent fan, the principles remain the same. Maintain the integrity of your voltage by using thick enough wires, protect your components with fuses, and always double-check your connections against your master diagram. With a properly wired 12v system, your camper becomes a true home on wheels, providing the comfort and reliability you need to explore the world with confidence.
Frequently Asked Questions
Where is the fuse block located?
The fuse block should be located in a dry, accessible area close to the battery. Placing it centrally minimizes the length of each hot wire run to your appliances, which reduces voltage drop and ensures that you can easily reach the fuses if one happens to blow.
What does this diagram show?
The diagram shows the path of electricity from the battery to lights, fans, and pumps. It may include a traveler wire setup for three-way switches, allowing you to control cabin lights from both the doorway and the bed, which is a common convenience in modern camper designs.
How many connections does a 12V system use?
A standard DC circuit uses two wires: a positive and a negative. While AC systems use a neutral wire, 12V DC systems use a ground wire to return current to the battery. Specialized switches may use a common terminal to distribute power across multiple paths or traveler wires.
What are the symptoms of a bad ground?
Symptoms include flickering lights, low voltage at the appliance, or devices that stop working when another is turned on. A loose ground wire creates high resistance, preventing the circuit from completing. Always check that ground connections are clean, tight, and free of corrosion or paint.
Can I install this myself?
Yes, installing a simple 12V system is a popular DIY task. By following a clear wiring diagram and using the correct crimping tools, most owners can safely wire their own campers. Just ensure you use fuses on every positive circuit to protect against potential short circuits.
What tools do I need for this?
You will need a wire stripper, a terminal crimping tool, a multimeter for testing, and heat shrink for insulation. Basic hand tools like screwdrivers and pliers are also necessary to mount the fuse block, battery tray, and various switches or outlets throughout your camper interior.
