Mercury Outboard Lower Unit Diagram: Troubleshooting 2026
A Mercury outboard lower unit diagram details the lower gearcase layout, featuring the vertical driveshaft, impeller-driven water pump, shift shaft linkage, bevel pinion gear, forward and reverse gears, clutch dog, and propeller shaft. Drain and fill vent plugs seal the gearcase, requiring High Performance Gear Lube torqued to 55 in-lbs.
📌 Key Takeaways
- The lower gearcase layout houses the vertical driveshaft, water pump impeller, bevel gear assembly, and propeller shaft.
- Always replace drain plug seal washers and torque drain and fill screws to 55 in-lbs (6 Nm) during service.
- Neoprene water pump impeller failure is the leading cause of outboard overheating; replace every 100 operating hours.
- Milky gear oil indicates water intrusion through compromised propeller shaft seals or bearing carrier O-rings.
- Setting bevel gear backlash and pinion depth requires specialized dial gauges and should be handled by certified marine technicians.
The gearcase (lower unit) on a Mercury outboard motor is a hydraulic and mechanical assembly engineered to translate high-RPM crankshaft rotation into horizontal thrust. It houses precision-ground hypoid bevel gears, heavy-duty needle and tapered roller bearings, shifting clutches, water pump assemblies, and high-pressure fluid sealing systems. Understanding a mercury outboard lower unit diagram is essential for marine technicians and advanced mechanics performing seal replacements, gear backlash adjustments, bearing preloading, or full gearcase rebuilds. This guide provides a detailed structural breakdown of the Mercury lower unit, explaining component functions, service schematics, blueprint torque specifications, and diagnostic procedures.

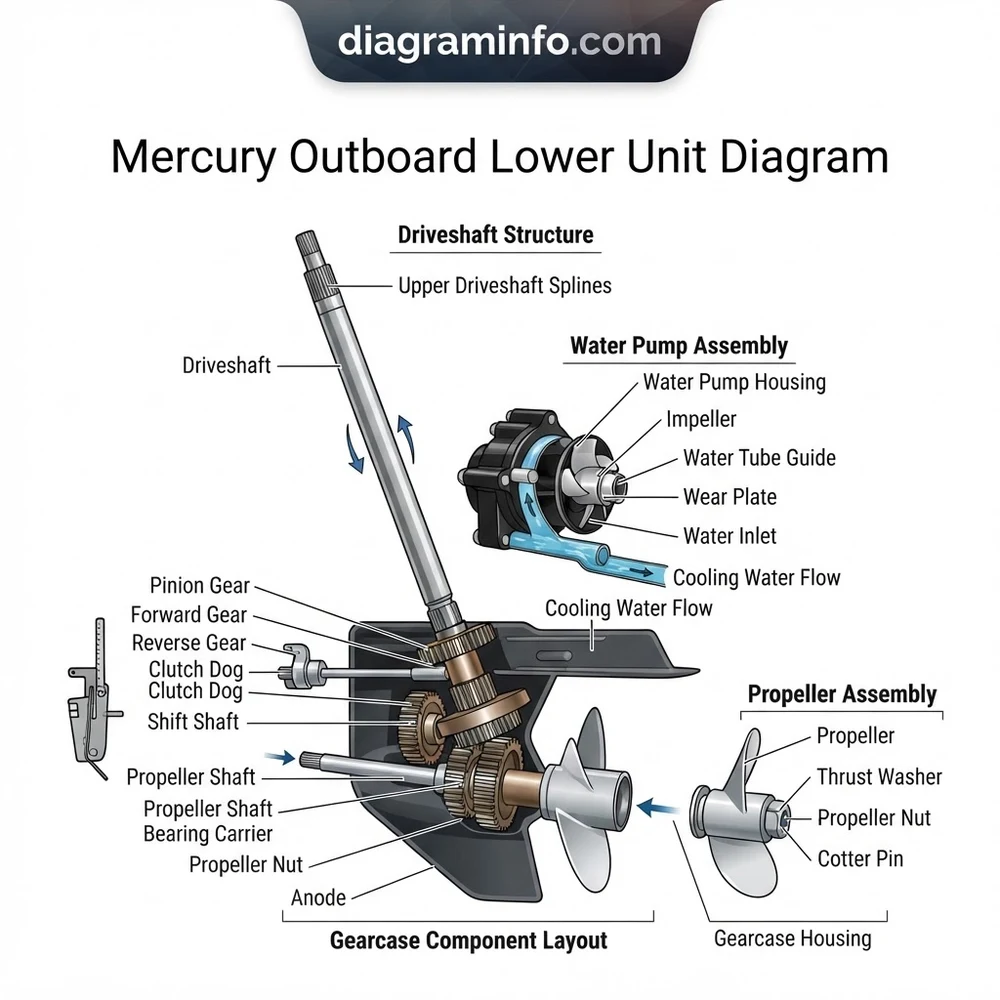

Mercury Outboard Lower Unit Diagram: Component and Gearcase Anatomy
A typical Mercury gear housing configuration consists of four major sub-assemblies working within a cast-aluminum shell: the water pump drive system, the vertical drive shaft assembly, the horizontal propeller shaft carrier, and the internal shift linkage mechanism. Proper identification of these internal components from a factory blueprint is critical prior to tear-down.
Recommended Best Deal Products
Mercury marine gearcases operate at varying gear reduction ratios depending on engine displacement and hull application. Standard ratios range from 1.64:1, 1.75:1, 1.87:1, 2.00:1, up to 2.38:1 on Command Thrust (CT) models. Pinion gear backlash is maintained between 0.022 in and 0.035 in using precision ground stainless steel shim packs.
1. Vertical Drive Shaft and Pinion Gear
The vertical drive shaft transfers rotational kinetic energy from the engine powerhead down into the lower gear housing. Machined with high-strength splines at both ends, the top splines engage the engine crankshaft while the lower splines secure the spiral bevel pinion gear. Located directly above the pinion gear is a tapered roller bearing or needle bearing stack, held in alignment by a driveshaft bearing retainer nut. This assembly must resist severe vertical axial loads created when spiral bevel gears mesh under full engine load.
2. Forward Gear, Reverse Gear, and Clutch Dog
The pinion gear continuously engages both the forward gear and reverse gear simultaneously, causing them to rotate in opposing directions on the horizontal prop shaft whenever the engine is running. Positioned between these two free-spinning gears is the sliding clutch dog, which is splined directly to the propeller shaft. When you actuate the shift remote, the internal shift shaft rotates a cam or shift slide, pushing the clutch dog forward or backward. Drive lugs on the clutch dog lock into matching engagement ramps on the selected gear face, locking that gear to the prop shaft to drive the vessel forward or in reverse.
3. Propeller Shaft and Bearing Carrier Assembly
The propeller shaft carries torsional load to the propeller. It is supported by the forward gear needle bearing inside the housing cavity and a heavy-duty rear bearing carrier positioned at the aft end of the torpedo housing. The bearing carrier holds the rear thrust bearing, prop shaft needle bearings, and a set of back-to-back double lip oil seals. On post-2006 75-300 HP models, the bearing carrier is secured into the gear housing by either a threaded cover nut (requiring a specialized multi-prong spanner wrench) or a dual-bolt retainer key system.
4. Shift Shaft, Spool, and Water Pump Sub-System
Positioned on the top forward deck of the lower unit housing is the water pump assembly, driven directly by a keyway cut into the vertical drive shaft. Above the lower housing cavity sits the vertical shift shaft, which passes through a dedicated shift shaft seal bushing. The lower end of the shift shaft connects to a detent cam and follower pin, converting rotary motion from the shift cable into linear motion to displace the clutch dog against heavy detent spring tension.
How to Read the Mercury Outboard Lower Unit Schematic for Rebuilds
Interpreting a factory technical schematic or service blueprint requires understanding component layering, exploded view projection, and assembly indexing flags. Marine schematics use standard isometric projections where hardware, shims, seals, and structural components are aligned along central axial reference lines.
When reviewing a schematic, follow these technical steps to interpret assembly relationships and maintain structural integrity during reassembly:
- Identify Centerline Projections: The vertical axis represents the drive shaft centerline, tracking from the upper pump housing down through the upper drive shaft bearing, housing case, and pinion gear nut. The horizontal axis represents the propeller shaft centerline, indexing the forward thrust washer, forward gear, shim stack, clutch dog, reverse gear, and bearing carrier.
- Analyze Shim Locations: Shims are represented in blueprints as thin, washer-style rings positioned behind bearing cups or gear shoulders. Note that shims adjust gear tooth mesh depth and axial shaft play. Never mix shim positions between the forward gear pocket and the drive shaft bearing housing. For detailed cooling system servicing associated with lower unit removal, consult our Mercury Outboard Impeller Replacement Guide.
- Verify Seal Lip Orientation: Exploded views indicate seal directionality. In Mercury dual-seal configurations (such as the prop shaft carrier or drive shaft base), the inner seal lip always faces inward toward the gear oil cavity to contain fluid pressure, while the outer seal lip faces outward toward the water passage to exclude raw seawater.
- Locate Retaining Hardware and Keyways: Pay close attention to small alignment keys, detent balls, and locking tabs. The water pump impeller key, shift slide pin, and prop shaft thrust washers have distinct directional chamfers that must align precisely with mating keyways on the shafts.
Whenever replacing a drive shaft, prop shaft, housing, or gear set (Forward/Reverse/Pinion), original factory shim thickness cannot be assumed correct. Mechanics must use a dial indicator with a specialized gearcase backlash fixture to measure gear tooth clearance. Insufficient backlash causes extreme gear whining and rapid tooth degradation; excessive backlash causes gear tooth shearing under acceleration.
Mercury Outboard Lower Unit Diagram Specifications and Torque Reference
Rebuilding a Mercury gearcase requires strict adherence to fastidious torque specifications and fluid capacity limits. Operating a gear housing with incorrect fastener torque can cause bearing carrier rotation, case cracking, or seal failure. Refer to the table below for OEM reference specifications across popular Mercury engine families.
| Engine Series & Gearcase Type | Pinion Nut Torque | Carrier Cover Nut / Bolts | Drain/Fill Plug Torque | Gear Lube Capacity |
|---|---|---|---|---|
| 40 / 50 / 60 HP FourStroke (Standard 1.83:1) | 55 ft-lbs (75 Nm) | 120 ft-lbs (162 Nm) | 55 in-lbs (6.2 Nm) | 14.9 fl oz (440 ml) |
| 75 / 90 / 115 HP SeaPro / Pro XS (2.08:1) | 70 ft-lbs (95 Nm) | 210 ft-lbs (284 Nm) | 55 in-lbs (6.2 Nm) | 24.0 fl oz (710 ml) |
| 150 HP FourStroke (Standard 1.92:1) | 75 ft-lbs (101 Nm) | 210 ft-lbs (284 Nm) | 55 in-lbs (6.2 Nm) | 26.0 fl oz (770 ml) |
| 200 / 225 / 250 / 300 HP V6/V8 TorqMaster | 90 ft-lbs (122 Nm) | 125 ft-lbs (170 Nm) [Cover] | 60 in-lbs (6.8 Nm) | 29.5 fl oz (872 ml) |
| 350 / 400 HP Verado (5.44″ HD Gearcase) | 100 ft-lbs (135 Nm) | 40 ft-lbs (54 Nm) [Retainer Bolts] | 60 in-lbs (6.8 Nm) | 33.8 fl oz (1000 ml) |
Diagnosing Mechanical Failures Using the Lower Unit Blueprint Layout
Mechanics can systematically cross-reference mechanical symptoms against the gearcase blueprint layout to pinpoint failing components prior to complete teardown. Marine gearcases are subject to continuous extreme hydrostatic pressures, mechanical shear forces, and salt corrosion.
Operating a Mercury gearcase with water-contaminated (milky yellow or green) oil rapidly destroys high-precision needle bearings and hypoid gear hardening layers. If water ingress occurs, perform a pressure test immediately. Do not exceed 15 PSI (103 kPa) during pressure testing, as higher pressures will unseat good oil seals and cause false failure readings.
1. Emulsified / Milky Gear Lube (Water Ingress)
If draining the lower unit reveals emulsified oil, reference the outer boundary seals on the lower unit diagram. The primary entry points for water ingress are:
- Drive Shaft Base Seals: Located beneath the water pump base plate. Sand or debris pulled into the cooling system can score the driveshaft surface and cut the seal lips.
- Propeller Shaft Carrier Seals: Monofilament fishing line wrapped behind the prop thrust hub frequently cuts through the outer lip seal, opening a path for seawater.
- Shift Shaft Bushing Seal: Corroded or unseated O-rings around the shift shaft guide assembly.
- Drain/Fill Screw Washers: Reusing crushed yellow or blue seal washers instead of replacing them with OEM Mercury drain screw gaskets during routine oil changes.
To pinpoint the exact leak point, perform a pressure test using a pressure tester tool threaded into the upper vent hole. Apply 10 to 12 PSI and spray soapy water around the prop shaft carrier, shift shaft bushing, and drive shaft base. Inspect upper housing structures by cross-referencing our Mercury Outboard Upper Drive Shaft Schematic Breakdown.
2. Metallic Knocking, Clunking, or Gear Slips
When an outboard engine slips out of gear under high power or makes a loud ratcheting sound, the fault typically lies within the clutch dog engagement mechanism shown on the blueprint centerline. Over time, rounded engagement corners on the clutch dog and forward gear drive ramps prevent full gear lockup. This condition is accelerated by slow, hesitant shifting; Mercury outboards must be shifted with a swift, firm motion to fully seat the clutch dog lugs. Additionally, a worn shift cam or stretched shift cable prevents full travel of the shift slide assembly.
3. High-Pitch Whining or Bearing Grind
Continuous high-pitched whining that varies directly with propeller RPM indicates improper gear mesh backlash or spalled bearing surfaces. Refer to the schematic to identify the forward gear thrust bearing and the pinion gear tapered roller bearing. Metallic flaking found on the magnetic lower drain plug indicates micro-pitting on the spiral bevel teeth, requiring complete replacement of the matched gear set (Forward, Reverse, and Pinion are always replaced as a matched trio).
Mercury Outboard Lower Unit Diagram and Repair FAQ
How Do I Determine the Correct Shim Thickness When Rebuilding a Mercury Gearcase?
When replacing gears, bearings, or the housing itself, shim thickness cannot be determined by matching the old shim stack. Technicians must use a depth micrometer, dial indicator, and specialized Mercury shimming tools (such as shimming fixture kit 91-14311A1). First, establish the drive shaft pinion height setting using the shim locator block. Next, set the forward gear position to establish correct gear backlash (measured at the prop shaft using a dial indicator reading rotation in thousandths of an inch). Shim adjustments shift components in increments as small as 0.002 in (0.05 mm) to achieve optimal gear tooth contact patterns.
What Pressure and Vacuum Levels Should a Mercury Lower Unit Hold During Testing?
A healthy Mercury lower unit must hold 10 to 15 PSI (69 to 103 kPa) of air pressure for a minimum of 15 minutes without losing more than 0.5 PSI. Additionally, perform a vacuum test pulling 13 to 15 in-Hg (44 to 51 kPa) of vacuum. Pressure testing checks the ability of inner seal lips to hold internal fluid pressure, while vacuum testing verifies that outer seal lips can withstand external water pressure at operating depths. Learn more about diagnostic decay rates in our specialized Mercury Gearcase Vacuum and Pressure Testing Protocol.
Why Are Double-Lip Seals Installed in Specific Orientations on the Prop Shaft Carrier?
Double-lip oil seals are designed with a garter spring backing on one side. On the propeller shaft carrier, the inner seal is installed with its spring side facing inward toward the gear housing oil reservoir. This seals internal oil pressure inside the case. The outer seal is installed with its spring side facing outward toward the propeller. This prevents external raw water from entering past the carrier deck. Installing either seal backward results in immediate fluid loss or seawater intrusion during thermal expansion and contraction cycles.
What Is the Difference Between Standard and Counter-Rotating Mercury Lower Units?
In twin- or multi-engine boat setups, counter-rotating (left-hand rotation) gearcases are used alongside standard (right-hand rotation) gearcases to eliminate torque steer. In a standard lower unit schematic, the forward gear is located at the front of the housing cavity next to the thrust bearing. In a counter-rotating gearcase layout, reverse gear features heavier helical gear tooth construction and larger thrust bearing support because it acts as the primary forward drive gear when the engine is in forward gear mode. Internal shift linkages and clutch dog beveling are also mirrored.
How Often Should the Gearcase Oil and Drain Screw Washers Be Replaced?
Mercury Marine specifies gear oil replacement every 100 operating hours or once annually, whichever comes first—and always prior to winter storage. Fresh Mercury High Performance Gear Lube (SAE 90) or Premium Gear Lube should be pumped in from the bottom drain hole until it flows bubble-free out of the top vent hole. Always replace the seal washers on the drain and vent screws during every service. OEM composition or drain screw O-rings compress during initial torque and will leak if reused.
Step-by-Step Guide to Understanding the Mercury Outboard Lower Unit Diagram
Identify – Identify your specific Mercury engine model, serial number, and gearcase configuration on the factory diagram.
Locate – Locate key lower unit service points including upper vent plug, lower drain plug, and water pump base bolts.
Reference – Reference the exploded diagram layout to observe the correct sequence of water pump gaskets, wear plates, and keyways.
Route/Assemble – Assemble the water pump impeller housing and route the shift shaft linkage in strict alignment with neutral gear.
Verify – Verify complete mating of the lower unit to the midsection, ensuring the copper water tube aligns into the rubber grommet.
Troubleshoot – Troubleshoot binding or hard shifting by verifying shift cam engagement and propeller shaft end-play specs against diagram notes.
