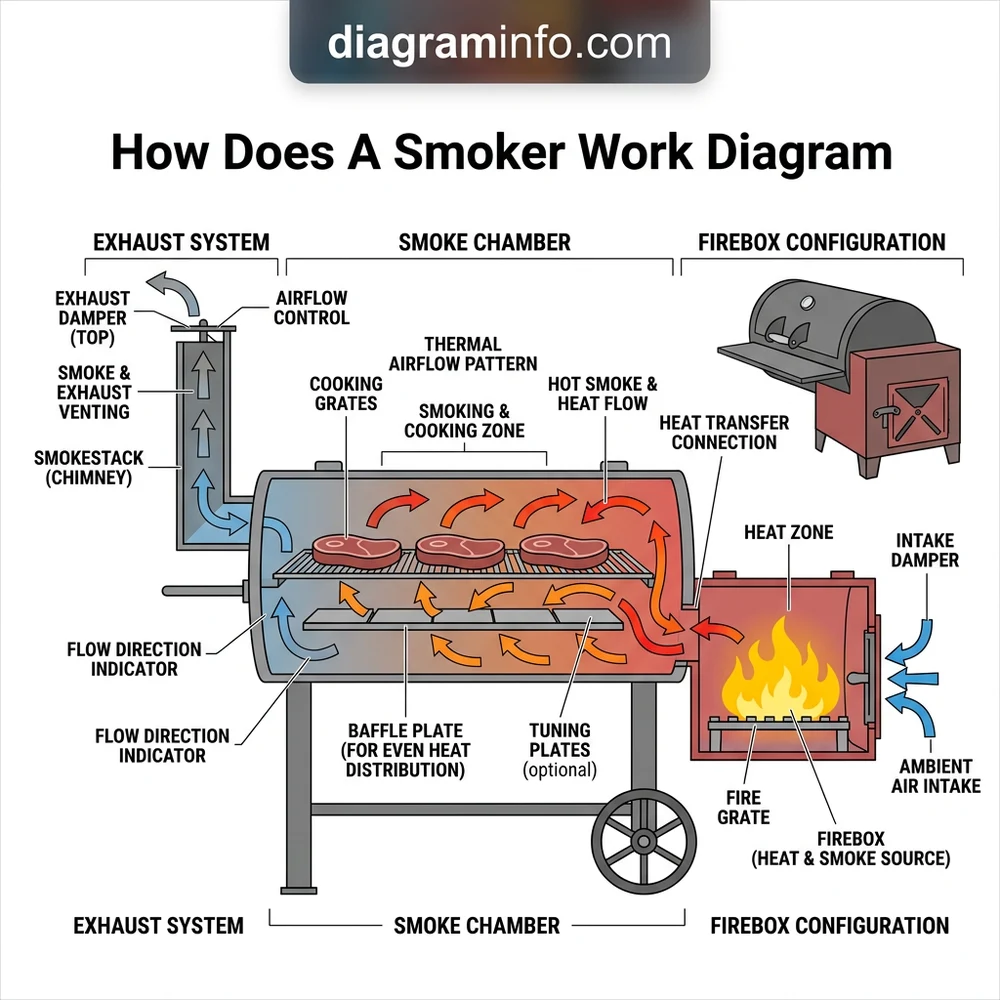

BBQ Smoker Layout: How Does a Smoker Work Diagram 2026
A smoker works through indirect heat transfer and controlled air convection. Fuel combusts inside an intake-controlled firebox, drawing oxygen through bottom dampers. Heated smoke and air migrate across a baffle plate into the main cook chamber at 225°F–275°F, circulating around food before exiting through an adjustable top exhaust chimney system.
📌 Key Takeaways
- Ideal internal cooking temperatures range between 225°F and 275°F managed by vent aperture adjustments.
- The firebox intake damper controls combustion rate while the exhaust stack regulates smoke draw and retention.
- Maintain structural seals on chamber doors to prevent heat leakage and maintain stable static pressure.
- Creosote buildup in the exhaust flue is the primary cause of bitter flavor profile and flow restriction.
- Minor seal leaks and damper tuning are DIY repairs, while severe structural metal warping requires replacement.
Diagnostic smoke generators and leak detectors rely on precise mechanical, electrical, and thermodynamic interactions to pinpoint leaks across automotive systems. Modern automotive smoke machines pass low-pressure air through a heated hydrocarbon reservoir, vaporizing fluid into a dense, non-toxic visual tracing agent. Whether you are inspecting fuel evaporative loss systems (EVAP), high-pressure turbocharger plumbing, or induction manifolds, understanding internal schematic routing ensures accurate operation and efficient diagnostic workflow. Analyzing the internal physical structure and fluid dynamic circuits reveals how low electrical resistance heating elements, internal air pumps, and precise fluid metering valves work together to maintain consistent vapor output without damaging sensitive vehicle sensors.
How Does a Smoker Work Diagram: Component Layout and System Schematic
The interior architecture of a diagnostic smoke generator incorporates electrical switching, pneumatic pressure control, and thermal fluid vaporization sub-systems. According to OEM technical specifications, these units convert standard 12V DC power from a vehicle battery into thermal energy while managing compressed air delivery between 0.5 PSI and 15 PSI. The diagram illustrates how incoming air passes through an internal diaphragm pump or external shop-air fitting before entering a regulated manifold. The air flow then travels through a vapor chamber where a high-output heating element—typically a 12V diesel glow plug or custom nickel-chromium coil—heats light mineral oil to its flash point of approximately 200°C to 260°C (392°F to 500°F).
Recommended Best Deal Products
In EVAP-certified smoke machines, an internal precision regulator strictly caps output pressure at 0.5 PSI (14 inches of water column). Exceeding 0.5 PSI will rupture sensitive vehicle components, such as fuel tank pressure sensors (FTP) or evaporative canister purge valve diaphragms.
The system schematic relies on several key functional blocks linked through precise electrical pinouts and fluid lines:
- Internal Diaphragm Air Pump: Driven by a 12V DC motor, providing 2 to 6 Liters Per Minute (LPM) air displacement without oil contamination.
- Vapor Generation Chamber: A sealed aluminum housing containing a 1.2 to 1.8 Ohm heating element immersed in 15 to 30 ml of light mineral oil (USP grade).
- Flow Meter and Visual Flag: A tapered glass tube containing an internal floating indicator ball that provides real-time feedback on leak severity down to 0.010 inches in diameter.
- Pressure Control Regulator & Solenoid: Controls output force to match specific automotive testing requirements, switching between low-pressure EVAP mode and higher pressure turbo/intake testing mode.
| Component Name | Electrical / Mechanical Spec | Wiring & Pinout Reference | Primary Function |
|---|---|---|---|
| Heating Coil / Glow Plug | 12V DC, 8.5A – 11.0A (1.2 Ω) | Red (12V Switched), Black (GND) | Vaporizes fluid reservoir content into heavy diagnostic smoke. |
| Internal Air Compressor | 12V DC, 2.5A, 4-6 LPM output | Yellow (+ Terminal), Black (- Terminal) | Pushes atmospheric air into vapor chamber and output hose. |
| EVAP Pressure Regulator | 0.5 PSI (0.034 bar / 3.5 kPa) | Pneumatic Inline Control | Protects delicate vehicle fuel vapor lines from over-pressurization. |
| Rotameter (Flow Meter) | 0 to 1.0 mm orifice scale | Optical / Mechanical Bypass | Measures rate of system pressure drop and leakage volume. |
Step-by-Step Setup: Applying the Smoker System Configuration Blueprint
Operating a diagnostic smoke machine correctly requires following precise electrical hookup sequences, fluid checks, and pneumatic calibration steps. Improper procedure can lead to heating coil damage or false leak readings in target automotive systems.
Estimated Time: 20 – 30 Minutes
Tools Needed: Digital Multimeter (CAT III), 0-15 PSI Inline Pressure Gauge, Light Mineral Oil (USP grade), 12V Switched Power Source (min 10A continuous rating), Intake Bladder Kit.
Safety Precautions: Work in a well-ventilated shop bay, wear safety goggles and nitrile gloves, avoid ignition sources near fuel system vapors, and do not exceed OEM pressure limits.
1. Fluid Reservoir Inspection and Electrical Supply Verification
Connect your digital multimeter across the supply leads of the diagnostic smoker to verify input power sits between 12.2V and 13.8V DC. Open the top fill port of the vapor chamber and inspect the internal fluid level. Using a graduated syringe, add 15 to 20 ml of approved light mineral oil or medicinal-grade baby oil. Do not overfill; excess fluid floods the heating coil heating element and suppresses dense vapor generation. Review the internal blueprint layout to confirm the oil siphon wick contacts the lower core of the heating plug assembly.
2. Pneumatic Circuit Connection and Pressure Calibration
Connect the external air supply line or switch on the internal 12V diaphragm air compressor circuit. Attach an inline 0-15 PSI pressure gauge to the unit outlet nozzle. If you are conducting an EVAP system leak procedure, adjust the secondary regulator valve knob until output pressure stabilizes strictly at 0.5 PSI (14 in. H2O). For turbocharger boost circuit or intake manifold testing, adjust the line regulator valve between 5.0 PSI and 10.0 PSI, as defined by vehicle manufacturer technical bulletins.
3. Heating Element Activation and Thermal Cycling
Depress the main power rocker switch to energize the internal control circuit relay. Current flows through the 12V switched wire (red) into the heating element core. Monitor the current draw on your power bench supply or inductive amp clamp; nominal current draw should quickly climb to approximately 9.5 Amps before settling at 8.0 Amps as internal resistance rises with heat. Dense white smoke should start emerging from the output nozzle within 10 to 15 seconds. Refer to automotive electrical schematics if current draw stays at zero.
4. System Pressurization and Flow Meter Leak Quantification
Insert the cone adapter or inflatable bladder into the target system port (e.g., engine intake boot or fuel cap service adapter). Introduce smoke into the system while observing the rotameter float ball position. If the float ball drops completely to the bottom of the sight glass, the target system is fully sealed and leak-free. If the float stays suspended near the top or middle of the scale (0.020″ or 0.040″ reference marks), a leak is actively discharging vapor. Use a high-intensity LED light probe to trace along hose lines, gaskets, and solenoid joints to pinpoint escaping smoke.
Troubleshooting Common Failures in a Smoker Work Diagram System
Diagnosing hardware issues within a smoke machine system requires tracing component failures across both electrical and pneumatic pathways. Operational breakdowns generally present as zero smoke production, excessive fluid ejection, or inability to build static holding pressure.
Never attempt to measure heating coil resistance while power is actively applied to the system circuit. Disconnect the main 12V battery leads to prevent damage to your multimeter’s internal fuses and avoid electrical arc hazards near oil vapor chambers.
Use the following diagnostic steps to resolve schematic and physical component faults:
- No Vapor Output with Air Flowing: Inspect the heating element resistance across the red and black terminal spades using a DMM set to Ohms. Standard cold resistance must measure between 1.2 Ω and 1.8 Ω. An “OL” or open-circuit reading indicates a burnt or broken heating coil, requiring glow plug replacement. If resistance is normal, verify that the 12V internal relay switches closed when the control button is pressed.
- Liquid Oil Blowing Out of Discharge Hose: This condition indicates fluid overfilling or a saturated vapor wick assembly. Drain the reservoir by removing the lower drain plug or tilting the unit. Refill with exactly 15 ml of fresh fluid. Verify that the fluid baffle plate inside the vapor chamber is intact and correctly positioned to stop raw liquid splash from entering the output tube.
- Low Output Air Pressure / Pump Failure: Measure voltage at the diaphragm pump motor leads (yellow wire positive, black wire negative) while activated. If 12V DC is present but air displacement stays under 1 LPM, inspect the rubber internal pump diaphragm for tears or coked oil debris. Clean internal check valves using electrical contact cleaner or install a replacement pump rebuild diaphragm kit.
- Continuous Fuse Blows on Power Up: Check for a grounded positive lead or shorted heating coil (resistance below 0.5 Ω). A direct short circuit inside the heating chamber bypasses thermal resistance and pulls over 25 Amps, instantly blowing the inline blade fuse.
How Does a Smoker Work Diagram: Technical Questions Answered
What Air Pressure Limit Is Required for EVAP System Diagnostic Testing?
Automotive EVAP systems must be tested strictly at a regulated pressure limit of 0.5 PSI (3.5 kPa / 14 in. H2O). Vehicle fuel tanks, evaporative emission canisters, purge valves, and vapor pressure sensors are designed to operate under minimal pressure differential. Applying shop air pressure above 1.0 PSI risks rupturing internal fuel tank bladders, tearing internal purge valve diaphragms, or blowing off sealed quick-connect fittings along the chassis fuel lines.
How Does the Internal Glow Plug Heating Element Convert Fluid into Vapor?
The heating element acts as an electrical resistor that converts current from a 12V source into focused thermal energy. As current flows through the element’s high-resistance wire core, temperatures rapidly climb to over 220°C. Light mineral oil is drawn onto the hot heating element sheath via capillary action through a fiberglass or metallic mesh wick. The fluid immediately reaches its boiling point, transforming from a liquid state into dense, suspended aerosol micro-droplets that exit through the pneumatic outlet stream.
What Electrical Wire Colors and Pinouts Are Standard in Smoke Generators?
While color coding varies slightly between diagnostic equipment manufacturers, most 12V DC smoke machine wiring harnesses follow standardized pinouts. The main positive supply line uses red wire (12V Switched Input, 15A fused), ground lines use solid black, positive motor connections use yellow or blue wires, and control logic switches use green or white signal wires. Always consult the unit wiring schematic printed on the internal chassis plate before splicing replacement harnesses.
Why Is a Flow Meter Essential in Diagnostic Smoke Machine Schematics?
A flow meter (rotameter) provides a visual quantitative measurement of leakage rate before escaping smoke can be seen visually. The internal indicator ball floats upward as air flows through the machine into the target vehicle system. Once the tested system fills and reaches full static pressure, the indicator ball drops back to zero if no leaks exist. If the ball remains suspended, it pinpoints the exact physical leak size (e.g., equivalent to a 0.010″, 0.020″, or 0.040″ hole), allowing technicians to verify small micro-leaks easily.
How Do You Repair a Shorted Thermal Resistance Heating Coil?
A shorted heating coil cannot be repaired and must be replaced. Disconnect input power, remove the top assembly housing retention screws, and disconnect the red and black spade connectors linked to the element terminals. Unscrew the threaded glow plug housing from the vapor chamber manifold using a deep well socket (typically 10mm or 12mm hex). Install a new glow plug unit matched to OEM specifications (1.2 to 1.8 Ω cold resistance), apply high-temperature thread sealant safe for hydrocarbon contact, and torque to 12-15 lb-ft before reconnecting wire terminals.
