Trane Bacteria and Virus Venn Diagram: Proper Routing 2026
The HVAC IAQ bacteria and virus venn diagram categorizes airborne biological contaminants by micron size (bacteria 0.3–5.0 µm vs. viruses 0.004–0.1 µm). Position MERV 13+ media filters before the blower motor and UV-C germicidal lamps (254 nm wavelength) downstream of the evaporator coil to neutralize both living bacteria and encapsulated viral particles efficiently.
📌 Key Takeaways
- Bacteria range from 0.3 to 5.0 microns, whereas viruses are far smaller, measuring between 0.004 and 0.1 microns.
- MERV 13-16 filters capture up to 90% of bacteria, but HEPA or UV-C lights are required for neutralizing sub-micron viral organisms.
- UV-C light ballast voltage must match system supply (120V/240V) with bulb output tuned specifically to 254 nm for bio-kill.
- Airflow restriction across high-MERV media can increase blower motor static pressure beyond the standard 0.5 inches w.g. limit.
- Consult a licensed HVAC technician when retrofitting high-efficiency filtration on older systems with low CFM compressor setups.
HVAC air distribution systems play a critical role in controlling bio-aerosols, microbial growth, and airborne pathogens across commercial and residential facilities. Utilizing a bacteria and virus venn diagram framework allows HVAC technicians and Indoor Air Quality (IAQ) specialists to map biological contaminants against system components—such as the evaporator coil, air handler, and return duct. By categorizing pathogens based on physical size (0.3 to 10 microns for bacteria versus 0.004 to 0.1 microns for viruses), life cycle conditions, and structural vulnerabilities, technicians can precisely spec filtration MERV ratings, UV-C dosage rates, and system airflow velocities.

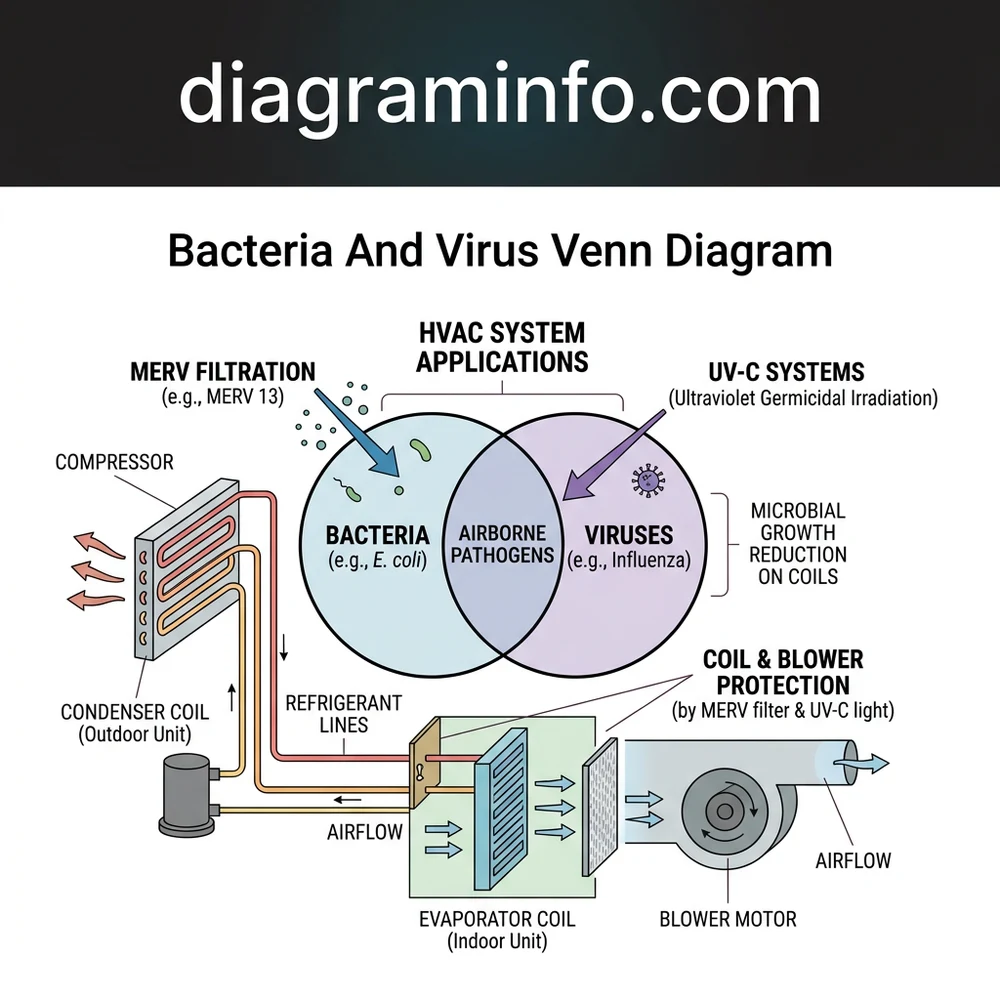

Bacteria and Virus Venn Diagram: Component Categorization and IAQ Mapping
Using a bacteria and virus venn diagram provides a dual-axis diagnostic approach to HVAC engineering. The diagram separates biological organisms into distinct operational zones based on size, moisture dependency, and survival mechanisms within mechanical equipment:
- Evaporator Coil and Drain Pan Zone (Bacteria Focus): High relative humidity (>85% RH) and low fin temperatures created by expanding refrigerant (such as R-410A, R-32, or R-454B) create a primary breeding ground for vegetative bacteria (e.g., Legionella pneumophila, Pseudomonas aeruginosa). Biofilms accumulate on aluminum fins, acting as an insulating layer that severely degrades thermal heat transfer coefficients.
- Return Duct and Air Handler Zone (Virus Focus): Airborne viruses (0.004–0.1 µm) do not multiply in HVAC equipment but travel as sub-micron droplet nuclei through the return duct network. Driven by the variable-speed blower motor, these particles require high-efficiency mechanical filtration or high-voltage needlepoint bipolar ionization (NPBI) at the air handler entry plenum.
- Heat Exchanger and Condenser Zone (Overlap Control): Thermal energy produced by the primary or secondary heat exchanger during heating cycles (plenum temperatures exceeding 140°F) desiccates active bacterial colonies and denatures viral protein coats. Externally, the outdoor condenser rejects absorbed heat driven by the high-pressure compressor, maintaining systemic psychrometric control across the thermodynamic loop.
According to ASHRAE Standard 185.1 and 185.2, active coil surface UV-C germicidal systems require a minimum target irradiance of 50 to 100 µW/cm² at 254 nm wavelength across the entire surface of the evaporator coil to prevent bacterial biofilm build-up. In-duct air stream disinfection targeting viral particles requires single-pass fluence rates exceeding 1,500 to 3,000 µJ/cm² at design airflow velocity (400–500 FPM).
| Pathogen Category | Diameter Range | Primary HVAC Vectors | Targeted System Component & Spec |
|---|---|---|---|
| Bacteria | 0.3 – 10.0 µm | Evaporator fins, condensate drain pans, damp duct insulation | MERV 11–13 media, 254 nm UV-C lamps on evaporator coils, non-acidic alkaline coil cleaners |
| Viruses | 0.004 – 0.1 µm | Return duct air streams, air handler mixing boxes | MERV 13–16 / HEPA filters, high-intensity UVGI arrays, NPBI units inside the air handler |
| Overlap (Bio-aerosols) | 0.3 – 3.0 µm | Return ductwork, blower motor plenums, secondary heat exchangers | Sealed SMACNA duct systems, ECM blower motor modulation, continuous RH control (<60% RH) |
How to Use the Bacteria and Virus Venn Diagram for HVAC System Diagnostics
Executing an IAQ system audit using the bacteria and virus venn diagram requires evaluating physical air handling parameters alongside bio-contaminant profiles across four systematic engineering steps:
Step 1: Baseline Static Pressure and CFM Assessment
Inspect the variable-speed ECM blower motor inside the primary air handler cabinet. High-efficiency filtration installed to capture sub-micron viral and bacterial particles mapped on the diagram introduces additional static pressure drop (typically 0.15 to 0.35 in. w.g.). Measure total external static pressure (TESP) using a dual-port digital manometer and cross-reference with manufacturer fan performance tables to ensure air volume does not fall below 350–400 CFM per ton of cooling capacity. For detailed velocity targets, review our technical duct static pressure specs guide.
Step 2: Evaporator Coil Bio-film and Delta-T Analysis
Bacterial biofilm accumulation on aluminum heat transfer fins disrupts thermal conductive efficiency and restricts airflow. Measure the temperature differential (Delta-T) across the evaporator coil (standard operational range: 18°F to 21°F). If Delta-T is low despite accurate system superheat and subcooling values across the refrigerant lines, clean the fins with an alkaline foaming solution and verify that surface germicidal UV-C intensity reaches minimum manufacturer threshold levels.
Step 3: Return Duct Velocity and Residence Time Calibration
Viral inactivation depends on exposure time (Dose = Irradiance × Time). Measure linear air velocity inside the main return duct using a calibrated hot-wire anemometer. Maintain duct velocity between 400 and 500 feet per minute (FPM) across in-duct UVGI or ionization arrays to maximize transit residence time for optimal viral neutralization.
Step 4: Heat Exchanger and Moisture Control Audit
Inspect secondary heat exchanger condensate collection trays and drain traps to prevent stagnant water pooling. Ensure relative humidity in supply and return plenums remains strictly below 60% RH to stop bacterial endospore germination while maintaining adequate ventilation air exchange rates. Consult our psychrometric chart troubleshooting tutorial for dew point calibration steps.
Modern constant-airflow ECM blower motors will automatically ramp up torque and power draw to overcome high static resistance caused by loaded MERV 13+ filters targeting small viruses. Technicians must monitor motor amp draw with a true-RMS clamp meter to prevent over-amping when deep-bed media filters are installed.
Troubleshooting IAQ and Mechanical Issues via the Bacteria and Virus Venn Diagram
Applying the bacteria and virus venn diagram framework directly to mechanical diagnostics allows technicians to trace system operating anomalies back to biological contamination or improper air cleaning configurations:
Evaporator Freeze-Ups Caused by Bacterial Biofilm
Heavy bacterial colonization produces extracellular polymeric substances (EPS) that bind organic dust to the evaporator coil. This restricts airflow across the core, causing liquid refrigerant inside the tubes to fail to absorb sufficient heat. The suction pressure drops below the freezing threshold (32°F / 0°C), resulting in massive ice accumulation, liquid floodback to the compressor, and potential mechanical failure. Solution: Perform a chemical coil flush and install 254 nm germicidal UV-C fixtures.
Blower Motor Overheating from Overspecified Filter Media
Retrofitting high-MERV (MERV 14–16) filters to filter out sub-micron viral carriers without calculating total system pressure drop starves the air handler for air. Permanent Split Capacitor (PSC) motors experience severe airflow drop, while ECM motors run at maximum RPM, overheating motor windings and tripping internal thermal limit switches. Solution: Increase filter rack surface area (e.g., transition from 1-inch to 4-inch deep-pleat media) to drop face velocity and lower initial static resistance below 0.20 in. w.g.
Microbial Amplification in Negative-Pressure Return Ducts
Unsealed return duct joints located in unconditioned spaces (attics or crawlspaces) draw in hot, humid air. When humid ambient air mixes with cooler air returning to the heat exchanger cabinet, localized condensation forms along the internal duct insulation, creating an amplification zone for both bacterial spores and viral droplets. Solution: Perform duct pressure leakage testing and seal all seams to SMACNA Class A specs. Refer to our airflow dynamics analysis guide for complete sealing protocols.
Uncertified electronic air cleaners, corona-discharge ionizers, or improper UV lamps operating at 185 nm generate ozone gas. Ozone accelerates copper tube pitting corrosion on the evaporator coil, leading to premature refrigerant leaks, while posing severe respiratory risks to occupants.
Bacteria and Virus Venn Diagram Technical FAQ
How does a bacteria and virus venn diagram guide MERV filter selection in an air handler?
The diagram establishes clear particle diameter boundaries: bacteria typically range from 0.3 to 10.0 µm, whereas single viral particles measure between 0.004 and 0.1 µm (though airborne viruses travel within 0.3–3.0 µm moisture droplets). Standard MERV 8 filters only arrest particles down to 3.0 µm. A MERV 13 filter captures >85% of 1.0–3.0 µm particles and >50% of 0.3–1.0 µm particles, bridging the overlap zone. For full capture of sub-micron viral and bacterial particulates, a HEPA system rated at 99.97% efficiency at 0.3 µm must be integrated into the air handler return plenum.
Why do bacteria colonize the evaporator coil while viruses pass through to the return duct?
Bacteria are free-living, metabolically active cellular organisms that thrive in warm, moist environments containing organic nutrients (e.g., dust, sloughed skin cells). The high-humidity environment of the wet evaporator coil and condensate pan provides ideal conditions for bacterial growth. Viruses, however, are acellular, obligate intracellular parasites that cannot replicate on dry or wet inert surfaces; they remain suspended as biological aerosols carried by air currents through the return duct network driven by the blower motor.
What role does the refrigerant circuit play in controlling microbial growth?
The thermodynamic cycle driven by the compressor and expanding liquid refrigerant controls the sensible-to-latent heat ratio of the HVAC system. If a system experiences a low refrigerant charge or metering device restriction, the evaporator coil temperature increases, failing to reach the air stream’s dew point. Inadequate dehumidification elevates indoor relative humidity above 60% RH, accelerating bacterial spore germination and extending the airborne viability of enveloped viruses throughout ductwork.
How does UV-C radiation target pathogens inside heat exchangers and air handlers?
UV-C light operating at a peak wavelength of 254 nm breaks double-stranded DNA in bacteria and single-stranded RNA in viruses through pyrimidine dimer formation, rendering pathogens incapable of replication. In an air handler or near a furnace heat exchanger, UV-C arrays are installed either for continuous surface irradiation (targeting biofilm on aluminum fins) or high-output in-duct air stream disinfection that inactivates moving viral aerosols during rapid system passes.
Step-by-Step Guide to Understanding the Bacteria And Virus Venn Diagram
Identify – Analyze the bacteria and virus venn diagram to categorize target biological contaminants by micron rating.
Locate – Find the primary return air plenum upstream of the blower motor and downstream side of the evaporator coil.
Reference – Match the contaminant sizing on the diagram to select MERV 13+ media filters or 254 nm UV-C lamp systems.
Connect/Route – Route electrical wiring for UV-C power ballast to a dedicated 120V/240V circuit and install high-MERV filter media.
Verify – Measure static pressure drop across the filter to ensure total external static pressure remains under 0.5 in. w.g.
Troubleshoot – Check refrigerant subcooling and compressor amp draw if reduced airflow causes evaporator coil icing.
