Toyota Sienna Interior Dimensions Diagram: 2026 Guide
The Toyota Sienna interior dimensions diagram details a 101.0 cu. ft. maximum cargo capacity, 40.3-inch front headroom, and 40.3-inch legroom in the front row. The second-row Super-Long-Slide seats feature up to 25 inches of travel, while the third-row split-bench offers a 60/40 fold-flat structure to optimize cargo layout system space.
📌 Key Takeaways
- Maximum cargo volume reaches 101.0 cubic feet behind the front row with second-row seats stowed/removed and third-row folded.
- Super-Long-Slide second-row seats offer up to 25 inches of longitudinal track travel for customized legroom layout.
- Front-row headroom measures 40.3 inches without sunroof and 38.1 inches with the power moonroof configuration.
- Third-row 60/40 Split & Stow seat mechanism relies on dual latching pins and cable tensioners.
- Misalignment in seat slide tracks usually stems from debris or damaged cable actuator components.
Analyzing the architectural schematic and interior dimensions of the Toyota Sienna (covering both XL30 third-generation and XL40 fourth-generation TNGA-K platforms) is essential for commercial outfitters, mobility conversion technicians, and overland equipment builders. Precision spatial mapping requires precise measurement data covering cabin envelope volume, structural mounting locations, clear cargo geometry, and component interference boundaries. As outlined in the primary layout blueprint, understanding how interior panel clearances interact with underlying sub-assembly wiring harnesses, HVAC ducting, and sliding seat track assemblies ensures code-compliant equipment integration, wheelchair accessibility modifications, and custom cabinetry without compromising OEM structural rigidity or side-curtain airbag deployment channels.

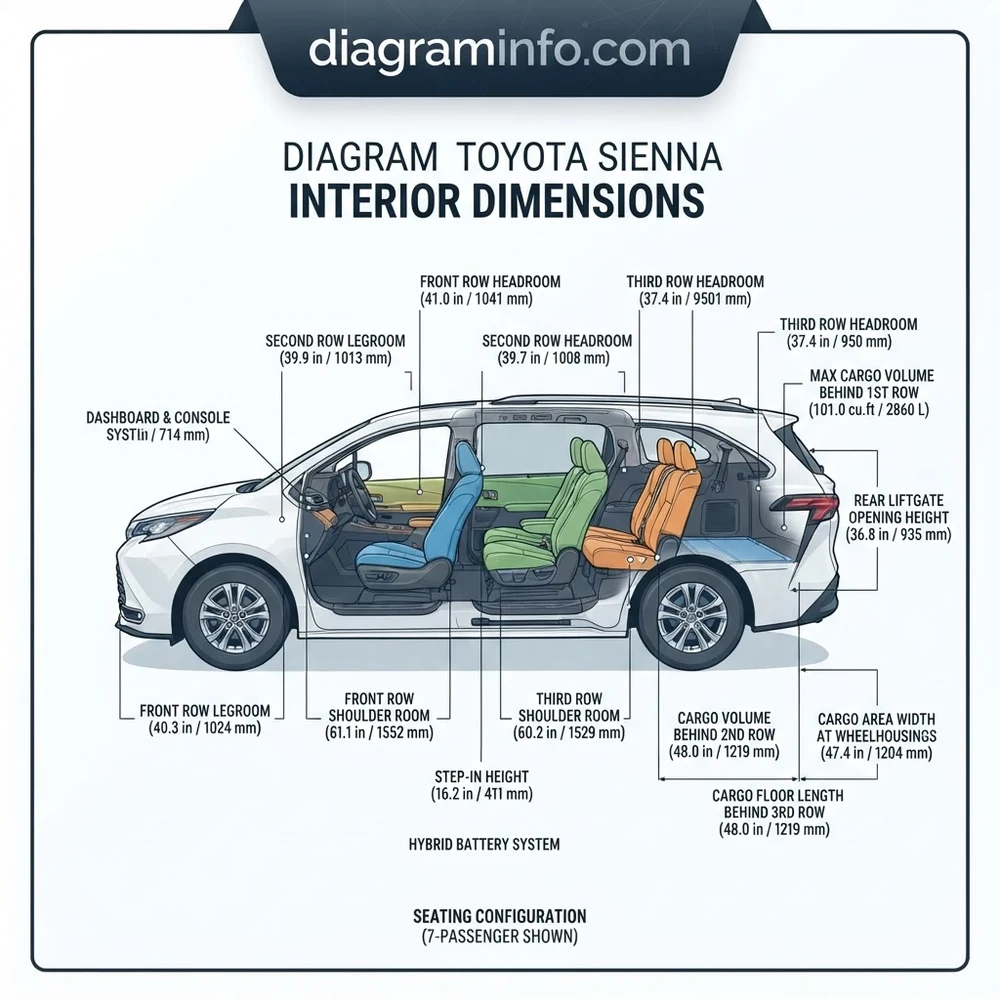

Diagram Toyota Sienna Interior Dimensions Component & Structural Overview
The interior architecture of the Toyota Sienna is engineered around a modular multi-row layout designed to optimize passenger volume and cargo capacity. When analyzing a technical schematic of the cabin, the space is divided into three primary functional zones: the Driver Control Cockpit (Row 1), the Flexible Passenger/Cargo Mid-Bay (Row 2), and the Rear Cargo Well & Third Row Enclosure (Row 3). Spatial dimensions vary significantly between the third-generation (2011–2020) chassis and the fourth-generation (2021–Present) TNGA-K hybrid architecture due to floor pan modifications, battery placement, and altered suspension tower intrusions.
Recommended Best Deal Products
In the fourth-generation Sienna, the integration of the High-Voltage (HV) Nickel-Metal Hydride or Lithium-ion traction battery beneath the front row seats alters the floor pan elevation and under-seat clearance compared to older non-hybrid variants. Furthermore, the second-row “Super-Long-Slide” track configuration introduces a fixed floor rail structure that impacts flat-floor loading capabilities. Specialized outfitters modifying the floor layout must account for the structural ribbing of the steel floor pan, fuel tank clearance directly beneath the middle floor section, and rear HVAC evaporator housing built into the right-rear quarter panel.
To accurately plan technical modifications, equipment mountings, or internal partition walls, consult the standardized dimensional matrix derived from OEM CAD geometry below:
| Spatial Parameter | 3rd Gen XL30 Spec (2011–2020) | 4th Gen XL40 Spec (2021–Present) |
|---|---|---|
| First Row Headroom (without Moonroof) | 41.0 in (1,041 mm) | 40.1 in (1,018 mm) |
| First Row Legroom | 40.5 in (1,029 mm) | 40.3 in (1,023 mm) |
| Second Row Legroom (Max Slide position) | 37.6 in (955 mm) | 39.9 in (1,013 mm) |
| Third Row Legroom | 36.3 in (922 mm) | 38.7 in (983 mm) |
| Max Cargo Length (Behind 1st Row Floor) | 89.0 in (2,260 mm) | 85.5 in (2,172 mm) |
| Minimum Cargo Width (Between Wheel Wells) | 48.0 in (1,219 mm) | 47.5 in (1,206.5 mm) |
| Maximum Interior Vertical Clearance | 46.0 in (1,168 mm) | 44.5 in (1,130 mm) |
| Liftgate Opening Width (At Sill) | 49.5 in (1,257 mm) | 48.2 in (1,224 mm) |
| Liftgate Opening Height (Center Line) | 40.2 in (1,021 mm) | 39.0 in (990 mm) |
For custom mounting solutions, mechanics must reference seat anchor torque specifications and structural cross-member clearance maps prior to drilling through the cabin floor pan. Structural reinforcement members are located adjacent to the B-pillar and C-pillar floor ties, where steel density transitions from standard mild sheet steel to ultra-high-strength hot-stamped steel (1,500 MPa rating in the TNGA-K platform).
Utilizing the Toyota Sienna Interior Dimensions Blueprint for Custom Configurations
When executing specialized upfitting, utility modifications, or camper conversions using the Toyota Sienna interior space, technicians must follow a structured procedure to translate 2D spatial schematics into accurate physical layouts. Failure to calculate three-dimensional clear envelopes can result in interference with trim panels, wiring harnesses, or seat track mechanism sensors.
Step 1: Establishing the Primary Vehicle Datum Point
Begin all layout calculations by establishing a zero-datum reference line. In the Toyota Sienna schematic framework, the primary reference point ($X_0, Y_0, Z_0$) is located at the intersection of the vehicle center line ($Y_0$), the front axle center line ($X_0$), and the top plane of the unpainted frame rail ($Z_0$). Measure all longitudinal equipment distances backward from the front seat frame front mounting studs ($X = 1,120\text{ mm}$ behind front axle line).
Step 2: Accounting for Floor Pan Corrugation and Sub-Floor Wiring Troughs
The Sienna sheet metal floor pan features longitudinal stamped ribs for torsional rigidity. When placing sub-floor framing, plywood decking, or secondary battery boxes, use composite spacers to bridge the corrugated channels. High-voltage power cables (coded orange in hybrid models) run along the right-hand underbody rail, while low-voltage wiring looms (12V CAN-bus signals, rear camera, and rear HVAC control) run through the left and right inner rocker panel plastic troughs. Ensure floor fasteners do not penetrate deeper than $15\text{ mm}$ below the lower sheet metal crest to prevent wire chaffing or fuel tank puncture.
Recommended Best Deal Products
Step 3: Calculating Clear Cargo Envelope with Second-Row Seat Positions
For 4th generation models equipped with non-removable second-row captain’s chairs containing integrated side airbags, standard seat removal triggers an SRS warning light. Outfitters must slide the 2nd-row seats fully forward into “stow configuration” against the front seatbacks. This reduces maximum usable floor length from $85.5\text{ inches}$ down to $65.2\text{ inches}$. If second-row seats are unbolted using specific resistance-bypass modules, account for the raised slide rails which sit $2.8\text{ inches}$ ($71\text{ mm}$) proud of the surrounding floor level.
Step 4: Integration with Upper Trim and Headliner Clearance
Interior width tapers significantly from the floor hip room line to the shoulder and roof lines. While the floor offers $47.5\text{ inches}$ between rear wheel wells, shoulder room at the third row restricts usable width to $58.5\text{ inches}$, and maximum usable width at the roofline drops to $42.1\text{ inches}$. When building upper shelving or bulkheads, verify clearance against the rear air distribution ducts integrated into the headliner and the side-curtain airbag modules mounted along the roof frame rails.
• Second-Row Seat Track Mounting Bolts: M10 x 1.25 Grade 10.9 — Torque to 37 ft-lbs (50 Nm)
• Third-Row Seat Frame-to-Body Bolts: M10 x 1.25 Grade 8.8 — Torque to 33 ft-lbs (45 Nm)
• Floor Cargo Tie-Down D-Ring Screws: M6 x 1.0 — Torque to 7.5 ft-lbs (10 Nm)
• Seatbelt Lower Anchor Shoulder Bolts: M11 x 1.25 Special Thread — Torque to 31 ft-lbs (42 Nm)
Refer to campervan conversion wiring schematics when installing auxiliary 12V DC power distribution blocks into rear quarter panels.
Common Toyota Sienna Spatial Layout and Component Clearance Issues
When modifying or installing hardware inside the Sienna cabin, technicians frequently encounter spatial interferences caused by concealed HVAC systems, SRS components, and hybrid electrical routing. Below are the critical physical interference zones that must be managed during structural modifications.
HV Battery Cooling Air Intake Obstruction
On 2021+ Sienna hybrid models, the High-Voltage battery cooling fan draws cabin air through a lower intake vent located on the front base of the driver and front passenger seat pedestals. Blocking these intake grilles with custom floor coverings, mats, or under-seat storage drawers restricts airflow, leading to elevated traction battery temperatures, reduced thermal management efficiency, and forced hybrid system derating. Maintain a minimum clear boundary of $4.0\text{ inches}$ ($100\text{ mm}$) in front of the lower seat pedestal trim panels.
Do not mount overhead racks, partitions, or electrical conduits within $8.0\text{ inches}$ ($203\text{ mm}$) of the headliner seam along the A, B, C, and D pillars. Side curtain airbags inflate downward with extreme force along these trim lines. Mechanical fasteners driven into the upper roof rails can rupture the stored airbag cushion or impede inflation timing.
Rear Quarter Panel Evaporator Assembly Protrusion
The right-rear quarter panel houses the auxiliary HVAC unit (evaporator core, heater core, and blower motor assembly). As a result, the interior width from the center vehicle line to the right-side wall is $3.5\text{ inches}$ ($89\text{ mm}$) narrower than the distance from the center line to the left-side wall. Builders designing symmetrical cabinetry must offset their designs to compensate for this asymmetric interior geometry.
Before drilling anchor points through the mid-cabin floor pan, lower the plastic underbody splash shields. The plastic fuel cell is located directly beneath the middle-left floor section (under the driver-side second-row footwell). Use mechanical stop-collars on all drill bits set to a maximum depth of $10\text{ mm}$. Review vehicle structural floor pan modification guides before carrying out structural modifications.
