3 Phase Air Compressor Wiring Diagram: 2026 Setup
A 3 phase air compressor wiring diagram routes three ungrounded hot wire lines (L1, L2, L3) through a magnetic starter switch to the motor terminals (T1, T2, T3). No neutral wire is required for standard 3-phase motor operation, but a dedicated equipment ground wire must connect directly to the starter enclosure chassis.
📌 Key Takeaways
- 3-phase power utilizes three hot wire legs (L1/Black, L2/Red, L3/Blue or Brown/Orange/Yellow) supplied at 208V, 230V, or 460V.
- Reversing any two hot wire motor leads changes rotation direction to prevent pump damage.
- A green or bare ground wire is strictly mandatory, while a neutral wire is usually omitted unless operating a 120V control coil.
- Incorrect thermal overload relay settings are the most common cause of premature motor tripping.
- Always verify phase-to-phase and phase-to-ground line voltages with a multimeter before energizing the compressor.
Wiring a commercial or industrial three-phase air compressor requires absolute technical precision, correct terminal identification, and full compliance with National Electrical Code (NEC) standards. Unlike single-phase equipment, a 3-phase system relies on three energized hot wires carrying alternating current waveforms separated by 120 electrical degrees. This design delivers continuous torque and superior motor efficiency. Following a standard 3 phase air compressor wiring diagram allows electrical contractors, industrial mechanics, and equipment technicians to correctly interface incoming line power with magnetic starters, thermal overload relays, pressure switches, and multi-tap control transformers. Proper installation prevents damaging single-phasing conditions, excessive voltage drop, and motor winding failure while ensuring correct pump rotation during initial commissioning.

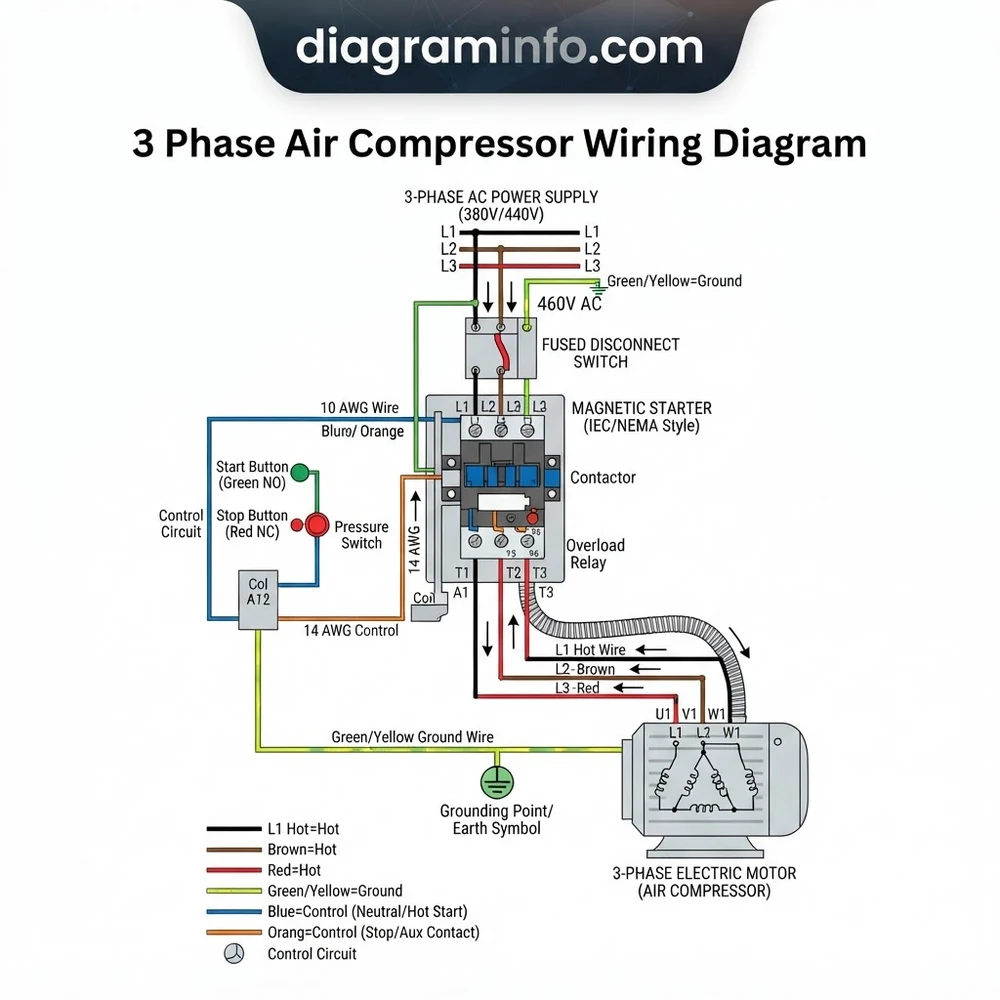

Understanding the 3 Phase Air Compressor Wiring Diagram and System Schematic
A comprehensive 3 phase air compressor wiring diagram is divided into two distinct circuits: the high-voltage power circuit and the low-voltage control circuit. The power circuit handles the primary voltage (typically 208V, 230V, or 460V AC) required to drive the compressor motor windings. Line voltage enters through a main fused disconnect switch, terminates at the line side of a magnetic contactor, passes through an adjustable thermal overload relay, and connects directly to the motor leads at the internal terminal block.
Recommended Best Deal Products
The control circuit operates the magnetic contactor’s coil to turn the compressor on and off automatically based on system tank pressure. Because feeding high voltage directly through a pressure switch creates severe arc flash and contact erosion risks, industrial compressors utilize a pilot control circuit. A control transformer steps down the incoming line voltage to a safer control voltage (120V AC or 24V AC). The energized hot wire from the transformer secondary travels through a series safety loop containing the tank pressure switch contacts, emergency stop button, and the Normally Closed (NC) auxiliary terminals (95/96) on the thermal overload relay before reaching the contactor coil terminal (A1). When pressure drops below the cut-in threshold, the pressure switch closes, energizing the contactor coil, pulling in the heavy-duty power contacts, and energizing the motor across terminals L1-T1, L2-T2, and L3-T3.
– Line & Load Contactor Terminals (L1-L3, T1-T3): Torque to 35–45 in-lbs (4.0–5.1 Nm).
– Control Circuit Screw Terminals (A1/A2, 95/96, Pressure Switch): Torque to 12–15 in-lbs (1.4–1.7 Nm).
– Permissible Supply Voltage Tolerance: ±10% of rated nameplate voltage (e.g., 207V to 253V for a 230V rating).
– Maximum Voltage Imbalance Between Phases: Must not exceed 2% under load to prevent motor overheating.
Master Wire Color Code, Voltage Specs, and Terminal Block Assignments
Accurate identification of wire color codes, terminal numbers, and conductor sizing is crucial when referencing a 3 phase air compressor wiring diagram. North American NEC standards (NEC Article 210 and 430) dictate specific color schemes for 120/208/240V 3-phase and 277/480V 3-phase systems, whereas international installations follow IEC color conventions. The table below outlines standard conductor color codes, pin assignments, and functional descriptions for heavy-duty industrial compressor panel wiring.
| Conductor / Wire Color | Circuit Function | Terminal Block / Pin ID | Voltage & Operational Notes |
|---|---|---|---|
| Black (Phase A / L1) | Line 1 Hot Wire | Contactor L1 / Motor T1 | Primary AC Phase line; 208V/230V/460V relative to other phases. |
| Red (Phase B / L2) | Line 2 Hot Wire | Contactor L2 / Motor T2 | Primary AC Phase line; High-leg in 240V Delta systems (208V to neutral). |
| Blue (Phase C / L3) | Line 3 Hot Wire | Contactor L3 / Motor T3 | Primary AC Phase line; completes 3-phase rotating magnetic field. |
| Brown / Orange / Yellow | 480V High-Voltage Phases | L1 (Brn), L2 (Org), L3 (Yel) | Standard NEC color code for 480V AC 3-phase industrial drop lines. |
| White or Gray | Neutral Wire | Control Terminal N / Neutral Bar | 0V reference; required only if control transformer primary uses line-to-neutral voltage. |
| Green or Bare Copper | Equipment Ground Wire | Ground Lugs / Motor Frame (GND) | Safety ground; bonded directly to compressor chassis and panel plate. |
| Red or Yellow (Internal Control) | Control Circuit Loop Wire | A1, A2, Pressure Switch 1/2 | 120V AC or 24V AC secondary power for magnetic coil and switches. |
Conductor wire gauge and overcurrent protection devices must be selected according to the full-load amps (FLA) of the compressor motor. Industrial electric motors draw locked-rotor currents (LRA) up to six times their rated operating FLA during startup. Wire sizing must equal at least 125% of the motor’s full-load current rating to satisfy NEC regulations and prevent nuisance tripping or hazardous wire heating.
| Motor Rating (HP) | Voltage / Phase | Approx. FLA (Amps) | Minimum Copper Gauge (THHN) | Thermal Overload Setting Range |
|---|---|---|---|---|
| 5.0 HP | 230V 3-Phase | 15.2 A | 12 AWG | 14.0 – 20.0 A |
| 7.5 HP | 230V 3-Phase | 22.0 A | 10 AWG | 20.0 – 28.0 A |
| 10.0 HP | 230V 3-Phase | 28.0 A | 8 AWG | 25.0 – 34.0 A |
| 10.0 HP | 460V 3-Phase | 14.0 A | 12 AWG | 12.0 – 16.0 A |
| 15.0 HP | 230V 3-Phase | 42.0 A | 6 AWG | 38.0 – 50.0 A |
| 15.0 HP | 460V 3-Phase | 21.0 A | 10 AWG | 18.0 – 25.0 A |
Step-by-Step Installation Procedure Using the 3 Phase Air Compressor Wiring Diagram
Before beginning work, isolate all supply power at the main distribution breaker and verify zero voltage using a calibrated multimeter rated for CAT III/CAT IV environments. Refer to your compressor unit’s OEM magnetic motor starter wiring diagram to confirm factory terminal layouts.
Recommended Best Deal Products
Step 1: Wire Ingress to Disconnect Switch and Main Terminal Block
Run incoming 3-phase line supply conductors through an approved metal conduit connector into the starter enclosure. Strip 3/4 inch of insulation off each hot wire (Phase A, B, C) and the bare or green ground wire. Secure the ground wire firmly to the main enclosure grounding lug. Connect Phase A to Terminal L1, Phase B to Terminal L2, and Phase C to Terminal L3 on the top line side of the magnetic contactor terminal block. Verify that the incoming line voltage across L1-L2, L2-L3, and L1-L3 matches the compressor control transformer primary voltage taps.
Step 2: Magnetic Contactor Line Side Power Connections
Confirm that the control transformer primary jumpers are set correctly for your line voltage. For a 230V installation, place the transformer primary jumpers in parallel; for a 460V supply, place them in series according to the transformer wiring diagram sticker. Connect the control circuit fuse holder directly to the L1 and L2 line terminals unless a separate neutral wire and 120V feed are used. Ensure all screw terminals are torqued according to manufacturer specifications to eliminate high-resistance hot spots.
Step 3: Pressure Switch Pilot Circuit and Starter Coil Wiring
Route two 16 AWG control wires from the control transformer secondary output terminals (typically X1 and X2) to the pressure switch enclosure. Wire terminal X1 to terminal 1 on the pressure switch single-pole contacts. Wire terminal 2 of the pressure switch back to terminal 95 (Normally Closed contact) on the thermal overload relay block. Connect terminal 96 of the overload relay to terminal A1 on the magnetic contactor coil. Wire the transformer secondary terminal X2 directly to terminal A2 on the contactor coil. This completes the safety series circuit: if either the pressure switch opens (high tank pressure) or the overload trips (excessive motor current), current to coil A1-A2 drops, opening the main contactor power contacts immediately.
Step 4: Dual-Voltage Motor Lead Configuration at Terminal Block
Access the motor electrical junction box on the air compressor motor frame. Standard 3-phase industrial motors are dual-voltage (e.g., 230V/460V) and feature 9 labeled internal lead wires (T1 through T9). For low-voltage (230V) Wye configurations, join motor leads [T1-T7] together and connect to starter terminal T1; join [T2-T8] together and connect to starter terminal T2; join [T3-T9] together and connect to starter terminal T3; tie motor leads [T4-T5-T6] together and insulate with high-dielectric heat shrink or wire nuts. For high-voltage (460V) Wye connections, connect line T1 to motor lead T1; line T2 to motor lead T2; line T3 to motor lead T3; splice [T4-T7] together, [T5-T8] together, and [T6-T9] together. Consult the motor thermal overload relay adjustment guide to dial the overload trip dial precisely to the motor’s full-load amp rating shown on its nameplate.
Step 5: Ground Wire Terminal Bonding and Phase Rotation Check
Ensure that the equipment ground wire from the motor junction box is bonded directly to the magnetic starter grounding block, establishing a unbroken ground path back to the service panel. Recheck all connections against your 3 phase air compressor wiring diagram. Re-energize the main circuit breaker. Disengage the pressure switch lever briefy to “bump” (energize for less than one second) the motor. Observe the rotation arrow stamped on the compressor flywheel or pump casting.
If the air compressor pump rotates in reverse during bump testing, lock out all power immediately. Swap any two incoming line hot wire connections on the contactor input terminal block (e.g., swap L1 and L2). This reverses the phase sequence and reverses the rotation of the motor’s magnetic field without altering any internal motor lead or control circuit wiring. Running a recyling or screw compressor in reverse will cause severe mechanical damage due to oil pump starvation within seconds.
Common 3 Phase Air Compressor Wiring Diagram Faults and Troubleshooting
When diagnosing electrical failures on commercial air compressors, technicians frequently encounter issues stemming from improper wire connections, voltage unbalance, or misconfigured control loops. The diagnostic steps below identify specific wiring mistakes and their operational consequences.
Single-phasing occurs when one of the three incoming hot lines drops voltage while the motor is energized (due to a blown upstream fuse, burned contactor tip, or loose wire nut). The motor cannot
1. Single-Phasing / Voltage Imbalance Faults: If the motor hums loudly, fails to start, or trips overloads rapidly, measure AC voltage across L1-L2, L2-L3, and L1-L3 under load. A variance greater than 2% between phase voltages indicates line supply issues, a loose lug on the terminal block, or pitted contacts on the magnetic contactor. Check all line-side connections and replace worn contactor points.
2. Control Transformer Transformer Secondary Fuse Blows: If the contactor coil fails to pull in and the transformer primary is hot, check the control loop for a short circuit to ground. A crushed control wire inside the pressure switch enclosure or a shorted contactor coil (A1-A2) will draw excessive amperage and blow the control fuse. Measure coil resistance using an ohmmeter (standard 120V coil resistance ranges from 50 to 200 ohms; zero ohms indicates a shorted coil).
3. Compressor Chatter / Rapid Contactor Cycling: Contactor chattering (rapid opening and closing) is caused by severe voltage drop in the control circuit when the motor starts, or by improper pressure switch differential settings. Verify that the line wire gauge matches length and amperage requirements. Ensure the pressure switch differential (cut-in versus cut-out) is set to at least 20 PSI to prevent rapid pressure fluctuations in the pilot sensing line.
4. Nuisance Overload Relay Tripping: If the thermal overload relay trips despite proper operating current, check the ambient temperature compensation setting or check for high-resistance terminal block connections. Loose terminal block screws cause heat transfer into the bi-metallic thermal overload elements, tricking the overload module into sensing motor overcurrent when actual amp draw is within normal limits.
Frequently Asked Questions Regarding 3 Phase Air Compressor Diagrams
How do I change rotation direction on a 3 phase air compressor motor?
To reverse rotation on any 3-phase AC electric motor, disconnect incoming power and swap any two incoming hot wire line connections at the main disconnect switch or magnetic contactor line terminals (L1, L2, or L3). For instance, switch the black wire on L1 with the red wire on L2. Do not alter internal motor lead connections or control circuit wiring.
Why does my 3 phase air compressor wiring diagram show a pressure switch controlling a starter coil instead of the motor directly?
Three-phase compressor motors draw high operating and starting currents that would weld or destroy the delicate contacts inside a standard pressure switch. The pressure switch is wired into a low-current control pilot loop (powering only the contactor’s electromagnetic coil, which draws under 1 Amp). The heavy magnetic contactor contacts make and break the high-amperage 3-phase motor current, extending component life and improving operator safety.
What is the difference between 208V, 230V, and 460V 3 phase air compressor wiring?
The primary difference lies in motor lead configuration and control transformer primary tap selection. Higher system voltages reduce operating full-load amperage, allowing smaller wire gauges and smaller circuit breakers. For example, a 10 HP motor draws approximately 28 Amps at 230V 3-phase, but only 14 Amps at 460V 3-phase. Always re-configure dual-voltage motor junctions and transformer taps to match supply line voltage before energizing.
Is a neutral wire required for wiring a 3 phase air compressor?
In most industrial installations, a neutral wire is not required for the compressor motor itself, as 3-phase motor windings represent a balanced load connected in Delta or Wye configurations without a ground-return current path. However, if your control circuit uses 120V pilot components without an onboard step-down control transformer, a neutral wire from the panel must be connected to supply 120V line-to-neutral power for the control loop.
What gauge wire should be used for a 10 HP 3 phase air compressor?
For a standard 10 HP 3 phase air compressor operating on a 230V circuit (28A FLA), NEC code requires conductors rated for at least 125% of FLA (35 Amps minimum circuit ampacity). Copper THHN 8 AWG wire installed in conduit is required, paired with a 40A or 50A motor-rated circuit breaker or time-delay fuses. If operating on a 460V supply (14A FLA), 12 AWG copper wire is sufficient.
