Eukaryotic G Body Body Mount Diagram: 2026 Cell Guide

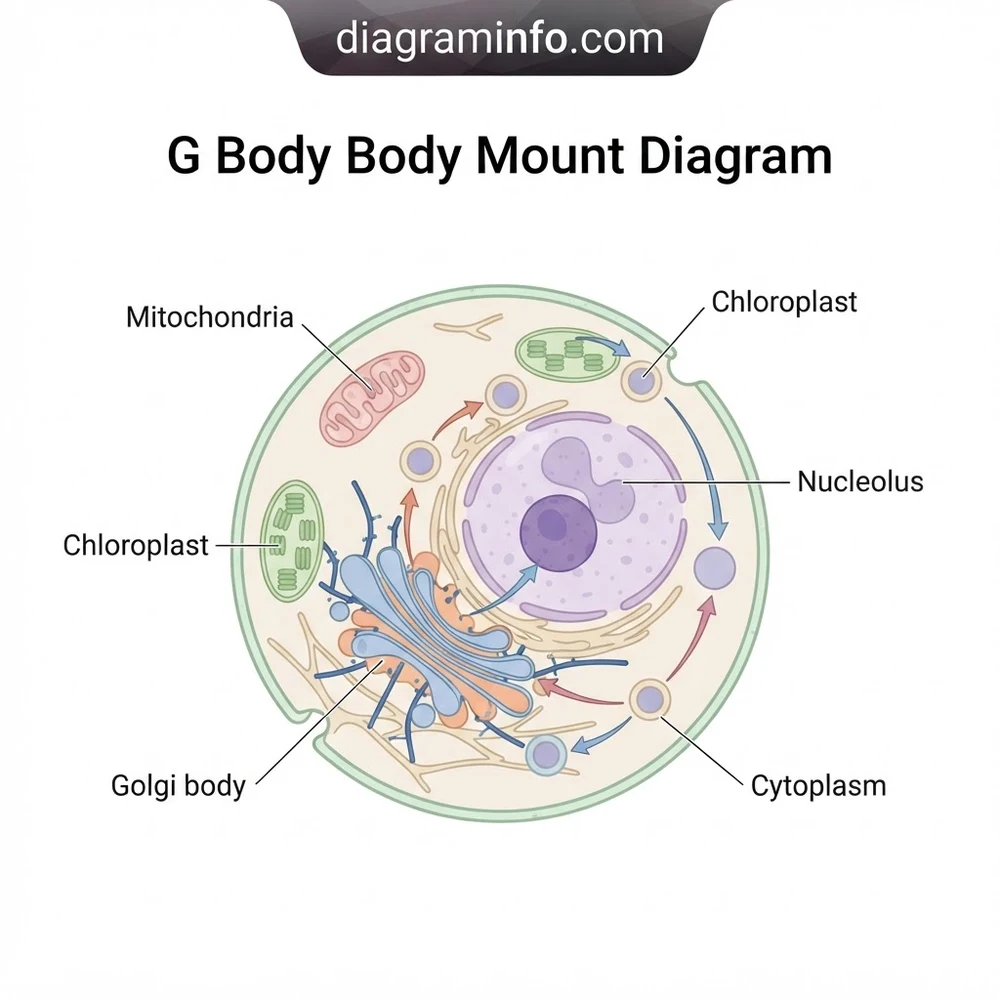

The Golgi or g body body mount diagram maps how the Golgi apparatus anchors to microtubule motor proteins within the cytoplasm. Located between the endoplasmic reticulum near the nucleus and the outer cell membrane, these cytoskeletal mounts position cisternae to receive and package proteins synthesized by ribosomes.
📌 Key Takeaways
- Golgi bodies mount directly onto microtubule tracks maintained by dynein and kinesin proteins within the cytoplasm.
- Cis-face cisternal mounts align facing the nucleus, while trans-face mounts point toward the cell membrane.
- Cytoskeletal assembly requires ATP generated by mitochondria; pH imbalance alters vesicular tethering dynamics.
- Disruption in microtubule-associated mounting proteins leads to Golgi fragmentation and impaired vesicle transport.
- Severe organellar disorganization requires advanced fluorescence microscopy and cytological analysis to differentiate from osmotic lysis.
Proper body-to-frame alignment on General Motors 1978–1988 G-body vehicles—including the Chevrolet Monte Carlo, Buick Regal, Oldsmobile Cutlass, Pontiac Grand Prix, and El Camino—demands precise technical reference data. Utilizing an accurate g body body mount diagram is essential for locating factory mounting positions, identifying correct hardware stack-ups, and restoring structural rigidity. Over decades of operation, OEM vulcanized elastomer mounts degrade, leading to frame sag, door misalignment, and harsh ride quality. This technical guide breaks down schematic layouts, hardware specifications, material physics, and troubleshooting procedures to assist professional technicians and advanced restorers in executing flawless body mount replacements.
Analyzing the G Body Body Mount Diagram: Structural Component Breakdown
A factory-accurate g body body mount diagram details the exact positioning of seven distinct mounting locations along each frame rail (14 total locations across the chassis, depending on year and body style). Every mounting location utilizes a specific sequence of bolts, upper cushions, lower cushions, steel crush sleeves, and thick body washers designed to isolate road vibration while securing the body shell to the hydroformed steel perimeter frame.
In mid-size GM A/G-body architectures produced between 1978 and 1988, GM utilized specific rubber compound densities across these positions. Position 1 is located at the front radiator core support. Positions 2, 3, and 4 secure the main passenger cabin floor pan (firewall, front seat torque box, and rear seat footwell). Positions 5 and 6 secure the rear frame arch over the axle housing, while Position 7 anchors the rear bumper rail and trunk pan on select coupe and wagon models.
| Mount Location | Physical Location on Frame | OEM Bolt Size & Thread | Torque Specification |
|---|---|---|---|
| Position 1 | Radiator Core Support Alignment Hole | 7/16″-14 x 3.00″ (or M12 x 1.75) | 35–45 lb-ft (47–61 Nm) |
| Position 2 | Firewall / Front Toe-Board Support | 7/16″-14 x 3.50″ Grade 8 | 48–55 lb-ft (65–75 Nm) |
| Position 3 | Torque Box / Front Seat Floor Pan | 7/16″-14 x 3.50″ Grade 8 | 48–55 lb-ft (65–75 Nm) |
| Position 4 | Rear Footwell / Mid-Body Rail | 7/16″-14 x 3.25″ Grade 8 | 48–55 lb-ft (65–75 Nm) |
| Position 5 | Rear Axle Hump Frame Arch | 7/16″-14 x 3.50″ Grade 8 | 48–55 lb-ft (65–75 Nm) |
| Position 6/7 | Trunk Floor Pan / Rear Crossmember | 7/16″-14 x 3.00″ Grade 8 | 40–50 lb-ft (54–68 Nm) |
In high-performance applications such as the Buick Grand National or Hurst/Olds, GM omitted certain lower cushions in production to stiffen chassis response, whereas luxury models like the Buick Regal Limited utilized solid rubber isolates across all locations. When studying your g body body mount diagram, note that the central steel crush sleeve acts as an internal hard-stop, preventing overtightening and ensuring the upper and lower rubber cushions maintain their designed pre-load under dynamic torsional stress.
Factory GM G-body frames from 1978 to 1980 featured imperial fasteners (7/16″-14 threads), whereas 1981 through 1988 models transitioned to metric hardware (M12 x 1.75). Always verify thread pitch inside frame cage nuts prior to installing replacement hardware during a frame restoration.
Elastomeric Cell Membrane Science and Polymer Organelles in Bushing Design
To understand how replacement bushings isolate noise, vibration, and harshness (NVH), technicians must analyze the material micro-structure of vulcanized natural rubber versus synthetic polyurethane. Modern aftermarket bushings engineered from polyurethane or dense high-durometer rubber simulate biological matrix efficiency, where structural integrity relies on chemical cross-linking.
The protective outer layer of a polyurethane mount acts much like a dense cell membrane, protecting the internal polymer lattice from degradation caused by synthetic motor oil, gear lube, hydraulic fluid, and road salt. Inside this synthetic boundary, the cross-linked polymer chains function as structural ribosomes, forming dense molecular links during the casting process that determine the final Shore A durometer rating (typically 70A to 95A for automotive applications).
Core Structural Alignment and Internal Matrix Mechanics
At the center of every bushing assembly shown on a g body body mount diagram sits the heavy-gauge steel crush sleeve. Functioning as the structural nucleus of the entire mounting assembly, this sleeve receives the high clamping load exerted by the Grade 8 fastener, establishing a fixed height pivot point around which the body structure floats.
Surrounding this central sleeve is the primary elastomeric material, which behaves similarly to a dense cellular cytoplasm. Under severe lateral cornering loads or launch acceleration, this internal polymer matrix shifts elastically, distributing shock force evenly across the entire surface area of the frame perch. Embedded carbon black particles and chemical anti-oxidants within the compound operate as microscopic functional organelles, reinforcing the material against cyclic compression fatigue.
Polyurethane mount durometer ratings for G-body platforms: 80A–85A provides street performance with vibration control; 95A durometer provides rigid structural coupling for drag racing and autocross applications without flexing under high torque output.
Dynamic Shock Absorption and Material Preservation
When kinetic energy transfers from the suspension up through the frame rails, the body mount functions as a mechanical mitochondria, taking raw vibrational energy and converting it into dissipated heat through physical deformation. OEM rubber mounts feature engineered void pockets, functioning as a micro-structural vacuole within the cushion geometry. These pockets allow controlled displacement during vertical frame travel without causing permanent deformation to the body shell.
Furthermore, high-grade polyurethane bushings incorporate specialized chemical UV inhibitors and thermal stabilization agents. In material science, these light-absorbing compounds act like a synthetic chloroplast, absorbing radiant solar radiation and environmental heat without breaking down the underlying molecular backbone. This resistance prevents the hardening, shrinking, and dry-rot flaking commonly seen on original 40-year-old factory rubber mounts.
How to Read and Apply the G Body Body Mount Diagram During Restoration
Interpreting a g body body mount diagram correctly requires an understanding of frame reference datums, body bolt positioning, and hardware orientation. When preparing to lift the body shell off the frame or replace sagging body mounts, follow this systematic procedure to ensure structural alignment and safety.
Locating Frame Mounting Points from Firewall to Trunk Rail
Begin by referencing the complete chassis overview on your schematic. Align the physical frame perches with the diagram positions. Position 1 resides forward of the core support mounting pad. Position 2 sits beneath the firewall toe-boards. Position 3 lies directly underneath the front seat footwell torque box. Position 4 resides forward of the rear axle frame arch. Positions 5 and 6 sit above and behind the rear wheel wells, while Position 7 anchors the rearmost crossmember on specific performance or wagon frames.
Ensure that all frame alignment holes (located adjacent to Position 2 and Position 5) are clear of debris. These alignment holes allow technicians to insert 5/8″ frame alignment pins to square the body shell to the frame rails prior to torquing down replacement bolts. Refer to our detailed guide on G-body chassis squaring and frame rail repair channels for additional measuring specifications.
Torque Specifications and Hardware Assembly Sequence
Proper stacking order is critical to prevent binding and body flex issues. Assemble each position according to the exact sequence shown on the technical diagram:
- Step 1: Insert the Grade 8 zinc-plated bolt up through the lower thick steel washer.
- Step 2: Place the lower cushion (smaller rubber/polyurethane section) onto the bolt.
- Step 3: Pass the bolt upwards through the frame perch hole from below.
- Step 4: Position the upper cushion (larger cushion section with molded shoulder) and inner steel crush sleeve between the frame perch top surface and the body shell mounting pad.
- Step 5: Thread the fastener into the welded captive cage nut inside the body structure.
- Step 6: Hand-tighten all bolts across all positions before applying final torque specs.
Never apply final torque to body mount bolts while the vehicle body is supported on jack stands or an asymmetric frame lift. The vehicle must rest fully on its suspension at natural ride height on a level flat surface to prevent locking unwanted torsional pre-load into the body structure.
Step-by-Step Installation Procedure
- Disconnect the negative battery terminal, steering column intermediate shaft, brake lines from the proportioning valve bracket, and radiator upper/lower hoses. Check steering column angle alignment to avoid binding during lifting.
- Loosen all body mount bolts across all positions on both sides of the vehicle, but do not remove them entirely.
- Remove the body mount bolts completely from only one side of the vehicle at a time to maintain cross-car chassis indexing.
- Place a long 4×4 hardwood beam beneath the rocker panel pinch weld to distribute load, and use a hydraulic floor jack to raise the body shell approximately 2 to 3 inches off the frame rails.
- Extract old, deteriorated factory cushions and frozen steel crush sleeves from the frame perches.
- Inspect frame mount perches for structural rust damage. Clean perches with a wire wheel and apply anti-corrosive epoxy primer.
- Install new upper cushions, crush sleeves, lower cushions, and washers following your g body body mount diagram schematic.
- Lower the body shell back onto the new mounts, start all bolts by hand (applying anti-seize lubricant to threads), and repeat the process for the opposite side.
- Align frame index holes at Position 2 using 5/8″ alignment rods, verify door gap tolerances, and torque all fasteners to specified factory values (48–55 lb-ft for cabin positions). Check front suspension geometry alignment after installation.
Diagnosing Alignment Issues with Your G Body Frame Diagram and Damping Nucleus
When working with vintage GM G-body platforms, technicians frequently encounter structural issues caused by decades of moisture exposure, frame flex, and severe rubber degradation. Comparing physical frame measurements against an authentic g body body mount diagram helps identify hidden defects before performing body work or suspension tuning.
Addressing Frame Rot at the Vacuole Void and Cushion Collapses
Because OEM factory rubber cushions featured dynamic air voids that functioned as a dampening vacuole, moisture, dirt, and road salt frequently accumulated inside the center hole of the frame perch. Over time, this trapped debris rots out the steel thickness surrounding the body mount hole. When the perch rotted out, the steel sleeve lost support, causing the cushion to collapse into the frame rail.
Symptom identification includes:
- Sagging doors that rub against the striker pin or quarter panel.
- Uneven fender-to-hood panel gaps at the front clip.
- Excessive cab squeaks and metallic clunking noises over bumps.
- Visible tilting of the body structure relative to the rear bumper line.
To repair enlarged or rotted frame perches, weld heavy-duty 3/16″ thick steel repair washer plates directly over the damaged frame holes, centering them precisely according to the dimensional coordinates in your g body body mount diagram.
Chloroplast UV Damping Additives and Elastomer Degradation
Over extended exposure to solar heat and oil drips, original factory rubber mounts lose their structural integrity. Without modern chemical stabilizers that mimic protective chloroplast UV barriers, original rubber compounds dry out, crack, and compress permanently. Once compressed, the central steel sleeve bottoms out against the body floor pan, transmitting severe engine and suspension NVH directly into the passenger cabin.
When replacing degraded rubber mounts with solid aluminum or high-durometer polyurethane mounts, verify that all cage nuts inside the rocker channels and body torque boxes are intact. If a bolt spins freely without loosening, the internal frame cage nut has broken its spot welds inside the sheet metal.
Cytoplasm Elastomer Matrix Failure and Body Sag Symptoms
When the inner core of a mount suffers complete matrix collapse—where the elastomeric compound degrades into a gooey, broken-down state similar to compromised cellular cytoplasm—the body shell drops downwards by as much as 1/2 inch to 3/4 inch. This drop alters mechanical linkages, causing binding in mechanical clutch linkages, automatic transmission shift cables, and fan shroud clearances.
Always inspect fan shroud clearance and steering shaft binding immediately after installing replacement body mounts. Restoring the factory body height with new polyurethane or rubber mounts will raise the body back to its original height, which may require readjusting fan shroud positioning or bumper filler panels that were previously adjusted to compensate for body sag.
Frequently Asked Questions Regarding the GM G Body Body Mount Diagram
What is the difference between solid aluminum, rubber, and polyurethane G-body mounts?
Rubber mounts offer maximum NVH isolation and original factory ride quality, but have a shorter service life (15–20 years). Polyurethane mounts provide increased chassis stiffness, superior oil/chemical resistance, and extended longevity with slightly increased road feel, making them ideal for high-performance street cars. Solid aluminum mounts eliminate all body-to-frame flex for maximum structural rigidity in dedicated race cars, but transmit high levels of vibration directly into the cabin.
Why does my G-body body mount diagram show missing cushions at Position 3 or Position 4?
From the factory, General Motors purposefully omitted lower rubber cushions at specific positions (most notably Position 3 under the front seat torque box) on certain standard models to cut production costs and alter structural resonance. However, performance packages like the Grand National, GNX, and 442, as well as aftermarket restoration kits, utilize full upper and lower cushion assemblies across all positions to eliminate frame flex and improve handling.
How do I fix a broken or spinning cage nut inside the G-body firewall or trunk pan?
If an internal body mount cage nut breaks loose during bolt removal, you must cut a 2-inch three-sided access window into the interior sheet metal floor directly above the mount location using a cut-off wheel. Fold the sheet metal tab back to expose the spinning cage nut, hold or weld the nut securely in place, remove the frozen bolt, install the new hardware, fold the sheet metal tab back down, and weld/seal the access hole watertight.
What are the correct torque specs for G-body polyurethane body mount bolts?
Standard Grade 8 body mount bolts (7/16″-14 or M12 x 1.75) used with polyurethane or rubber bushings should be torqued to 48–55 lb-ft (65–75 Nm) for Positions 2 through 6. The front radiator core support mount (Position 1) requires a lower torque spec of 35–45 lb-ft (47–61 Nm) to prevent distorting the thin core support sheet metal. Always apply medium-strength threadlocker (Blue Loctite) to clean bolt threads during final assembly.
Do I need to realign my G-body frame after changing body mounts?
Yes. Whenever you lift the body off the frame or replace body mounts, you must verify cross-car chassis alignment using the factory indexing holes located near Position 2 and Position 5. Insert a 5/8-inch alignment pin through the frame hole into the corresponding body alignment bracket on both sides before fully tightening the body mount bolts. This ensures proper alignment of front fenders, doors, hood latch mechanism, and wheel well clearances.
