Deck 42 Inch Craftsman Riding Mower Drive Belt Diagram Guide
The deck 42 inch craftsman riding mower drive belt diagram illustrates the routing path from the engine pulley to the deck pulleys. This visual layout ensures the belt follows the correct path around the idler and mandrel pulleys, which is essential for proper blade engagement and a functional belt drive system.
📌 Key Takeaways
- Visualizing the belt path is essential for successful replacement and tensioning.
- Identifying the mandrel pulleys versus idler pulleys prevents incorrect routing.
- Always disconnect the spark plug wire to prevent accidental engine starts during repair.
- Take a reference photo of the current layout before removing an old or damaged belt.
- Use this diagram whenever you experience blade slip, belt squealing, or breakage.
Maintaining a lush, manicured lawn requires your equipment to be in peak operating condition, but few things bring a Saturday morning chore to a grinding halt like a snapped or slipped belt. When your blades stop spinning or the mower refuses to engage, the solution often lies in understanding the complex routing of the deck 42 inch craftsman riding mower drive belt diagram. Navigating the serpentine path of a drive belt can feel like solving a puzzle, especially when you are working in the cramped quarters beneath the mower chassis. This comprehensive guide is designed to demystify the pulley system, providing you with a clear schematic overview and the practical knowledge needed to install, troubleshoot, and maintain your mower’s drive system. By the end of this article, you will be able to identify every component of the drive train and perform a professional-grade belt replacement with confidence.
Understanding the Drive System Configuration
The drive system of a 42-inch Craftsman riding mower is a marvel of mechanical efficiency, designed to transfer power from the engine’s vertical crankshaft to the mower blades. This system relies on a series of pulleys that are strategically positioned to maintain tension and change the direction of the belt’s travel. To read the deck 42 inch craftsman riding mower drive belt diagram effectively, you must first understand the three primary types of components involved in the layout: the engine drive pulley, the mandrel pulleys, and the idler pulleys.
The engine drive pulley, also known as the stack pulley, is located directly beneath the engine block. This is the source of all mechanical energy for the deck. From here, the belt travels toward the mower deck, where it encounters the mandrel pulleys. On a 42-inch deck, there are typically two mandrel pulleys, each responsible for rotating one of the two cutting blades. The configuration usually places these mandrels on the left and right sides of the deck.
Connecting these fixed points are the idler pulleys. These are divided into two categories: fixed idlers and tensioning (or clutching) idlers. Fixed idlers serve as guideposts, ensuring the belt maintains a specific path and does not rub against the mower’s frame. Tensioning idlers are mounted on a movable arm connected to a heavy-duty spring. When you engage the mower’s blade lever or electric PTO, this arm moves, pulling the belt taut and allowing the friction between the belt and the pulleys to begin the rotation of the blades. Understanding this movement is critical because the diagram often shows the belt in its “engaged” position, which may look slightly different than when the belt is slack during a repair.

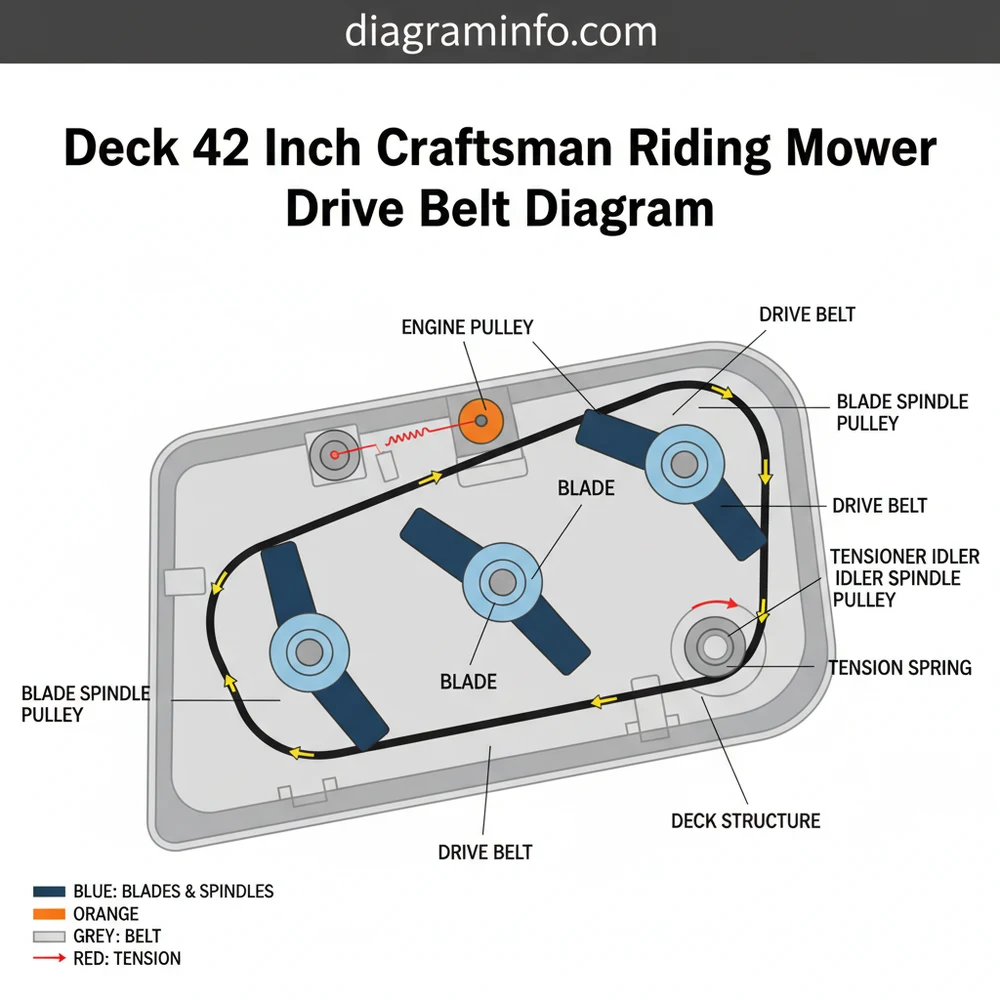

CRAFTSMAN 42″ DECK BELT ROUTING OVERVIEW
( Front of Mower )
[ ENGINE PULLEY ]
/ \
/ \
[IDLER L] [IDLER R]
| |
| (Spring Tensioner)
| |
[MANDREL LEFT]----[MANDREL RIGHT]
\ /
\/
Figure 1: Typical serpentine layout for 42-inch twin-blade decks. Note the “V” side of the belt always sits in the groove of the mandrel and engine pulleys, while the flat side usually contacts the flat surface of the idler pulleys.
Decoding the Layout and Visual Symbols
When looking at a technical schematic or the blueprint of your mower deck, the lines and circles represent specific physical structures. The circles with a central “V” shape represent the grooved pulleys. These are designed to grip the narrow side of the belt. If you look at a standard drive belt, you will notice it has a trapezoidal cross-section. The narrow, angled side is the “V,” and the wider, smooth side is the “back” or “flat” side. A crucial rule for interpreting the deck 42 inch craftsman riding mower drive belt diagram is that the V-side of the belt must always sit inside the groove of the mandrels and the engine pulley.
Conversely, circles in the diagram that appear flat or lack a deep center groove represent the flat idler pulleys. These are designed to ride against the back (flat side) of the belt. This distinction is vital because installing the belt with the “V” side against a flat pulley will cause rapid heat buildup, friction, and eventual belt failure. The diagram also typically includes an arrow or a line representing the tension spring. This indicates which pulley is dynamic. On most Craftsman 42-inch decks, the tensioner pulley is located on the right side (from the operator’s perspective) and is pulled toward the center of the deck when the blades are engaged.
Most 42-inch Craftsman decks use a belt that is approximately 95 to 96 inches in length, such as the common part number 144959 or 197253. Always verify your specific model number under the seat to ensure you are using the correct belt dimensions, as even a half-inch difference can prevent proper tensioning.
Step-by-Step Installation Guide
Replacing a drive belt is a process that requires patience and precision. Before you begin, ensure the mower is on a flat, level surface, the engine is off, the key is removed, and the spark plug wire is disconnected to prevent accidental starting.
- ✓ Step 1: Lower the Mower Deck. Move the deck lift lever to its lowest possible position. This provides the maximum amount of space to work between the deck and the mower frame.
- ✓ Step 2: Remove Belt Guards. Most 42-inch decks have plastic or metal covers over the mandrel pulleys. Use a socket wrench (usually 3/8″ or 1/2″) to remove the bolts holding these guards in place. This will expose the pulleys and the old belt path.
- ✓ Step 3: Release Belt Tension. Locate the idler arm (the movable pulley). Use a pry bar or a large screwdriver to carefully push the idler arm away from the belt, or disconnect the tension spring using a spring puller tool. This will create the slack necessary to remove the old belt.
- ✓ Step 4: Clear the Old Belt. Slide the old belt off the engine pulley first, then thread it out from around the idler pulleys and mandrel pulleys. Take note of any belt keepers (small metal pins or tabs) that sit close to the pulleys; you may need to loosen these slightly to allow the belt to pass through.
- ✓ Step 5: Route the New Belt. Following your deck 42 inch craftsman riding mower drive belt diagram, start by looping the belt around the engine pulley. Then, route it toward the rear, wrapping it around the mandrel pulleys. Ensure the V-side is in the grooves.
- ✓ Step 6: Seat the Belt on Idlers. Thread the belt around the fixed and tensioner idler pulleys. Double-check that the flat side of the belt is contacting the flat pulleys.
- ✓ Step 7: Re-engage Tension. Reconnect the tension spring or release the idler arm. The belt should now be snug around all components. Rotate the pulleys by hand (carefully) to ensure the belt is seated properly and isn’t pinched.
- ✓ Step 8: Final Inspection. Replace the belt guards and tighten the bolts. Raise the deck back to its normal operating height and reconnect the spark plug wire.
Never attempt to route or adjust the belt while the engine is running or while the battery is connected. Modern riding mowers have safety switches, but mechanical failure or a short circuit can cause the blades to engage unexpectedly. Always disconnect the spark plug wire as your primary safety measure.
Common Issues and Troubleshooting
Even with a perfect understanding of the deck 42 inch craftsman riding mower drive belt diagram, issues can arise. One of the most common problems is the belt slipping off shortly after installation. This is usually caused by worn idler pulley bearings. If an idler pulley is wobbly or doesn’t spin smoothly, it will cause the belt to “walk” off the track. Another frequent issue is excessive vibration. This often indicates that a mandrel pulley is bent or that the belt itself has a “set” or a flat spot from being parked in one position for too long.
If you smell burning rubber, stop immediately. This is a sign that the belt is rubbing against a belt keeper or that one of the pulleys has seized. A seized mandrel pulley will not turn, causing the belt to slide over it and generate extreme heat. You can use the diagram to identify which pulley is the likely culprit by checking the path for obstructions. If the belt frequently snaps, check for debris like sticks or thick clumps of grass wedged in the pulley housing. The diagram acts as a map to help you clear these areas and ensure a path of zero resistance.
Tips and Best Practices for Longevity
To extend the life of your drive belt and ensure the accuracy of your deck 42 inch craftsman riding mower drive belt diagram applications, follow these professional maintenance tips:
Clean the top of your mower deck after every use. Grass clippings hold moisture and acidity, which can corrode pulleys and cause the rubber in your drive belt to dry out and crack prematurely. A leaf blower is an excellent tool for this task.
When purchasing a replacement, always opt for Kevlar-reinforced belts (often labeled as “Aramid cord”). While standard rubber belts are cheaper, Kevlar belts are specifically designed to handle the high-torque loads and “clutching” actions of a riding mower. They resist stretching, which means you won’t have to adjust the tension as often. Additionally, periodically check the tension spring. Over time, these springs can lose their elasticity, leading to a “lazy” engagement where the blades take several seconds to reach full speed.
Another best practice is to inspect the pulleys for “sharpening.” Over hundreds of hours of use, the sand and grit in your lawn can act like sandpaper, wearing down the edges of the V-grooves in your pulleys until they become razor-sharp. A sharp pulley will “eat” a new belt in just a few hours. If the edges of your pulleys feel thin or sharp to the touch, it is time to replace the pulley along with the belt.
Refining Your Maintenance Routine
By mastering the deck 42 inch craftsman riding mower drive belt diagram, you have taken a significant step toward self-sufficiency in home equipment maintenance. This knowledge not only saves you the high cost of repair shop labor but also ensures that your mower is always ready when the grass starts growing. Remember that the belt is the “fuse” of your cutting system; it is designed to be the weakest link to protect the engine and mandrels from catastrophic damage if you hit a large rock or stump.
Regularly comparing your physical deck to the schematic overview will help you catch small issues—like a slightly misaligned idler or a fraying belt edge—before they become major breakdowns. Keep a spare belt and a printout of the diagram in your garage or workshop. With the right tools and a clear understanding of the configuration, you can transform a frustrating mechanical failure into a simple, twenty-minute maintenance task. Your Craftsman mower is a rugged machine, and with a properly routed and tensioned drive belt, it will continue to provide a clean, even cut for many seasons to come. Using the deck 42 inch craftsman riding mower drive belt diagram as your guide ensures that every turn of the pulley and every rotation of the blade is working in perfect harmony with the engine’s power.
Frequently Asked Questions
Where is the drive belt located?
The drive belt is located beneath the mower frame, connecting the engine’s drive pulley to the mower deck’s mandrels. In a 42-inch deck, it wraps around two outer mandrel pulleys and interacts with idler pulleys to maintain tension within the drive system configuration for consistent blade rotation.
What does this diagram show?
The deck 42 inch craftsman riding mower drive belt diagram shows the precise routing path of the belt. It highlights the belt’s interaction with the engine pulley, stationary idlers, and moving tensioner pulleys, providing a clear structural layout for anyone performing routine maintenance or complex belt repairs.
How many pulleys are in the system?
Most 42-inch Craftsman mower decks feature a five-pulley system. This includes two mandrel pulleys that turn the blades, two idler pulleys used for maintaining tension, and the primary engine drive pulley. This specific layout is designed to maintain constant pressure while allowing for smooth belt engagement during operation.
What are the symptoms of a bad drive belt?
Common signs include the mower blades failing to engage, a noticeable smell of burning rubber, or excessive vibration while mowing. If the belt structure is frayed, stretched, or cracked, it may slip off the pulleys frequently, indicating that the belt has reached the end of its functional life.
Can I replace this belt myself?
Yes, replacing the belt is a standard DIY task that requires basic mechanical knowledge. By following the deck 42 inch craftsman riding mower drive belt diagram, you can navigate the complex pulley layout safely. Ensure the mower is off and the spark plug is disconnected before starting the work.
