3 Wire Brushless Motor Wiring Diagram 2026: Connection Mapping
The 3 wire brushless motor wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the 3 wire brushless motor wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Understanding the precise connection protocols for a 3 wire brushless motor is paramount for achieving optimal performance, efficiency, and longevity in automotive and heavy equipment applications. This comprehensive guide provides a detailed “3 wire brushless motor wiring diagram” explanation, focusing on critical wire color codes, accurate pin assignments, and the correct sequential connection process to ensure reliable operation. Mastering this wiring task is essential for technicians and engineers tasked with installing, maintaining, or upgrading brushless motor systems.
WIRE COLOR REFERENCE TABLE
The following table outlines standard wire color assignments for typical 3-wire brushless motors. While manufacturer specifications can vary, these commonly encountered color codes provide a reliable starting point for identifying motor phase windings and ensuring correct connections to the Electronic Speed Controller (ESC). Always consult the specific motor and ESC documentation for definitive assignments.
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Yellow | Motor Phase U | ESC Output 1 (U) | Connects to ESC’s first motor output terminal. |
| Blue | Motor Phase V | ESC Output 2 (V) | Connects to ESC’s second motor output terminal. |
| Green | Motor Phase W | ESC Output 3 (W) | Connects to ESC’s third motor output terminal. |
| Red (Thicker) | ESC Power Input (Hot Wire) | Battery/Power Supply (+) | Connects to the positive (+) terminal of the power source. |
| Black (Thicker) | ESC Power Input (Ground Wire) | Battery/Power Supply (-) | Connects to the negative (-) terminal of the power source. |
| White/Orange (Thinner) | ESC Signal Input | Controller PWM/PPM | Connects to the signal output of the controlling unit (e.g., ECU, receiver). |
While the motor’s three wires (Yellow, Blue, Green) are often interchangeable in their connection to the ESC’s three output terminals, swapping any two will reverse the motor’s direction. This characteristic is often utilized for direction control rather than re-wiring the entire system. For highly sensitive applications or those requiring specific timing, always adhere to the manufacturer’s specified wiring for phases U, V, and W.
STEP-BY-STEP CONNECTION GUIDE
Properly wiring a 3-wire brushless motor involves connecting the motor to an Electronic Speed Controller (ESC), and then supplying power and control signals to the ESC. This guide details the process, ensuring a secure and functional setup for your automotive or equipment application. Always ensure the ignition is off and power sources are disconnected before beginning any wiring procedures.
1. Prepare the Work Area and Components: Ensure you have the 3-wire brushless motor, the compatible ESC, appropriate gauge wiring for power (typically 10-14 AWG for high-current applications, but verify against your system’s current draw), soldering equipment (if required by your connectors), heat shrink tubing, and diagnostic tools like a multimeter. Refer to the specific motor and ESC datasheets for their maximum current ratings and recommended wire gauge.
2. Motor Phase Wire Connection to ESC: Identify the three main power wires emerging from your brushless motor. These are the phase wires, commonly color-coded Yellow, Blue, and Green as per our reference table. Connect each of these motor phase wires to one of the three corresponding output terminals on your ESC.
Connect the Yellow motor wire to ESC Output 1 (often marked ‘U’ or ‘A’).
Connect the Blue motor wire to ESC Output 2 (often marked ‘V’ or ‘B’).
Connect the Green motor wire to ESC Output 3 (often marked ‘W’ or ‘C’).

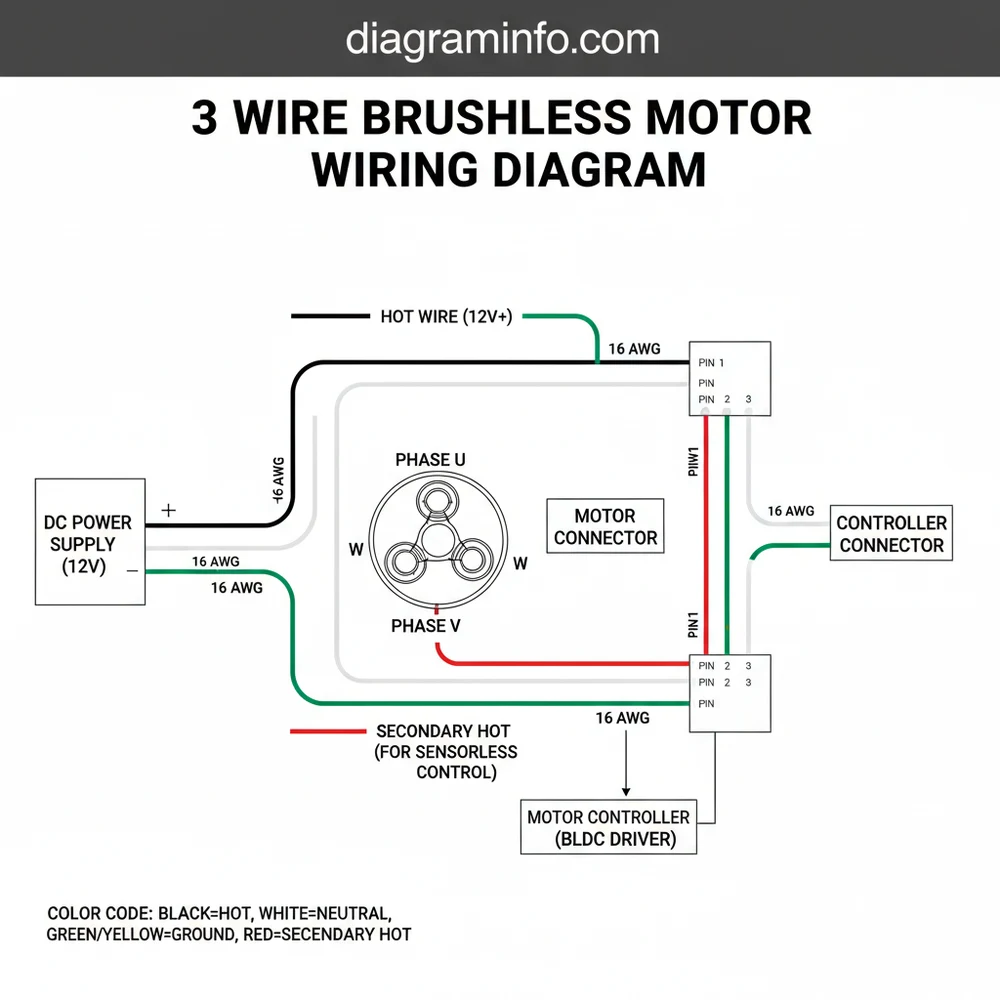

Ensure these connections are mechanically secure and electrically sound, using high-quality connectors or robust solder joints. As shown in the diagram above, these connections form the core of the motor’s operational circuit.
3. ESC Power Input Connection: Locate the heavier gauge power input wires on your ESC, typically a Red (hot wire) and a Black (ground wire). These wires supply the necessary voltage to operate both the ESC and the brushless motor.
Connect the Red ESC power input wire to the positive (+) terminal of your primary power source (e.g., battery, power supply).
Connect the Black ESC ground wire to the negative (-) terminal of your primary power source.
It is crucial to maintain correct polarity. Reverse polarity will almost certainly damage the ESC and potentially the power source. Utilize an appropriately rated fuse or circuit breaker in the positive supply line, positioned as close to the power source as possible, to protect against overcurrent conditions.
4. ESC Control Signal Connection: Most ESCs feature a thinner, multi-wire cable for receiving control signals. This cable often includes a White or Orange wire for the signal, a Red wire for regulated 5V power output (BEC – Battery Eliminator Circuit, if present), and a Black or Brown wire for signal ground.
If your control unit requires power from the ESC’s BEC, connect the Red (5V) and Black/Brown (Ground) wires from the ESC’s signal cable to the corresponding power input pins on your control unit. Always verify the BEC’s voltage output is compatible with your control unit’s input voltage requirements. This connection is vital for integrated systems, and further details can be found in our article on “Selecting the Right Electronic Speed Controller (ESC)”.
5. Final Inspection and Testing: After all connections are made, perform a thorough visual inspection. Check for any loose wires, exposed conductors, or incorrect polarities. Use a multimeter to verify continuity and proper voltage at various points if necessary. Once satisfied with the physical connections, carefully apply power to the system. Observe motor behavior, direction of rotation, and listen for any unusual noises. Be prepared to immediately cut power if any anomalies occur. Calibrate the ESC according to its manufacturer’s instructions, especially for throttle range and braking settings.
For applications exceeding 50A continuous current, it is recommended to use 10 AWG silicone wire for the main power input to the ESC. Ensure all connectors (e.g., XT60, XT90, EC5) are rated for the peak current drawn by the motor system. Manufacturer specs often indicate a maximum operating voltage and current, which must not be exceeded to prevent premature failure. Regularly inspect solder joints for cold joints or fatigue cracks, especially in high-vibration environments typical of heavy equipment.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues when wiring complex systems. Understanding common pitfalls in 3-wire brushless motor installations can save significant diagnostic time and prevent costly component damage.
1.
Reverse Polarity on ESC Power Input
Consequence: Instantaneous and irreversible damage to the ESC, potentially causing a short circuit, smoke, or component failure. The ESC’s internal rectification diodes or capacitors are not designed to withstand reverse voltage.
Fix: Always double-check the positive (Red) and negative (Black) connections from the power source to the ESC. Use a multimeter to verify voltage and polarity before making the final connection. Many ESCs now include reverse polarity protection, but this is not universal and should not be relied upon as a primary safeguard.
2.
Incorrect Motor Phase Wire Connection
Consequence: The motor may spin in the wrong direction, cog erratically, fail to spin at all, or overheat due to incorrect commutation timing. If the motor attempts to spin against its intended direction while under load, it can draw excessive current.
Fix: If the motor spins in the wrong direction, simply swap any two of the three motor phase wires (e.g., Yellow and Blue, Blue and Green, or Green and Yellow) connected to the ESC. Do not swap all three. If the motor is cogging or not spinning smoothly, re-verify all three phase connections are secure and making good electrical contact. For advanced troubleshooting, techniques related to “Understanding BLDC Motor Principles” can be invaluable.
3.
Inadequate Wire Gauge for Current Draw
Consequence: Overheating of wires, significant voltage drop under load, reduced motor performance, and potential fire hazard. Thinner wires cannot safely handle high currents.
Fix: Refer to the motor and ESC specifications for the expected continuous and burst current draw. Select a wire gauge that is rated to safely handle these currents with an adequate safety margin. A general rule of thumb: 10 AWG for 50-70A, 12 AWG for 30-50A, 14 AWG for 20-30A. Always choose silicone-insulated, multi-strand wire for flexibility and high-temperature resistance in automotive/equipment environments.
4.
Poor Solder Joints or Loose Connections
Consequence: Intermittent motor operation, power loss, excessive heat at the connection point, arcing, and potential for complete system failure. Loose connections introduce resistance, causing voltage drops and energy dissipation as heat.
Fix: Ensure all solder joints are shiny, smooth, and concave (“wet” joints), indicating good adhesion and electrical contact. Avoid “cold” or “dry” joints which appear dull and bumpy. Use heat shrink tubing to insulate all exposed connections. For crimped terminals, ensure the crimp tool is correctly sized for the wire and terminal, providing a secure mechanical and electrical bond. Regularly inspect terminal blocks for signs of corrosion or fatigue.
5.
ESC Signal Wire Misconnection or Interference
Consequence: Unresponsive motor, uncontrolled motor acceleration, or erratic operation if the ESC does not receive a clean, consistent signal from the control unit.
* Fix: Verify the signal wire (e.g., White/Orange) is connected to the correct pin on the control unit. Check the control unit’s output signal (e.g., PWM, PPM) using an oscilloscope if available. Ensure the signal wire is routed away from high-current power cables to minimize electromagnetic interference (EMI). If using a BEC, confirm its voltage output is stable and within the control unit’s acceptable range. Consider shielded cables in environments prone to high EMI.
Never attempt to diagnose or troubleshoot a live electrical system without proper training and safety equipment. Disconnect all power sources before inspecting or modifying wiring. High-current brushless motor systems can store significant energy, even when idle, and pose a severe shock and burn hazard. Always wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves.
FAQ
What is the purpose of the three wires on a brushless motor?
The three wires on a typical sensorless DC brushless motor are the three phase windings (often labeled U, V, W or A, B, C). These wires connect directly to the three output terminals of an Electronic Speed Controller (ESC). The ESC sequentially energizes these windings to create a rotating magnetic field that drives the motor’s rotor, hence controlling its speed and direction without needing brushes.
Can I extend the motor wires or ESC power wires?
While extension is possible, it should be done carefully. Extending motor phase wires (between motor and ESC) can increase inductance, potentially causing signal timing issues, heating, or reduced performance, especially with long extensions. Extending ESC power input wires (between battery and ESC) can lead to significant voltage drop under load if the wire gauge is insufficient, and can also introduce ripple current issues. If extensions are unavoidable, use the thickest possible gauge wire for the expected current and keep lengths to a minimum, ideally less than 12 inches for motor phase wires and 18 inches for power wires, to minimize adverse effects. Consult our guide on “Advanced Sensorless Motor Control” for considerations regarding wire length and system inductance.
Do 3-wire brushless motors require sensors?
No, the majority of 3-wire brushless motors commonly found in automotive and industrial equipment are “sensorless” brushless DC (BLDC) motors. They do not rely on Hall effect sensors or encoders for commutation. Instead, the ESC detects the back-EMF (electromotive force) generated by the motor’s un-energized winding to determine the rotor’s position and synchronize the switching of the phases. Some high-precision or low-speed applications may use “sensored” brushless motors, which typically have additional thin wires for feedback signals from internal Hall sensors.
What happens if I connect one of the motor phase wires incorrectly?
Connecting one of the three motor phase wires incorrectly, such as swapping two wires, will typically result in the motor spinning in the reverse direction. If all three are connected incorrectly, or if there’s a faulty connection causing an open circuit on one phase, the motor may cog erratically, vibrate, fail to start, or draw excessive current and overheat. The ESC will struggle to properly commutate the motor without the correct phase sequence. A quick swap of any two motor wires will usually correct the direction if that’s the only issue.
How critical is wire gauge for 3-wire brushless motor setups?
Wire gauge is extremely critical, particularly for the main power input wires to the ESC and the phase wires between the ESC and the motor. Undersized wires will lead to excessive resistance, causing them to heat up, melt insulation, potentially short circuit, and significantly reduce the efficiency and power output of the motor system due to voltage drop. Always ensure the wire gauge exceeds the current handling requirements with a comfortable margin, accounting for both continuous and burst current demands, as specified by the motor and ESC manufacturers.
