Msd 6Al Wiring Diagram 2026: Mapping Guide
The msd 6al wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the msd 6al wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Accurate wiring diagram interpretation is paramount for the successful integration of an MSD 6AL ignition control module into any performance automotive or equipment application. This article provides a definitive MSD 6AL wiring diagram guide, detailing every wire color code, pin assignment, and connection point. Understanding the specific voltage requirements and proper gauge selection ensures optimal performance, prevents system damage, and guarantees reliable engine operation. Adhering to these specifications is critical for unleashing the full potential of your ignition system.

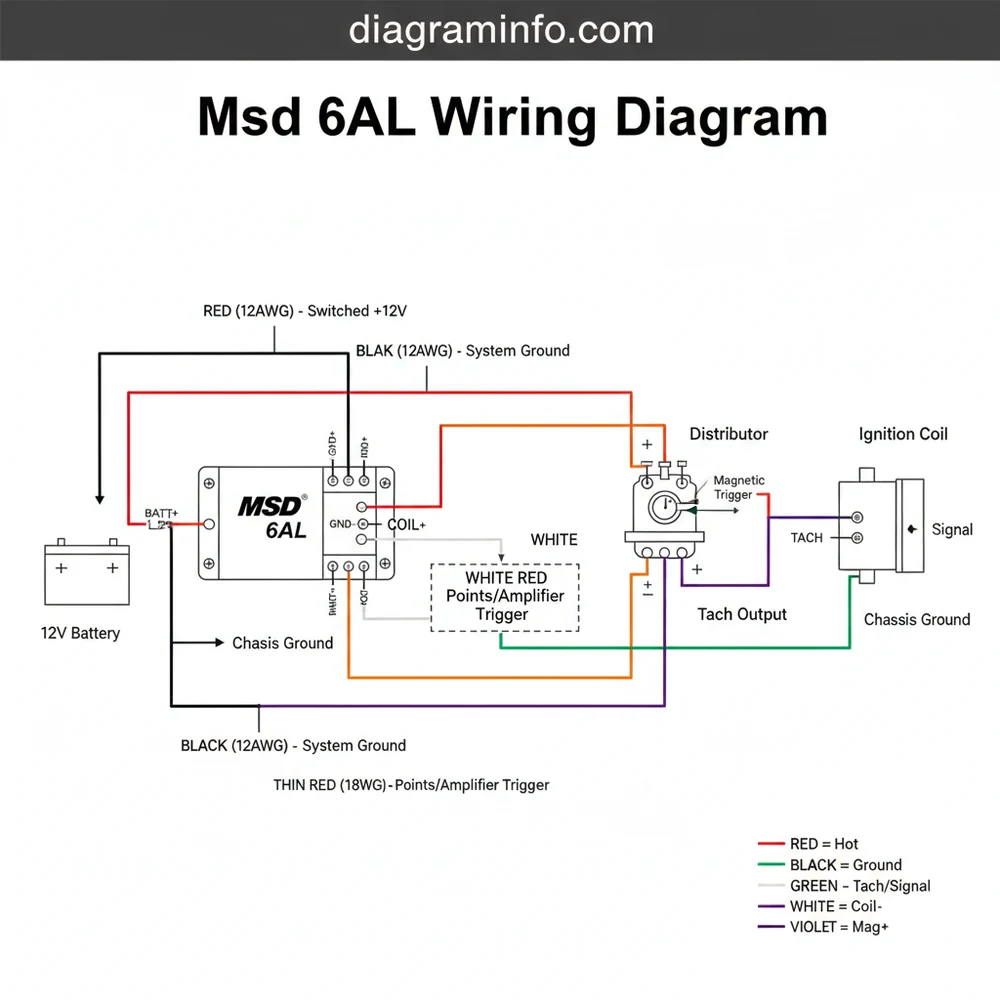

(Imagine a clear, well-labeled wiring diagram for an MSD 6AL ignition module, showing connections to battery, ignition switch, coil, magnetic pickup, and tachometer. It would visually represent the wire colors and their respective termination points.)
WIRE COLOR REFERENCE TABLE
The following table provides a comprehensive reference for each wire emanating from the MSD 6AL ignition control module, detailing its specific function, designated pin assignment or terminal, and crucial operational notes. This wire color code is standard across most MSD 6AL and 6AL-2 units, but always consult your specific module’s documentation for any year-specific variations.
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Heavy Red (10 AWG) | Battery Positive Hot Wire | Module Main Power Input | Connects directly to the positive (+) terminal of the battery. Must be unfused. |
| Heavy Black (10 AWG) | Battery Negative Ground Wire | Module Main Ground | Connects directly to the negative (-) terminal of the battery or a solid chassis ground. |
| Thin Red (18 AWG) | Switched 12V (Ignition) | Module Ignition Trigger | Connects to a switched 12V source that is live in both “Crank” and “Run” positions. |
| Orange (14 AWG) | Coil Positive (+) Output | Coil Primary + Terminal | Connects to the positive (+) terminal of the ignition coil. |
| Thin Black (14 AWG) | Coil Negative (-) Output | Coil Primary – Terminal | Connects to the negative (-) terminal of the ignition coil. |
| White (18 AWG) | Points/Amplifier Trigger | Trigger Input 1 | Used for points, aftermarket ignition amplifiers, or ECU trigger signals. |
| Green (18 AWG) | Magnetic Pickup Negative (-) | Trigger Input 2 (Magnetic) | Connects to the magnetic pickup negative wire. Typically a green or black wire. |
| Violet (18 AWG) | Magnetic Pickup Positive (+) | Trigger Input 2 (Magnetic) | Connects to the magnetic pickup positive wire. Typically a violet or red wire. |
| Gray (18 AWG) | Tachometer Output | Tach Signal | Connects to the tachometer signal input. Provides a 12V square wave signal. |
For installations utilizing the magnetic pickup (Green and Violet wires), the White wire is not used. Conversely, if employing the White wire for a points-style or aftermarket amplifier trigger, the Green and Violet magnetic pickup wires remain disconnected. Never connect both trigger inputs simultaneously, as this can result in ignition system malfunction or damage. Always refer to the MSD Ignition Coil Compatibility Guide to ensure your coil meets the specified requirements.
STEP-BY-STEP CONNECTION GUIDE
Precision is key when wiring your MSD 6AL module. Follow these detailed steps to ensure a correct and reliable installation. Reference the diagram above and the wire color reference table as you proceed.
- Secure Main Power and Ground (Heavy Gauge Wires):
Begin by connecting the heavy 10 gauge Red hot wire from the MSD 6AL directly to the positive (+) post of the vehicle’s battery. Ensure this connection is clean, tight, and uses a high-quality ring terminal. Simultaneously, attach the heavy 10 gauge Black ground wire directly to the negative (-) post of the battery. For chassis ground applications, ensure the ground point provides less than 0.5 ohms resistance to the battery negative terminal. These direct connections are critical for providing stable voltage and current to the module.
- Connect Switched Ignition Source (Thin Red Wire):
Locate a switched 12V source that provides voltage when the ignition key is in both the “START” and “RUN” positions. This is typically found at the ignition switch output or a suitable relay. Connect the thin 18 gauge Red wire from the MSD 6AL to this source. This wire signals the MSD unit to turn on and off with the engine. Avoid connecting to the original coil positive wire unless it provides a full 12V during cranking and running; sometimes, this wire may have a ballast resistor reducing voltage.
- Connect Ignition Coil Wires (Orange & Thin Black):
Route the 14 gauge Orange wire from the MSD 6AL to the positive (+) primary terminal of your ignition coil. Then, connect the 14 gauge thin Black wire from the MSD 6AL to the negative (-) primary terminal block of the ignition coil. These connections control the coil’s charging and firing sequence. Ensure no other wires are connected to the coil’s primary terminals, especially any original coil positive wires, as this can cause misfires or damage.
- Select and Connect Engine Trigger (White OR Green/Violet):
Option A (Points/Amplifier Trigger): If using a points-type distributor, or an aftermarket electronic ignition amplifier that provides a points-like signal, connect the 18 gauge White wire from the MSD 6AL to the negative side of the points or the output of the amplifier. Disconnect the original points wire from the coil negative. The Green and Violet magnetic pickup wires remain unused and should be capped off.
Option B (Magnetic Pickup Trigger): If your distributor has a magnetic pickup (e.g., GM HEI, Ford Duraspark, aftermarket billet distributor), connect the 18 gauge Green wire from the MSD 6AL to the negative (-) side of the magnetic pickup and the 18 gauge Violet wire to the positive (+) side. Pay close attention to polarity; incorrect connection will prevent the engine from starting. The White wire remains unused and should be capped off. You might need to consult your distributor’s documentation for the correct wire color code for its magnetic pickup.
- Connect Tachometer Output (Gray Wire):
Connect the 18 gauge Gray wire from the MSD 6AL to the tachometer’s signal input. This wire provides the necessary signal for your tachometer to function correctly. Some factory tachometers may require a MSD Tach Adapter, particularly those that historically received their signal from the coil negative terminal directly.
- Final Checks and Securing:
Before applying power, double-check all connections against the msd 6al wiring diagram and the reference table. Ensure all connections are secure, crimped properly, and insulated. Route wires away from hot engine components, moving parts, and sharp edges. Use zip ties or loom to tidy and protect the wiring harness.
Failure to connect the heavy Red and Black wires directly to the battery with the specified 10 AWG gauge wire can starve the MSD unit of adequate current, leading to intermittent misfires, reduced spark energy, or even permanent damage to the module. Never use a chassis ground for the heavy black wire if it introduces significant resistance.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during an MSD 6AL installation. Identifying and correcting common wiring mistakes is crucial for efficient troubleshooting.
- Incorrect Power & Ground Connections:
- Mistake: Connecting the heavy Red hot wire to an ignition switch or relay instead of directly to the battery positive. Similarly, grounding the heavy Black ground wire to a weak chassis point or an alternator bracket.
- Consequence: The module starves for current, leading to weak spark, misfires under load, or no spark at all. The 6AL requires a direct, low-resistance path to both battery terminals for its high-current operation.
- Fix: Ensure both heavy 10 gauge wires are directly connected to the battery posts with clean, secure terminals. Verify ground wire continuity to the battery negative with an ohmmeter (should be near 0 ohms).
- Improper Trigger Input Selection:
- Mistake: Connecting both the White trigger wire AND the Green/Violet magnetic pickup wires simultaneously, or connecting the wrong trigger wires for the distributor type.
- Consequence: No spark, intermittent spark, or uncontrolled firing (engine runs very poorly or backfires). The module becomes confused by conflicting input signals.
- Fix: Identify your distributor type (points, magnetic pickup, crank trigger). Use ONLY the corresponding trigger wires (White for points/amplifier, Green/Violet for magnetic pickup). Cap off and insulate the unused trigger wires. Ensure correct polarity for magnetic pickups.
- Original Coil Wires Still Connected to Coil:
- Mistake: Leaving the original vehicle wiring (especially the factory +12V wire, often ballast-resisted) connected to the ignition coil’s primary terminals alongside the MSD’s Orange and Thin Black wires.
- Consequence: Can cause feedback into the MSD module, leading to module damage, erratic spark, or poor performance. The MSD unit is designed to entirely control the coil’s primary circuit.
- Fix: Disconnect ALL original wiring from the coil’s primary positive (+) and negative (-) terminals. Only the MSD’s Orange and Thin Black wires should be connected to the coil. The original 12V switched wire (if full 12V during crank/run) should be used for the MSD’s thin Red wire input.
- Incorrect Tachometer Connection/Function:
- Mistake: Connecting the tachometer to the coil negative terminal (as with stock systems) or expecting the Gray wire to function with all factory tachometers without an adapter.
- Consequence: Tachometer reads erratically, inaccurately, or not at all. Some factory tachometers are sensitive to the MSD’s high-output inductive discharge signal.
- Fix: Connect the Gray wire to the tachometer signal input. If the tachometer still malfunctions, an MSD Tach Adapter (e.g., PN 8920, 8910) may be required. Consult the MSD Tachometer Adapter Selection Guide for your specific application.
According to MSD manufacturer specifications, the heavy gauge power and ground wires (Red and Black) must be 10 AWG to handle the peak current draw of up to 5-6 amps at 15,000 RPM. The smaller trigger and coil wires (Orange, Thin Black, Green, Violet, White, Gray) are typically 14-18 AWG, suitable for signal and lower current output. Proper wire gauge selection is crucial for minimizing voltage drop and ensuring maximum spark energy.
FAQ
What is the purpose of the heavy 10 AWG Red and Black wires?
The heavy 10 gauge Red wire serves as the primary hot wire input for the MSD 6AL module, providing direct, unfused 12V voltage from the battery. The heavy 10 gauge Black wire is the module’s main ground wire, also connected directly to the battery negative. These robust connections are essential for supplying the high current required to charge the capacitor and produce the powerful multiple sparks for which the MSD 6AL is known.
Can I use the original coil positive wire to power the thin Red switched wire?
It is generally not recommended to use the original coil positive wire for the thin Red switched wire. Many factory systems incorporate a ballast resistor in this circuit, which reduces the voltage during run conditions to extend coil life. The MSD 6AL requires a full 12V from the thin Red wire during both cranking and running. If the original coil positive wire does not provide a consistent 12V, it will cause the MSD unit to function erratically or not at all. Always test the source with a multimeter.
Do I need a special ignition coil for the MSD 6AL?
While the MSD 6AL can operate with many stock-style ignition coils, it is designed to maximize the performance of a high-energy inductive coil, often referred to as a “blaster” coil (e.g., MSD Blaster 2, Blaster SS). These coils have lower primary resistance and higher turns ratios, allowing them to take full advantage of the MSD’s multi-spark discharge and higher current output. Consult MSD Blaster Coil Selection for optimal pairing.
What if my tachometer doesn’t work with the Gray wire connected?
If your tachometer does not function correctly when connected to the Gray wire, it likely indicates an incompatibility with the type of signal produced by the MSD 6AL. Older or certain OEM tachometers may require an MSD Tach Adapter. These adapters modify the MSD’s square wave signal to one that the specific tachometer can interpret. Common adapters include the PN 8920 for current-triggered tachs and the PN 8910 for voltage-triggered tachs, depending on your vehicle’s original tachometer design.
How important is wire gauge for the MSD installation?
Wire gauge is critically important, particularly for the main power (heavy Red) and ground (heavy Black) wires. Undersized wires introduce excessive resistance, leading to voltage drop and current limitations, which directly impacts spark energy and module reliability. The specified 10 AWG wires ensure minimal resistance and allow the module to draw sufficient current without overheating or performance degradation. Using the correct gauge prevents potential damage to the module and ensures consistent, powerful spark delivery.
