Yamaha Golf Cart Solenoid Wiring Diagram 48V/36V: Troubleshooting Guide 2026

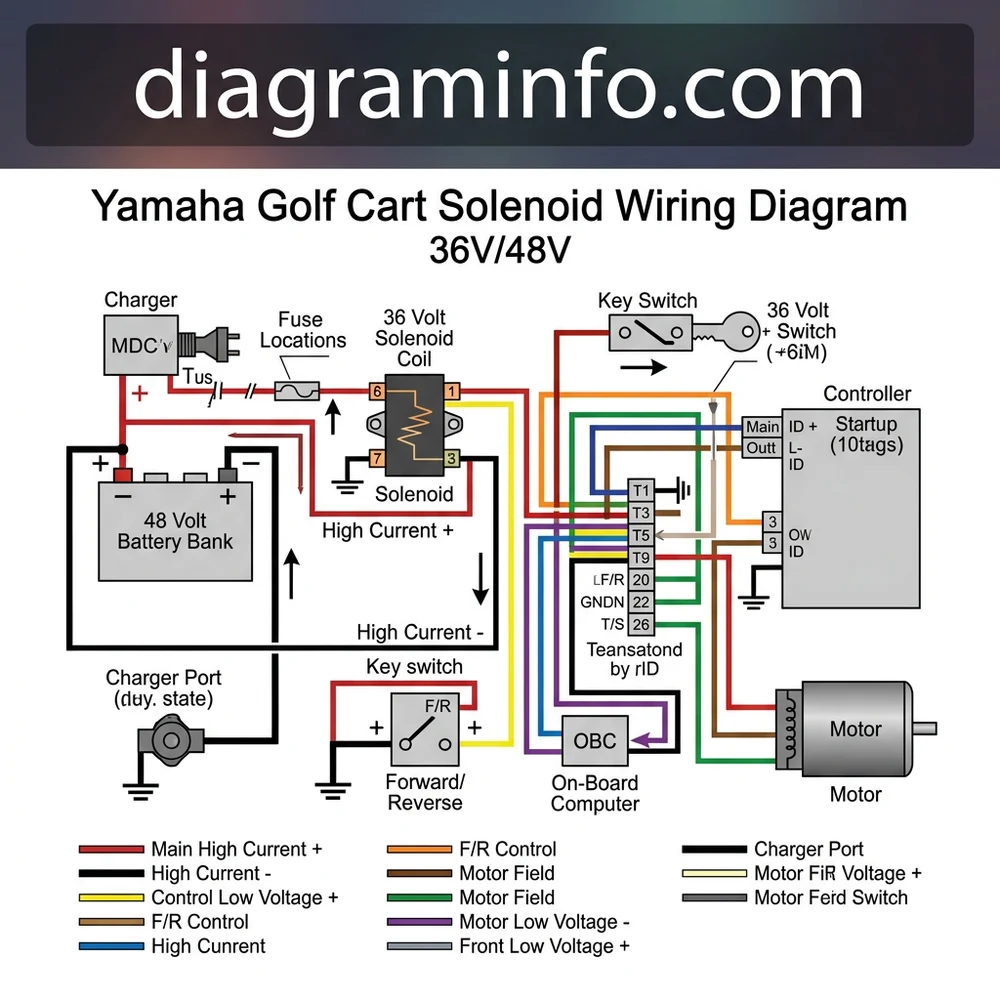

A Yamaha golf cart solenoid wiring diagram shows the solenoid connecting the main battery positive to the controller’s B+ terminal via two large posts. Two small terminals receive activation voltage, typically 12V, from the key switch and controller. When engaged, it completes the main power circuit. Check for activation voltage on small terminals and continuity across large terminals.
📌 Key Takeaways
- Most Yamaha golf cart solenoids are 4-terminal: two large for main power (B+), two small for coil activation (e.g., 12V).
- Identify the correct solenoid type (e.g., continuous duty vs. intermittent) and voltage rating (12V coil for 36V/48V systems).
- Always disconnect the main battery bank before servicing any wiring to prevent electrical shock or shorts.
- A common failure point is the activation coil or pitted internal contacts, leading to no-click or click-but-no-power symptoms.
- Simple solenoid testing (voltage/continuity) is DIY, but complex controller or motor issues warrant professional diagnosis.
Understanding the intricate Yamaha golf cart solenoid wiring diagram is paramount for effective diagnosis, repair, and maintenance, whether you’re working with a 36 volt system or a 48 volt system. The solenoid acts as the critical electrical gatekeeper, managing high-amperage current flow from the battery bank to the motor controller and ultimately the motor. Precise knowledge of wire colors, terminal identification, and connection sequences is essential to ensure reliable operation, prevent electrical damage, and maintain optimal performance of your Yamaha golf car.
Always disconnect the main battery pack before attempting any wiring procedures. Improper wiring can lead to severe electrical shock, component damage, or fire. Consult your Yamaha service manual for model-specific safety protocols.
WIRE COLOR REFERENCE TABLE
| Wire Color (Common) | Function | Connect To | Notes |
|---|---|---|---|
| Heavy Gauge Red | Main Positive (+) Input (B+) | Solenoid Large Terminal (Battery Side) | Connects directly from the main positive post of the battery bank (or B+ terminal on the controller for specific models). This is the primary power feed. |
| Heavy Gauge Blue / Yellow | Main Positive (+) Output (Controller B+) | Solenoid Large Terminal (Controller Side) | Feeds high-current positive voltage to the controller’s B+ terminal when the solenoid engages. Ensure solid, low-resistance connection. |
| Thin Red / Green (or White/Green) | Solenoid Coil Activation (+) | Solenoid Small Terminal (Typically connects to key switch, F/R switch, or controller output) | Receives positive voltage (e.g., +36V or +48V) to energize the solenoid coil. This is part of the control circuit, typically passing through multiple safety interlocks. |
| Thin Blue / Black (or Yellow/Blue) | Solenoid Coil Ground (-) | Solenoid Small Terminal (Typically connects to controller output or system ground via safety switches) | Provides the negative path for the solenoid coil. On many controller-based systems, the controller grounds this terminal to activate the solenoid. |
| Heavy Gauge Black | Main Negative (-) (B-) | Battery Bank Negative to Controller B- / Motor A2 | This is the primary ground path for the entire electrical system. Crucial for motor operation and charging. |
| Heavy Gauge Green (or Yellow) | Motor Armature A1 / A2 (Series Motor) | Controller M- Terminal to Motor A1 / A2 | These cables connect the controller’s motor output (M-) to the motor armature, reversing for direction. Specific colors vary by model and F/R switch type. |
| Heavy Gauge White (or Red/White) | Motor Field S1 / S2 (Series Motor) | Controller F1/F2 (or directly from battery depending on F/R switch design) | Connects the motor field windings. The F/R switch changes the polarity to these windings to reverse motor direction. |
| Thin White / Black | Key Switch Input / Output | Battery Positive to Key Switch / Key Switch to Solenoid Coil | Supplies power to the control circuit when the key is on. Often the starting point for solenoid activation signal. |
Yamaha golf carts, especially older resistor-based models versus newer controller-based systems (e.g., G14, G16, G19, G22, G29 “Drive”), may exhibit variations in wire colors and control circuit logic. Always cross-reference with the specific wiring diagram provided in your vehicle’s service manual for absolute accuracy. The general principles of solenoid wiring remain consistent, but specific color codes can differ.
COMPONENT CONNECTION GUIDE
Accurate wiring of key components is fundamental for any Yamaha golf cart, whether it’s a 36 volt system or a 48 volt system. This guide focuses on the critical connections, emphasizing correct sequencing and terminal identification.
Solenoid Wiring
The solenoid serves as the main contactor. A typical Yamaha solenoid features two large terminals and two small terminals. The large terminals handle high-amperage main power, while the small terminals engage the coil:
- Large Terminal 1 (Battery Side): Connect a heavy-gauge cable (often Red) directly from the main positive (+) post of your battery bank (or sometimes from the main B+ terminal on the controller if configured as such) to one large terminal. This is the constant 36V or 48V supply.
- Large Terminal 2 (Controller Side): Connect another heavy-gauge cable (often Blue or Yellow) from the remaining large solenoid terminal to the B+ input terminal on your motor controller. This cable carries power to the controller when the solenoid activates.
- Small Terminal 1 (Positive Coil Feed): This small terminal receives positive voltage to energize the solenoid coil. This wire (often Thin Red/Green or White/Green) typically originates from the key switch, passes through the forward reverse switch or microswitches (e.g., pedal box, F/R switch), and sometimes the charger port interlock. This is the positive side of the solenoid activation circuit.
- Small Terminal 2 (Negative Coil Feed/Ground): This small terminal completes the coil circuit by providing a ground path. On controller-based systems, this wire (often Thin Blue/Black or Yellow/Blue) connects to a specific output terminal on the motor controller (e.g., pin 6 on some Curtis controllers). The controller grounds this terminal to engage the solenoid. For older models, it may go directly to system ground via another set of interlock switches.
When tightening the large solenoid terminals, use an appropriately sized wrench and torque to manufacturer-specified values, typically 90-110 in-lbs (10-12 Nm) for 5/16″ studs. Overtightening can strip threads, while undertightening can cause excessive heat and resistance, leading to premature solenoid failure.
Controller Wiring
The motor controller is the brain of the electric powertrain. Proper controller wiring ensures seamless control and safety:
- B+ (Positive Input): Connects to the main positive output of the solenoid (the large terminal opposite the battery bank connection).
- B- (Negative Input): Connects directly to the main negative (-) terminal of the battery bank. This is typically a heavy-gauge Black cable.
- M- (Motor Output): Connects to the motor’s armature (A2 on a series wound motor). This terminal varies voltage and current to control motor speed.
- F1/F2 (Field Outputs – for Series Motors): Connect to the motor’s field windings (S1 and S2). The controller, in conjunction with the forward reverse switch, reverses the polarity to these terminals to change motor direction.
- Throttle Input: Typically a 3-wire potentiometer or inductive sensor input, providing a signal (e.g., 0-5V) to the controller indicating pedal position.
- Solenoid Activation Output: As detailed above, this output (often a small gauge wire) provides the ground path for the solenoid coil.
On-Board Charger (OBC) Wiring
Yamaha’s On-Board Chargers (OBCs) are crucial for battery management and often integrate safety interlocks:
- DC Input (Heavy Gauge): Connects to the battery bank (usually via the main positive and negative terminals, or specific points designed for charging). This provides the OBC with the battery voltage.
- Charger Port Connection: The OBC interfaces with the external charger port. Ensure these connections are clean and corrosion-free for efficient charging.
- Solenoid Interlock: Many Yamaha OBCs have a built-in interlock that prevents the solenoid from activating while the charger is plugged in, acting as a critical safety feature. This interlock typically interrupts the solenoid coil’s positive feed wire. Verify its function by checking for continuity through the OBC when the charger is unplugged, and open circuit when plugged in. Refer to Yamaha golf cart charger port repair guide for related issues.
Motor Wiring (Series Wound)
Most older Yamaha golf carts (e.g., G1, G2, G8, G9, G14, G16, G19, G22) utilize series-wound DC motors. Their wiring is straightforward:
- A1 & A2 (Armature): These terminals represent the armature windings. A1 typically connects to the forward reverse switch, and A2 to the controller’s M- terminal.
- S1 & S2 (Field): These terminals represent the field windings. Both S1 and S2 connect to the forward reverse switch, which then routes power to them, reversing polarity to change direction.
COMMON WIRING PROBLEMS & FIXES
Electrical issues are common in golf carts due to vibration, corrosion, and wear. Pinpointing the root cause often involves methodical troubleshooting of the wiring.
1. Solenoid Clicks But Cart Does Not Move
Diagnosis: This indicates the solenoid coil is energizing, but the high-current contacts inside are not closing, or there’s a break in the main power circuit. The clicking confirms the control circuit to the solenoid is largely functional.
Likely Causes:
- Bad Solenoid: The internal contacts are pitted, fused, or carbonized, preventing current flow.
- Pre-Charge Resistor Failure: On some 48 volt system Yamaha carts, a resistor (often 250 ohm, 10W) runs in parallel with the solenoid’s large terminals. If this resistor fails, the solenoid may click, but without the brief pre-charge, the main contacts might not handle the surge, or the controller may detect an error.
- Loose/Corroded Heavy Gauge Cables: High resistance at the large solenoid terminals, battery terminals, or controller B+/B- terminals can prevent the necessary current flow.
Fixes:
- Test Solenoid Main Contacts: With the main battery disconnected, use an ohmmeter across the large terminals. When activated (using a jumper wire on small terminals), resistance should drop to near zero. If not, replace the solenoid.
- Inspect & Clean Terminals: Thoroughly clean all heavy-gauge cable connections at the battery, solenoid, and controller. Apply dielectric grease. Ensure torque to specifications.
- Check Pre-Charge Resistor: Measure its resistance. Replace if open circuit or significantly out of specification.
2. No Click From Solenoid & No Movement
Diagnosis: This points to an issue within the control circuit that prevents the solenoid coil from energizing. The main high-current circuit is likely fine, but the activation signal isn’t reaching the solenoid.
Likely Causes:
- Key Switch Failure: No power out of the key switch.
- Forward Reverse Switch Microswitch: A faulty microswitch within the F/R assembly, or incorrect forward reverse switch wiring, preventing the solenoid coil from receiving its positive feed or ground.
- Pedal Microswitch (Accelerator): The microswitch at the accelerator pedal is not activating.
- Run/Tow Switch: If equipped, the run tow switch might be in the ‘Tow’ position or faulty.
- OBC Interlock: Charger still plugged in or OBC interlock circuit faulty.
Fixes:
- Trace Control Circuit: Use a multimeter to follow the positive voltage path (e.g., +36V or +48V) from the key switch, through each interlock switch (pedal, F/R, etc.), to the solenoid’s small positive terminal. Similarly, verify the ground path on the other small terminal.
- Bypass Switches (Temporarily & Cautiously): For diagnostic purposes ONLY, temporarily bypass individual switches (e.g., pedal microswitch) to isolate the fault. NEVER bypass the solenoid itself.
- Check Run/Tow Switch: Ensure it is in the ‘Run’ position and test for continuity.
3. Charger Plugs In, But Batteries Don’t Charge
Diagnosis: This often indicates an issue with the charger port, OBC (On-Board Charger), or the wiring connecting the two, particularly the system that senses charger connection.
Likely Causes:
- Faulty Charger Port: Corrosion or damage within the charger port preventing a proper connection with the charger plug.
- OBC Malfunction: The OBC itself is not detecting the charger, or its internal components have failed.
- Blown Fuse/Circuit Breaker: A fuse or circuit breaker in the charging circuit is open.
- Battery Bank Issues: Extremely discharged or critically damaged batteries may prevent the charger from initiating.
Fixes:
- Inspect Charger Port: Visually check for bent pins, corrosion, or debris. Ensure tight connections to the OBC. For further diagnosis, refer to our troubleshooting Yamaha golf cart charging problems guide.
- Check Fuses/Breakers: Locate and test all fuses and circuit breakers related to the charging system.
- Verify Battery Voltage: Ensure the battery bank voltage is above the minimum threshold for the charger to engage (e.g., >30V for a 36V system).
- Test OBC Output (if possible): With the charger plugged in, use a voltmeter to check if the OBC is outputting charging voltage to the batteries. If not, the OBC may require replacement.
FAQ
How do I test a Yamaha golf cart solenoid?
To test a Yamaha golf cart solenoid, first ensure the main battery pack is disconnected for safety when working with the large terminals. You’ll need a multimeter and a 12V test battery or jumpers (for the small terminals). Check resistance across the large terminals: it should be open (infinite resistance) when inactive. Then, apply 12V (or the cart’s system voltage) to the small terminals to activate the coil. You should hear a distinct click, and the resistance across the large terminals should drop to near zero ohms. If it doesn’t click, or resistance remains high, the coil is faulty. If it clicks but resistance doesn’t drop, the main contacts are faulty. Also, verify proper voltage (36V or 48V) reaches the small terminals when the pedal is pressed in the cart.
What’s the difference between 36V and 48V solenoid wiring?
The fundamental wiring schematic for 36V and 48V systems is largely identical in terms of components: solenoid, controller, motor, and battery bank. The primary difference lies in the operating voltage of these components. A 48 volt system will use a solenoid rated for 48V, a 48V controller, and batteries configured for 48V (e.g., six 8V batteries or four 12V batteries). The wiring itself, specifically the gauge of the cables, may also differ slightly, with 48V systems typically drawing less amperage for the same power output, potentially allowing for slightly smaller gauge wires if power output is similar, though heavy gauge is always recommended for main power circuits to minimize resistance and heat.
Where is the run/tow switch located and how does it affect wiring?
The run/tow switch on Yamaha golf carts is typically located under the seat, near the controller or battery bank. Its purpose is to disconnect the battery pack from the controller and other electrical components, allowing the cart to be towed without damaging the motor or controller, or for safe maintenance. When in the ‘Tow’ position, it creates an open circuit in the main power line (often between the main negative post and the controller’s B- terminal, or by interrupting the solenoid’s control circuit), preventing the solenoid from activating and any power from reaching the controller. This is a critical safety interlock that must be in ‘Run’ for the cart to operate.
Can I bypass the solenoid on my Yamaha golf cart?
No, you should never permanently bypass the solenoid on your Yamaha golf cart. The solenoid is a critical safety device that isolates the high-current battery bank from the rest of the electrical system when the cart is not in use or during charging. Bypassing it would mean the motor controller, and potentially the motor itself, would always be live, creating a significant fire hazard, risk of accidental movement, and constant parasitic drain on the battery bank. While a temporary bypass might be used by experienced technicians for very specific diagnostic purposes, it is extremely dangerous and not recommended for operation.
What are common causes of solenoid failure in Yamaha golf carts?
Common causes of solenoid failure in Yamaha golf carts include prolonged arcing between the main contacts due to high resistance elsewhere in the power circuit (e.g., loose battery terminals), which leads to pitting and carbonization. Frequent, rapid cycling (on/off) can also accelerate wear. Overheating, often from continuous duty cycles not suited for intermittent solenoids, or from high ambient temperatures combined with heavy load, can damage the coil or internal components. Additionally, corrosion due to exposure to moisture or battery acid fumes can degrade connections and internal parts over time. Using an undersized solenoid for a modified, higher-power cart is also a frequent cause of premature failure.
Step-by-Step Guide to Understanding the Yamaha Golf Cart Solenoid Wiring Diagram 48V/36V: Troubleshooting Guide 2026
Identify – Locate the solenoid and its four terminals (two large, two small) on your Yamaha golf cart.
Locate – Find the corresponding solenoid connections on your specific Yamaha golf cart wiring diagram (36V or 48V system).
Reference – Use the diagram’s wire color reference table to understand the function of each wire connected to the solenoid.
Connect/Route – Ensure heavy gauge wires correctly connect the main battery positive to one large solenoid terminal, and the other large terminal to the controller’s B+ input. Route smaller activation wires from the key switch and controller to the small solenoid terminals as per the diagram.
Verify – After connecting, use a multimeter to verify correct voltage (e.g., 12V) on the small terminals when activated, and continuity across large terminals when engaged.
Troubleshoot – If issues arise, systematically trace power paths on the diagram through the solenoid’s activation and main power circuits to pinpoint open circuits or faulty components.
Frequently Asked Questions
What voltage is yamaha golf cart solenoid wiring diagram?
The Yamaha golf cart solenoid wiring diagram typically illustrates connections for either 36V or 48V main battery banks, depending on the cart’s model. While the solenoid’s large terminals switch this primary voltage, its activation coil (small terminals) almost always operates on 12V, powered from the key switch and controller’s activation circuit.
What do the wire colors mean on yamaha golf cart solenoid wiring diagram?
Wire colors on a Yamaha golf cart solenoid wiring diagram can vary by model. Generally, heavy gauge red wires connect the main positive battery to the large solenoid terminals and then to the controller. Smaller wires, often brown, blue, or yellow, connect to the small solenoid terminals, delivering 12V from the key switch and controller for activation. Black wires typically indicate ground.
How do I troubleshoot yamaha golf cart solenoid wiring diagram that won’t run?
If your Yamaha golf cart won’t run, consult the wiring diagram. First, verify full battery voltage at one large solenoid terminal. Next, with the key on and pedal pressed, check for 12V across the small solenoid terminals. If 12V is present but no click or main power passes, the solenoid is likely faulty. If no 12V, trace the activation circuit using the diagram.
What is the solenoid wiring on yamaha golf cart solenoid wiring diagram?
The Yamaha golf cart solenoid wiring diagram shows two large terminals connecting the main battery positive to the controller’s B+ input. These carry the full 36V or 48V. Two smaller terminals are for the 12V activation circuit, receiving power from the key switch and controller. When activated, the solenoid completes the main power path to the controller.
How many batteries does yamaha golf cart solenoid wiring diagram have?
A Yamaha golf cart wiring diagram for a 36V system typically shows six 6-volt batteries wired in series. For a 48V system, it will display either six 8-volt batteries or four 12-volt batteries, also connected in series to achieve the desired system voltage. The solenoid connects to the positive terminal of the entire battery bank.
What gauge wire does yamaha golf cart solenoid wiring diagram use?
Yamaha golf cart solenoid wiring diagrams show heavy gauge wires for main power circuits. Connections from the battery bank to the solenoid’s large terminals and to the controller typically use 2-gauge or 4-gauge wire. The solenoid’s 12V activation circuit (small terminals) utilizes smaller, 16-gauge or 18-gauge wires, as these carry significantly less current.
