2-Switch Ceiling Fan Wiring Diagram: Installation Setup 2026
A 2-switch ceiling fan setup requires separate hot feeds from the switches to the fan’s motor (usually black) and light (usually blue/red). Common neutral (white) and ground (green/bare) connect to both fan and house wiring. Ensure power is off during installation to prevent electrical hazards.
📌 Key Takeaways
- Dual wall switches require two separate switched hot wires (typically black and red/blue) from the switch box to the ceiling fan’s canopy for independent control.
- Critically identify the fan’s motor (usually black) and light (usually blue or sometimes red) wires from the fan unit to ensure correct switch assignment.
- Always turn off power at the main circuit breaker before beginning any wiring work, verifying power is off with a non-contact voltage tester to prevent electrical shock.
- Most common mistakes include incorrectly wiring the hot and neutral wires, or cross-connecting the fan and light control wires at the switch or fan box.
- Consult a licensed electrician if you’re unsure about existing house wiring configurations (e.g., no neutral, or dealing with old knob-and-tube wiring) or complex multi-way switch setups.
Implementing a 2 switch ceiling fan wiring diagram correctly is paramount for safety, functionality, and compliance with electrical codes. This detailed guide and accompanying diagram facilitate the independent control of both the fan motor and the integrated light fixture from a single wall box, leveraging a standard 120V AC circuit. Understanding the precise wire color codes, terminal assignments, and connection sequences prevents operational issues, enhances energy efficiency, and ensures circuit integrity, crucial for any technical professional or experienced DIYer managing electrical installations in residential or commercial settings.
Recommended Best Deal Products
Prior to commencing any electrical work, always verify that the main circuit breaker supplying power to the working area is in the OFF position. Utilize a non-contact voltage tester to confirm de-energization at the switch box and ceiling junction box. Adherence to local electrical codes, such as the National Electrical Code (NEC) in the United States, is mandatory for safe and compliant installations. Failure to do so can result in severe injury, property damage, or legal penalties.
The complexity of this wiring configuration demands a methodical approach. You will be dealing with a 120-volt alternating current (AC) circuit, typically incorporating three or four conductors (hot, neutral, and ground, plus an additional switched hot for the second function). The LSI keywords such as wire color code, pin assignment, ground wire, hot wire, neutral wire, terminal block, gauge, and voltage are all integral to successful execution. This article will guide you through each step, ensuring a robust and reliable installation.

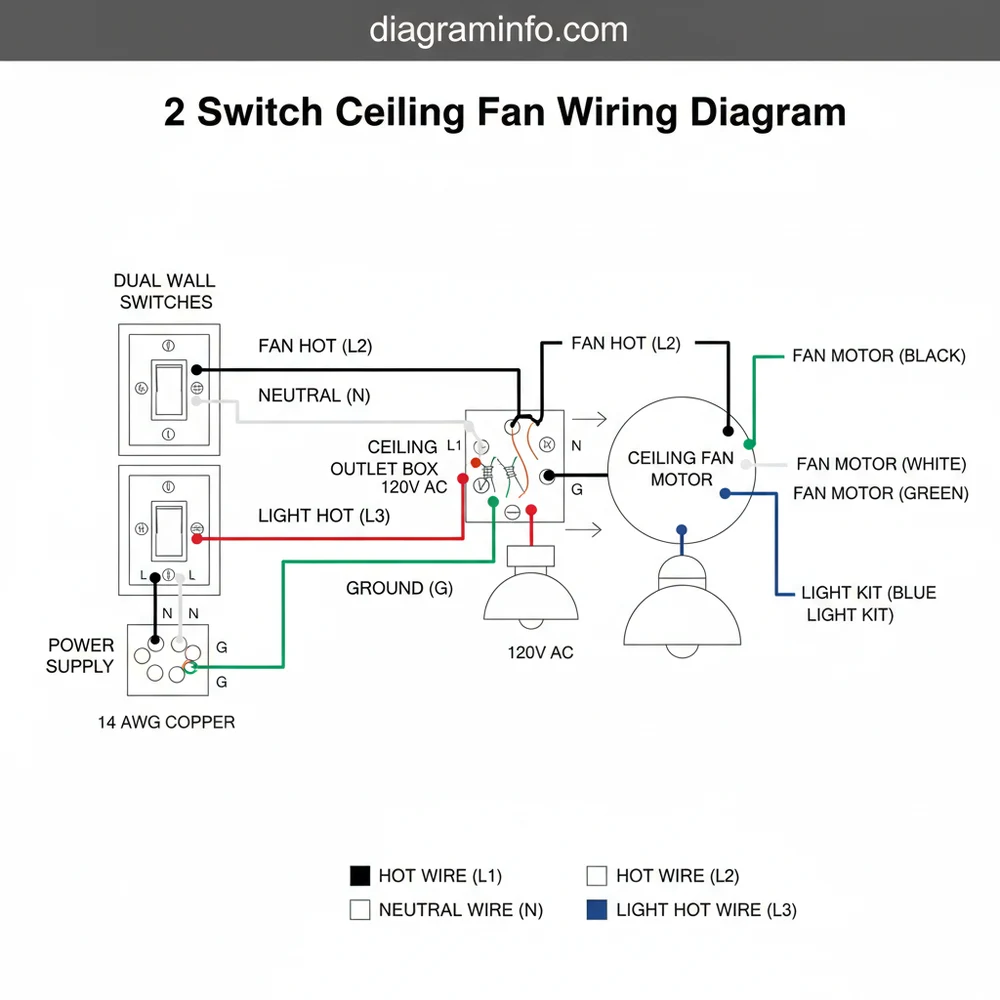

(Placeholder for a detailed wiring diagram illustrating the connection points between the service panel, wall switches, and ceiling fan unit. It should clearly depict the hot, neutral, and ground conductors, as well as the switched hot legs for the fan motor and light kit, along with typical wire colors.)
WIRE COLOR REFERENCE TABLE
Understanding the standard wire color codes is fundamental for accurate and safe electrical installations. This table outlines the typical functions and pin assignment or terminal connections for North American 120V AC residential wiring when installing a ceiling fan with two independent switches. Note that specific manufacturers may use slightly different colors for internal fan wiring, always refer to the fan’s installation manual.
| Wire Color | Function | Pin/Terminal (Typical) | Notes |
|---|---|---|---|
| Black (Source/Line) | Incoming Hot Wire (Line Voltage) | Common terminal on both switches (via pigtail) | Permanent 120V AC power from circuit breaker. |
| White (Source/Line) | Incoming Neutral Wire | Neutral Terminal Block in ceiling box / Common to fan neutral | Returns current to the source. Must not be switched. |
| Green / Bare Copper (Source/Line) | Equipment Ground Wire | Bonded to junction box, switch boxes, and fan housing | Safety conductor, provides path for fault current. |
| Black (Switch Loop) | Switched Hot Wire (Fan) | “Load” terminal of Fan Switch / Fan Motor Hot Input | Carries switched power to the fan motor. |
| Red (Switch Loop) | Switched Hot Wire (Light) | “Load” terminal of Light Switch / Light Kit Hot Input | Carries switched power to the fan’s light kit. |
| White (Switch Loop) | Typically used as unswitched hot feed to switches | Re-identified as hot (e.g., black tape) | When using 14/3 or 12/3 NM-B cable, this white wire feeds constant hot to the switches. It must be marked as hot. |
| Black (Fan Unit) | Fan Motor Hot Input | Connects to Switched Hot (Fan) from switch box | Powers the fan motor. |
| Blue (Fan Unit) | Light Kit Hot Input | Connects to Switched Hot (Light) from switch box | Powers the integrated light fixture. |
| White (Fan Unit) | Fan Neutral | Connects to incoming Neutral in ceiling box | Common return path for both fan motor and light. |
| Green (Fan Unit) | Fan Ground | Connects to incoming Ground in ceiling box | Bonds metal fan parts to ground for safety. |
STEP-BY-STEP CONNECTION GUIDE
This detailed procedure outlines the correct sequence for wiring a ceiling fan with two independent wall switches. Always verify that all connections are secure and conform to the appropriate electrical standards. The wiring assumes a single 14/2 or 12/2 NM-B cable from the service panel to the ceiling junction box, and a 14/3 or 12/3 NM-B cable from the ceiling junction box to the wall switch box. For optimal performance and safety, ensure the wire gauge is appropriate for the circuit’s voltage and amperage draw, typically 14 AWG for 15-amp circuits and 12 AWG for 20-amp circuits.
- De-Energize and Confirm Safety: Locate the circuit breaker controlling the relevant circuit in your service panel. Switch it to the OFF position. Use a non-contact voltage tester to confirm absolutely no power is present at both the ceiling fixture box and the wall switch box. This is a non-negotiable safety step.
- Ground Wire Connections: Begin by connecting all ground wires. In the ceiling junction box, connect the incoming bare copper or green ground wire from the service panel, the bare copper or green ground wire from the 14/3 or 12/3 cable running to the switch box, and the green ground wire from the ceiling fan unit. Securely twist them together with a wire nut. Ensure the junction box itself is grounded if it is metal. In the switch box, connect the ground wire from the 14/3 or 12/3 cable to the ground screw on both switches and to the switch box if metal, forming a solid ground path.
- Neutral Wire Connections: In the ceiling junction box, connect the incoming white neutral wire from the service panel directly to the white neutral wire from the ceiling fan unit. Use a wire nut to create a secure connection. There will typically be no neutral wire in the switch box in this configuration, as the 14/3 or 12/3 cable carries constant hot and two switched hots, while the fan neutral returns via the ceiling box.
- Establish Constant Hot Feed to Switches: In the ceiling junction box, connect the incoming black hot wire from the service panel to the white wire of the 14/3 or 12/3 cable running to the switch box.
⚠️ Warning
Recommended Best Deal Products
When using a white wire as a constant hot feed in a switch loop, it MUST be re-identified as a hot conductor at both ends by wrapping it with black or red electrical tape. Failure to re-identify can create a significant shock hazard for future technicians.
In the wall switch box, connect this re-identified white (now hot) wire to a short pigtail of black wire. Connect this pigtail to one of the two common “line” terminals on each switch (usually marked “COM” or a darker screw). This provides constant 120V AC power to both switches.
- Connect Switched Hot for Fan Motor: In the wall switch box, connect the black wire of the 14/3 or 12/3 cable to the “load” terminal (the other screw, often brass-colored) of the switch designated for the fan motor. In the ceiling junction box, connect this same black wire (from the 14/3 or 12/3 cable) to the black wire from the ceiling fan unit (which powers the fan motor). This completes the switched hot circuit for the fan.
- Connect Switched Hot for Light Kit: In the wall switch box, connect the red wire of the 14/3 or 12/3 cable to the “load” terminal of the switch designated for the light kit. In the ceiling junction box, connect this same red wire (from the 14/3 or 12/3 cable) to the blue wire from the ceiling fan unit (which powers the light kit). This establishes the independent switched hot circuit for the light.
- Secure and Test: Ensure all wire nuts are tight, and no bare conductor is exposed outside the connection. Carefully tuck all wires into their respective junction boxes. Mount the switches and fan according to manufacturer specifications. Restore power at the main circuit breaker. Test both switches independently to confirm the fan motor and light kit operate as intended. Refer to our guide on residential electrical grounding practices for comprehensive details.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during ceiling fan wiring. Here are common mistakes, their consequences, and effective troubleshooting steps to maintain circuit integrity and operational safety.
- Incorrect Hot/Neutral Polarity (Reversed Polarity):
- Mistake: Connecting the incoming white (neutral) to a switch or a black (hot) fan wire, and the incoming black (hot) to the fan’s white (neutral).
- Consequence: While the fan might still operate, the fixture itself becomes “hot” even when switched off, posing a significant shock hazard, particularly when changing light bulbs. It also defeats some safety mechanisms and can damage electronic components over time.
- Fix: Use a multimeter to verify the incoming Black wire is the hot wire (120V AC relative to ground/neutral) and the White wire is the neutral wire (0V AC relative to ground). Reconnect according to standard wire color code: Black to switch common (via re-identified white pigtail), White to fan neutral.
- Inadequate Grounding:
- Mistake: Failing to connect all bare copper or green wires together and to the metal junction boxes, switches, and the fan housing.
- Consequence: Removes the critical safety path for fault current. In the event of a short circuit or insulation breakdown, the metal fan housing or switch plate could become energized, leading to severe electric shock.
- Fix: Ensure all ground wires are securely bonded together with a wire nut, and connected to the ground screws on all devices and metal boxes. Test continuity from the fan housing/switch plate to the main service panel ground bus.
- Loose or Improper Wire Connections:
- Mistake: Not twisting wires sufficiently, using undersized wire nuts, or failing to properly torque screw terminals.
- Consequence: Loose connections can lead to intermittent operation, increased resistance causing heat buildup, arcing, and potentially a fire hazard. They are a primary cause of circuit failures.
- Fix: Always twist wires together tightly before applying the wire nut. Tug on each wire individually after the wire nut is on to ensure a firm connection. For screw terminals, ensure the conductor is wrapped clockwise around the screw and torqued to manufacturer specifications, often around 12-14 in-lbs for standard switches.
- Misidentification of Switch Loop Wires:
- Mistake: Failing to re-identify the white wire in the 14/3 or 12/3 cable as a hot conductor (by taping it black) when it’s used as the constant feed to the switches. Also, mixing up the switched hot wires for the fan and light at the ceiling box.
- Consequence: Shock hazard due to an assumed neutral carrying live voltage. Incorrect operation where the light turns on the fan, or vice-versa, or only one function works.
- Fix: Consistently mark the white wire feeding constant power to the switches with black tape at both ends. At the ceiling box, use a multimeter to identify which of the red and black wires from the 14/3 or 12/3 cable becomes live when each respective switch is flipped. Connect the wire that goes live with the fan switch to the fan motor (typically black on the fan) and the wire that goes live with the light switch to the light kit (typically blue on the fan).
For installations compliant with NEC standards (Year variations exist, consult current NEC Handbook), ceiling fan support boxes must be rated for fan support (e.g., “acceptable for fan support of X lbs”). Standard 14/2 AWG NM-B cable is rated for 15 Amps, while 12/2 AWG NM-B is rated for 20 Amps. Ensure the circuit breaker amperage aligns with the conductor gauge and the fan’s maximum amperage draw. Always use UL-listed wire connectors suitable for the wire gauge and number of conductors being joined. For advanced diagnostics, consult our article on multimeter usage in AC circuits.
FAQ
What is the typical voltage for ceiling fan circuits?
In North America, residential ceiling fan circuits, including the 2 switch ceiling fan wiring diagram configuration, operate on a 120V AC nominal voltage. This standard voltage is supplied from your home’s main service panel and is distributed through dedicated or shared lighting/receptacle circuits. Always confirm local voltage standards before installation, as they can vary regionally.
Can I use a dimmer switch for a ceiling fan in this setup?
You can typically use a standard dimmer switch for the light kit portion of the ceiling fan, provided the light bulbs are dimmable. However, a standard dimmer switch should NOT be used for the fan motor itself. Fan motors require a specialized fan speed control switch (often referred to as a “fan control” or “rotary control”) that regulates motor speed without causing hum or damage. Using a dimmer on a fan motor can lead to motor overheating, premature failure, and can void the fan’s warranty. Ensure to install the correct type of switch for each function.
My ceiling fan has different wire colors than shown in the diagram. What should I do?
While the diagram and table reflect standard North American wire color code conventions, some fan manufacturers, particularly for imported units or specific year variations, may use different internal wire colors (e.g., brown instead of black for fan hot, or yellow for light hot). In such cases, it is crucial to consult the specific installation manual provided with your ceiling fan. The manual will detail the function of each wire from the fan’s terminal block. Never assume wire functions based solely on color if they deviate from established standards without manufacturer confirmation. Understanding annual electrical code changes can also provide insight into evolving wiring practices.
Is a special ceiling box required for ceiling fan installation?
Yes, a standard electrical junction box is generally insufficient. For safety and compliance with the National Electrical Code (NEC), a ceiling fan must be mounted to a UL-listed, fan-rated electrical box. These boxes are designed and tested to safely support the dynamic weight and vibration of a ceiling fan, typically rated for 35 lbs or 70 lbs, depending on the fan’s weight. Using an improper box risks the fan detaching from the ceiling, leading to significant injury or damage. Ensure the box is securely fastened to a structural member like a ceiling joist.
Why are there two separate switches needed for independent control?
The requirement for two separate switches in a 2 switch ceiling fan wiring diagram is to provide independent control over the fan motor and the integrated light kit. Each switch operates a distinct “switched hot” conductor. One switch interrupts the 120V AC power flow to the fan motor (via the fan’s black wire), while the other switch controls the power flow to the light kit (via the fan’s blue wire). This allows you to turn the fan on or off without affecting the light, and vice versa, offering greater flexibility and energy management.
Step-by-Step Guide to Understanding the 2-Switch Ceiling Fan Wiring Diagram: Installation Setup 2026
Identify – Turn off power at the main circuit breaker controlling the fan’s circuit and verify with a non-contact voltage tester to ensure no live wires.
Locate – Identify the existing wiring in both the ceiling fan box and the wall switch box. Clearly distinguish incoming power (hot), neutral, and ground wires.
Reference – Consult the provided 2-switch ceiling fan wiring diagram to understand the specific connections for constant hot, two separate switched hots (fan/light), neutral, and ground.
Connect/Route – Wire the switches, connecting incoming hot to both switches. Then, connect separate switched hot wires from each switch to the fan’s motor (black) and light (blue/red) wires, ensuring all neutrals (white) and grounds (green/bare) are securely joined.
Verify – Double-check all wire connections for security, proper insulation, and correct color-matching as per the diagram. Restore power at the breaker and test each switch independently to confirm correct fan and light operation.
Troubleshoot – If issues arise (e.g., fan/light doesn’t work, only one works), immediately turn off power. Re-examine all connections against the diagram, checking for loose wires, incorrect wire color matches, or tripped circuit breakers. Consult an electrician if necessary.
Frequently Asked Questions
What wire color is for the fan and light on a 2-switch ceiling fan wiring diagram?
Typically, the fan’s motor control is a black wire from the fan unit, and the light control is a blue or sometimes red wire. These connect to the separate switched hot wires coming from your dual wall switches. The neutral (white) and ground (green/bare copper) wires are common for both the fan and light components.
What do the wire labels mean on a 2-switch ceiling fan wiring diagram?
Wire labels identify their function: ‘Hot’ (often black or red) carries live current from the breaker, ‘Neutral’ (white) returns current to the panel, and ‘Ground’ (green or bare copper) provides a safety path. Within the fan, ‘Motor’ (black) and ‘Light’ (blue/red) indicate which wire controls that specific function.
How many wires does a 2-switch ceiling fan wiring diagram typically show?
A standard 2-switch ceiling fan setup usually requires a minimum of five wires running between the wall switch box and the ceiling fan box. These include one constant hot (power in), two switched hot wires (one for fan, one for light), one neutral, and one ground wire for safe operation and independent control.
What are common wiring mistakes with a 2-switch ceiling fan wiring diagram?
Common mistakes include reversing the fan and light switched hot connections, failing to properly connect all neutral wires together, or not adequately grounding the fan and switch. Incorrectly splicing both fan and light wires to a single switch instead of separate ones will prevent independent control.
Can I use a single switch with a 2-switch ceiling fan?
Yes, you can adapt a 2-switch ceiling fan to operate from a single wall switch. To do this, you would connect both the fan’s motor wire (black) and the light wire (blue/red) together to the single switched hot wire coming from the wall. This configuration means both the fan and light will turn on and off simultaneously.
What gauge wire does a 2-switch ceiling fan wiring diagram require?
For most residential ceiling fan installations on a standard 15-amp circuit, 14-gauge (14 AWG) electrical wire is typically sufficient. If the circuit is rated for 20-amps, then 12-gauge (12 AWG) wire is required to safely handle the current. Always confirm wire gauge suitability with local electrical codes and circuit breaker ratings.
