3 Phase Motor 6 Wire Wiring Diagram: Troubleshooting 2026

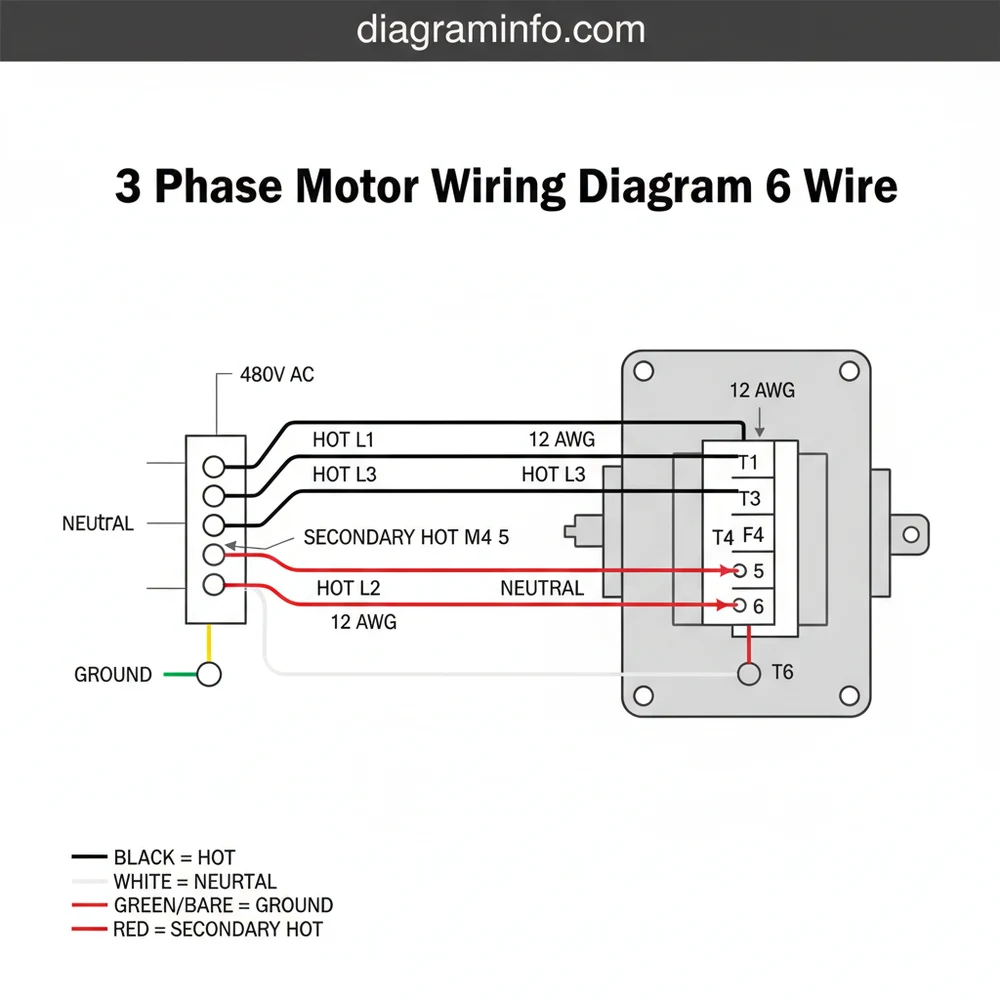

A 3 phase motor wiring diagram 6 wire illustrates connecting L1, L2, L3 to the motor’s T1-T6 leads. This typically supports dual-voltage operation: series for high voltage or parallel for low voltage. Always consult the motor nameplate for precise wire color code and connection schema, ensuring correct rotation and safe operation.
📌 Key Takeaways
- 6-wire 3-phase motors typically offer dual-voltage operation via series or parallel internal winding configurations.
- Correct identification of motor leads (T1-T6) and their specific pin assignment is paramount for proper function and safety.
- Always consult the motor nameplate for precise voltage, current, wire color code, and connection specifications before wiring.
- Incorrect voltage configuration (e.g., wiring for low voltage on a high-voltage supply) is a common mistake leading to motor burnout.
- If unsure about industrial wiring standards, complex control circuits, or specific motor characteristics, seek a qualified electrician or motor technician.
Wiring a three-phase motor correctly is critical for industrial machinery and heavy equipment, ensuring optimal performance, preventing costly damage, and most importantly, maintaining operational safety. This comprehensive guide details the precise steps for wiring a 6-wire, three-phase AC induction motor, a common configuration found in various automotive and heavy-duty applications. You will learn about standard wire color codes, specific terminal assignments, and the correct sequence for making secure, reliable electrical connections. Adhering to these specifications is paramount for achieving the designed motor rotation and prolonging its operational life.
WIRE COLOR REFERENCE TABLE
Understanding the wire color conventions and terminal designations is fundamental before commencing any wiring task. While incoming power wiring typically follows established regional codes, motor winding lead colors can vary by manufacturer. Always consult the motor’s nameplate and accompanying wiring diagram for the most accurate information. The following table outlines common practices for a 6-wire motor intended for single-voltage Wye (Star) connection.
| Wire/Terminal ID | Function | Typical Color (NEMA/IEC) | Notes |
|---|---|---|---|
| L1 (Hot Wire) | Phase A incoming power | Black / Brown | Connects to motor terminal T1 for Wye. |
| L2 (Hot Wire) | Phase B incoming power | Red / Black | Connects to motor terminal T2 for Wye. |
| L3 (Hot Wire) | Phase C incoming power | Blue / Grey | Connects to motor terminal T3 for Wye. |
| GND (Ground Wire) | Equipment Grounding Conductor | Green / Green-Yellow | Essential for safety, connects to motor frame. |
| T1 (Motor Lead) | Start of Winding 1 | Brown / Yellow | Connects to L1. |
| T2 (Motor Lead) | Start of Winding 2 | Orange / Blue | Connects to L2. |
| T3 (Motor Lead) | Start of Winding 3 | Yellow / Red | Connects to L3. |
| T4 (Motor Lead) | End of Winding 1 | Blue / White | Connects with T5, T6 for Wye point. |
| T5 (Motor Lead) | End of Winding 2 | Violet / Black | Connects with T4, T6 for Wye point. |
| T6 (Motor Lead) | End of Winding 3 | White / Brown | Connects with T4, T5 for Wye point. |
The wire colors for T1-T6 are illustrative based on common NEMA or IEC standards for motor leads. Always refer to the specific motor’s nameplate or manufacturer documentation for the definitive wiring diagram, as deviations are common. Some manufacturers may use only numbered tags without specific color coding for internal leads.
STEP-BY-STEP CONNECTION GUIDE
This guide focuses on wiring a 6-wire three-phase motor for a single-voltage Wye (Star) configuration, which is a common setup for many industrial and automotive applications requiring reliable torque. Always verify the motor’s voltage and wiring configuration on its nameplate before proceeding. Adherence to local electrical codes (e.g., NEC in North America) is mandatory.
-
Safety First: De-energize and Verify: Before touching any wiring, ensure the power source is completely de-energized and locked out/tagged out in accordance with OSHA standards or local regulations. Use a qualified voltage meter or non-contact voltage tester to confirm that all incoming lines (L1, L2, L3) are at zero voltage. Do not proceed until absolute isolation is confirmed.
-
Identify Motor Leads: Open the motor’s terminal box and identify the six motor leads, typically labeled T1 through T6. These labels are usually stamped on the terminal block or on tags attached directly to the wires. Verify these against the motor’s internal wiring diagram on its nameplate or manual.
-
Prepare Wire Ends: Carefully strip approximately 0.5 to 0.75 inches (12-19mm) of insulation from the ends of the incoming power conductors (L1, L2, L3, Ground) and the motor leads (T1-T6). Ensure no stray strands are present. For larger gauge wires, use crimp-on lug terminals, matching the lug size to the wire gauge and terminal stud size for optimal conductivity and secure fastening.
-
Form the Wye (Star) Connection Point: For a Wye configuration, you need to create a common neutral point by connecting three of the motor leads together. Identify terminals T4, T5, and T6. Securely join these three leads together using a suitable terminal block, a large wire nut rated for the combined conductor area, or a crimped, insulated splice connector. This creates the star point of the Wye connection, where the three windings meet.
-
Connect Incoming Phases to Motor Leads:
- Connect the incoming Phase A power conductor (L1, typically Black/Brown) to motor terminal T1.
- Connect the incoming Phase B power conductor (L2, typically Red/Black) to motor terminal T2.
- Connect the incoming Phase C power conductor (L3, typically Blue/Grey) to motor terminal T3.
Ensure these connections are made to the appropriate lugs on the terminal block or motor connection points. Verify the tightness of all connections. Manufacturer specifications for terminal screw torque are crucial; typical torque values for M6 terminal screws range from 3-5 Nm (2.2-3.7 lb-ft). Refer to the motor’s manual for precise torque settings.
-
Connect the Ground Wire: Connect the equipment grounding conductor (GND, typically Green or Green-Yellow) from your power supply to the designated ground terminal on the motor’s frame or in its terminal box. This connection is vital for personnel safety and fault protection. Ensure this connection is robust and clean.
-
Secure and Close: Double-check all connections for tightness, correct wire routing, and proper insulation. Ensure no bare conductors are exposed. Close the motor’s terminal box cover securely. Re-check the motor nameplate for the rated voltage and current to confirm your wiring matches the power supply.
For optimal performance and safety, ensure the wire gauge chosen for your application meets or exceeds the minimum requirements specified by the National Electrical Code (NEC) or local regulations, based on the motor’s Full Load Amperage (FLA) and the length of the conductor run. Typically, a safety margin of 125% of the motor’s FLA is used for continuous duty motors when sizing conductors and overcurrent protection devices. For example, a 10 HP, 460V, 3-phase motor with an FLA of 14A would require conductors rated for at least 14A * 1.25 = 17.5A.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even experienced technicians can encounter issues during motor wiring. Understanding common mistakes and their immediate troubleshooting steps can save significant time and prevent equipment damage.
-
Incorrect Motor Rotation:
Consequence: The motor spins in the wrong direction, potentially damaging driven equipment or impairing functionality (e.g., pumps, fans).
Fix: This is a common issue with three-phase motors. To reverse the rotation, you simply need to swap any two of the three incoming phase conductors (L1, L2, L3). For instance, disconnect power, then swap L1 with L2 at the motor terminal block. Re-energize and re-test rotation. Do NOT swap the motor leads (T1-T3) themselves, as this would alter the winding configuration. -
Loose Terminal Connections:
Consequence: Overheating at the terminal block, arcing, intermittent operation, voltage drops, and eventual motor failure due to poor conductivity or insulation breakdown. Loose ground connections compromise safety.
Fix: Always use a torque wrench to tighten terminal screws to the manufacturer’s specified value. Over-tightening can strip threads or damage the terminal block, while under-tightening leads to the issues described. Periodically inspect and re-torque connections, especially in high-vibration environments like those found in heavy equipment or vehicle applications. -
Incorrect Voltage or Wye/Delta Configuration:
Consequence: If a motor designed for 460V is connected to 230V without proper configuration (or vice-versa), it will either draw excessive current and overheat (if 230V is applied to a 460V Wye, which would actually be under-voltage for that configuration), or run weakly with low torque and draw reduced current (if 460V is applied to a 230V configuration). Connecting a Wye motor in a Delta configuration or vice-versa incorrectly for its voltage rating will lead to severe overheating, winding damage, and potential insulation failure.
Fix: Always cross-reference the motor’s nameplate and its internal wiring diagram with the available power supply voltage. For 6-wire motors, ensure the T4, T5, T6 leads are properly grouped for Wye, or correctly connected to the incoming phases for Delta (if applicable to the specific motor design). Never assume; always verify. -
Missing or Improper Ground Connection:
Consequence: A serious safety hazard. In the event of an insulation fault, the motor casing can become energized, posing a severe electrocution risk. Also, electromagnetic interference (EMI) can be exacerbated.
Fix: Ensure the ground wire (Green or Green-Yellow) from the power source is securely connected to the designated grounding lug on the motor frame or within the terminal box. Verify continuity from the motor frame to the system ground using a multimeter. This is a non-negotiable safety requirement. -
Undersized Wire Gauge:
Consequence: Wires will overheat, leading to insulation degradation, voltage drop at the motor terminals, reduced motor efficiency, and potential fire hazards.
Fix: Refer to the NEC (National Electrical Code) or local electrical codes for proper wire sizing based on the motor’s Full Load Amperage (FLA), circuit breaker rating, and conductor length. Always err on the side of using a slightly larger gauge if uncertain, as this provides a greater safety margin and reduces voltage drop.
FAQ
How do I know if my 6-wire motor is Wye or Delta?
A 6-wire motor typically provides three independent windings, allowing for either a Wye (Star) or Delta connection at a single voltage. The specific configuration (Wye or Delta) is determined by how you connect the motor leads (T1-T6) to each other and to the incoming power phases. For instance, in a Wye connection, T4, T5, and T6 are typically tied together to form the neutral point. For a Delta connection, the ends of the windings are connected to the starts of other windings (e.g., T1 to T6, T2 to T4, T3 to T5, with power applied at the connection points). Always consult the motor’s nameplate or manufacturer’s manual, which will contain a specific diagram for Wye and Delta configurations, if both are possible.
Can I connect a 6-wire, three-phase motor to a single-phase power supply?
Directly connecting a standard 6-wire, three-phase motor to a single-phase power supply is not feasible without additional equipment. A three-phase motor requires three alternating current phases, each offset by 120 degrees, to generate its rotating magnetic field. To operate a three-phase motor on single-phase power, you would need a phase converter (either static, rotary, or a Variable Frequency Drive – VFD). A VFD is generally the most efficient and versatile solution, as it can generate the missing phases and allow for speed control. For in-depth information on VFD installations, consider reviewing our guide on Variable Frequency Drive Wiring Best Practices.
What if my motor runs backward after wiring?
If your three-phase motor runs backward, it indicates that the phase rotation is incorrect for your application. This is a common issue and is easily remedied. To reverse the direction of rotation for any three-phase motor, you simply need to swap any two of the three incoming hot phase wires (L1, L2, or L3) connected to the motor. For example, disconnect power, then swap L1 with L2 at the motor’s terminal block. Re-energize the motor and re-test its rotation. There’s no need to alter the internal motor winding connections (T1-T6).
What is the typical voltage range for a 6-wire three-phase motor?
A 6-wire three-phase motor is typically designed for a specific single voltage, which will be clearly indicated on its nameplate. Common voltages for three-phase motors in North America include 208V, 230V, 460V, or 575V. In other regions, 380V or 400V are prevalent. Unlike 9-wire or 12-wire motors that offer dual-voltage connections (e.g., 230/460V), a 6-wire motor is usually limited to one voltage for a given configuration (Wye or Delta). Always ensure your incoming supply voltage matches the motor’s rated voltage to prevent damage or inefficient operation.
Should I use a motor starter with my 3-phase motor?
Yes, absolutely. For nearly all industrial and heavy equipment applications, a motor starter is essential for a three-phase motor, especially those above fractional horsepower. A motor starter typically includes an overload protection device (thermal or electronic) and a contactor. The overload protection safeguards the motor windings from excessive current draw caused by overloads, phase loss, or locked rotor conditions, preventing costly damage. The contactor allows for remote control (start/stop) and provides a safe means of switching the high currents required by the motor. For detailed selection criteria, refer to our article on Proper Motor Starter Selection and Sizing.
Step-by-Step Guide to Understanding the 3 Phase Motor 6 Wire Wiring Diagram: Troubleshooting 2026
Identify – Confirm the motor’s voltage requirements and consult its nameplate for the precise wiring diagram and wire color code for its 6 leads.
Locate – Carefully identify the motor’s six internal leads (T1, T2, T3, T4, T5, T6) and the essential ground wire exiting the motor conduit box.
Reference – Use the motor’s nameplate diagram to determine the correct pin assignment for either high-voltage (series) or low-voltage (parallel) connection based on your power supply.
Connect – Securely connect the hot wire (L1, L2, L3) to the appropriate motor leads (T1-T6) and perform any necessary internal motor lead connections (e.g., bonding T4-T5-T6 for low voltage). Connect the ground wire to the motor frame.
Verify – Double-check all connections for tightness, proper insulation, and correct wire color code. Perform a continuity test and, if safe, momentarily jog the motor to confirm correct rotation.
Troubleshoot – If the motor runs incorrectly (e.g., wrong rotation, excessive hum, no start), immediately de-energize and re-check all connections, especially phase sequence, voltage configuration, and ground wire integrity. Consult the troubleshooting guide for specific solutions.
Frequently Asked Questions
What wire color is ground on 3 phase motor wiring diagram 6 wire?
For a 3 phase motor wiring diagram 6 wire, the ground wire is green or bare. Hot wires (L1, L2, L3) are typically black, red, blue. The motor’s six leads (T1-T6) have a specific wire color code defined by the manufacturer, crucial for correct pin assignment. Always refer to the motor’s nameplate for these details and safe connection.
What do the pin numbers mean on 3 phase motor wiring diagram 6 wire?
On a 3 phase motor wiring diagram 6 wire, ‘pin numbers’ denote the motor lead designations, T1 through T6. These labels identify the start and end points of the motor’s internal windings. T1, T2, T3 are typically winding starts, T4, T5, T6 are ends. Their correct pin assignment and connection schema (series/parallel) determine the motor’s operating voltage and rotation.
How many wires does 3 phase motor wiring diagram 6 wire have?
A 3 phase motor wiring diagram 6 wire clearly specifies the motor has six primary leads (T1-T6) for connecting to the three-phase power supply. These six leads enable flexible winding configurations, crucial for dual-voltage operation (high or low). While there’s also a safety ground wire, the ‘6 wire’ designation refers only to the motor’s power connection points.
What are common wiring mistakes with 3 phase motor wiring diagram 6 wire?
Common wiring mistakes for a 3 phase motor wiring diagram 6 wire include incorrect voltage selection (e.g., low voltage wiring on a high voltage supply), leading to motor burnout. Reversed phase sequence causes incorrect rotation. Improper ground wire connection is a safety hazard. Failing to consult the motor’s specific nameplate for its wire color code and pin assignment for T1-T6 leads to operational issues or damage.
Do I need a brake controller for 3 phase motor wiring diagram 6 wire?
A dedicated ‘brake controller’ (like for trailers) is not used with a 3 phase motor wiring diagram 6 wire. If the motor incorporates an electromagnetic brake, it requires a separate control circuit and power supply, independent of the motor’s T1-T6 power leads. This additional wiring would control the brake’s activation, not the primary motor function.
What gauge wire does 3 phase motor wiring diagram 6 wire require?
The wire gauge for a 3 phase motor wiring diagram 6 wire depends on the motor’s horsepower, voltage, and wire run length. Higher HP, lower voltage, or longer runs demand larger gauge wire to prevent voltage drop and overheating. Always consult the National Electrical Code (NEC) tables and the motor’s full-load ampere (FLA) rating on its nameplate for accurate sizing, including the hot wire and ground wire.
