Top Loading Whirlpool Washer Parts Diagram: 2026 Guide
A top loading Whirlpool washer parts diagram details the mechanical and electrical system structure, featuring the drive motor, shift actuator beneath the tub, drain pump assembly, belt drive system, suspension rods, and main control board located inside the top console layout for precise component identification.
📌 Key Takeaways
- Drive motor and shift actuator operate at 120V AC, mapped directly under the outer tub configuration.
- Four corner suspension damper rods maintain tub balance and absorb high-speed spin vibration.
- Disconnect main 120V power source and turn off hot/cold water supply valves prior to servicing internal layout components.
- Shift actuator optical sensor failure is the primary cause for skipped agitation or spin cycle failure.
- Mechanical drive parts and wiring harnesses are straightforward DIY replacements; PCB logic board failures require advanced testing.
Navigating appliance repairs on modern and legacy washing machines requires precise technical documentation. Utilizing an accurate top loading whirlpool washer parts diagram allows field technicians, service mechanics, and advanced DIYers to rapidly identify hardware sub-assemblies, trace electrical wiring routing, and source replacement components. Modern Whirlpool Vertical Modular Washer (VMW) platforms and legacy direct-drive configurations rely on distinct structural schematics. Understanding these mechanical layouts—ranging from the drive motor and shift actuator to the tub suspension rods and water inlet valve configuration—is essential for accurate fault diagnosis, component isolation, and execution of OEM-compliant repairs.
Top Loading Whirlpool Washer Parts Diagram: Mechanical Component Breakdown
A standard top loading whirlpool washer parts diagram divides the machine into distinct physical subsystems: the cabinet and console, the outer tub and inner wash basket assembly, the drive mechanism, and the drain system. Accurately identifying these components on a schematic is the first step in diagnosing mechanical slop, electrical open circuits, or hydraulic leaks.

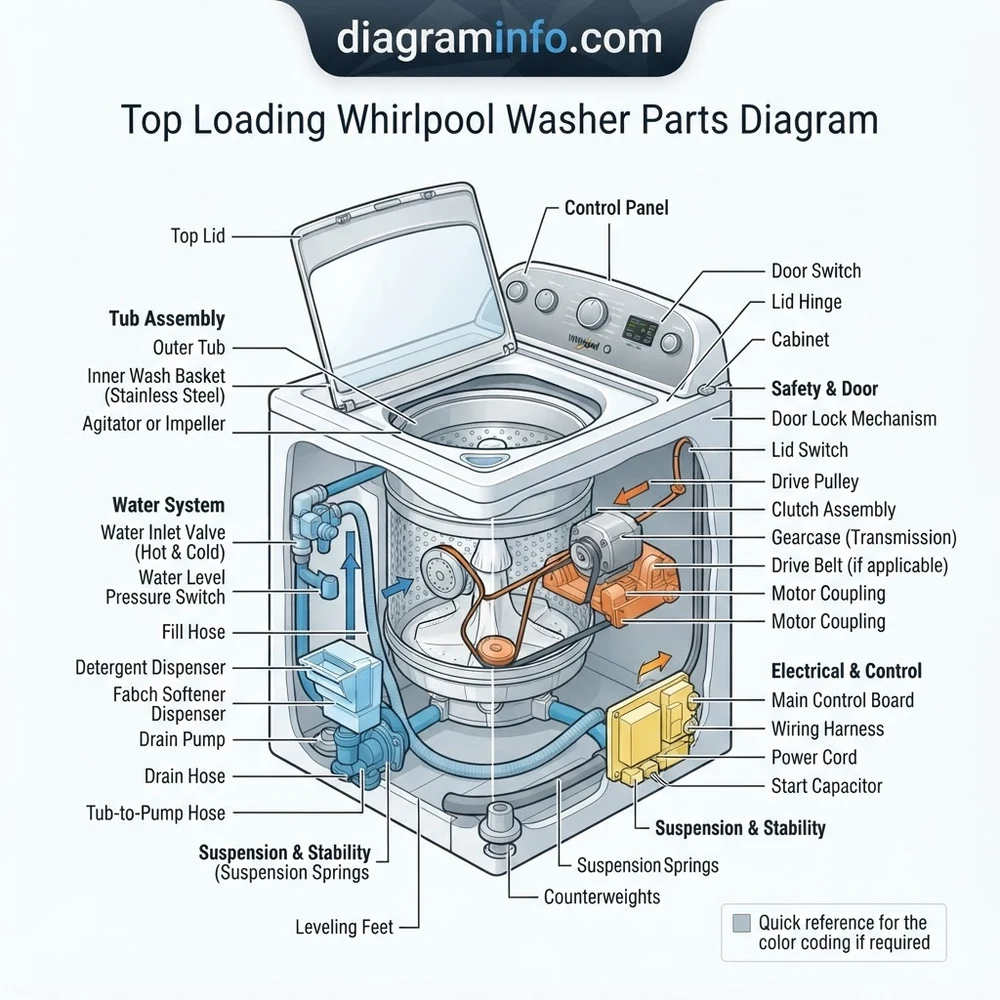

The primary drive architecture on current VMW units utilizes a low-profile transmission connected to a split-phase AC drive motor via a V-belt and pulley setup. Older models utilize a direct-drive coupler system directly mounted to a mechanical gearcase. As shown in the diagram overview, the wash basket rests on a splined drive hub attached to the drive shaft, while the outer tub hangs from four spring-dampened suspension rods attached to the cabinet corners.
| Component Name | OEM Part Reference | Electrical / Mechanical Specifications |
|---|---|---|
| Shift Actuator Assembly | W10913953 / W10597177 | 120V AC synchronous motor, 5V DC optical tachometer sensor |
| Drive Motor Assembly | W10813964 / W10831610 | 120V AC, 60 Hz, 1/2 HP, 1725 RPM, 45-50 µF start capacitor |
| Basket Drive Hub Kit | W10528947 | Thermoplastic splined core with drive block interface |
| Drain Pump Motor | W10536547 / W10217134 | 120V AC, 0.9A, 60 Hz; coil resistance 15–22 Ohms |
| Suspension Rod Kit | W10780048 / W10257088 | 4-point color-coded dampened rod assembly (calibrated spring rates) |
Fastener Torque Specs: Wash plate center bolt = 5–8 ft-lbs (60–96 in-lbs); Drive pulley nut = 13 ft-lbs (156 in-lbs); Gearcase mounting bolts = 9–12 ft-lbs. Drive belt tension should allow 1/2-inch lateral deflection under nominal finger pressure.
When performing full drivetrain tear-downs, mechanics should reference our specialized direct-drive motor assembly reference guide to compare mechanical tolerances across classic high-torque transmissions and modern belt-driven transmissions.
Interpreting Wiring Schematics and System Layout Blueprint Configurations
Understanding a top loading whirlpool washer parts diagram requires reading two related documents: the exploded structural blueprint and the electrical schematic wiring diagram. Exploded view diagrams use callout index numbers linked to specific part references, showing physical alignment along explosion lines. For example, the wash basket shaft index illustrates how the split-ring keeper, drive hub, inner tub, and drive block stack onto the gearcase output shaft in sequence.
The electrical schematic layout uses standard NEMA/IEEE graphic symbols to trace current paths from the main control board (microprocessor) to line-voltage loads and low-voltage digital sensors. Line-voltage (120V AC) conductors supply power to the drive motor windings, drain pump, lid lock solenoid, and water inlet valve coils. Low-voltage DC circuits (typically 5V DC or 12V DC) route control signals to the pressure transducer, optical speed sensor, and lid switch safety sensing loops.
On Whirlpool VMW platforms, the optical tachometer inside the shift actuator sends pulse signals back to connector J15 on the main control board. When reading the schematic, trace pin J15-1 (+5V DC supply), J15-2 (Tachometer Signal return), and J15-3 (Circuit Ground) to diagnose speed sensing fault codes like F7E1 or F7E5.
Wire color codes are printed alongside conductor trace lines on the technical blueprint. Common Whirlpool wiring designations include WH (White/Neutral), RD (Red/Motor Run), BK (Black/Line Voltage), BU/WH (Blue/White Stripe for Drain Pump), and YL/RD (Yellow/Red for Actuator Switch). Technicians should verify harness continuity using a digital multimeter at board-level multi-pin headers before condemning active mechanical components. For deeper sensor diagnostic steps, consult our washer pressure switch testing manual to evaluate frequency outputs on analog pressure sensors.
Troubleshooting Machinery Failures Using the Top Loading Whirlpool Washer Parts Diagram
Diagnosing operational failures requires systematic elimination based on symptom patterns and schematic location tracing. By matching error codes or mechanical symptoms to component locations shown on the diagram, field mechanics can pinpoint faulty hardware without performing unnecessary disassembly.
High Voltage & Electrical Safety: Always disconnect main 120V AC line power before removing access panels or touching harness connectors. Discharge the motor start capacitor (45-50 µF) across a 20k-ohm 10W resistor before taking resistance readings to prevent board damage or severe electrical shock.
Use the following isolation workflows based on common failure modes mapped out in the technical service layout:
- Agitator Fails to Rotate / Spin Cycle Incomplete (Error Codes F7E1, F7E5, F7E7): Locate the shift actuator under the gearcase shielding. Measure coil resistance across terminals 1 and 2 on the actuator harness (expected reading: 2.0k to 3.5k Ohms). Inspect the mechanical cam ring for rounded splines or binding. If mechanical resistance is high, replace the shift assembly. For step-by-step procedures, view our shift actuator replacement guide.
- Unbalanced Tub / Off-Center Spin / Code “UL”: Reference the cabinet blueprint section to inspect the 4 suspension rods. Inspect the dampener spring boots for grease degradation or structural fatigue. Check the inner basket drive hub (OEM W10528947) splines for stripping, which causes the inner tub to tilt off-axis relative to the main transmission shaft during high-RPM extraction cycles.
- Washer Will Not Drain / Standing Water (Error Code F9E1): Locate the drain pump assembly at the lower rear baseplate. Unplug the 2-pin connector and test across the motor terminal pins. A normal coil resistance measures between 15 and 22 Ohms. An open circuit (infinite resistance) or direct short (under 5 Ohms) indicates a failed pump winding requiring total motor replacement.
- Continuous Water Filling / Overflow Condition: Consult the console schematic and trace the clear vinyl pressure hose from the outer tub nipple up to the main control board pressure transducer. Ensure the hose is free of water droplets, kinks, or dynamic air leaks. A loose hose connection prevents air pressure from building to signal the board to shut off the 120V AC water valve coils.
Frequently Asked Questions Regarding Top Loading Whirlpool Washer Assemblies
Where is the physical technical schematic and parts layout diagram located on the machine?
In most Whirlpool top-loading units, the OEM tech sheet and wiring diagram are stored inside a clear plastic sleeve taped to the interior front wall of the metal cabinet or secured underneath the top console housing. Accessing it on modern VMW models requires removing the rear console panel screws or sliding a thin putty knife beneath the front corners of the top panel to release the console securing spring clips.
How do Vertical Modular Washers (VMW) differ structurally from legacy direct-drive units?
Legacy direct-drive Whirlpool washers use a heavy-duty mechanical transmission coupled directly to a 120V dual-speed motor via a rubber-and-plastic drive coupler, omitting drive belts entirely. Modern VMW units use a simplified gearcase driven by a single belt and drive pulley system. VMW platforms incorporate electronic shift actuators, variable-frequency feedback sensors, and electronic main control boards to govern cycle switching, whereas direct-drive units rely on electro-mechanical rotary timer switches and neutral-drain gearcase mechanisms.
What electrical resistance values should be measured when testing the shift actuator?
When checking the shift actuator assembly (OEM W10913953) using a digital multimeter set to Ohms, measure the shift motor winding across pins 1 and 2 of the actuator plug connector. The nominal resistance reading should register between 2,000 Ohms (2kΩ) and 3,500 Ohms (3.5kΩ) at room temperature. A reading of infinity indicates an open internal motor winding, requiring actuator replacement.
How does an exploded parts diagram help identify worn basket drive hub components?
The exploded schematic reveals the exact stacking order of the drive splines, plastic hub block, drive ring, and wash tub base. When a top-load washer agitates normally but fails to spin water out of clothes—or produces a loud grinding noise during transition—the diagram shows how the inner splines of the drive hub mesh with the metal output shaft of the gearcase. Technicians can cross-reference part callouts to inspect whether the soft plastic splines inside the hub have stripped out while leaving the transmission output shaft intact.
What tools are required to disassemble the tub and gearcase based on the parts breakdown?
Disassembling the mechanical structure outlined in a Whirlpool diagram requires standard hand tools and specialized appliance pullers. Essential equipment includes a 5/16-inch nut driver (for cabinet and console screws), 7/16-inch, 1/2-inch, and 1/4-inch sockets, long-reach snap ring pliers, a spanner wrench (OEM part TB123A) for removing the inner tub spanner nut, a drive hub spanner socket, and a heavy-duty gear puller if corrosion has seized the inner basket hub to the output shaft.
Step-by-Step Guide to Understanding the Top Loading Whirlpool Washer Parts Diagram
Identify – Locate the specific model number tag inside the washer lid rim or back console to match the correct schematic.
Locate – Find the target system section on the diagram, such as the bottom drive assembly or upper console layout.
Reference – Match callout numbers on the exploded view to replacement part numbers and fastener specifications.
Connect/Route – Route electrical harnesses along designated chassis clips and seat mechanical components according to structural alignment markers.
Verify – Perform electrical continuity tests on switches and measure resistance across motor windings before reassembling cabinet panels.
Troubleshoot – Check sensor connections, drive belt tension, and lid lock alignment if error codes or mechanical binding persist.
