2003 Ford Expedition 5.4 Vacuum Hose Diagram: Routing & Repair Guide 2026
The 2003 Ford Expedition 5.4 vacuum system primarily routes from the intake manifold. Key components include the PCV valve on the passenger valve cover, brake booster vacuum line off the manifold, and EVAP purge valve near the firewall. Hoses connect these to sensors and actuators for emissions and engine control.
📌 Key Takeaways
- Vacuum lines are often color-coded or have unique IDs on the 2003 Ford Expedition 5.4 for specific functions (e.g., green for EVAP, red for heater controls).
- Identify the main vacuum tree or intake manifold connection as the central distribution point for the 5.4L engine’s vacuum system.
- Always use proper vacuum hose material (e.g., reinforced silicone or high-temp rubber) matching OEM specifications to prevent premature failure.
- The PCV system hoses, intake manifold gaskets, and brake booster vacuum lines are common failure points for vacuum leaks on the 5.4L Triton engine.
- For persistent check engine lights or complex drivability issues after hose replacement, consult a professional for advanced diagnostics and repair of the 2003 ford expedition 5.4 vacuum hose diagram.
The vacuum system on your 2003 Ford Expedition with the 5.4L Triton engine is a cornerstone of its operational efficiency, directly influencing engine performance, emissions control, and several critical ancillary functions. Far from a simple network, this intricate array of hoses, valves, and sensors utilizes engine manifold vacuum to operate components ranging from the PCV valve and brake booster to the evaporative emissions (EVAP) purge system and even HVAC controls. Understanding this system, as detailed in the “2003 ford expedition 5.4 vacuum hose diagram,” is crucial for accurate diagnosis and maintenance for any technician or seasoned DIYer.
While many vacuum system principles are universal, specific hose routings, valve types, and even hose diameters can vary significantly between model years and engine configurations. Always consult the vehicle-specific diagram for your 2003 Ford Expedition 5.4L to ensure accuracy, as relying on generic diagrams can lead to misdiagnosis or incorrect repairs.
Working with vacuum systems often involves interacting with hot engine components and fluids. Always allow the engine to cool, wear appropriate personal protective equipment, and use proper tools to avoid injury or damage to components.

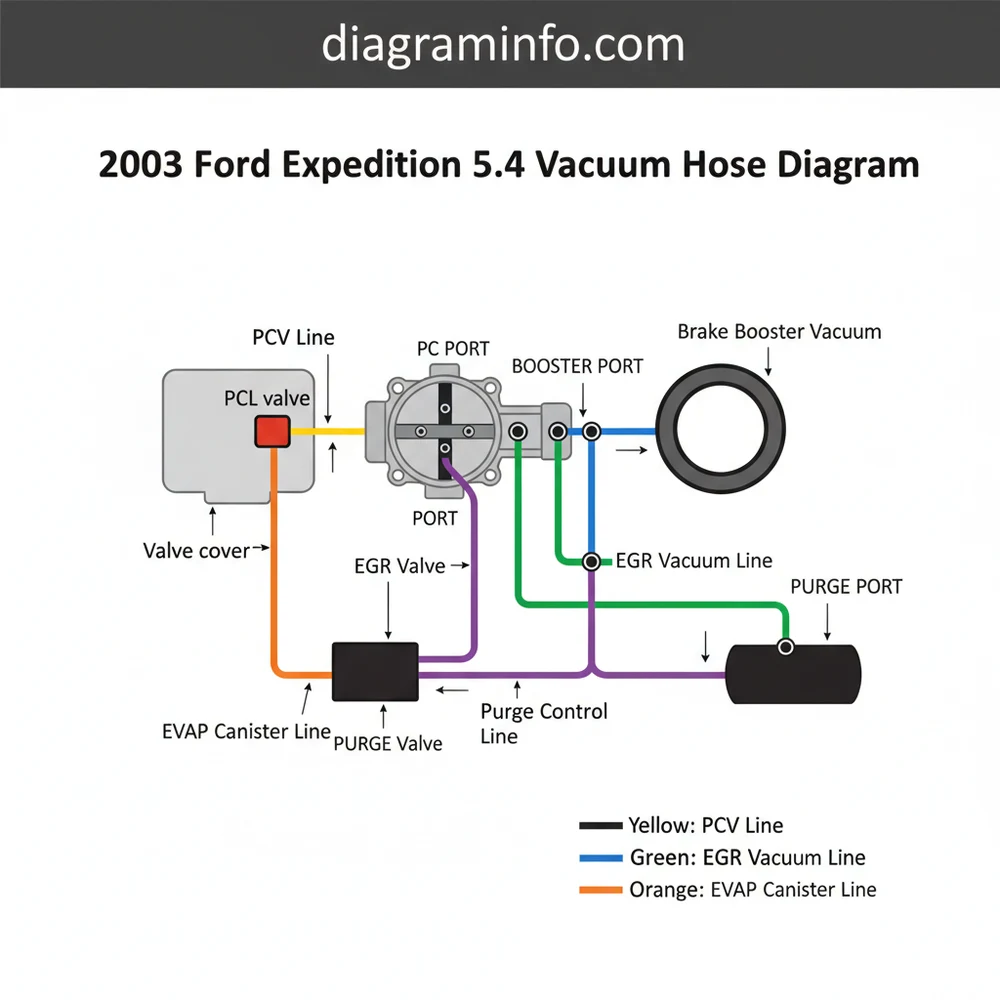

VACUUM LINE COLOR & ROUTING TABLE
The following table outlines common vacuum line routings and their functions for the 2003 Ford Expedition 5.4L engine. Note that actual hose colors can degrade over time or be replaced with generic black hose. Focus on the origin, destination, and function for accurate identification.
| Line Color (Typical) | Routing From → To | Function |
|---|---|---|
| Black (Large Diameter) | Intake Manifold Vacuum Port → Brake Booster | Provides vacuum assistance for the power braking system. Features an inline check valve. |
| Black / Grey (Medium Diameter) | Valve Cover (Passenger Side) → PCV Valve → Intake Manifold | Positive Crankcase Ventilation system. Removes blow-by gasses from the crankcase. |
| Black / Green (Small Diameter) | Intake Manifold Vacuum Port → EGR Vacuum Regulator Solenoid → EGR Valve | Controls the EGR valve operation for exhaust gas recirculation, reducing NOx emissions. |
| Black / Blue (Small Diameter) | Intake Manifold Vacuum Port → Purge Valve Solenoid → EVAP Canister | Allows engine vacuum to draw fuel vapors from the EVAP canister for combustion. |
| Black / Red (Small Diameter) | Intake Manifold Vacuum Port → Heater/AC Controls | Operates HVAC blend doors and mode actuators inside the cabin. |
| Black / Yellow (Small Diameter) | Vacuum Pump/Reservoir → 4WD IWE Solenoid → Integrated Wheel Ends (IWEs) | Disengages the front hubs when 4WD is not active, improving fuel economy. Requires a functional vacuum pump on later models, or engine vacuum from the intake manifold. |
COMMON VACUUM LEAK SYMPTOMS
Vacuum leaks on a 2003 Ford Expedition 5.4L can manifest in a variety of symptoms, often making precise diagnosis challenging without a systematic approach. As an experienced technician, recognizing these indicators is the first step:
- Rough or Unstable Idle: This is arguably the most common symptom. An unmetered air intake downstream of the Mass Air Flow (MAF) sensor causes the engine control module (ECM) to miscalculate fuel delivery, leading to erratic RPMs, particularly at idle.
- Check Engine Light (CEL) with Lean Codes: Persistent vacuum leaks often trigger Diagnostic Trouble Codes (DTCs) such as P0171 and P0174 (System Too Lean Bank 1 & 2). These indicate that the ECM is detecting too much oxygen in the exhaust, compensating by adding fuel, but exceeding its adaptive fuel trim limits.
- Reduced Engine Performance & Misfires: Under acceleration, a significant vacuum leak can lean out the air/fuel mixture, leading to misfires, hesitation, and a noticeable lack of power. You might experience P030x series misfire codes.
- Poor Fuel Economy: The ECM’s attempts to compensate for a lean condition by injecting more fuel directly translates to decreased MPG.
- Hissing or Sucking Noises: A direct auditory indicator of a vacuum leak, often audible from the engine bay, especially when listening closely around the intake manifold or vacuum lines.
- Hard Brake Pedal or Reduced Braking Performance: If the brake booster vacuum line or the booster itself is leaking, the power assist for braking will be diminished, requiring significantly more pedal effort. A faulty brake booster check valve is a common culprit.
- Malfunctioning HVAC Controls: Many older Ford vehicles, including the Expedition, use vacuum to control blend doors and mode actuators in the heating, ventilation, and air conditioning system. A leak in these lines (often small diameter) can cause air to only blow from the defroster or prevent proper mode changes.
- 4WD Engagement Issues (IWEs): If your Expedition has the Integrated Wheel End (IWE) system for 4WD, vacuum is used to disengage the front hubs. A leak in the IWE vacuum lines or the solenoid can cause grinding noises from the front hubs, unintentional 4WD engagement, or failure to disengage 4WD. For more in-depth knowledge on this, review our article on Ford F-150/Expedition 4WD IWE System Diagnostics.
DIAGNOSIS & REPAIR STEPS
Diagnosing and repairing vacuum leaks on your 2003 Ford Expedition 5.4L requires a systematic and thorough approach. Follow these steps to accurately locate and resolve the issue:
- Initial Visual Inspection:
- With the engine off and cool, meticulously inspect all visible vacuum lines, fittings, and components. Look for cracks, dry rot, disconnected hoses, or areas where hoses might rub against sharp edges. Pay particular attention to the intake manifold vacuum ports, PCV valve hose, brake booster line (and its check valve), and the lines leading to the EGR and purge valve solenoids.
- Check the PCV valve itself. A properly functioning PCV valve should rattle when shaken; if not, it’s likely clogged or stuck open/closed.
- Engine Running Auditory & Sensory Inspection:
- Start the engine and listen carefully for any hissing, sucking, or whistling noises. These are often direct indicators of a vacuum leak.
- You can also gently try to wiggle hoses and fittings while listening for changes in engine idle or sound, which might pinpoint a loose connection.
- Smoke Test (Recommended):
- Connect a professional smoke machine to a main vacuum source (e.g., the brake booster line after the check valve, or a dedicated intake manifold vacuum port).
- Introduce smoke into the intake system. Any escaping smoke will clearly highlight the location of a leak, even small hairline cracks. This is the most effective method for locating elusive leaks, including intake manifold gasket leaks.
- Propane/Carb Cleaner Test (Use with Caution):
- With the engine idling, carefully spray short bursts of unlit propane or carburetor cleaner around suspicious areas.
- If the engine RPM momentarily increases or smooths out, you’ve found a leak, as the engine is sucking in the combustible vapor.
-
⚠️ Warning
Exercise extreme caution with flammable sprays. Ensure adequate ventilation and have a fire extinguisher readily available. Avoid spraying directly onto hot exhaust components.
- Vacuum Gauge Test:
- Connect a vacuum gauge to a reliable intake manifold vacuum port.
- A healthy 5.4L engine at idle should typically show a steady reading of 17-22 inches of mercury (in. Hg).
- Fluctuations, low readings, or erratic needle movement can indicate various engine issues, including vacuum leaks. A low but steady reading might suggest a uniform leak or incorrect engine timing. For a comprehensive guide on interpreting vacuum gauge readings, consult our resource on Engine Vacuum Gauge Diagnostics.
- Check Valve & Solenoid Testing:
- Brake Booster Check Valve: Disconnect the vacuum line from the brake booster. The check valve should hold vacuum when applied from one direction and allow air to pass from the other.
- EGR/Purge Valve Solenoids: Test these electrically using a multimeter to check for proper resistance and verify they receive correct voltage signals from the ECM. Mechanically, you can often test their ability to hold or release vacuum.
- Repair & Replacement:
- When replacing vacuum hoses, always use automotive-grade vacuum hose of the correct internal diameter. Standard fuel line or garden hose is not suitable. Silicone vacuum hose offers superior longevity and temperature resistance.
- Replace damaged check valves, PCV valves (Ford Part No. EV-247 for 5.4L Triton, always cross-reference), and solenoids with OEM or high-quality aftermarket equivalents.
- For intake manifold gasket leaks, ensure you follow manufacturer-recommended torque specifications and sequence for all intake manifold bolts during reassembly to prevent future leaks.
- Post-Repair Verification:
- Clear any stored DTCs.
- Operate the vehicle under various conditions and monitor for the return of symptoms or diagnostic codes. Perform another smoke test if necessary to confirm all leaks are sealed.
For the 2003 Ford Expedition 5.4L intake manifold, torque bolts to 89 lb-in (10 Nm) in a crisscross pattern in two stages. Always use new intake manifold gaskets to ensure a proper seal.
FAQ
What is intake manifold vacuum, and why is it so important?
Intake manifold vacuum refers to the pressure differential created within the engine’s intake manifold when the engine is running. As the pistons move down during the intake stroke, they draw air into the cylinders. When the throttle plate is partially closed (e.g., at idle), it restricts this airflow, causing the pressure in the manifold to drop below atmospheric pressure, creating a vacuum. This vacuum is a critical energy source, powering numerous engine accessories and control systems, including the brake booster, PCV system, EGR valve, EVAP purge valve, and even some older HVAC controls. Its integrity is fundamental to proper engine operation and emissions control.
How do I properly test the PCV valve on my 5.4L Expedition?
To test the PCV (Positive Crankcase Ventilation) valve, first, locate it (typically on the passenger-side valve cover for the 5.4L). With the engine running at idle, gently pull the PCV valve out of its grommet. You should hear a distinct hiss as air is drawn into the valve, and you should feel a strong vacuum at the end of the valve. If you place your finger over the opening, it should be sucked in strongly. Next, shake the valve; a functioning valve should rattle, indicating its internal plunger is free. If there’s no rattle, no vacuum, or the valve appears clogged with sludge, it requires replacement. Ensure the hose leading to the PCV valve and the intake manifold is also clear and free of cracks.
Can a small vacuum leak cause a Check Engine Light (CEL)?
Absolutely. Even seemingly minor vacuum leaks can introduce unmetered air into the engine, causing the oxygen sensors to detect a lean condition. The Engine Control Module (ECM) will attempt to compensate by increasing fuel delivery (positive fuel trims). If this compensation exceeds a predefined threshold, typically around 20-25%, the ECM will illuminate the Check Engine Light and store lean codes (e.g., P0171, P0174). While small, these leaks disrupt the precise air-fuel ratio critical for optimal combustion and emissions control.
What is the typical vacuum reading for a healthy 2003 Ford Expedition 5.4L engine at idle?
For a healthy 2003 Ford Expedition 5.4L engine operating at normal idle and temperature, you should expect to see a steady vacuum gauge reading between 17-22 inches of mercury (in. Hg). A reading below 17 in. Hg, especially if steady, could indicate a uniform vacuum leak or incorrect engine timing. A fluctuating or erratic needle can point to issues like worn valve guides, misfires, or intermittent vacuum leaks. Always consult a vehicle-specific service manual for exact manufacturer specifications, but 17-22 in. Hg is a reliable general range for this engine.
Are all vacuum hoses the same, and what material should I use for replacement?
No, not all vacuum hoses are the same. Vacuum hoses vary significantly in internal diameter (ID), wall thickness, and material composition. It is critical to use replacement hose with the correct ID to ensure a tight seal and proper vacuum flow. For material, standard rubber vacuum hose is common, but silicone vacuum hose is a superior choice. Silicone offers greater resistance to heat, ozone, and oil degradation, making it significantly more durable and less prone to cracking and hardening over time, especially in the high-temperature environment of an engine bay. Always use dedicated automotive vacuum hose, never generic tubing like fuel line, as it may not withstand the vacuum conditions or resist petroleum products long-term.
Step-by-Step Guide to Understanding the 2003 Ford Expedition 5.4 Vacuum Hose Diagram: Routing & Repair Guide 2026
Identify – Locate the main vacuum diagram decal typically found under the hood or in the vehicle’s service manual for your 2003 Ford Expedition 5.4.
Locate – Pinpoint the intake manifold vacuum source and key components like the PCV valve, brake booster vacuum port, EGR vacuum solenoid, and EVAP purge valve.
Reference – Use the 2003 ford expedition 5.4 vacuum hose diagram to accurately trace specific lines for PCV, EGR, EVAP (canister purge), and brake booster vacuum, noting any color codes.
Connect/Route – Ensure all vacuum hoses are correctly routed according to the diagram and securely connected to their designated ports without kinks, cracks, or excessive slack, paying attention to diameter.
Verify – Perform a visual inspection for any disconnected or brittle lines, then conduct a vacuum gauge test at the manifold to confirm proper system integrity and steady vacuum levels (typically 17-21 in. Hg at idle).
Troubleshoot – If issues like lean codes (P0171/P0174) or rough idle persist, conduct a smoke test to identify subtle leaks, or use an OBD-II scanner for further diagnosis of specific fault codes related to vacuum system performance.
Frequently Asked Questions
What are the symptoms of a vacuum leak in 2003 ford expedition 5.4 vacuum hose diagram?
Symptoms include rough idle, stalling, lean engine codes (P0171, P0174), poor fuel economy, and potential hard braking due to compromised brake booster vacuum. A persistent check engine light, often accompanied by these performance issues, may also indicate a vacuum leak within the 2003 ford expedition 5.4 vacuum hose diagram.
How do I find a vacuum leak in 2003 ford expedition 5.4 vacuum hose diagram?
Finding a vacuum leak on the 2003 Ford Expedition 5.4 often involves a smoke test, listening for a distinct hissing sound, or carefully spraying carb cleaner near suspected lines while monitoring engine RPM. Visual inspection for cracked, hardened, or disconnected hoses, particularly around the PCV valve and EGR vacuum lines, is the critical first step.
What color are the vacuum lines on 2003 ford expedition 5.4 vacuum hose diagram?
Ford utilized various colored vacuum lines on the 2003 Expedition 5.4, such as green for EVAP system components (canister purge), red for HVAC controls, and black for general engine vacuum and brake booster vacuum. Refer to the specific under-hood diagram for precise color-coding relative to the component function within your 2003 ford expedition 5.4 vacuum hose diagram.
What does the 2003 ford expedition 5.4 vacuum hose diagram EVAP system do?
The 2003 Ford Expedition 5.4 EVAP system captures fuel vapors from the fuel tank and charcoal canister, preventing their release into the atmosphere. It then purges these vapors into the engine to be burned during specific driving conditions, reducing harmful emissions and optimizing fuel efficiency as part of the 2003 ford expedition 5.4 vacuum hose diagram.
How do I replace vacuum lines on 2003 ford expedition 5.4 vacuum hose diagram?
To replace vacuum lines on your 2003 Ford Expedition 5.4, disconnect one old line at a time to maintain routing accuracy. Cut new hose to the exact length using the correct inner diameter (e.g., 5/32″ or 1/4″), ensuring secure connections to all fittings. Use a hose pick for stubborn or hard-to-reach connections.
What tools do I need to diagnose 2003 ford expedition 5.4 vacuum hose diagram vacuum issues?
Diagnosing vacuum issues on a 2003 Ford Expedition 5.4 typically requires an OBD-II scanner for retrieving diagnostic trouble codes, a vacuum gauge for manifold pressure readings, and a smoke machine for precise leak detection. A flashlight, basic pliers, hose cutters, and a spray bottle with soapy water are also essential tools for the 2003 ford expedition 5.4 vacuum hose diagram.
